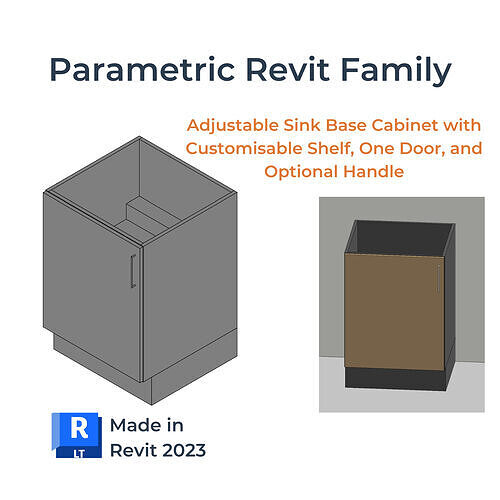

PARAMETRIC REVIT FAMILY Sink Base Cabinet Shelf 1 Door Handle 3D model

This fully parametric Revit family lets you create an adjustable sink base cabinet with a customisable shelf, one door, an optional handle, and full material control. Designed for kitchen, office, or storage spaces, it adapts easily to different dimensions and design needs.

• Includes 2 predefined size variations compatible with standard kitchen and storage unit dimensions for quick placement.
• Adjust cabinet frame dimensions: width, depth, cabinet height, base recess and height, top rail depth and height, and back recess block height and depth to fit your layout.
• Set individual thickness for frame, back panel, shelf, and door thicknesses to match brand requirements.
• Switch between left- and right-handed cabinet orientation with a single setting.
• Position the shelf manually, or toggle it off entirely.
• Choose between recessed and slab door fronts. When enabled, the recessed style automatically replaces the slab style. Customise recess offset and depth as needed.
• Enable or disable the cabinet handle as needed.
• Customise handle length, radius, standoff, edge offset, and vertical placement.
• Assign materials independently to the frame, back panel, base, shelf, door, and handle.
• Includes symbolic swing arcs and door side indicators for clear documentation in 2D views. Supports both left- and right-handed cabinet orientation.
• Designed for efficiency – lightweight and easy to work with in real projects.

Why This Family?

• Built from scratch using Revit best practices
• Designed for professional BIM workflows
• No cleanup required – just load and use it in your project
• Easy to modify in the Family Editor – with clean reference planes, named parameters, and tooltips for quick adjustments
• Includes a clear, concise user guide for fast setup

Compatibility & Details:

• Formats: .RFA (Revit Family)
• Family File Size: 868 KB
• Adjustable Sizes: All key dimensions are fully editable
• Revit Version: Created in Revit 2023 (not backward-compatible)
• Intended Use: Residential & commercial interior design
