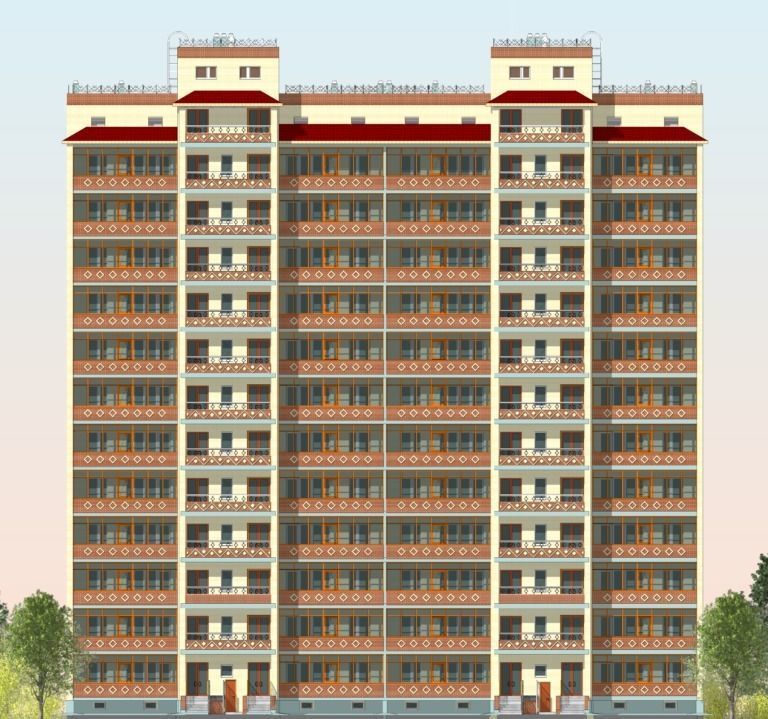

12-story residential building Revit modeling

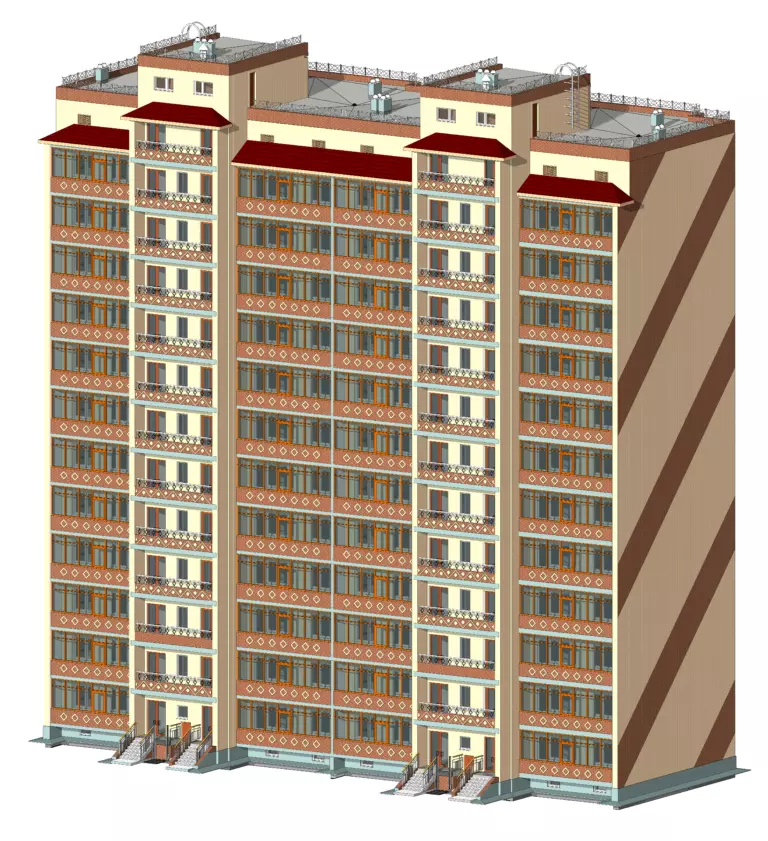

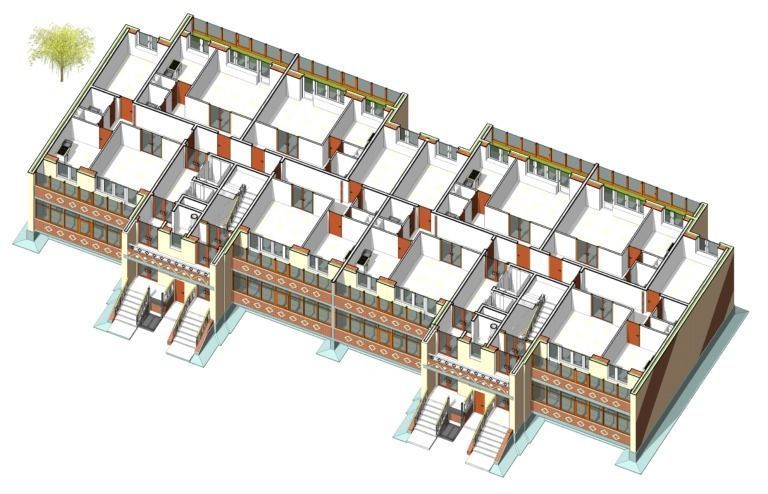

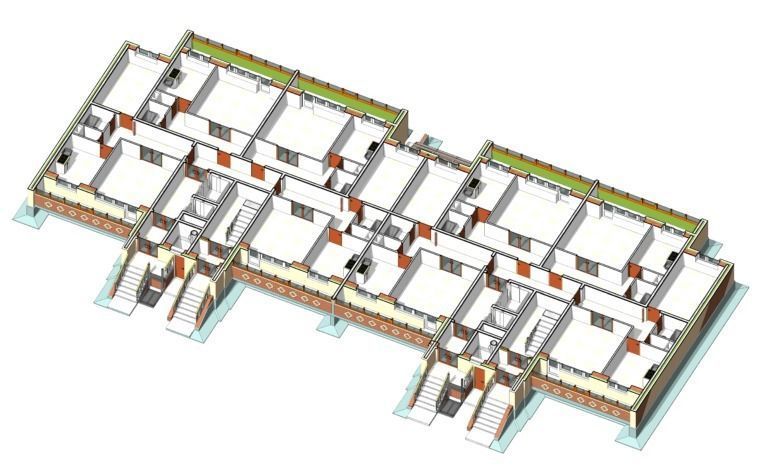

On the ground floor there are public areas. Residential apartments are located on the 1st and next floors.The 3D model includes walls, floors, ceilings, stairs, roof structures as well as all windows and doors.
Revit 2020, AutoCAD and IFC files

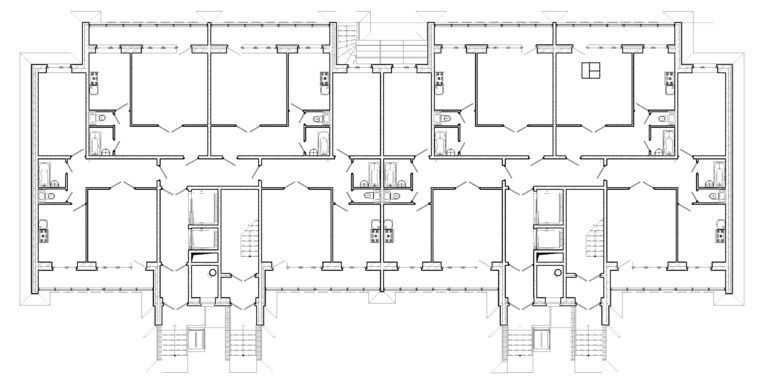

All the corresponding planimetries under standard
LOD 350 - 400
Tables and corresponding worksheets of the construction
Project entirely in Russian
Blueprints in PDF

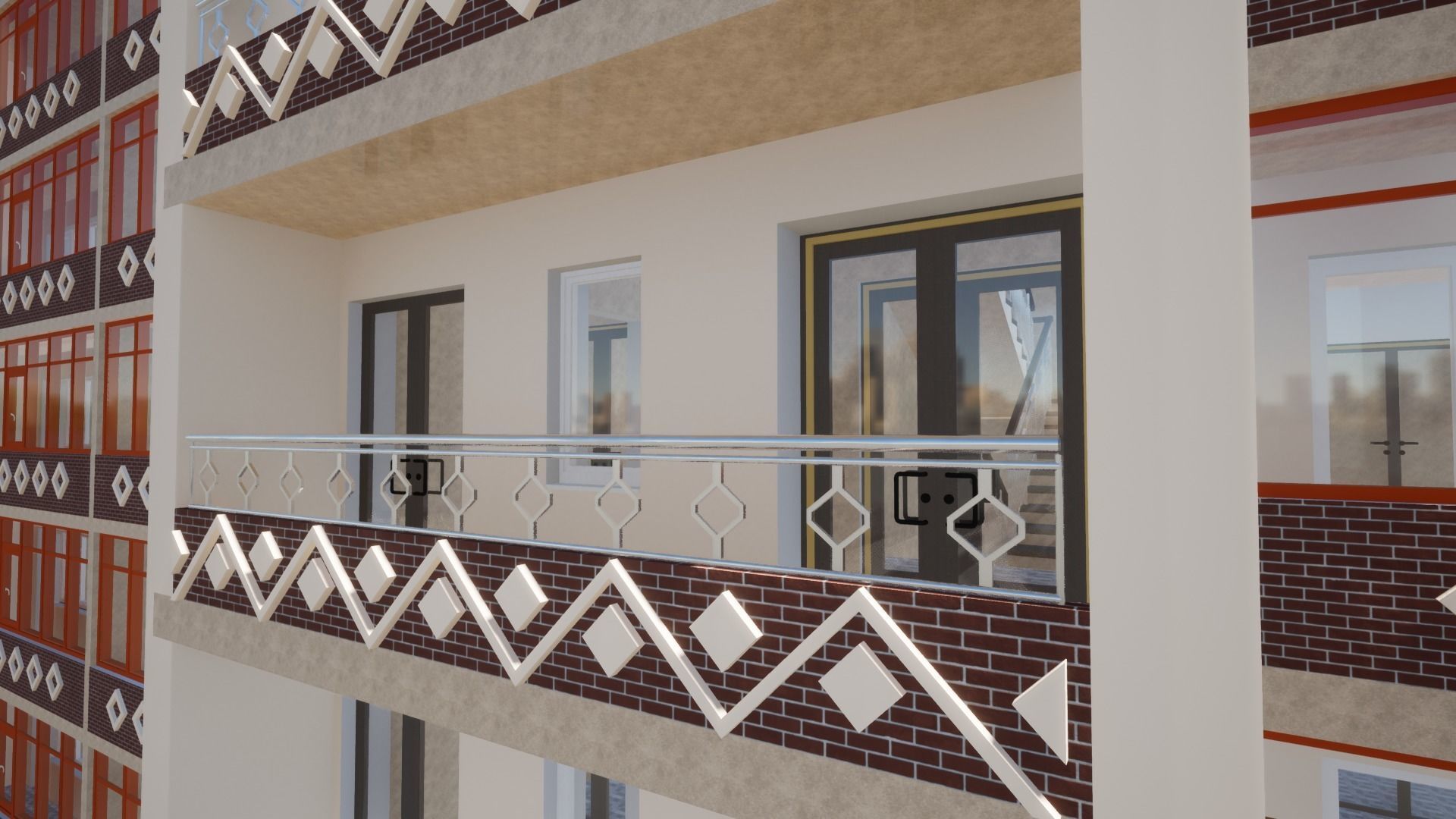

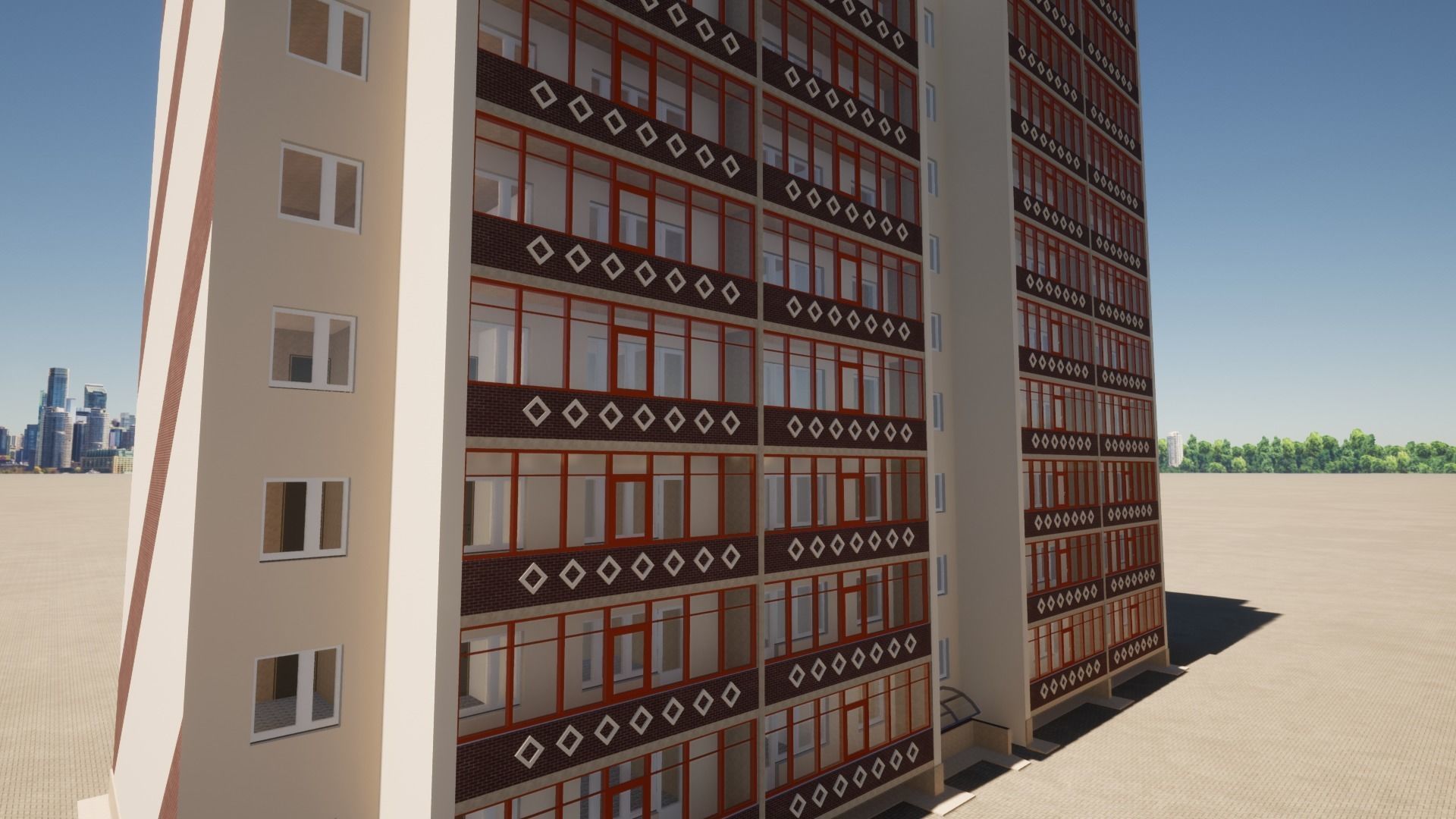

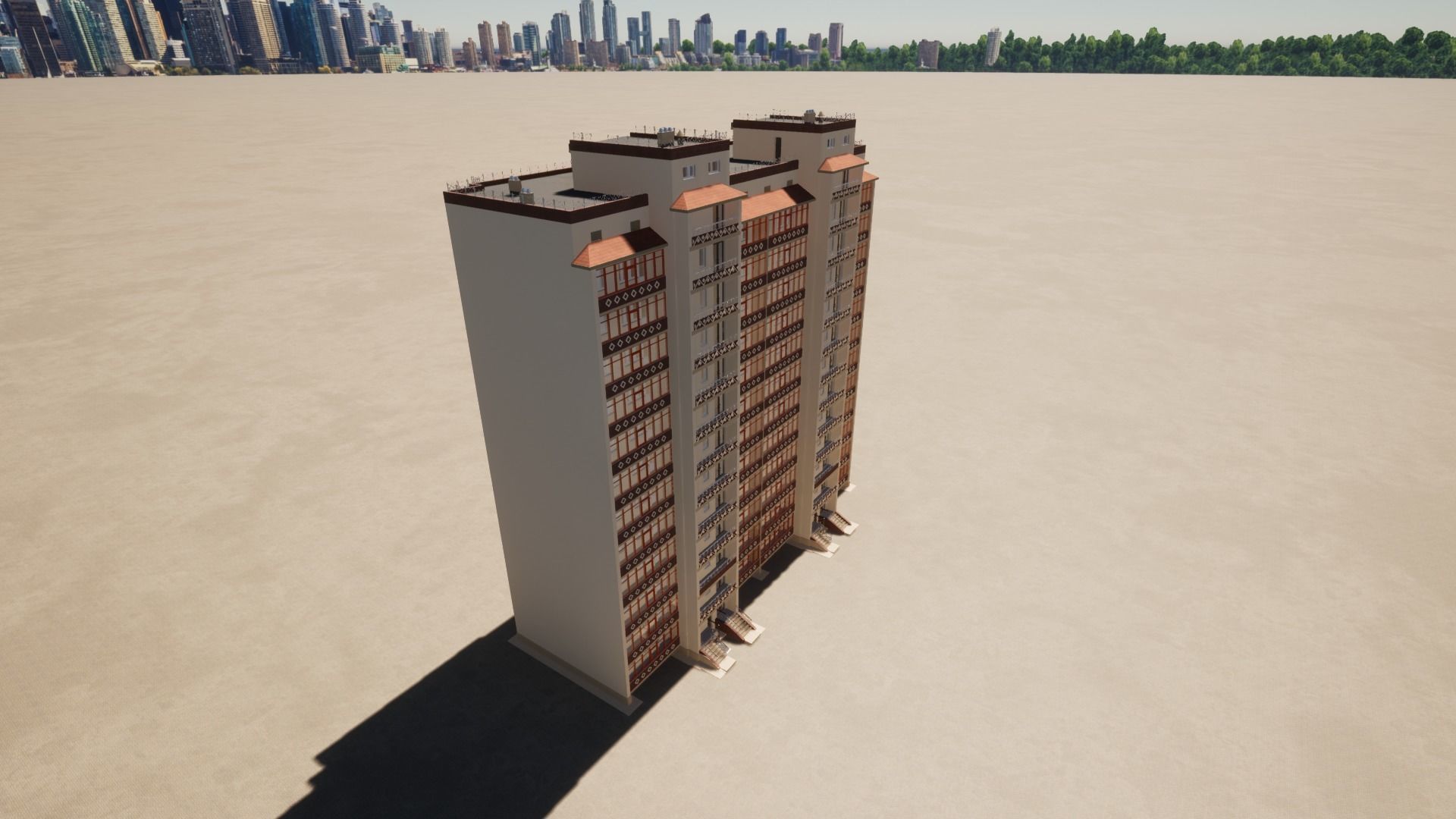

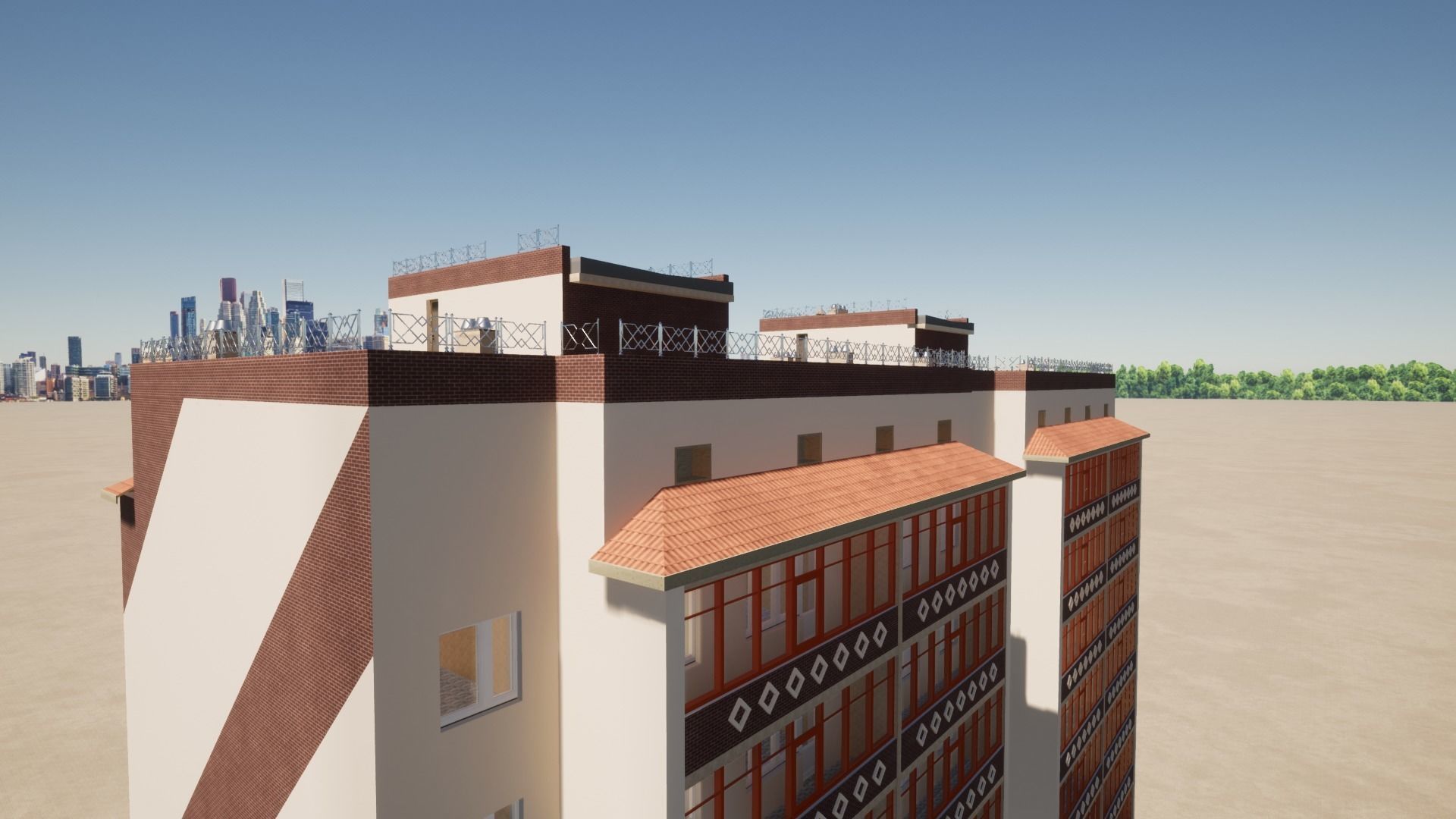

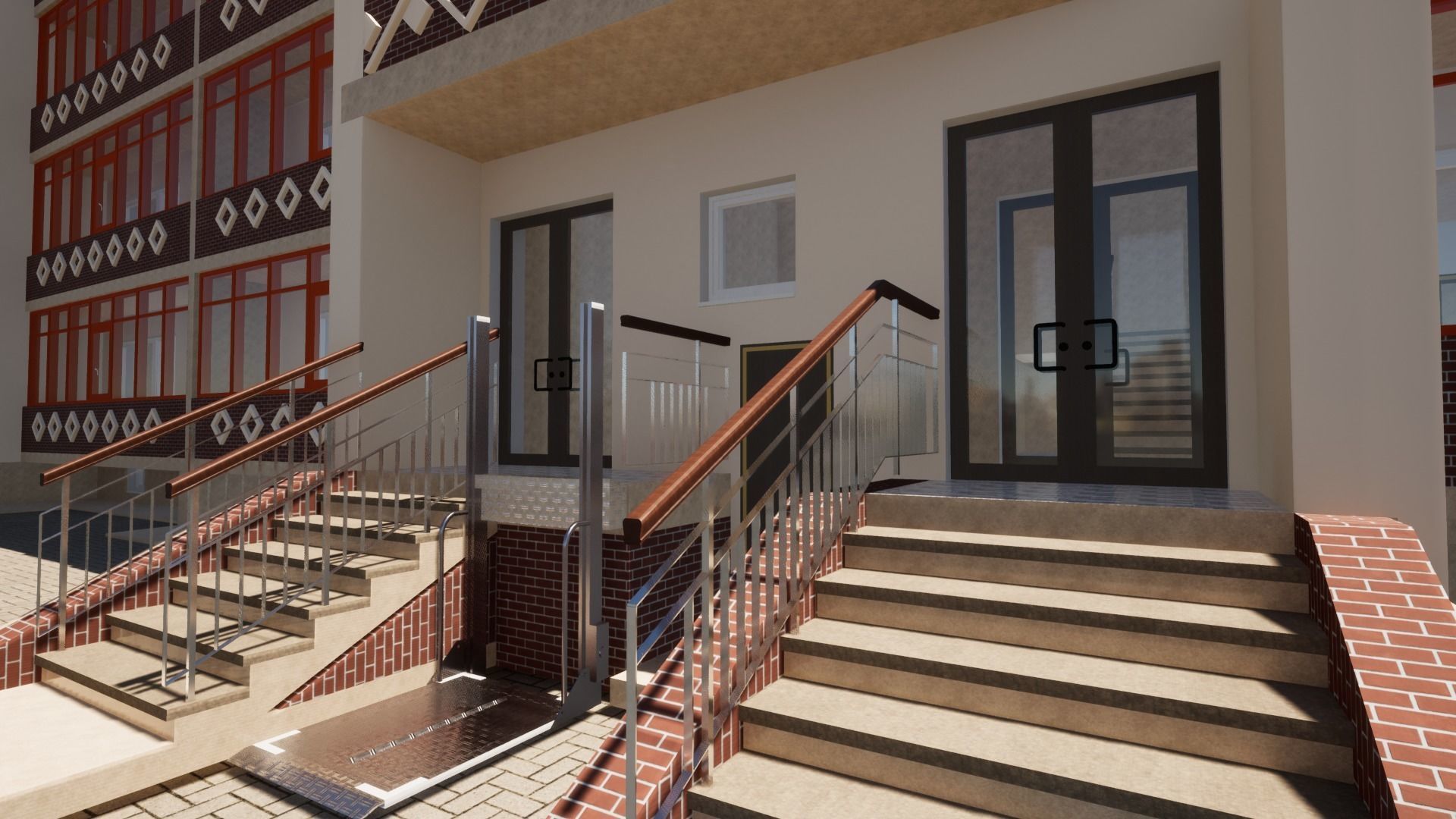

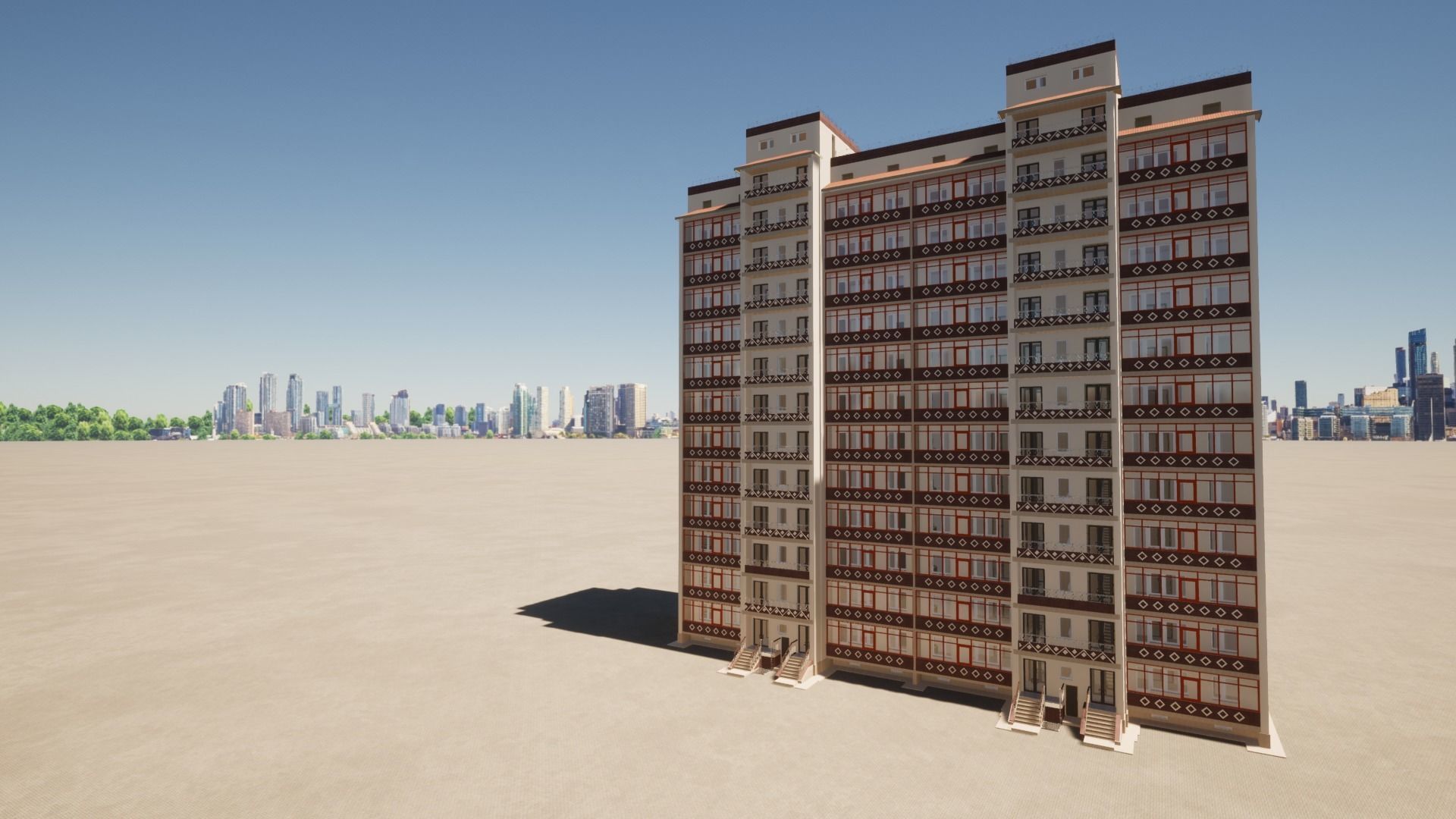

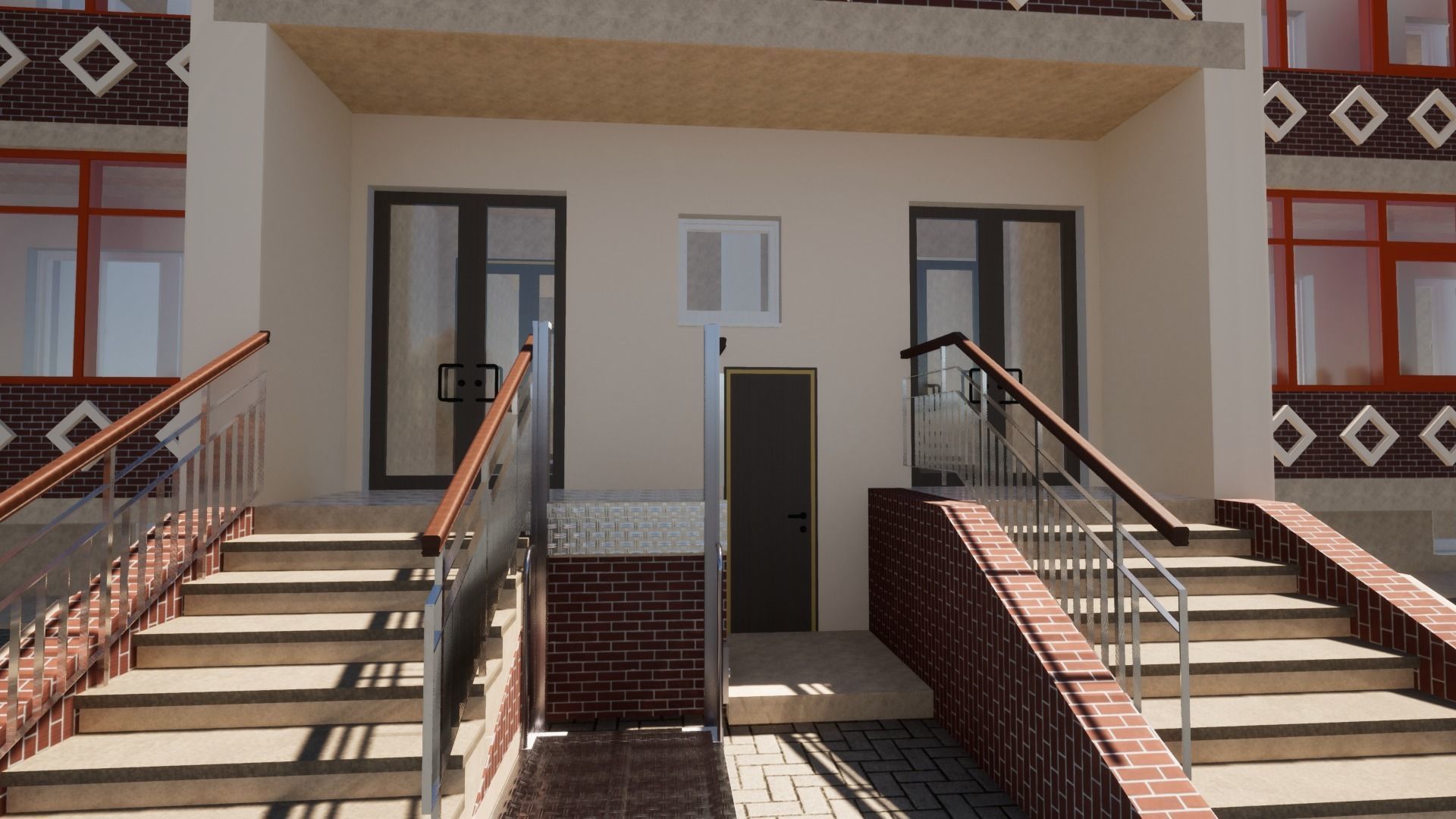

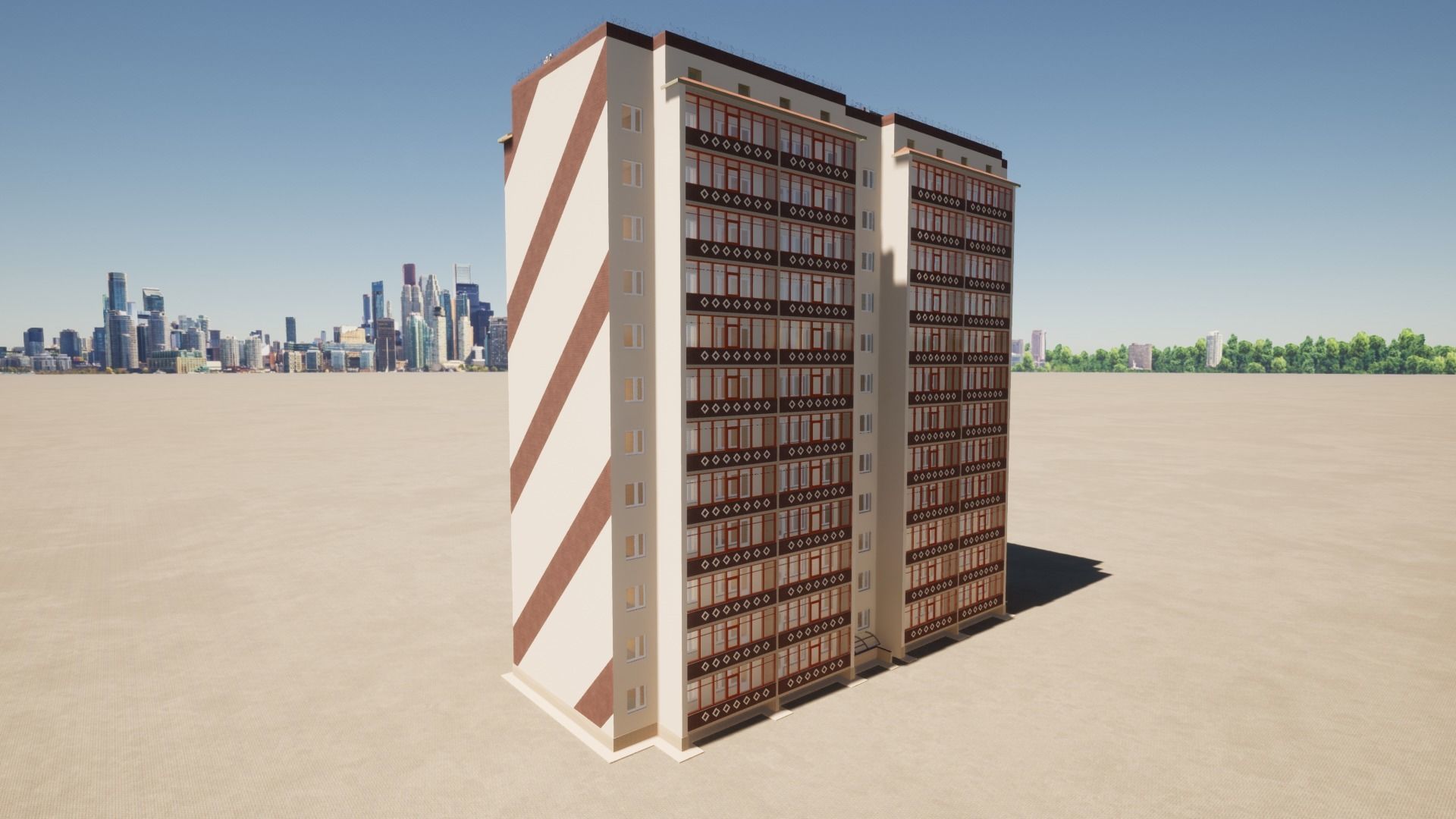

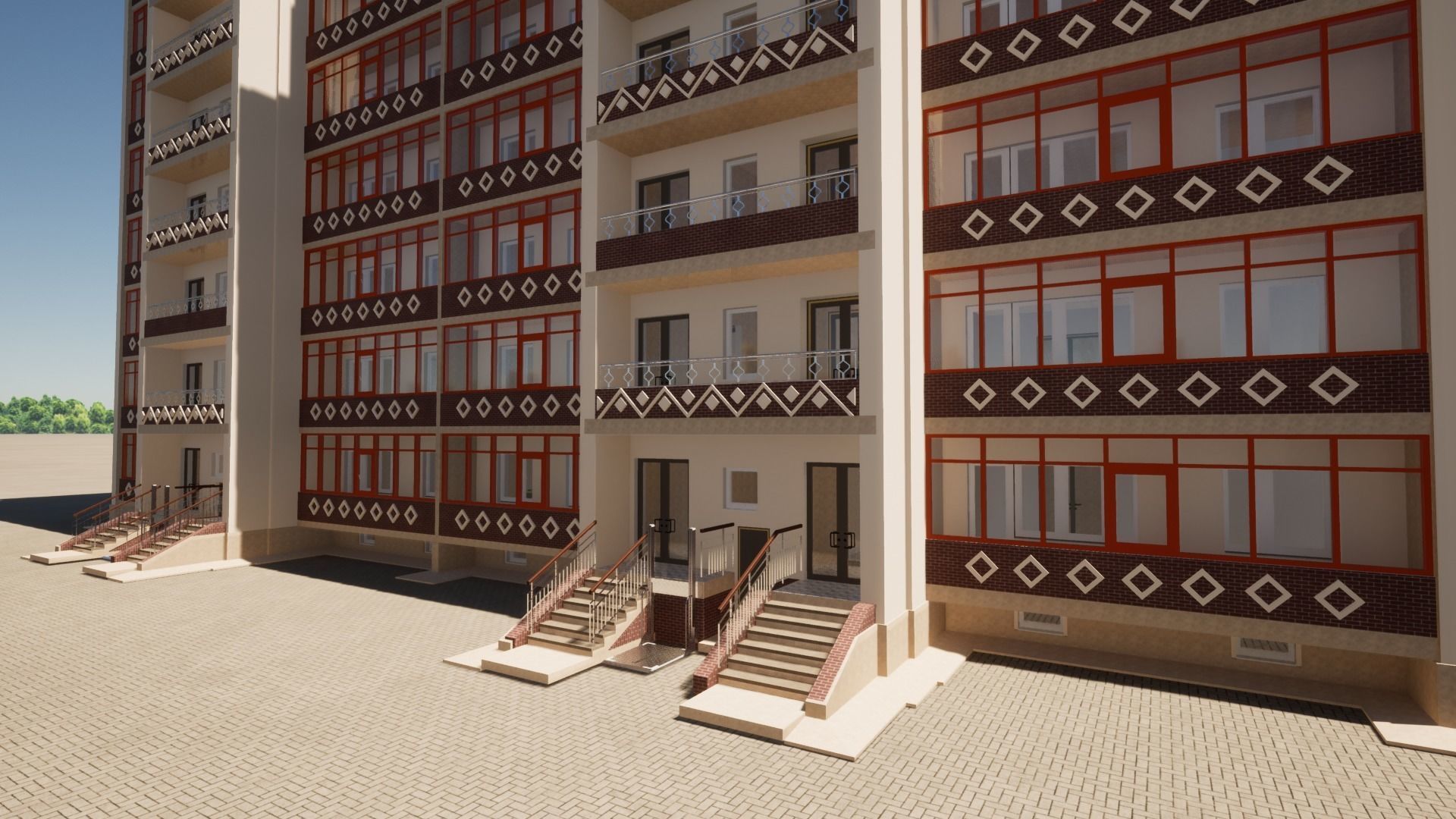

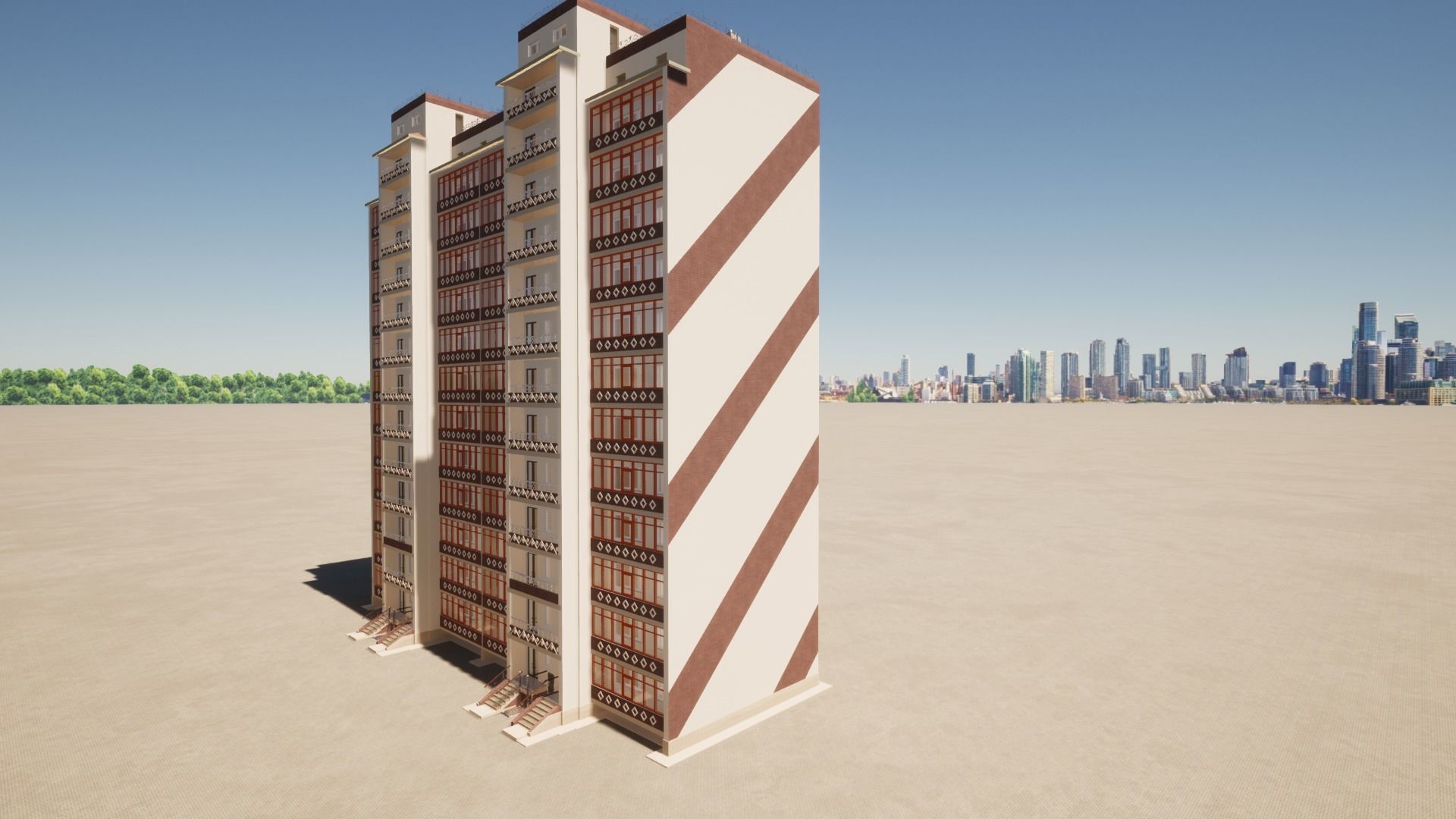

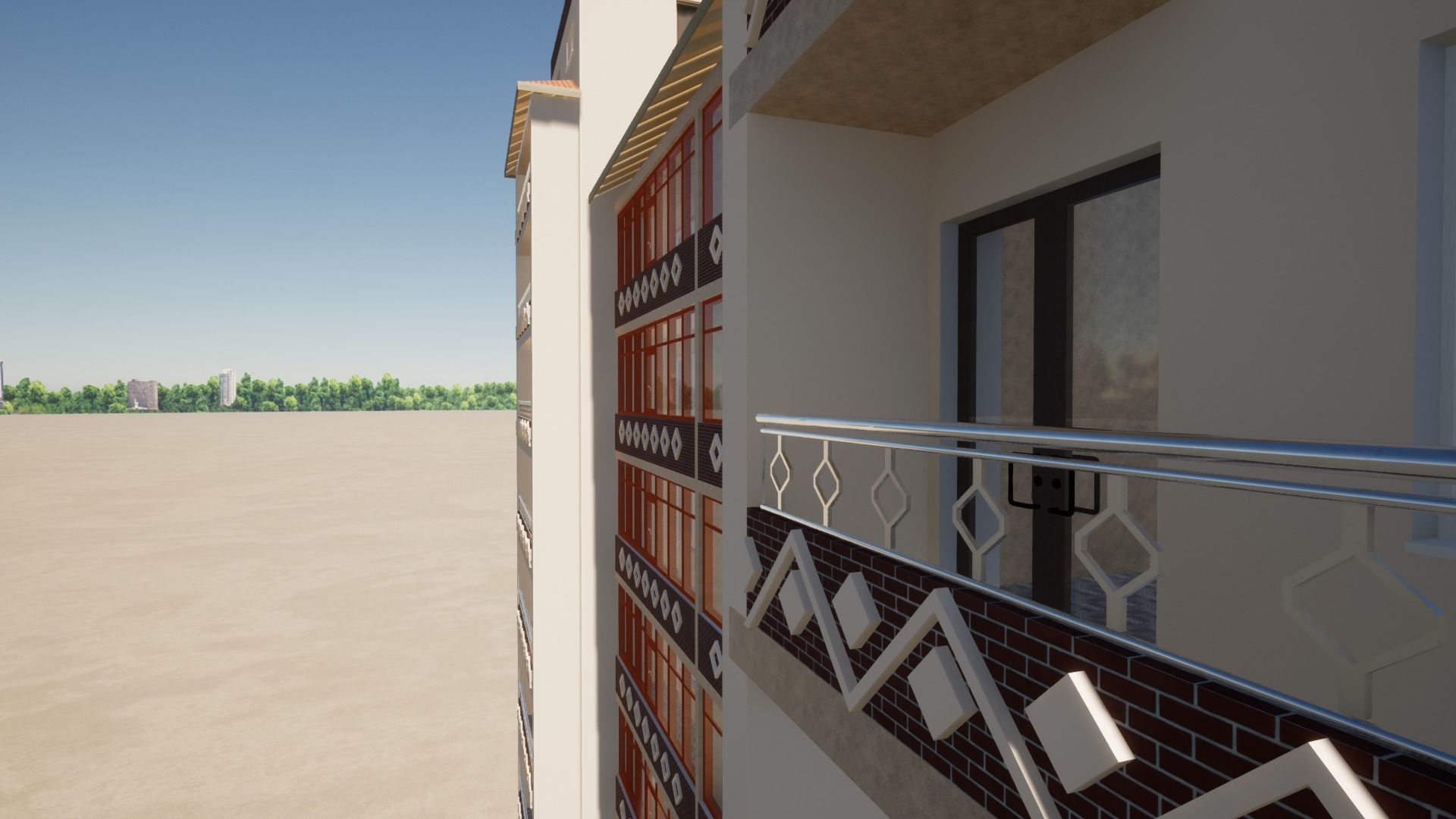

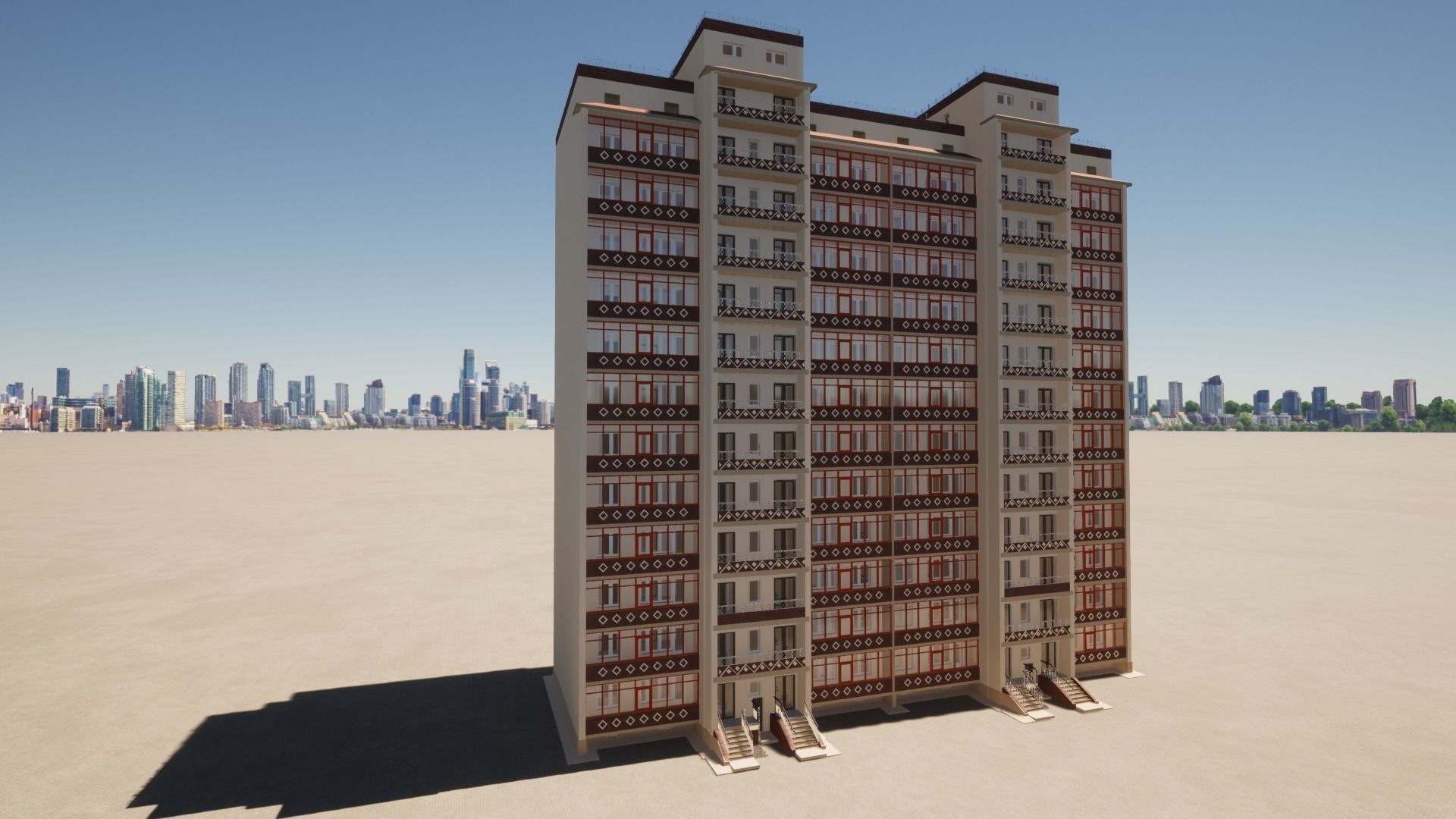

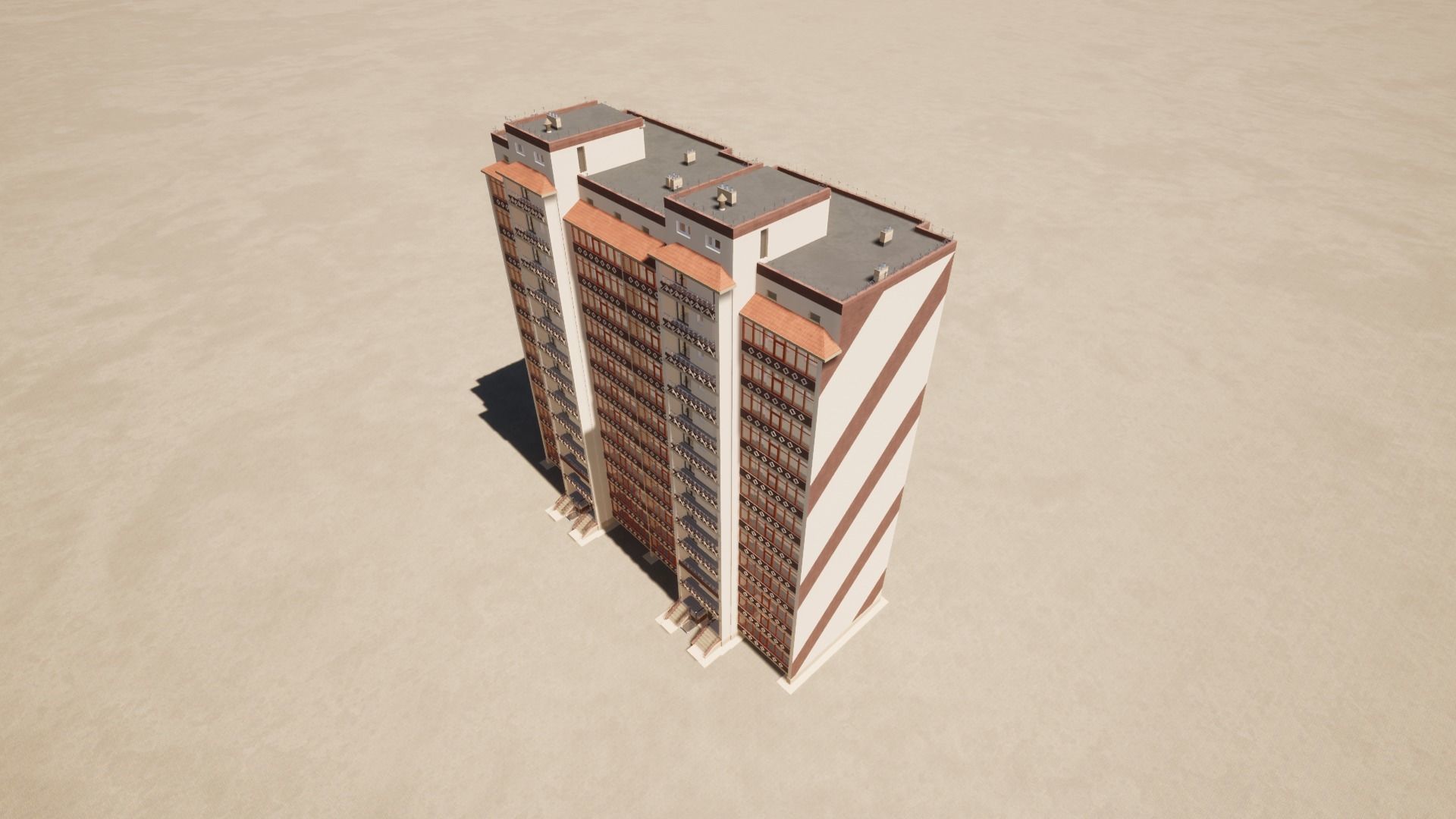

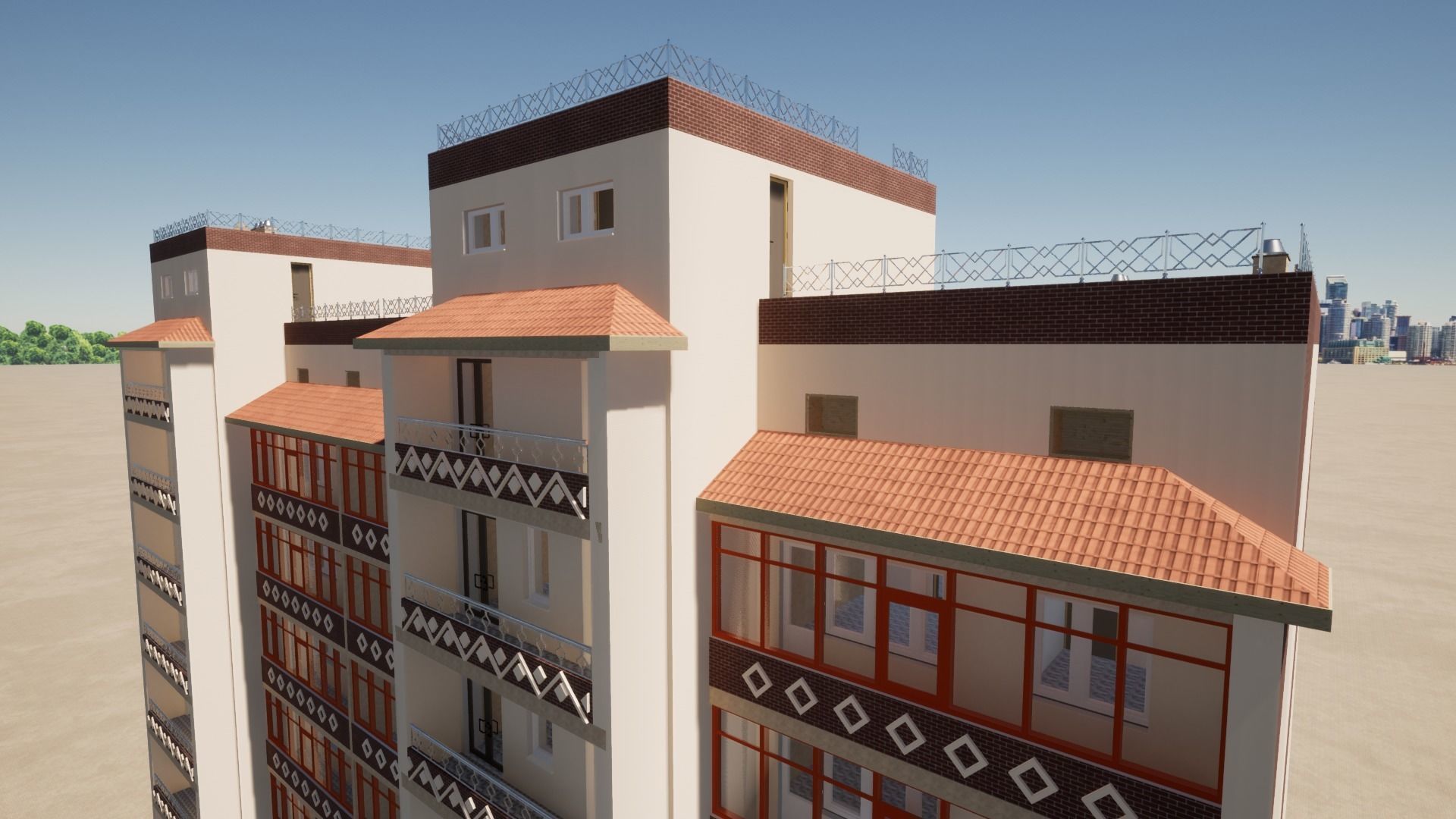

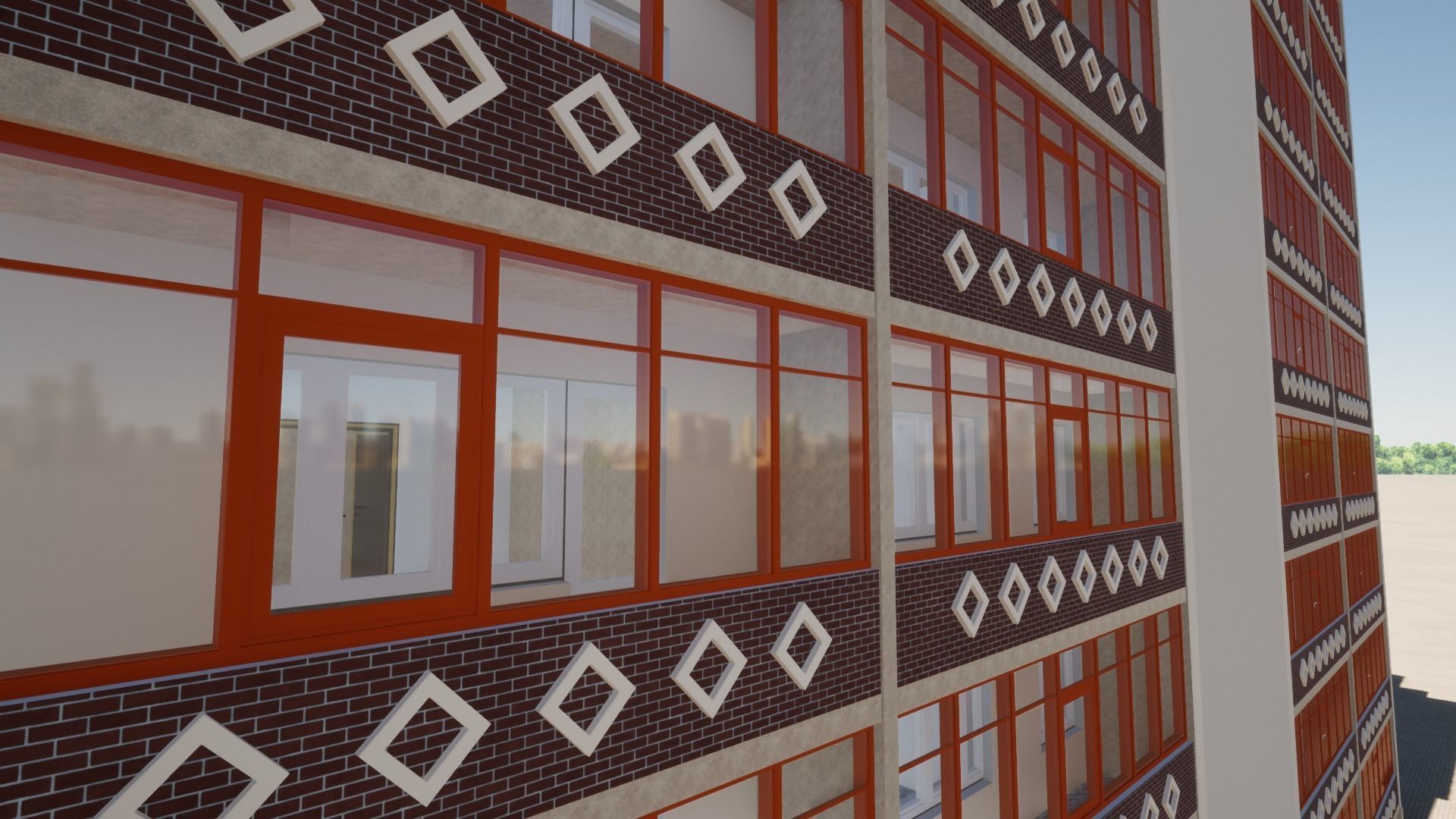

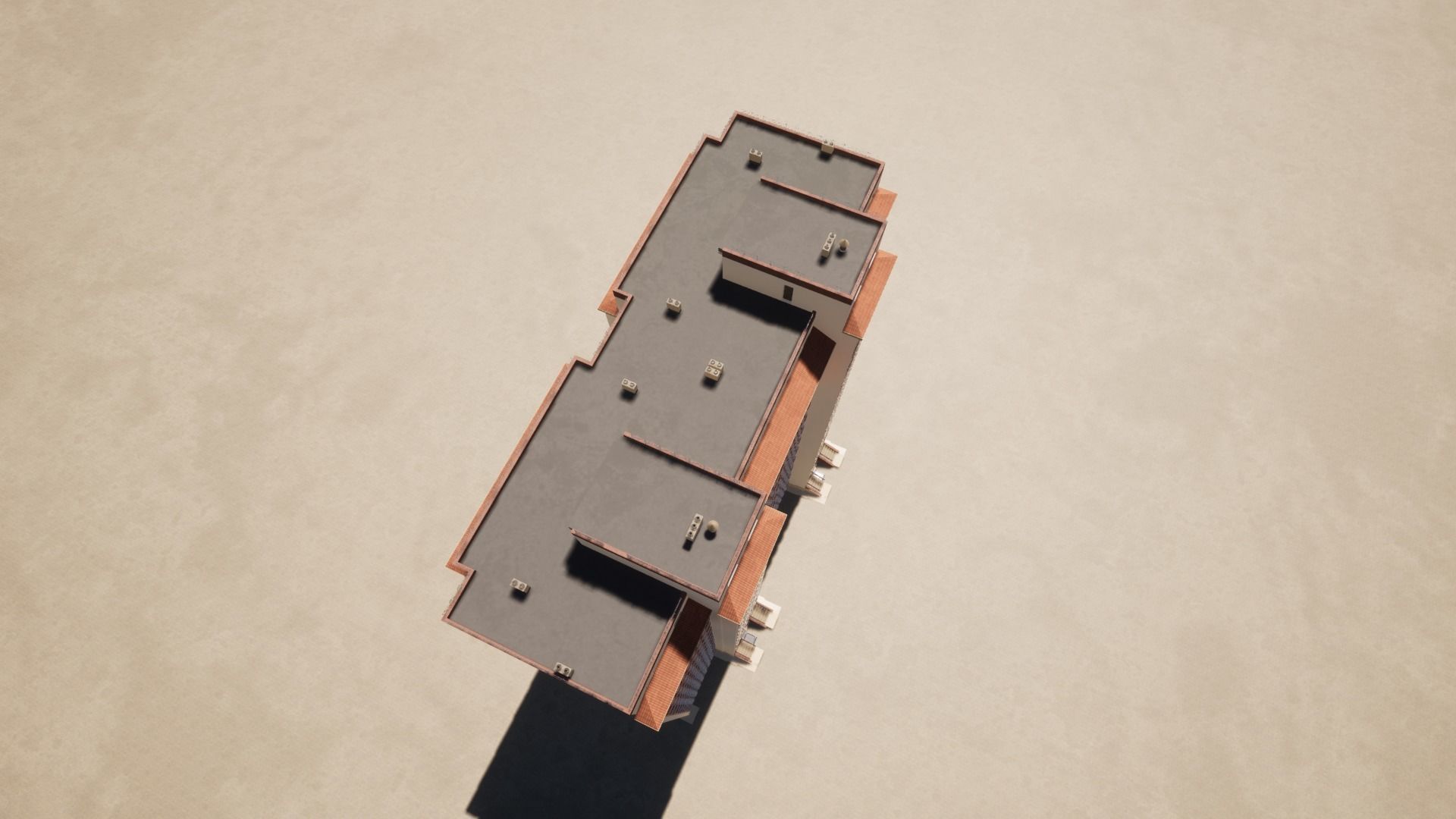

Renders made in Twinmotion 2020.1
