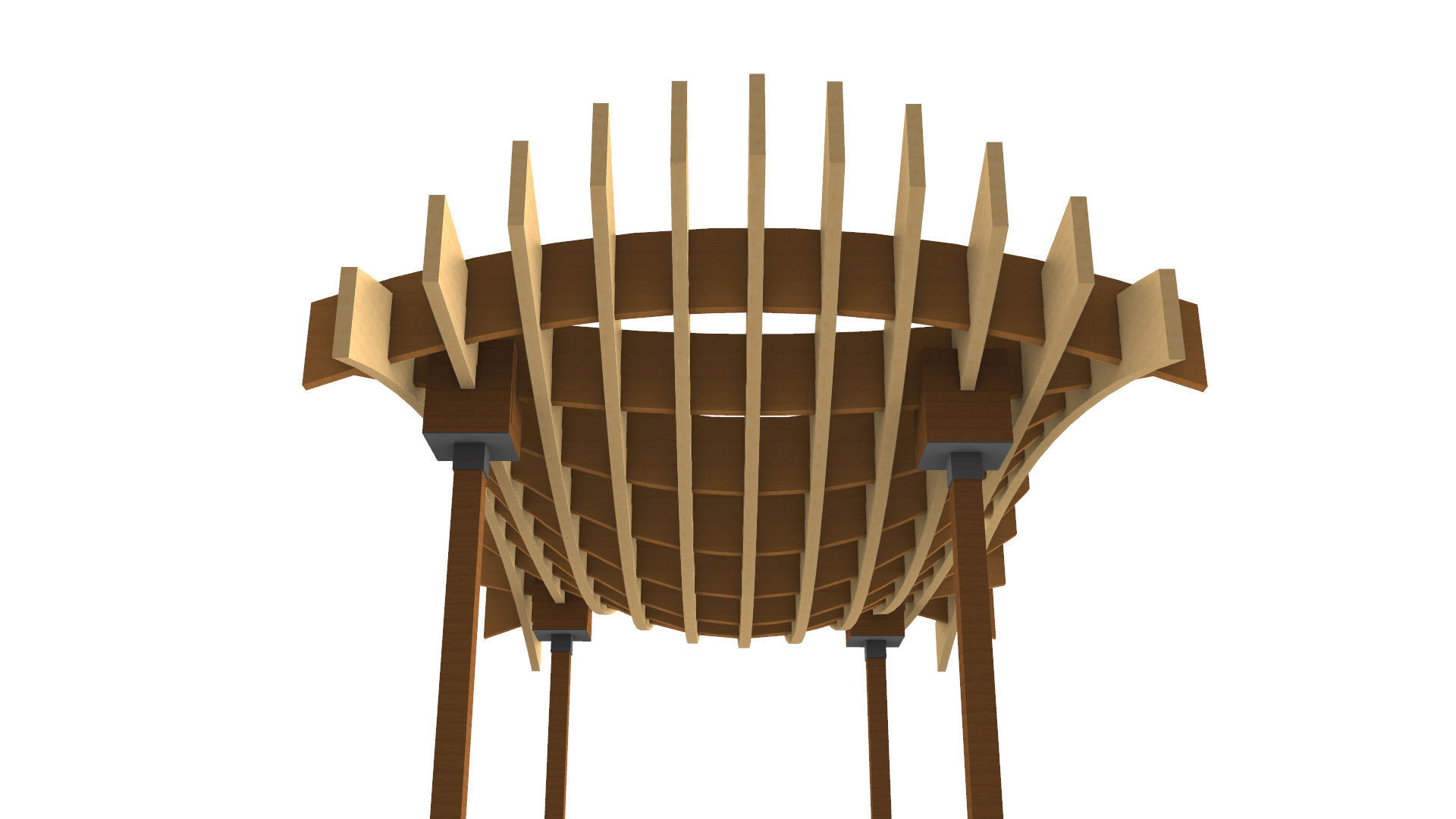

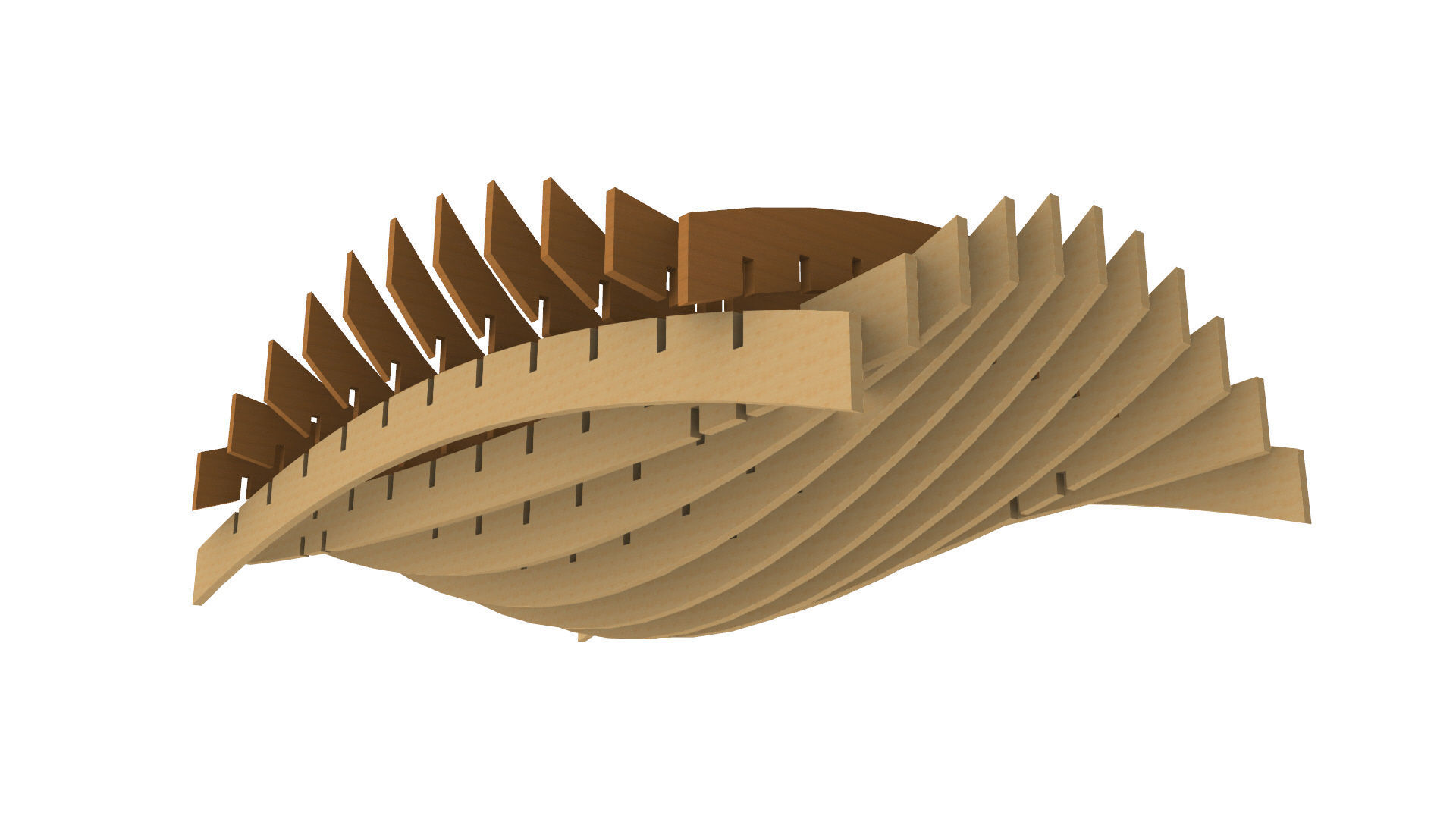

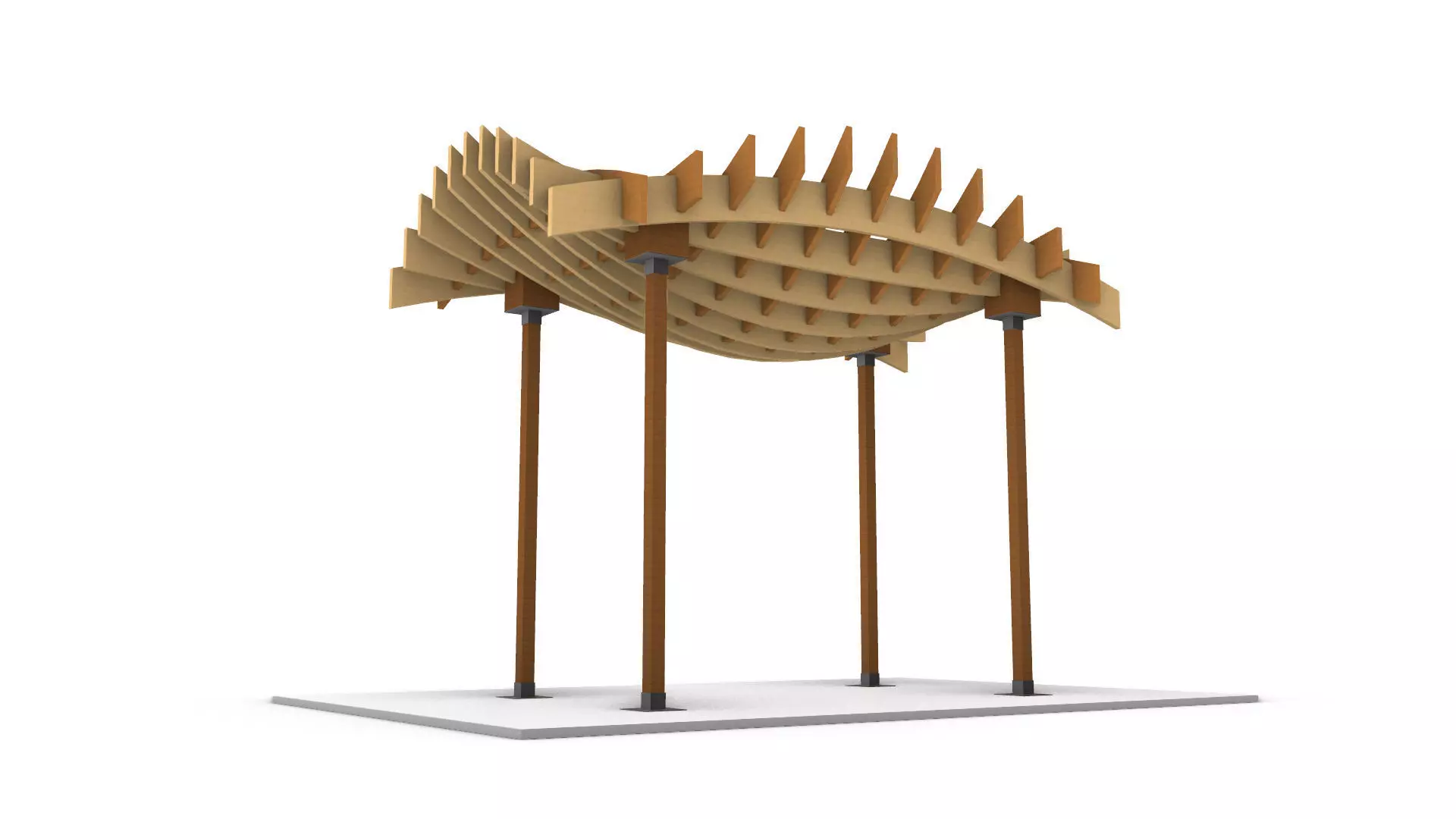

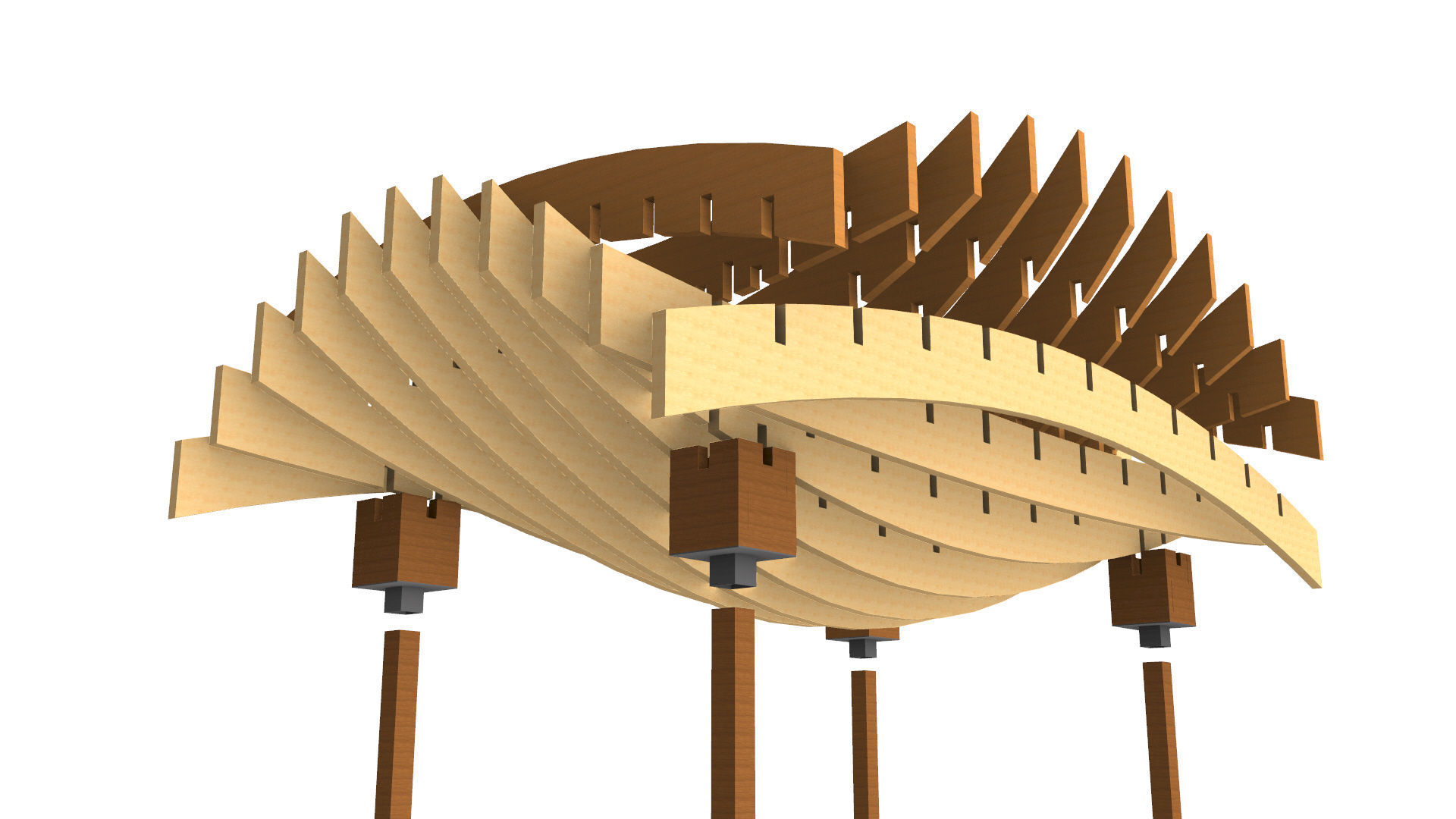

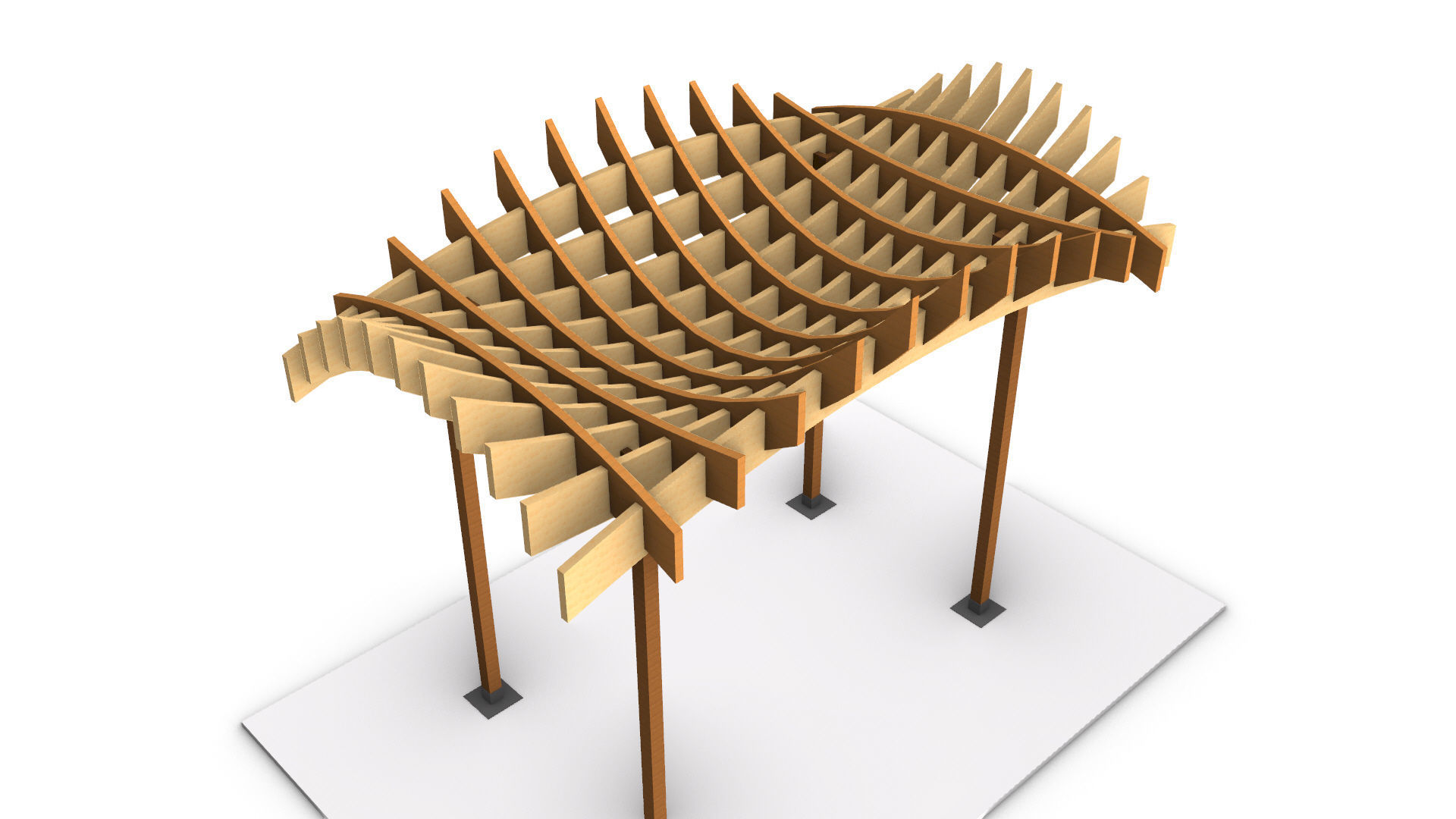

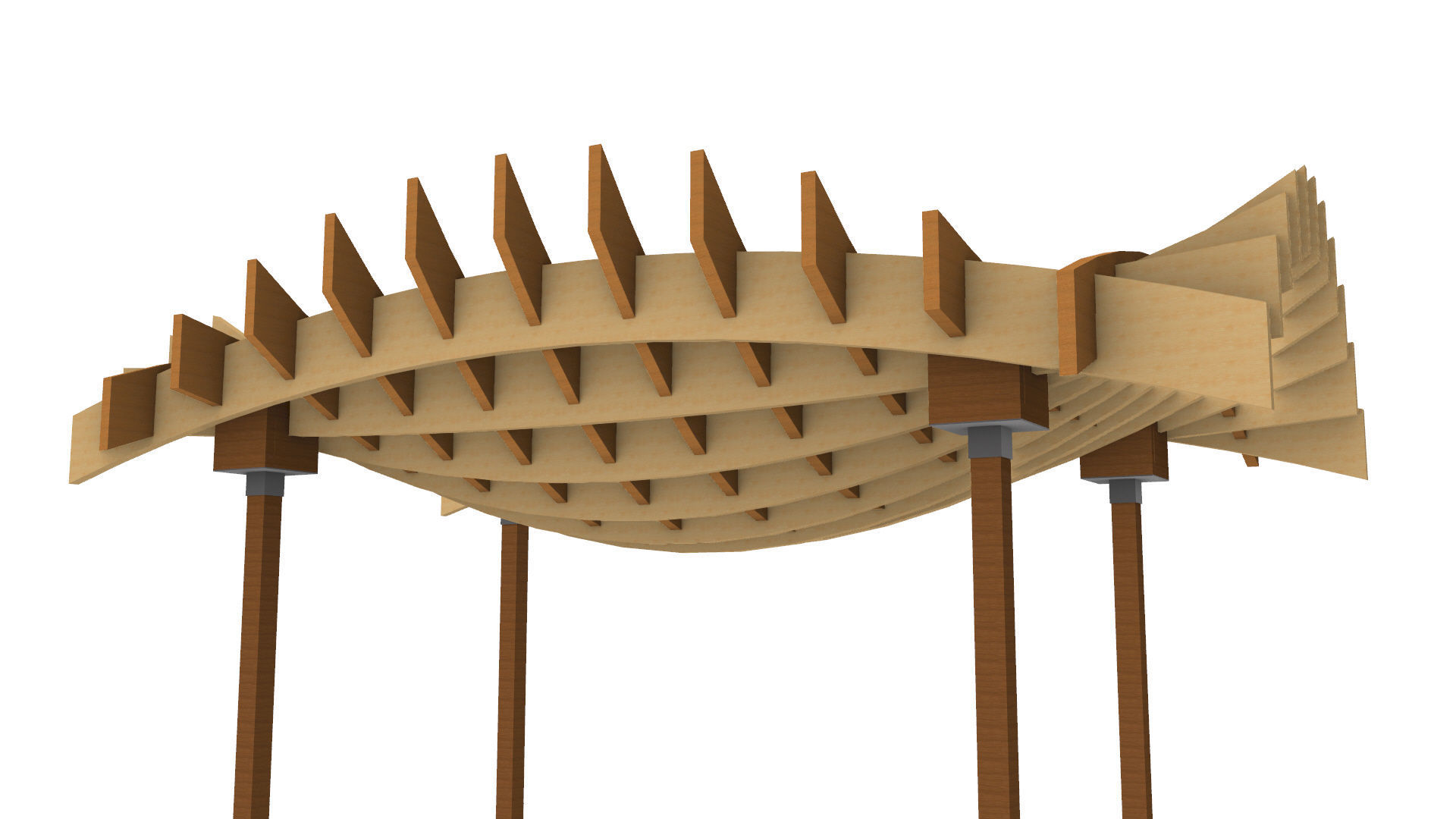

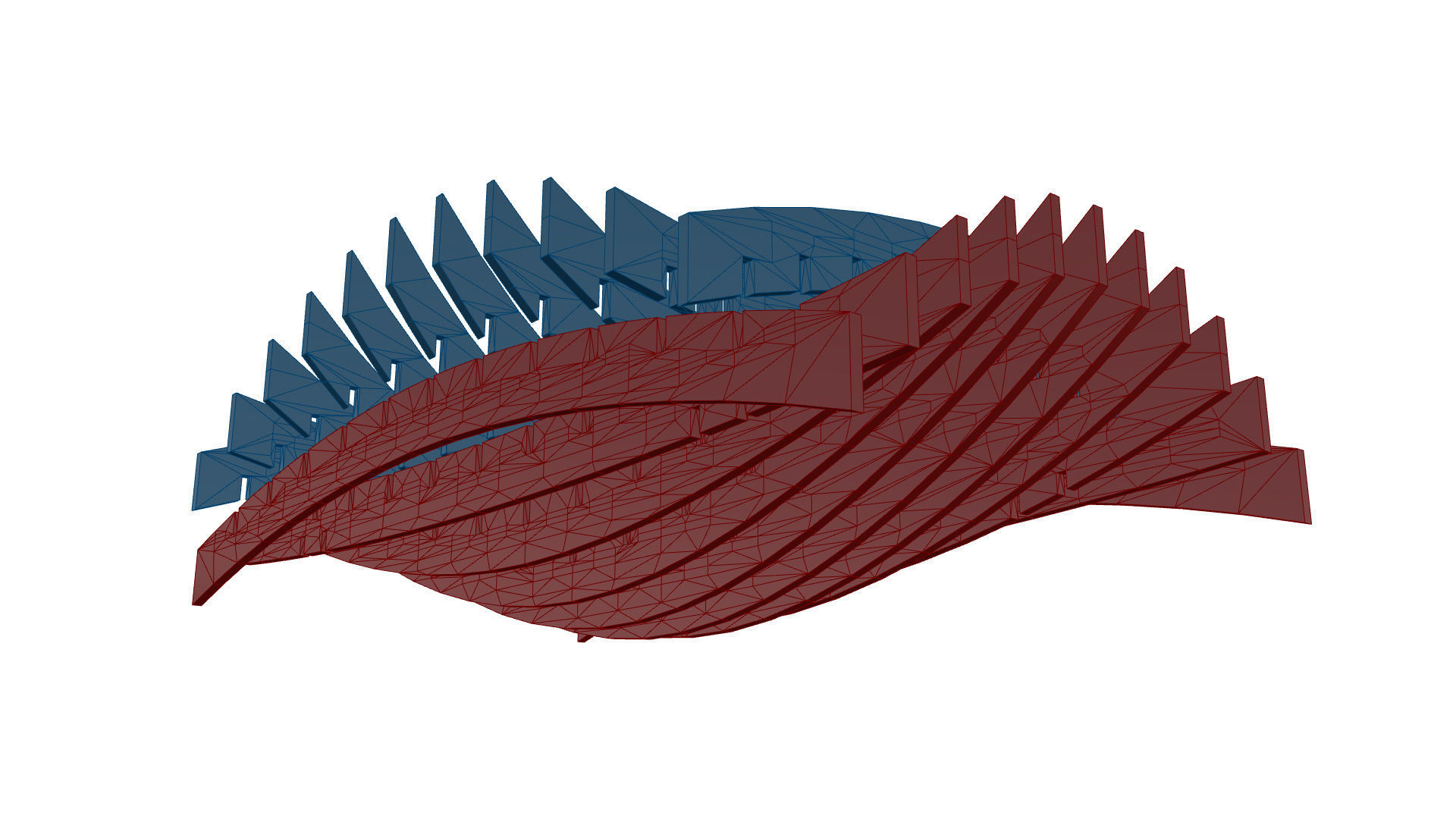

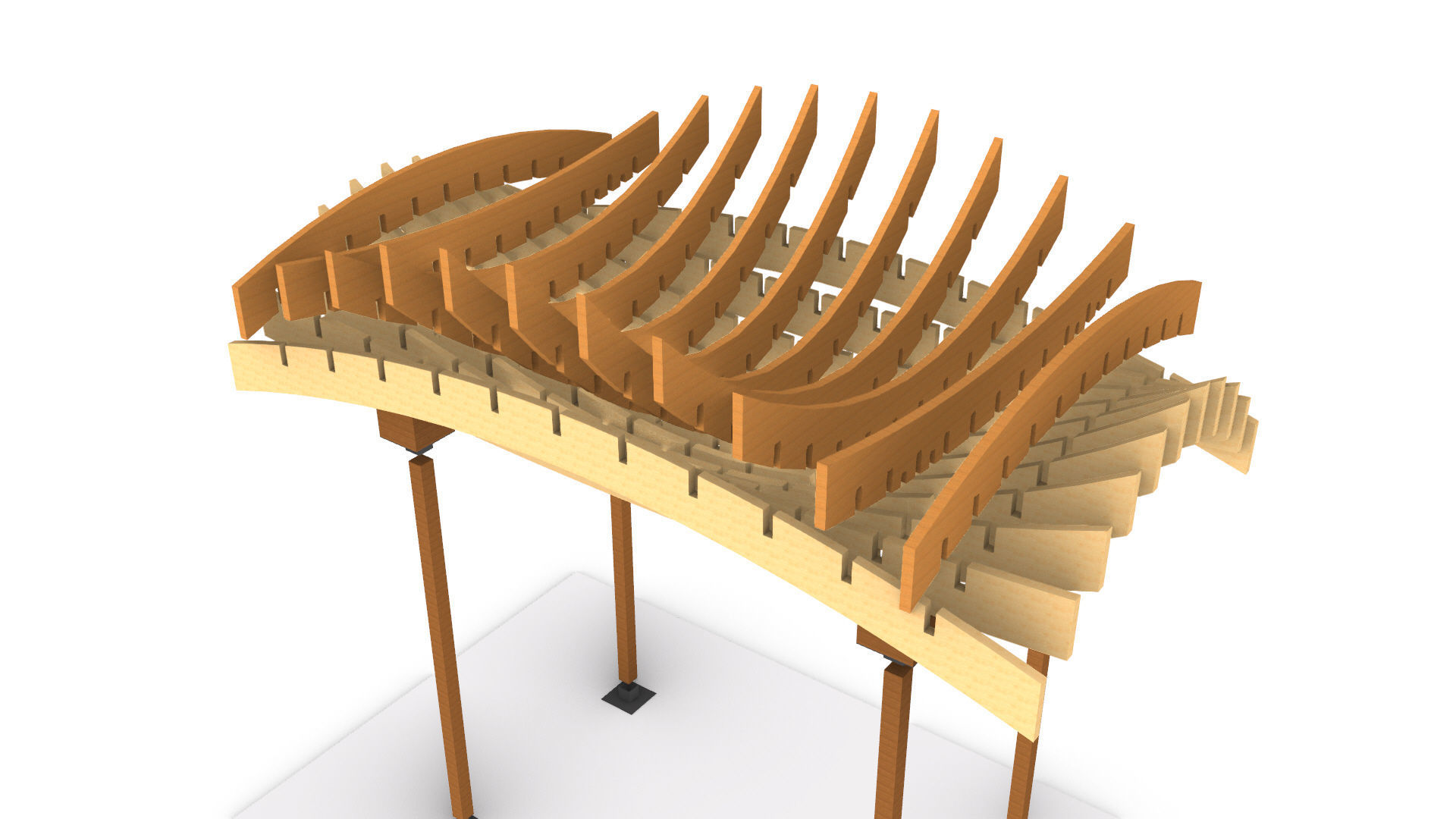

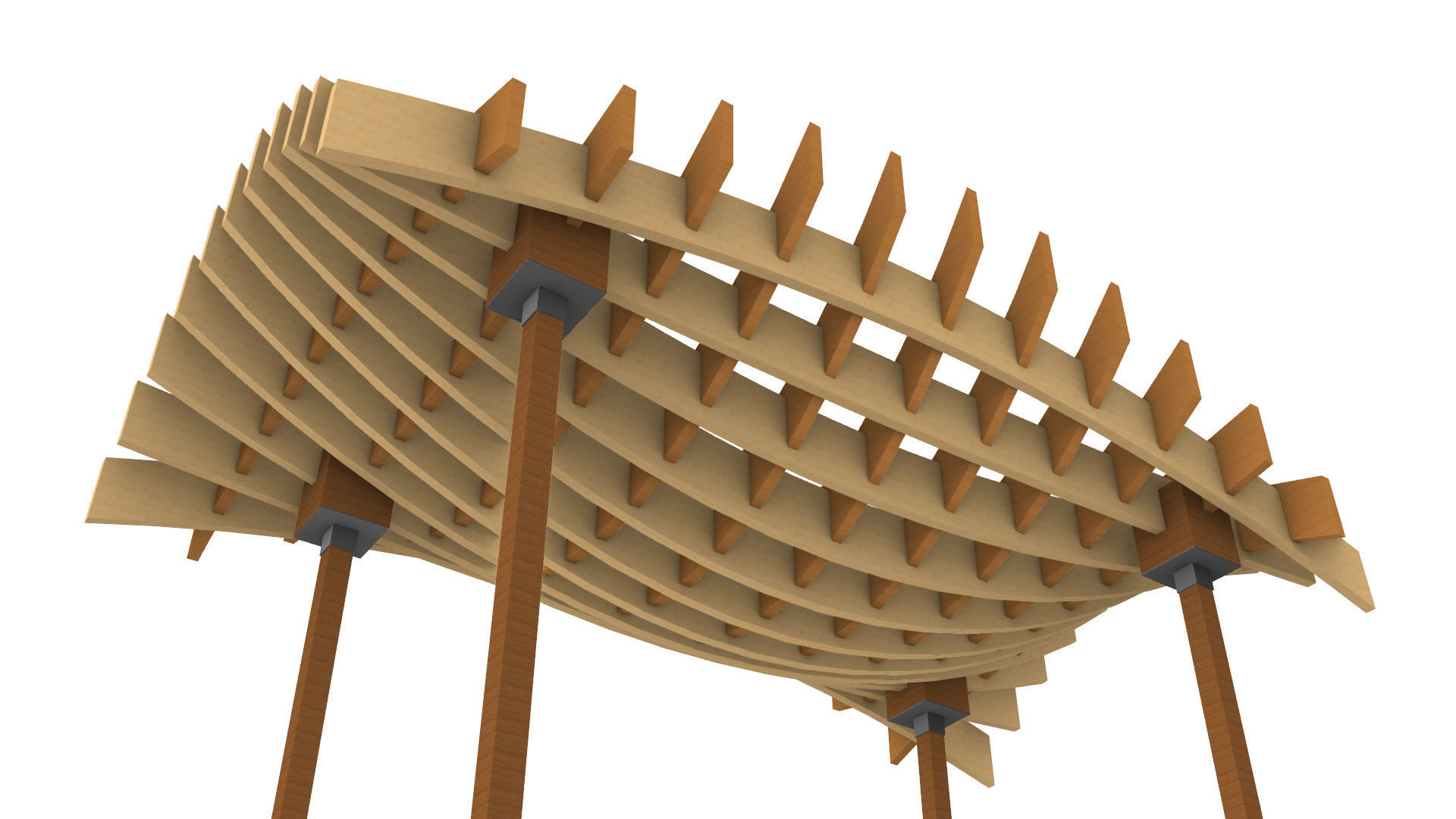

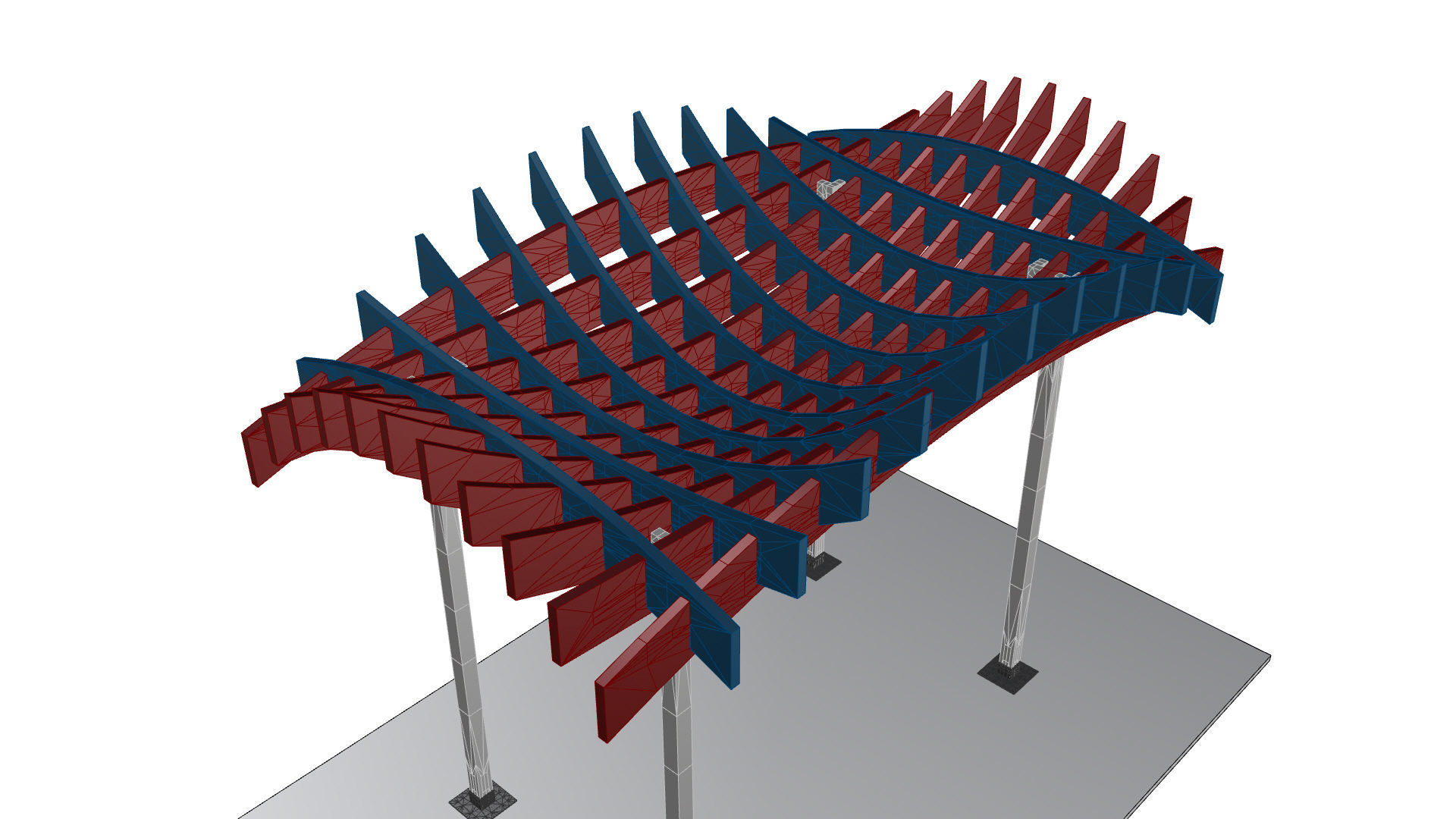

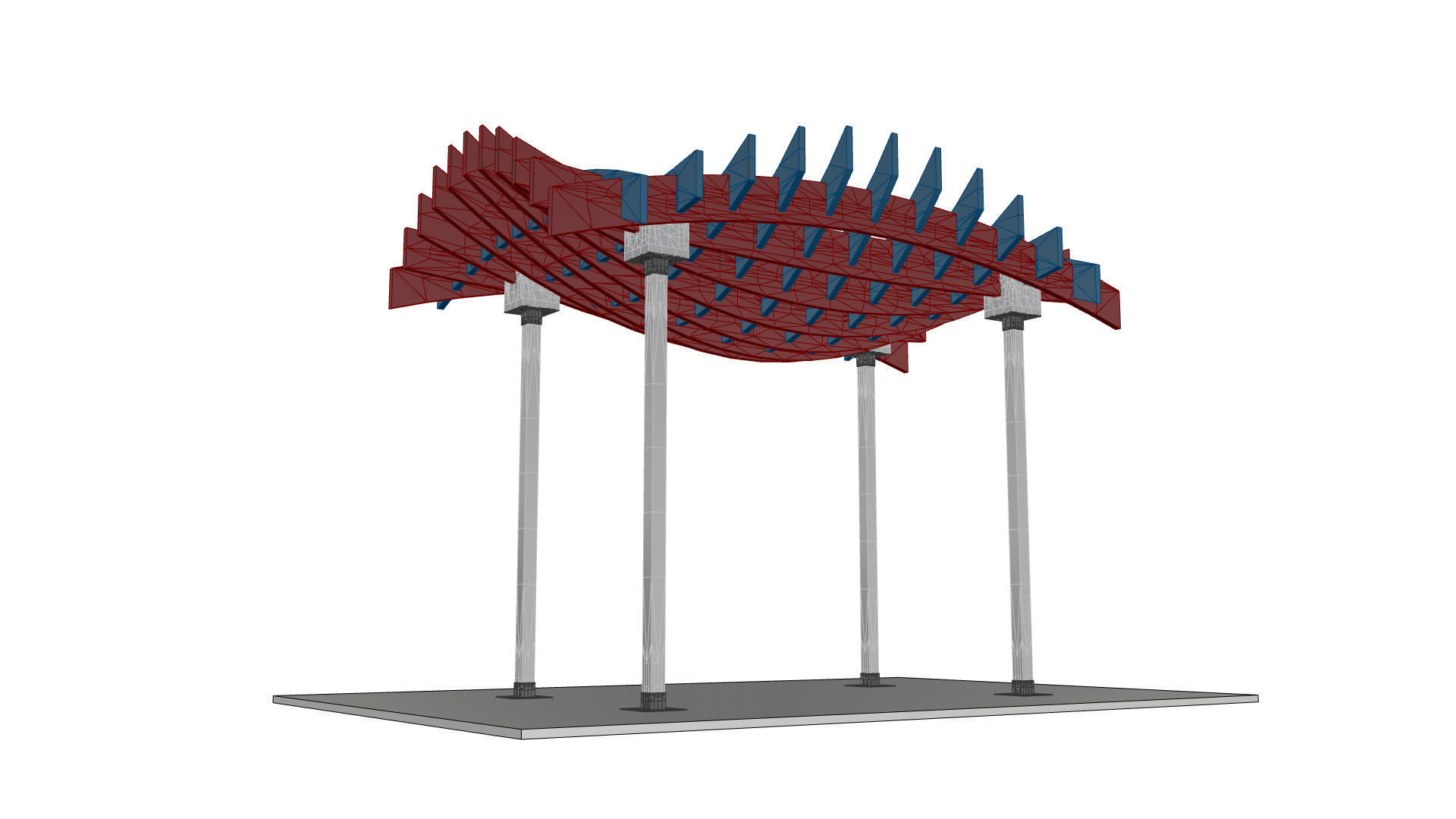

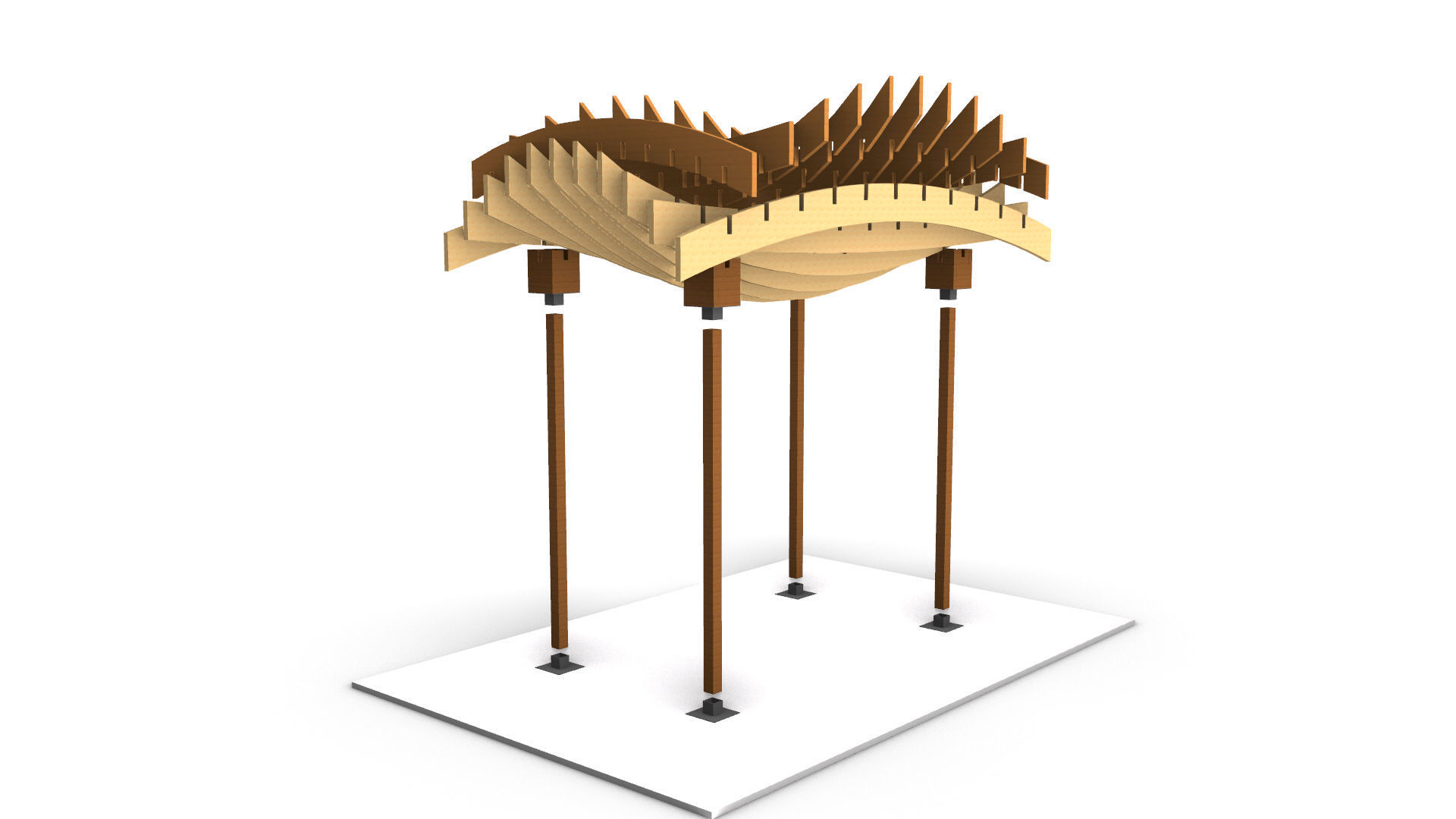

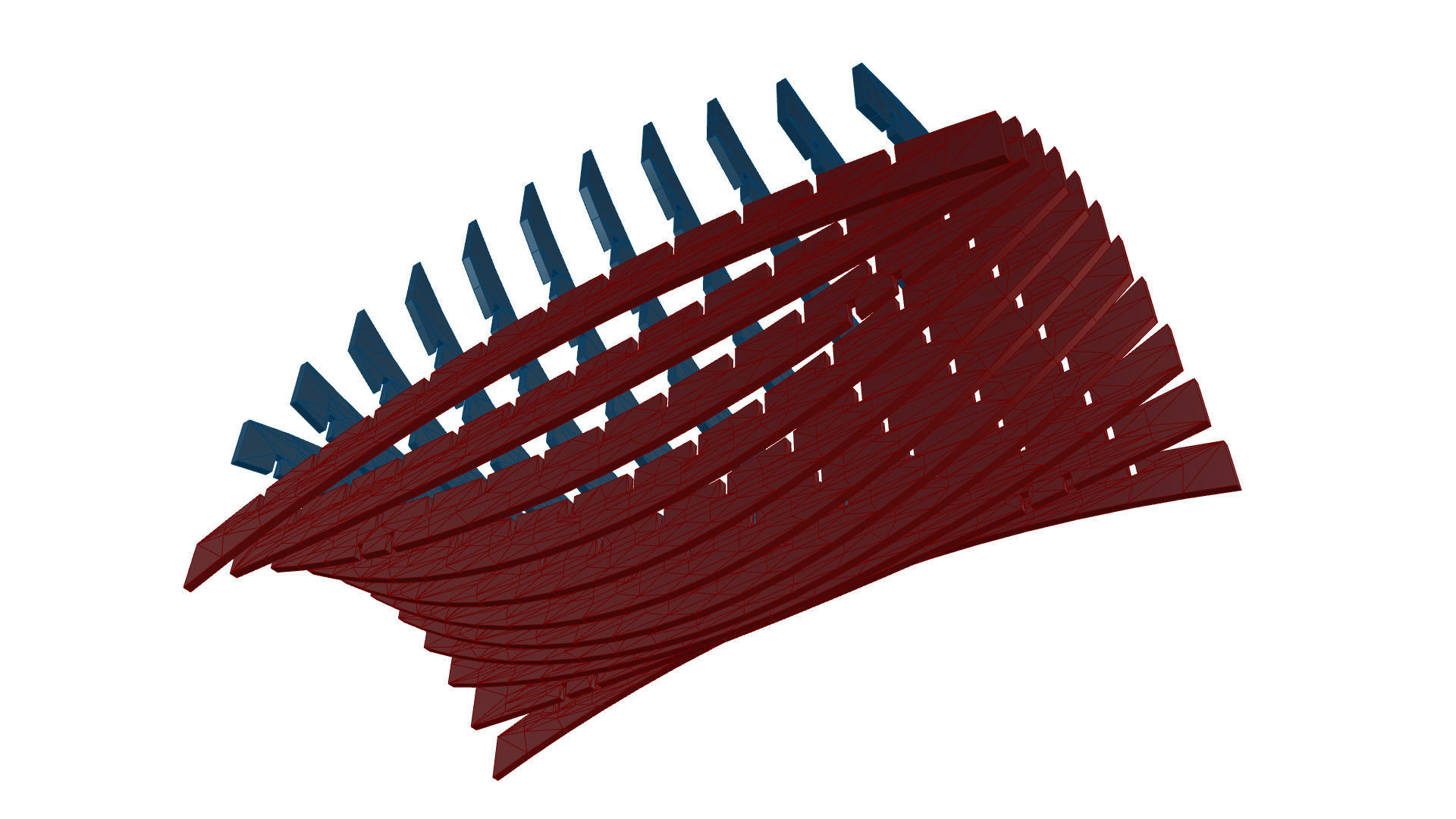

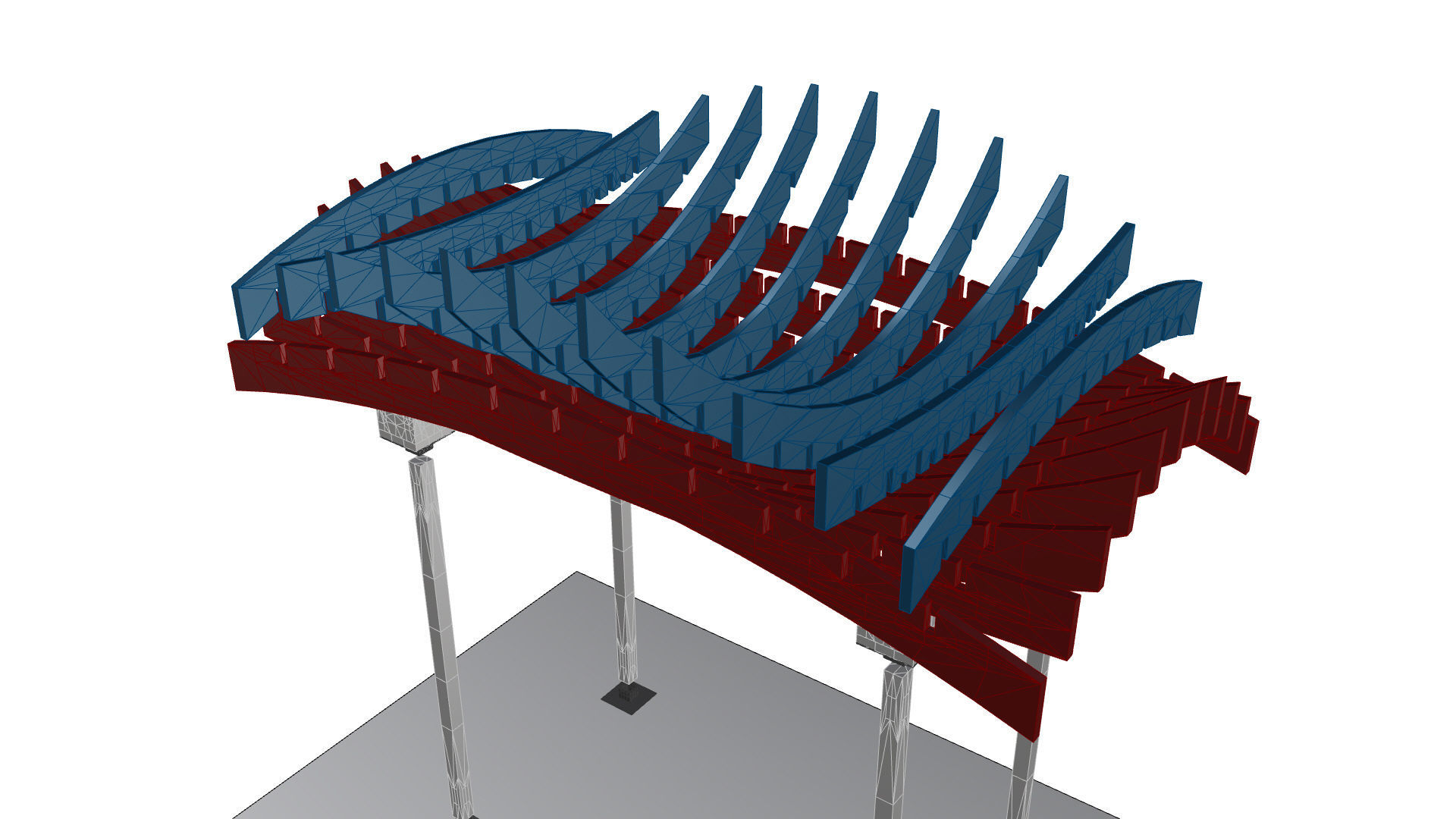

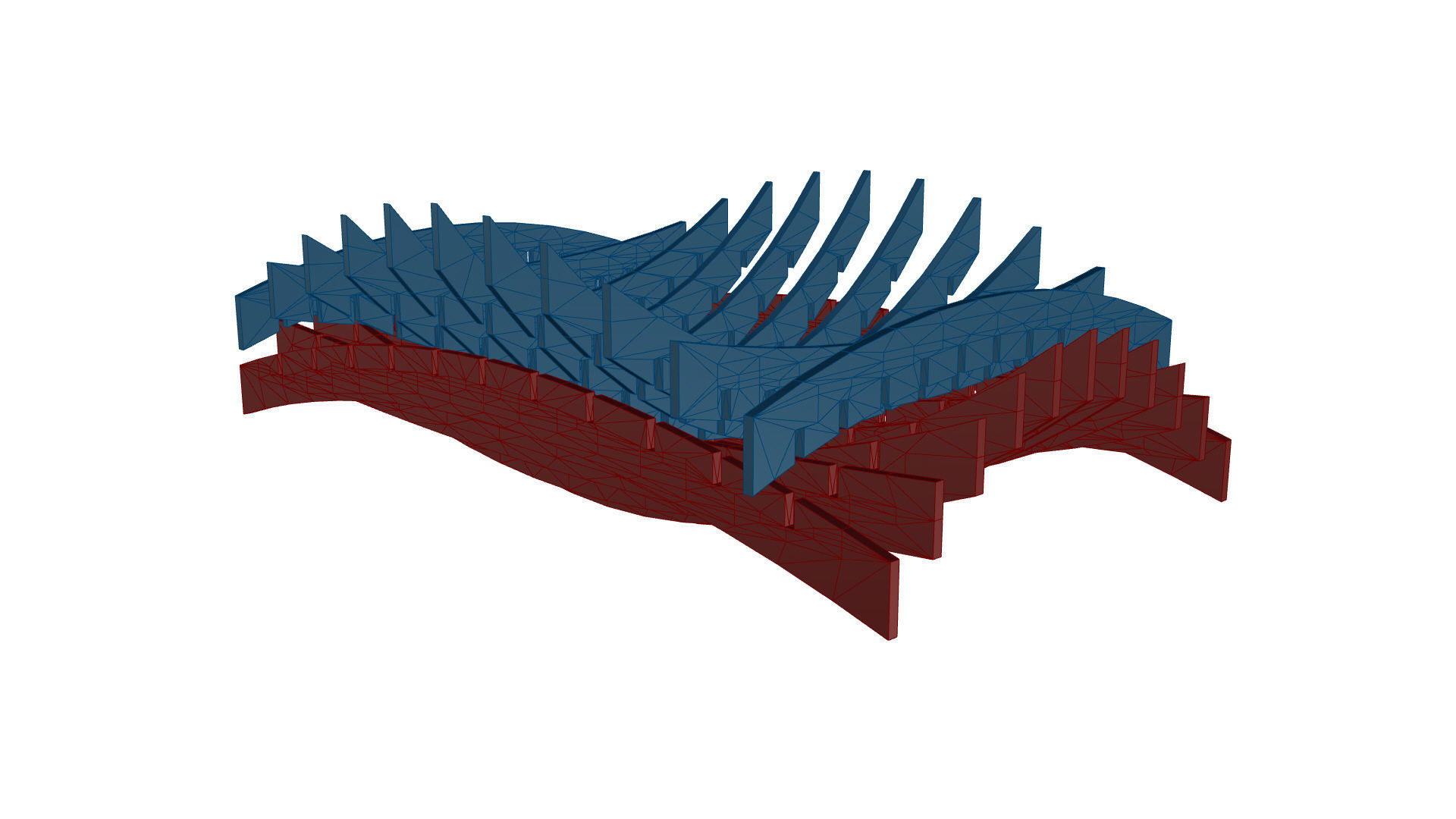

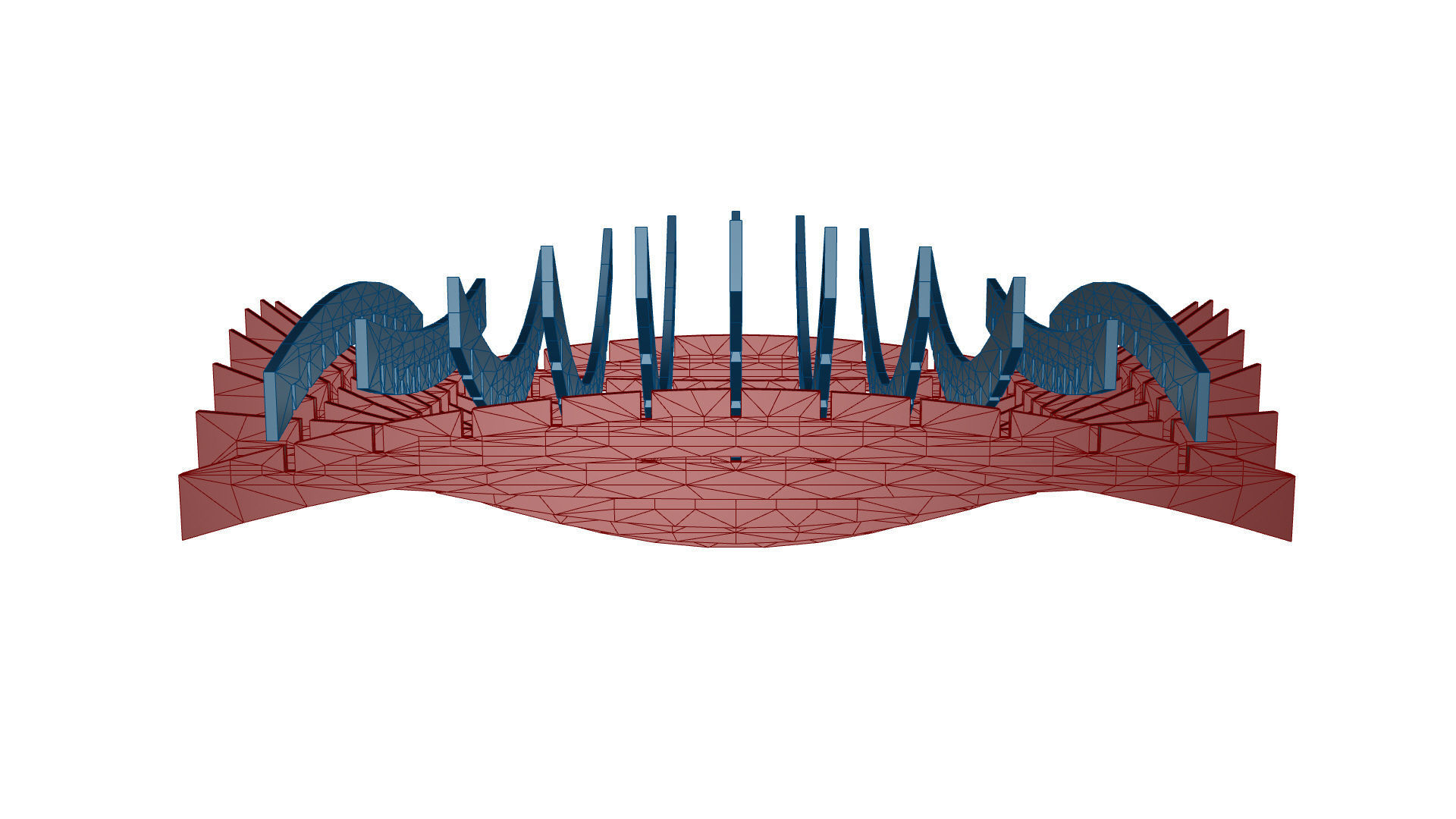

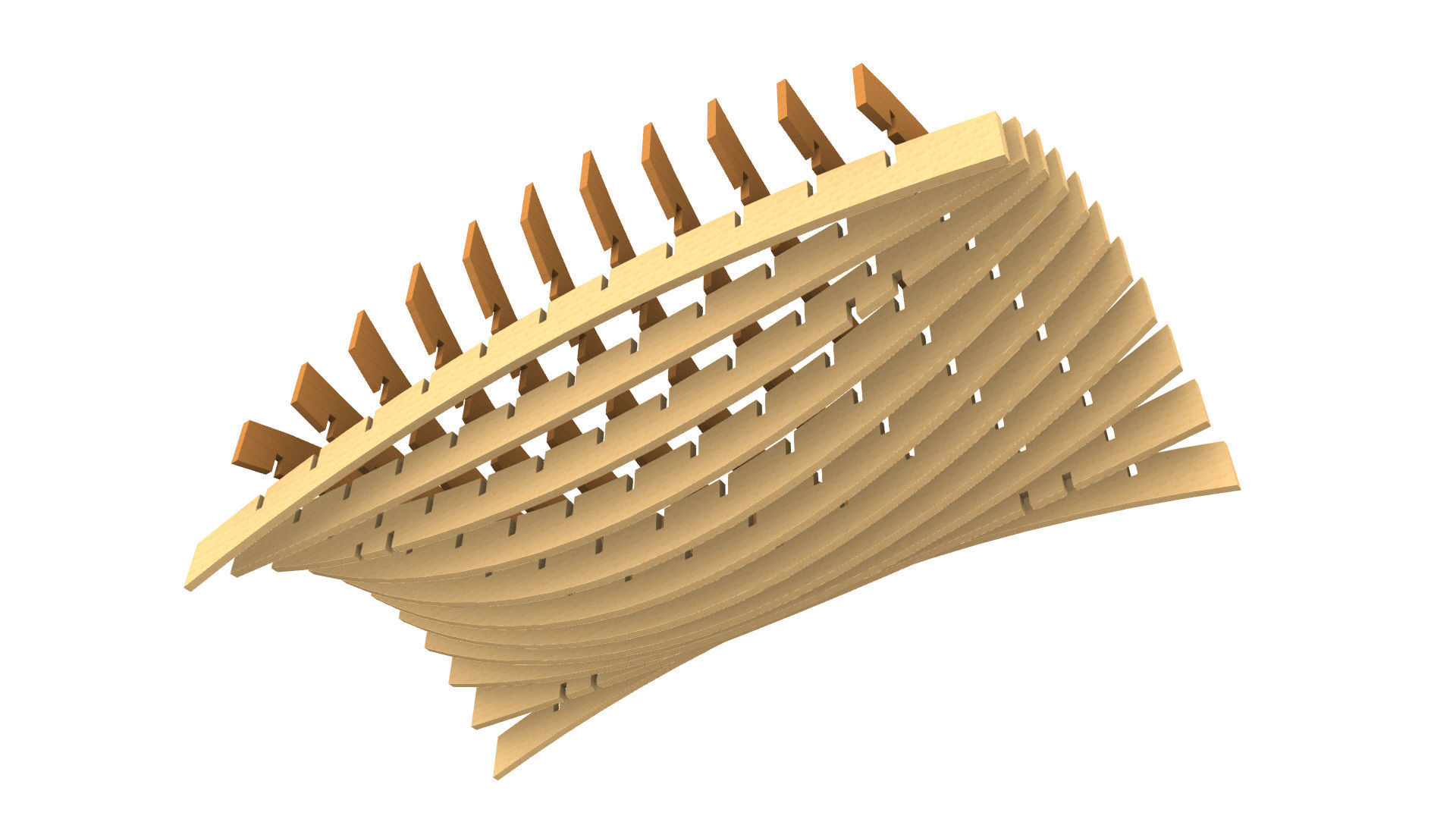

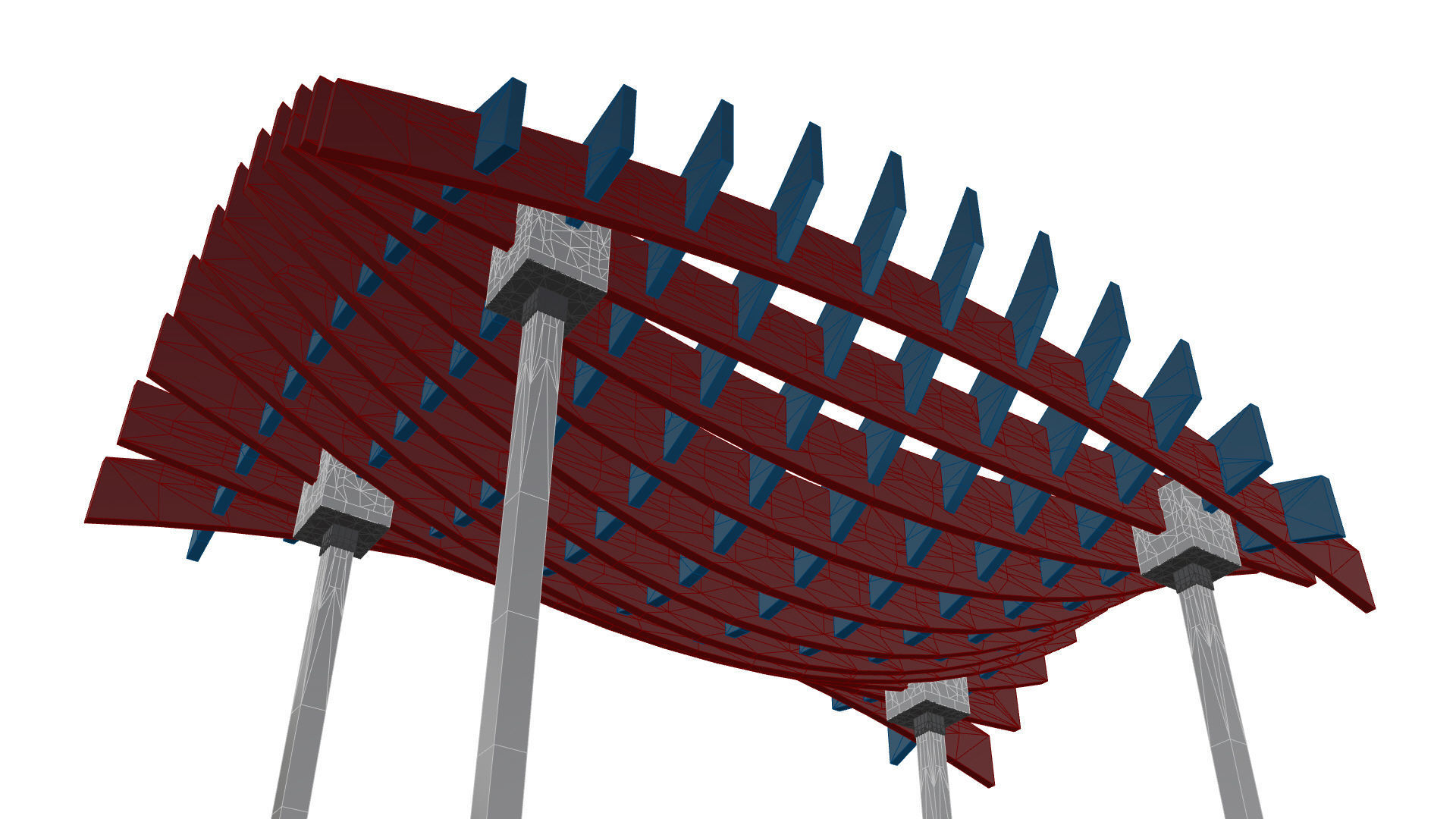

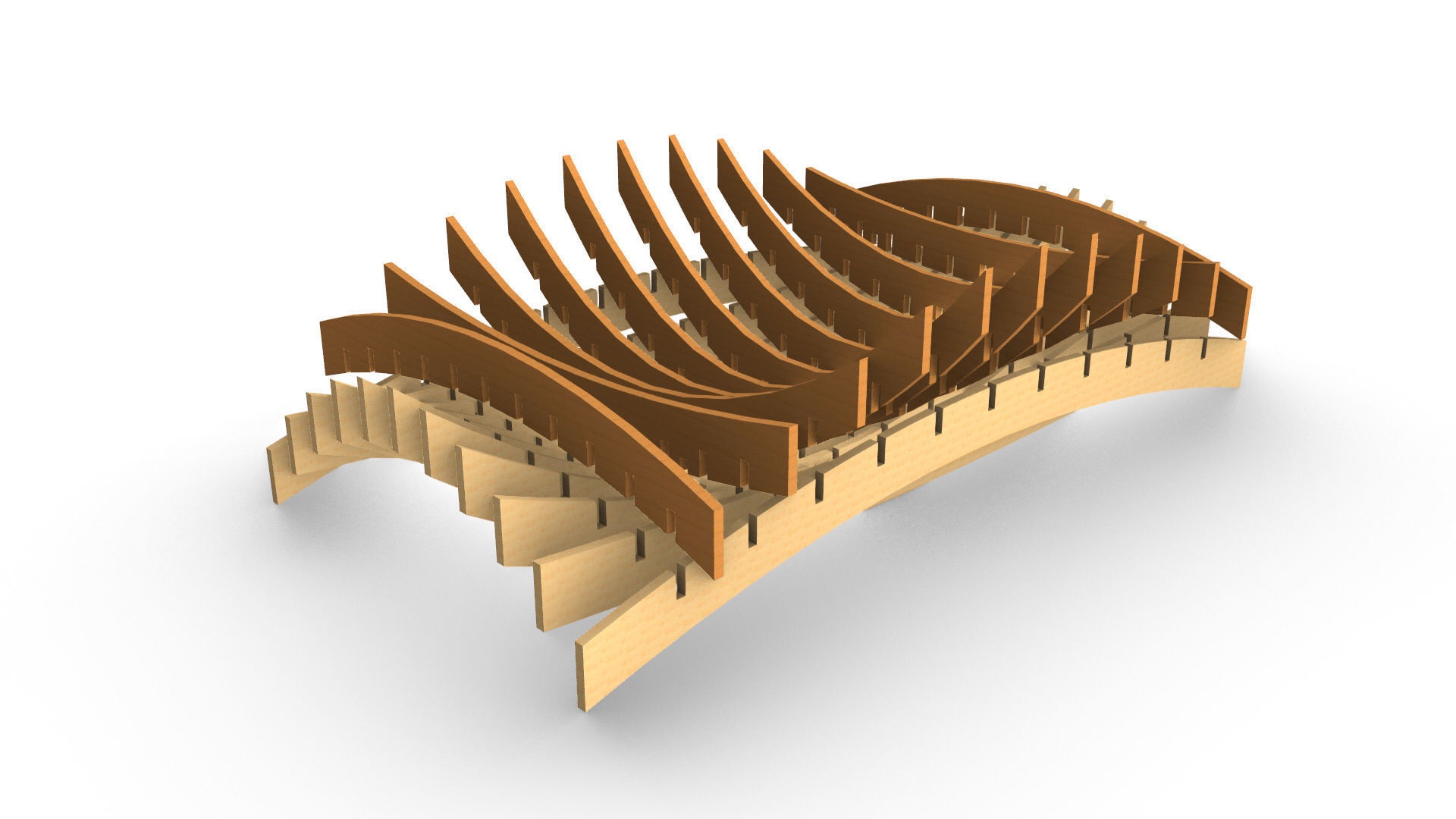

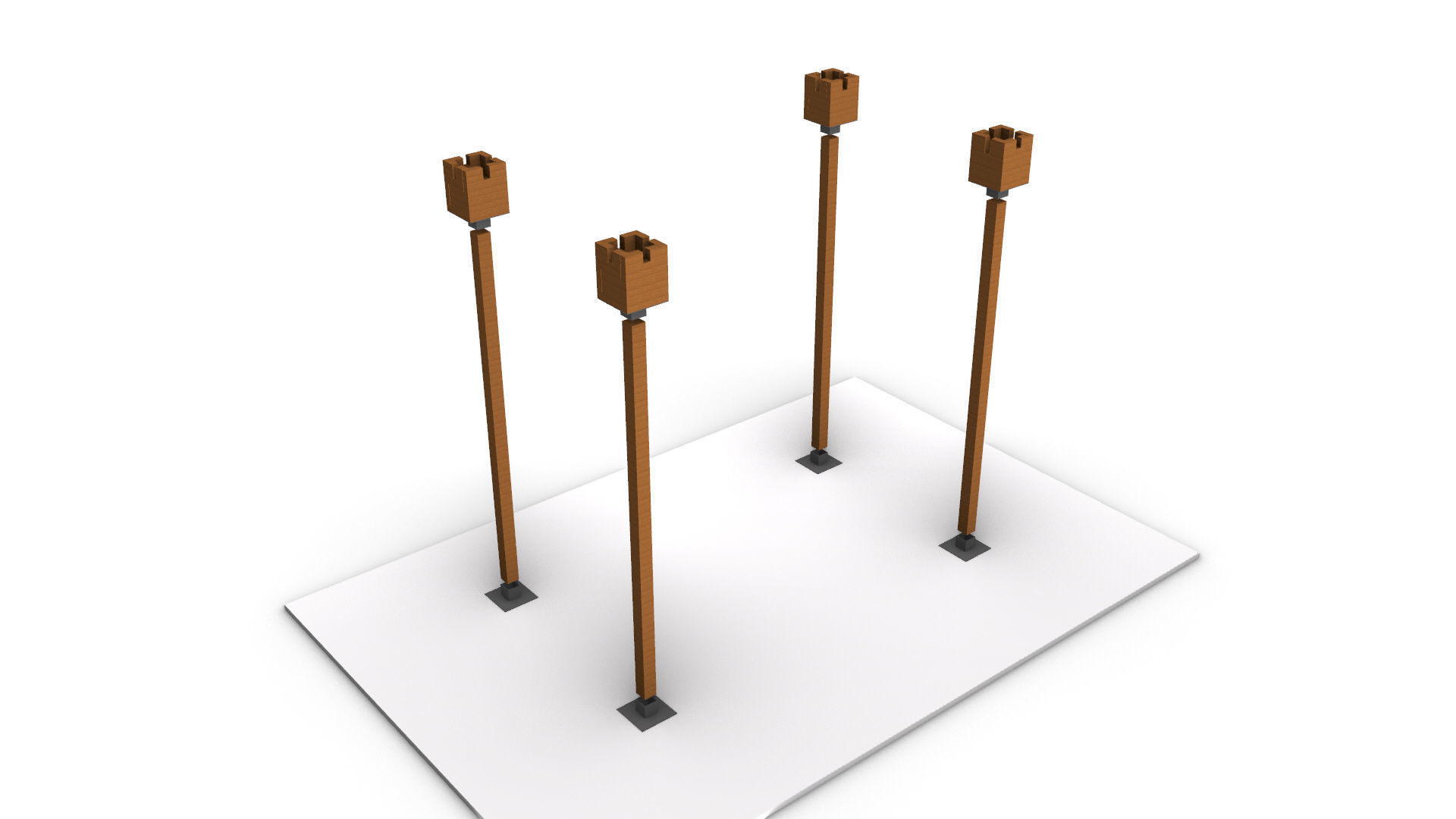

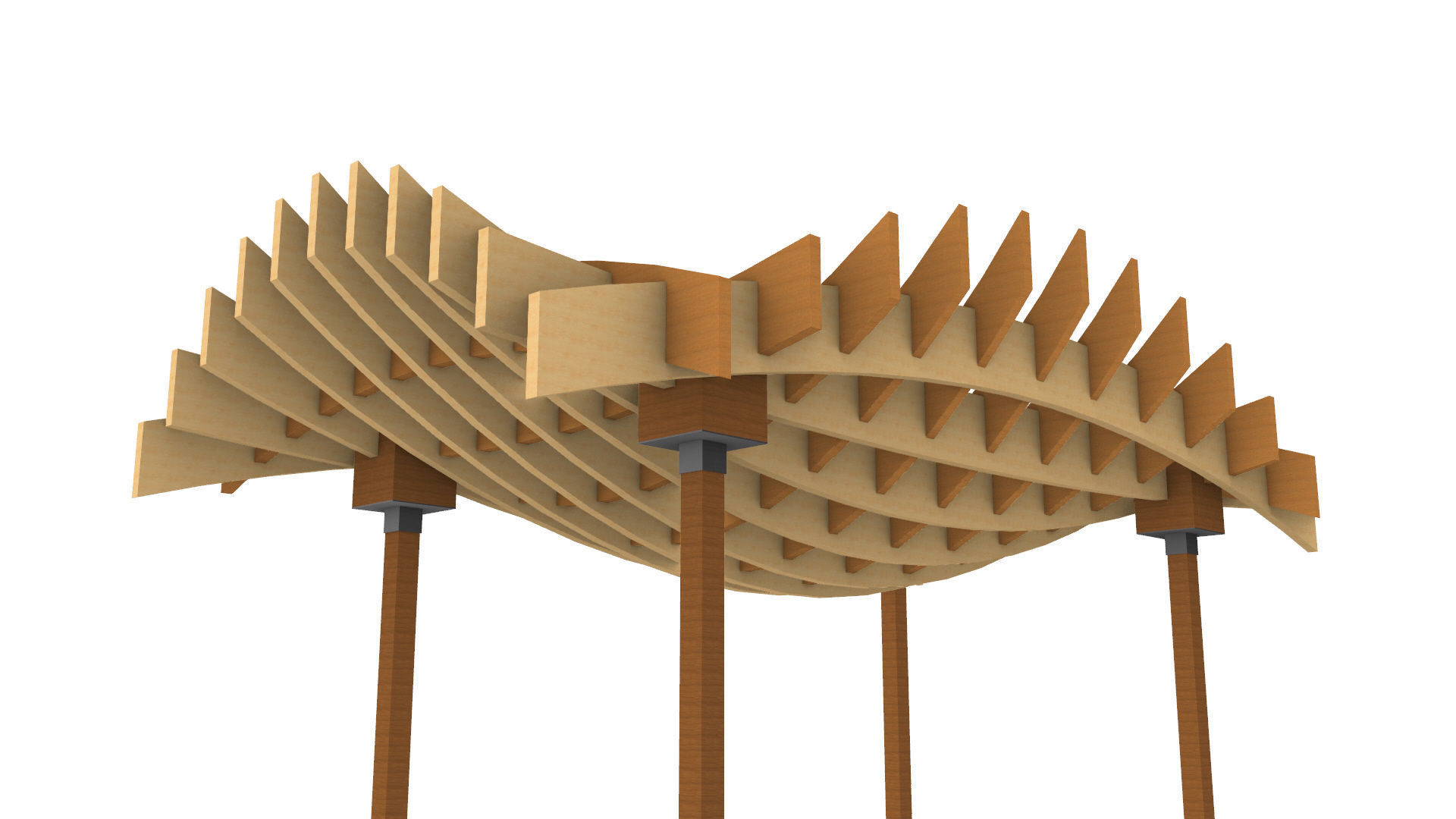

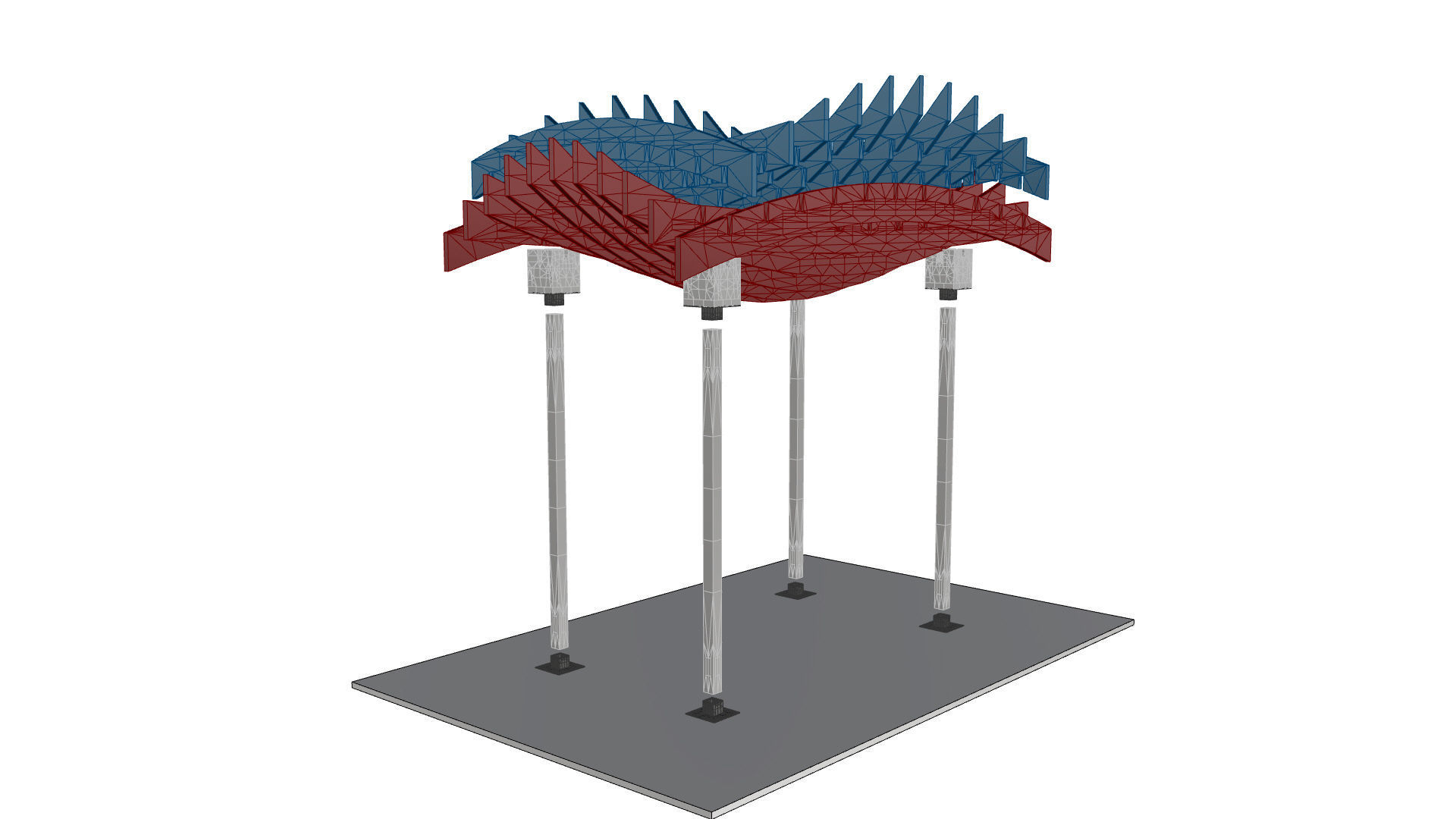

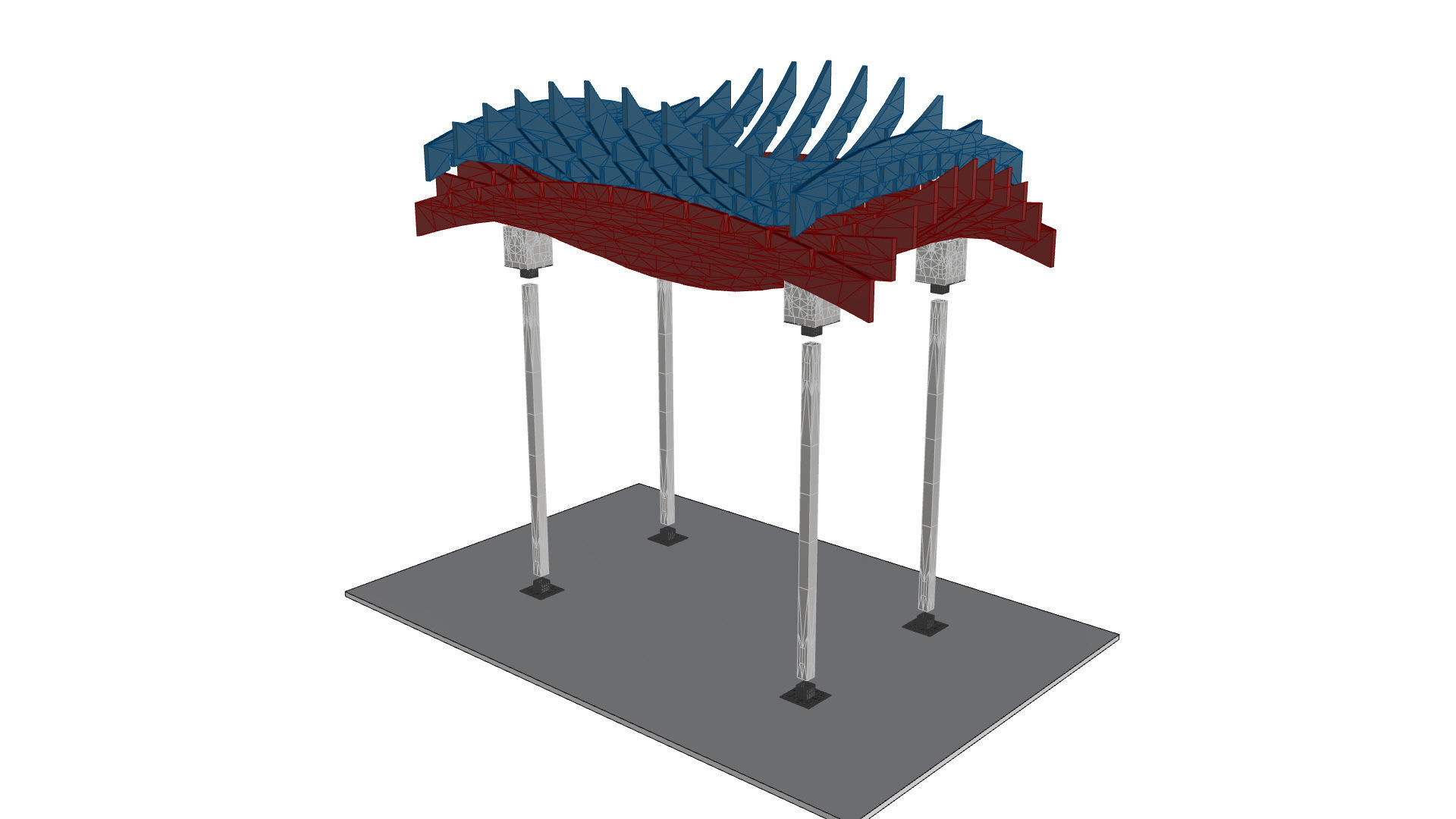

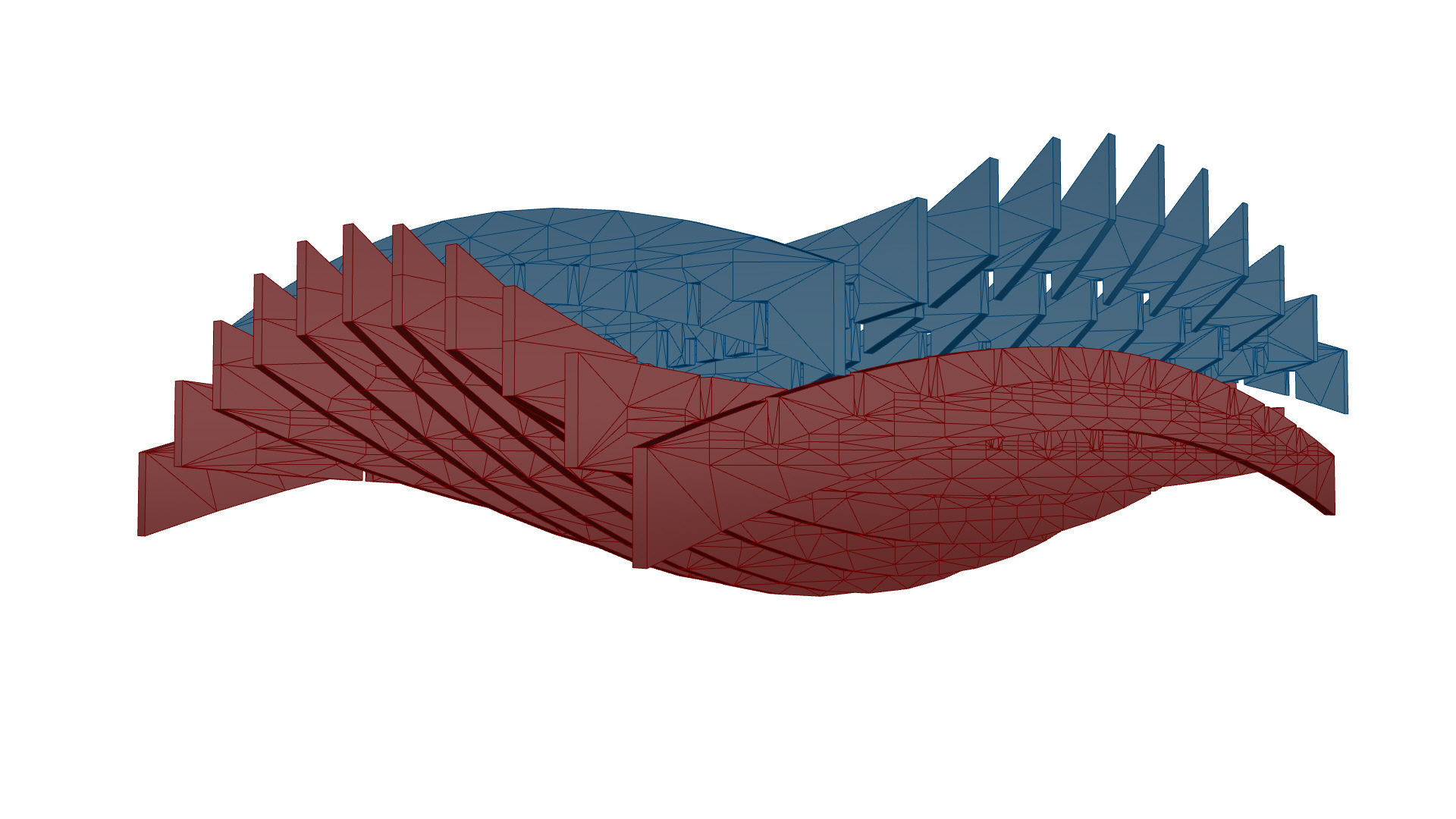

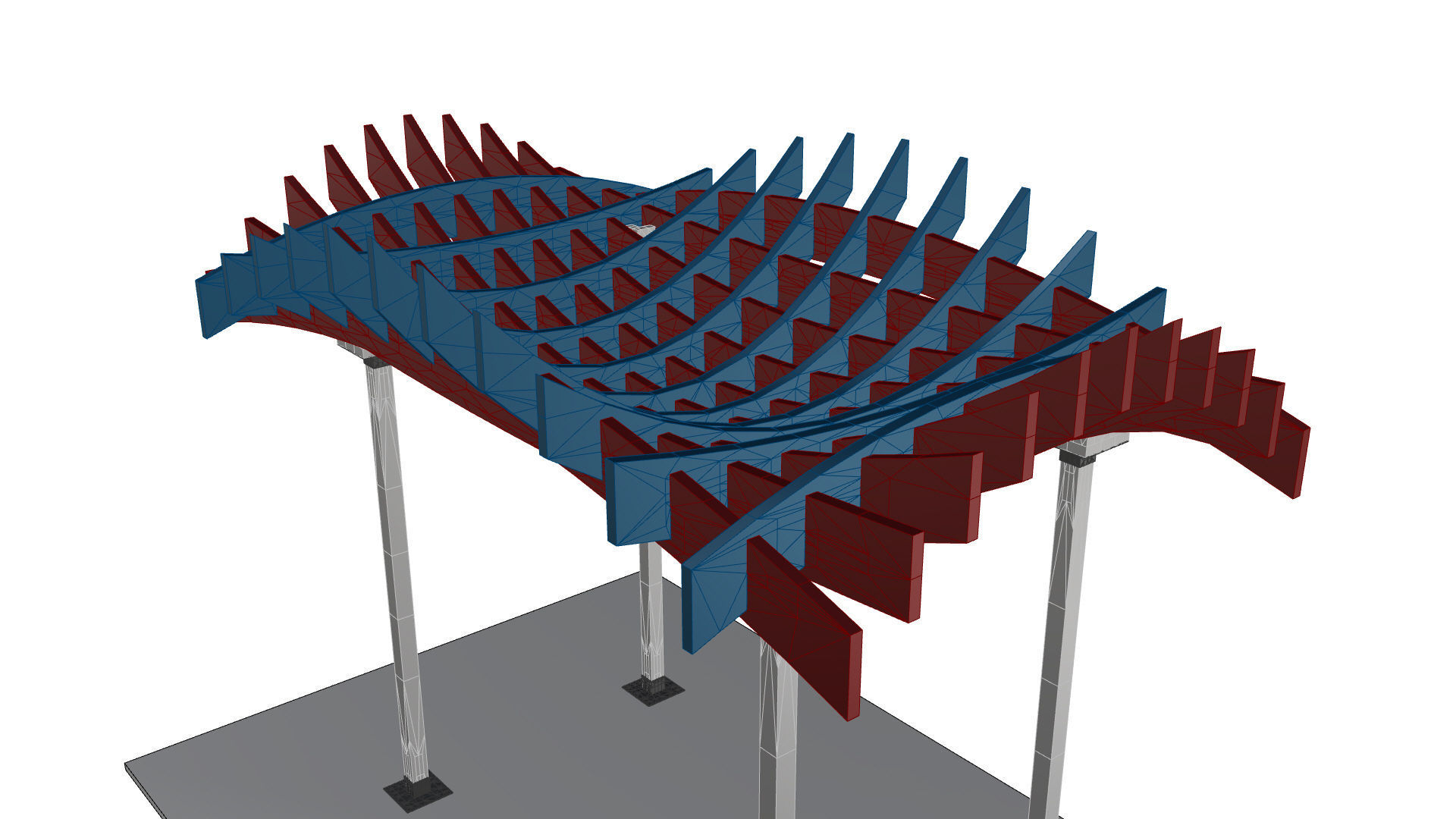

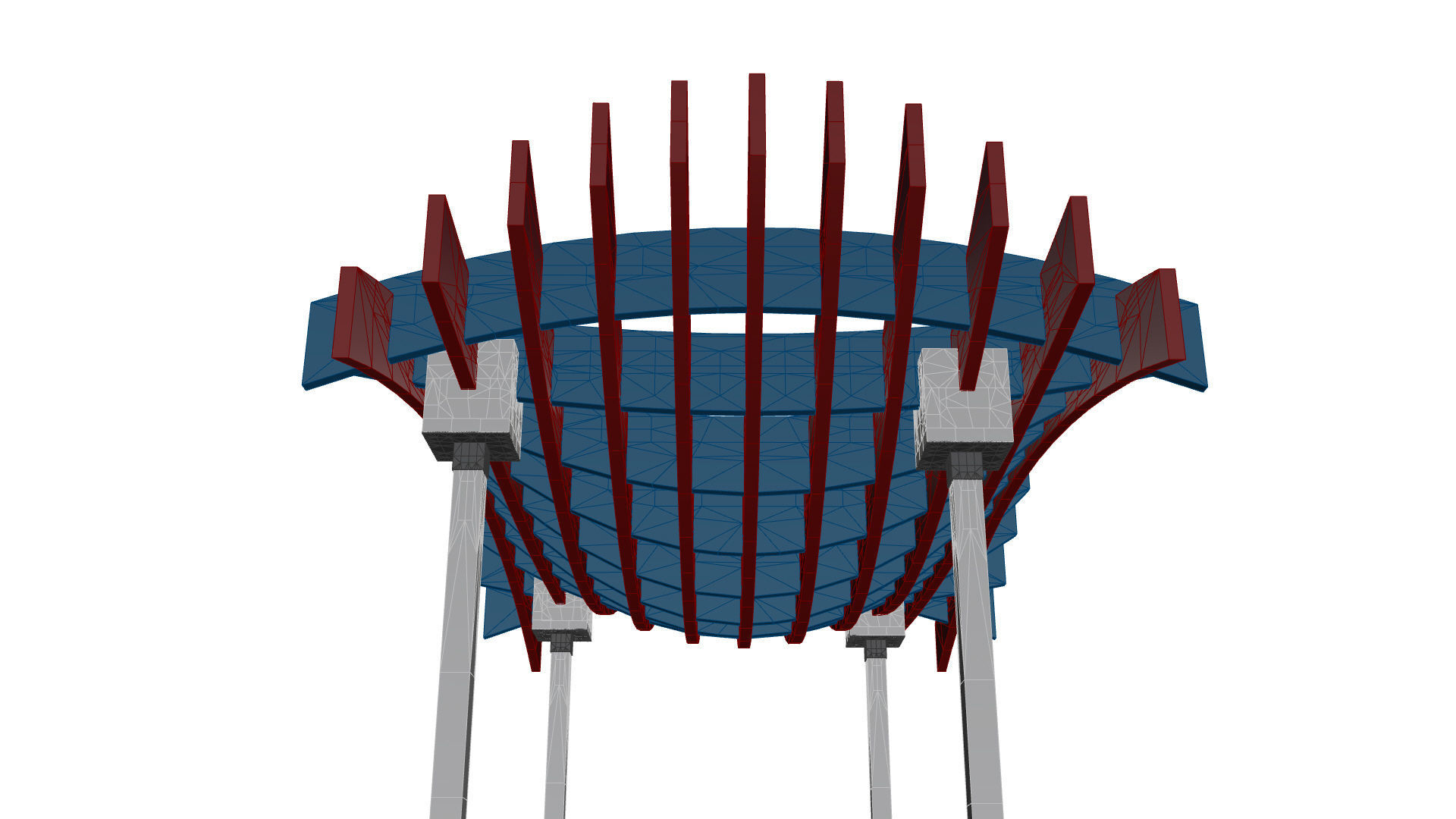

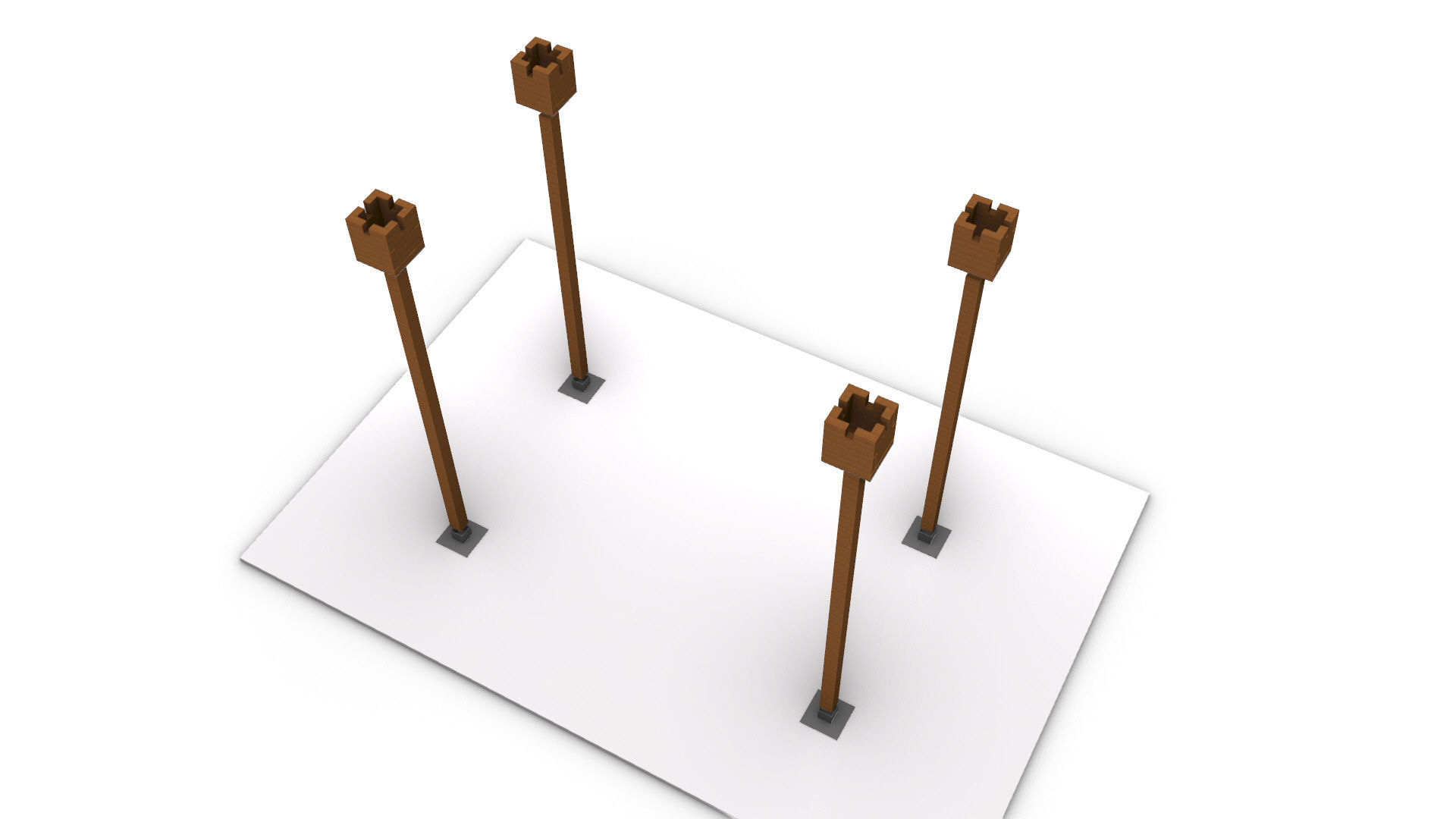

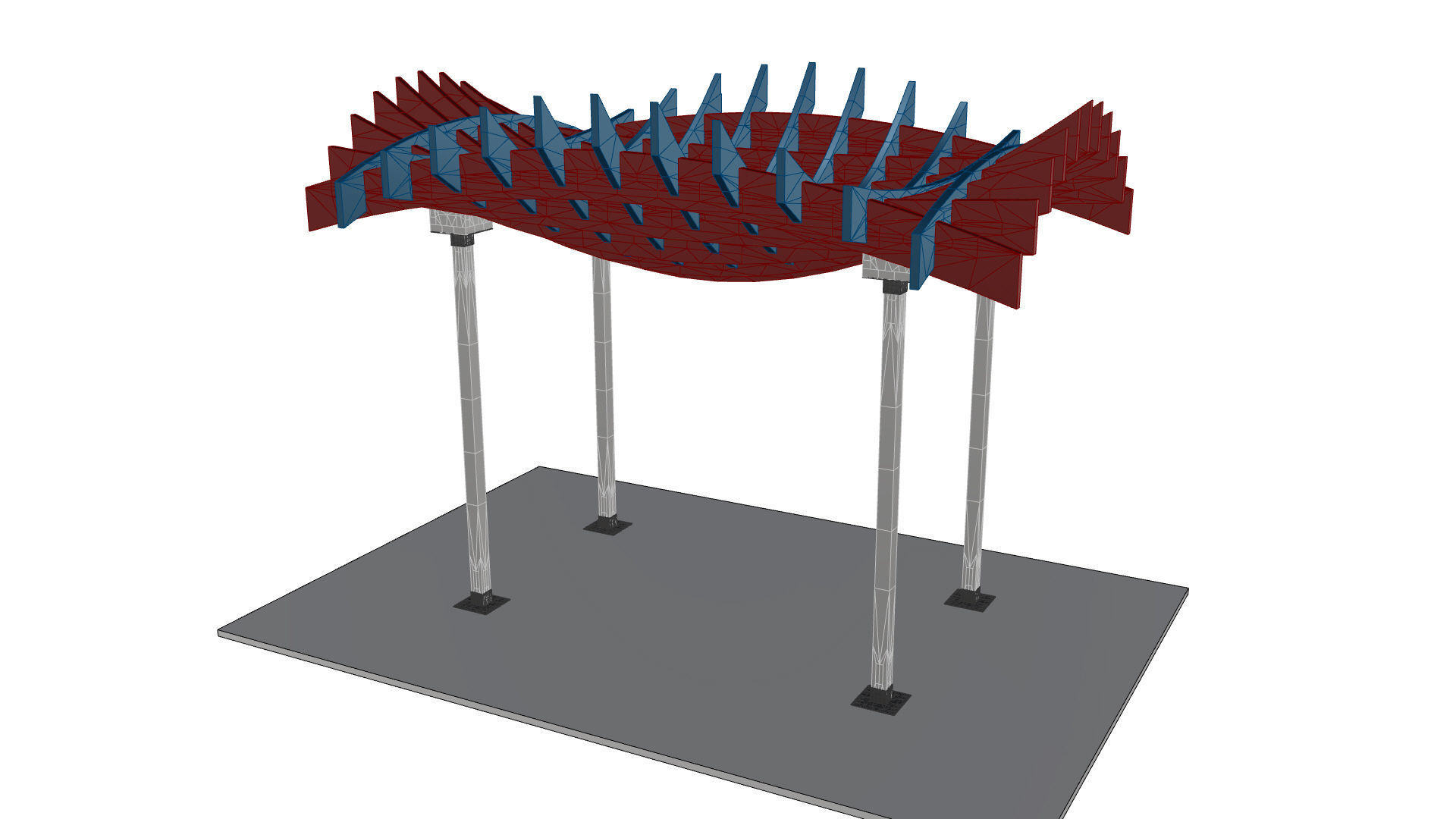

A Wavy Wooden Waffle Pergola, with two sets of perpendicular wooden beams, the wooden beams are interlocked with each other with slits and grooves in each beam section, the beams network is tightened, hold and lifted in the sky by wooden beams and steel details welded together, the model was created using computational parametric tools to achieve the most accurate geometry with clean details, it could be used for architectural render purposes outdoors, and also for Landscaping and urban landmarks.

Files Units Format are Metric:

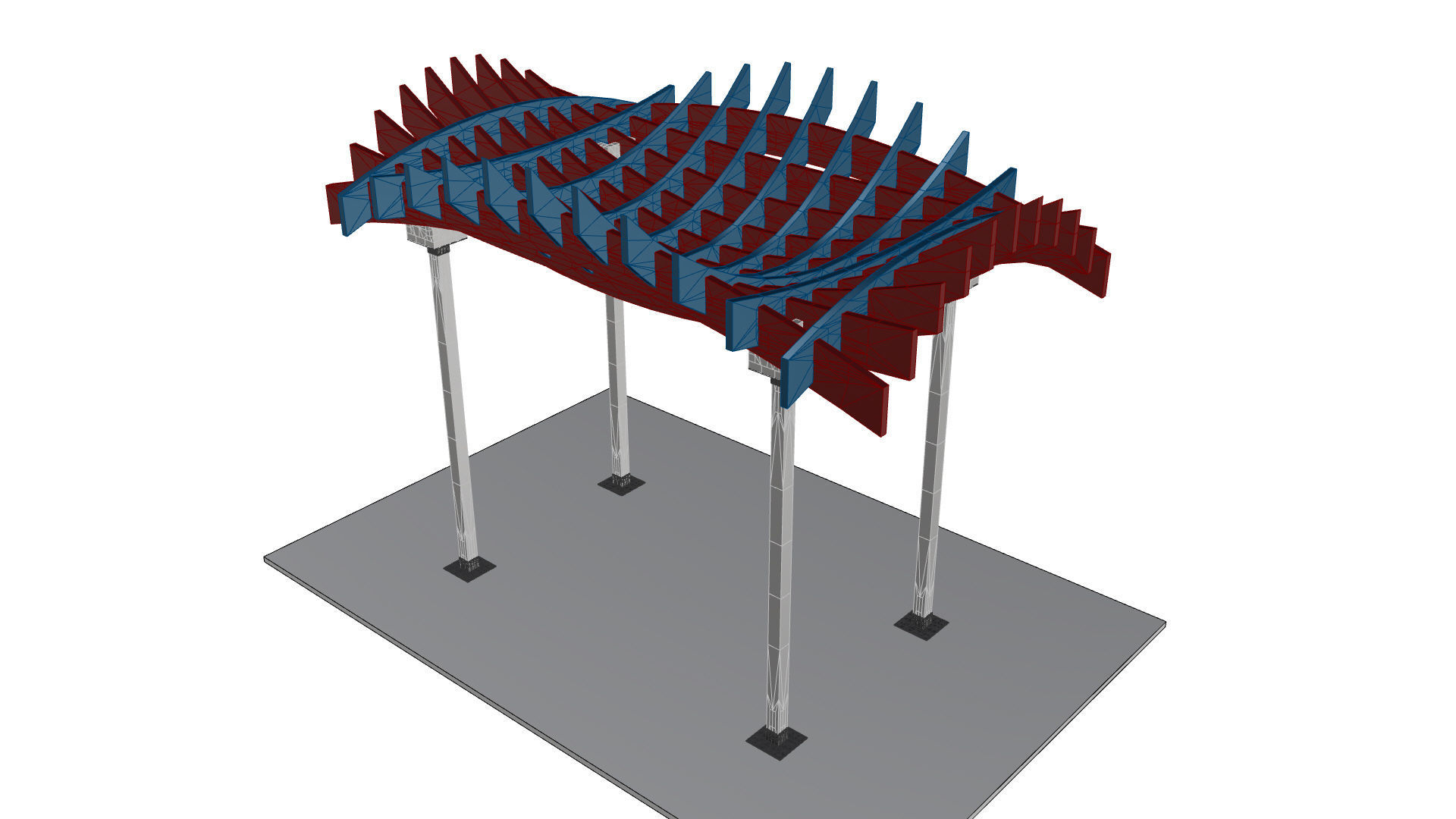

• boundary dimensions (Length X Width X Height) = (5.00m X 3.00m X3.85m).

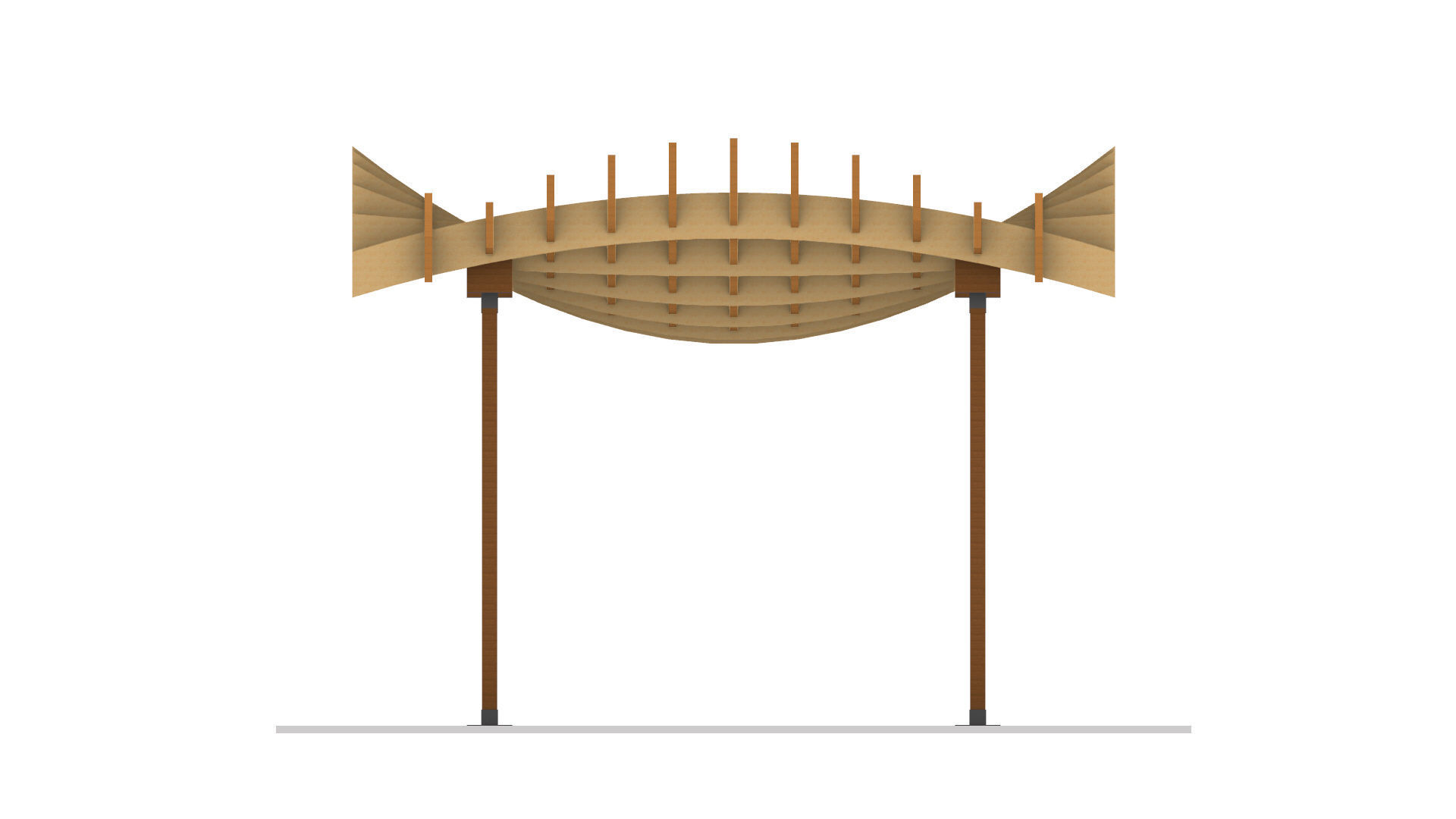

• Clear Height underneath the Pergola (2.5m to 3.2m)

Geometry Total Count >> Polygons: (17817) & Vertices: (20999).

• CNC files are provided in (Format-3dm), (Format-ai), (Format-dwg).

Supported files includes both Rhino-3dm and Blender-blend in addition to Format-FBX, all units are in meter and are changeable to any desired other format whether metric or Imperial.

• All the Materials are embedded into the 3d model files.
