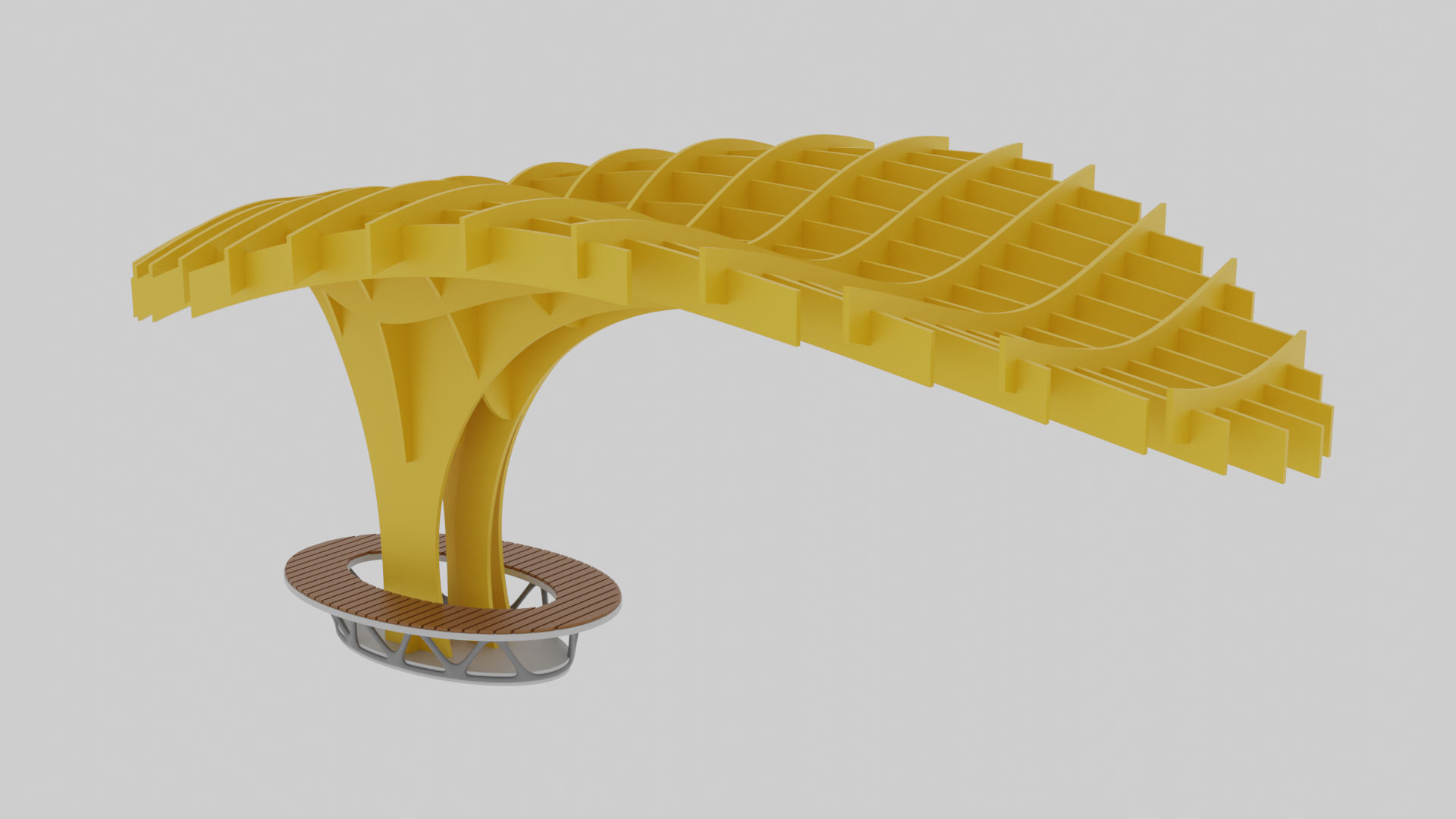

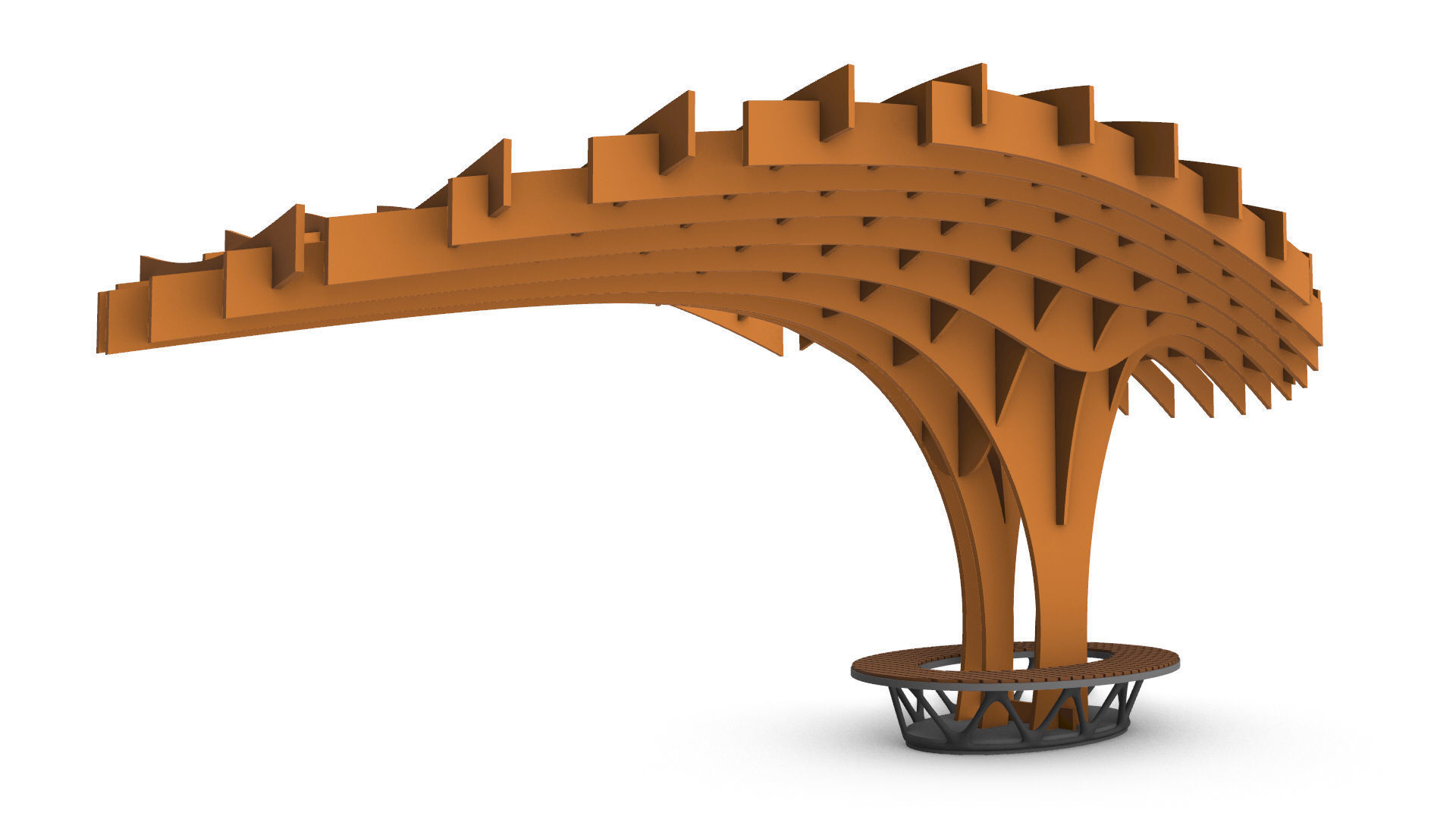

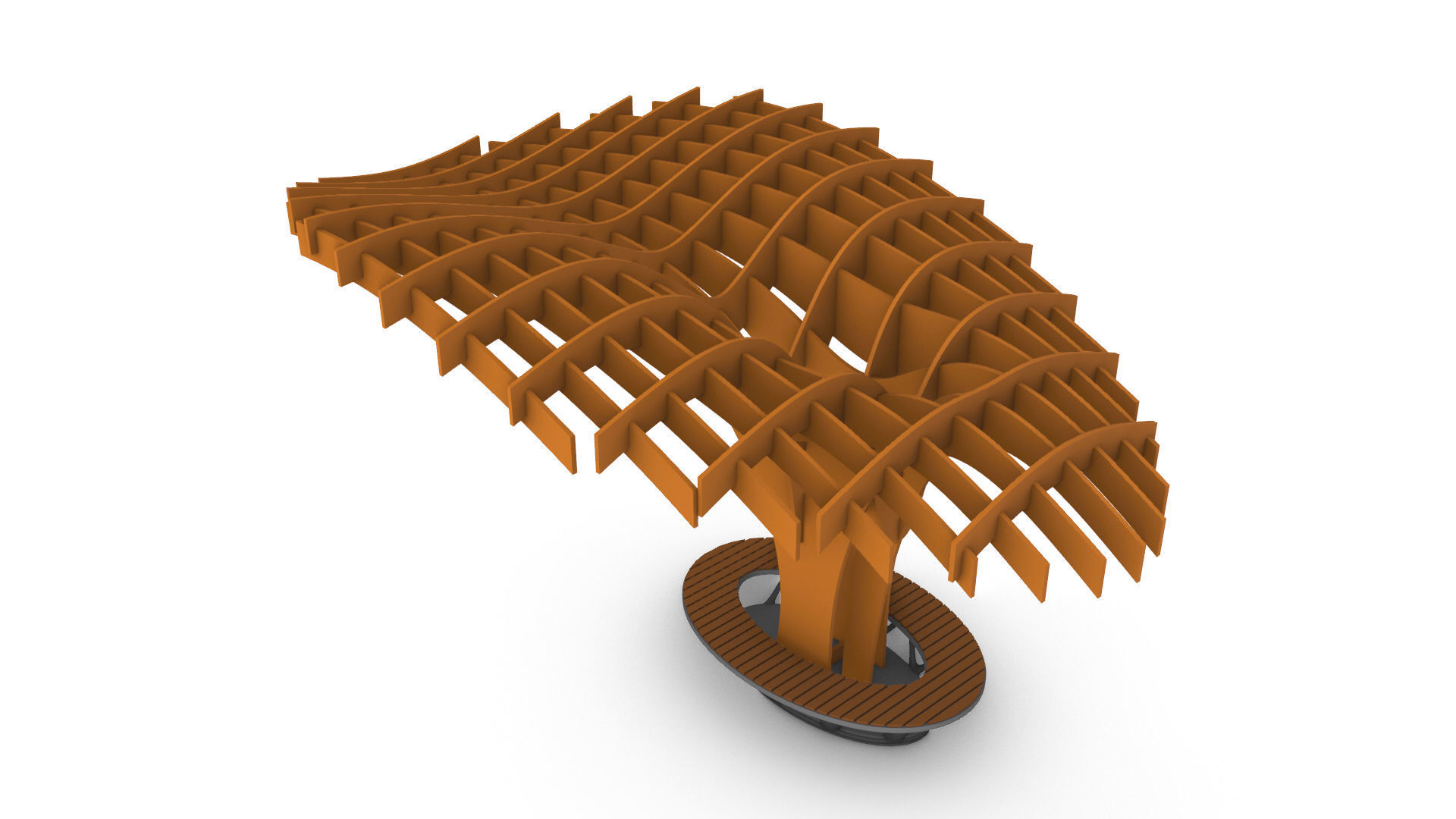

Cantilever Pergola Waffle Structure 3D model

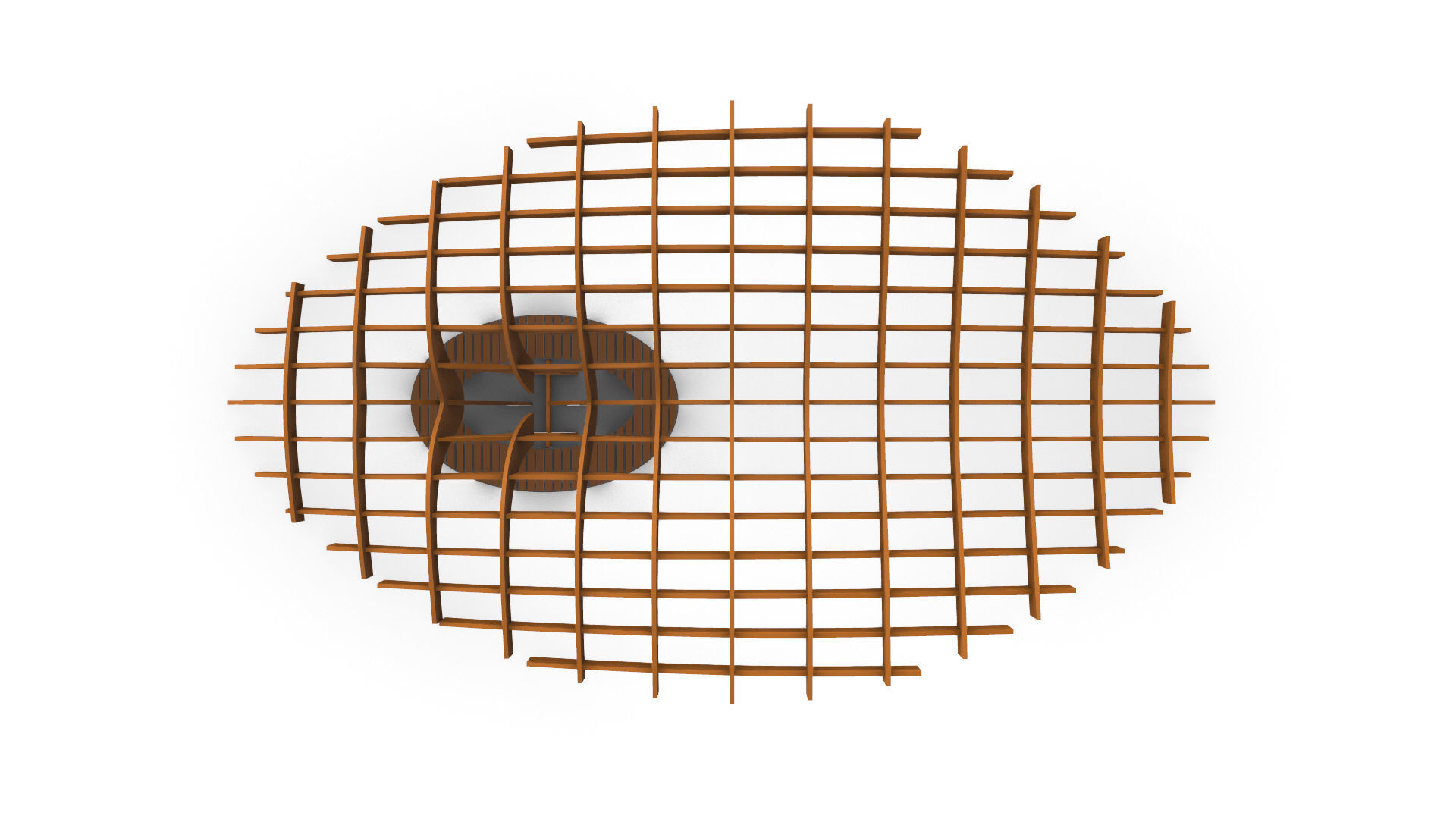

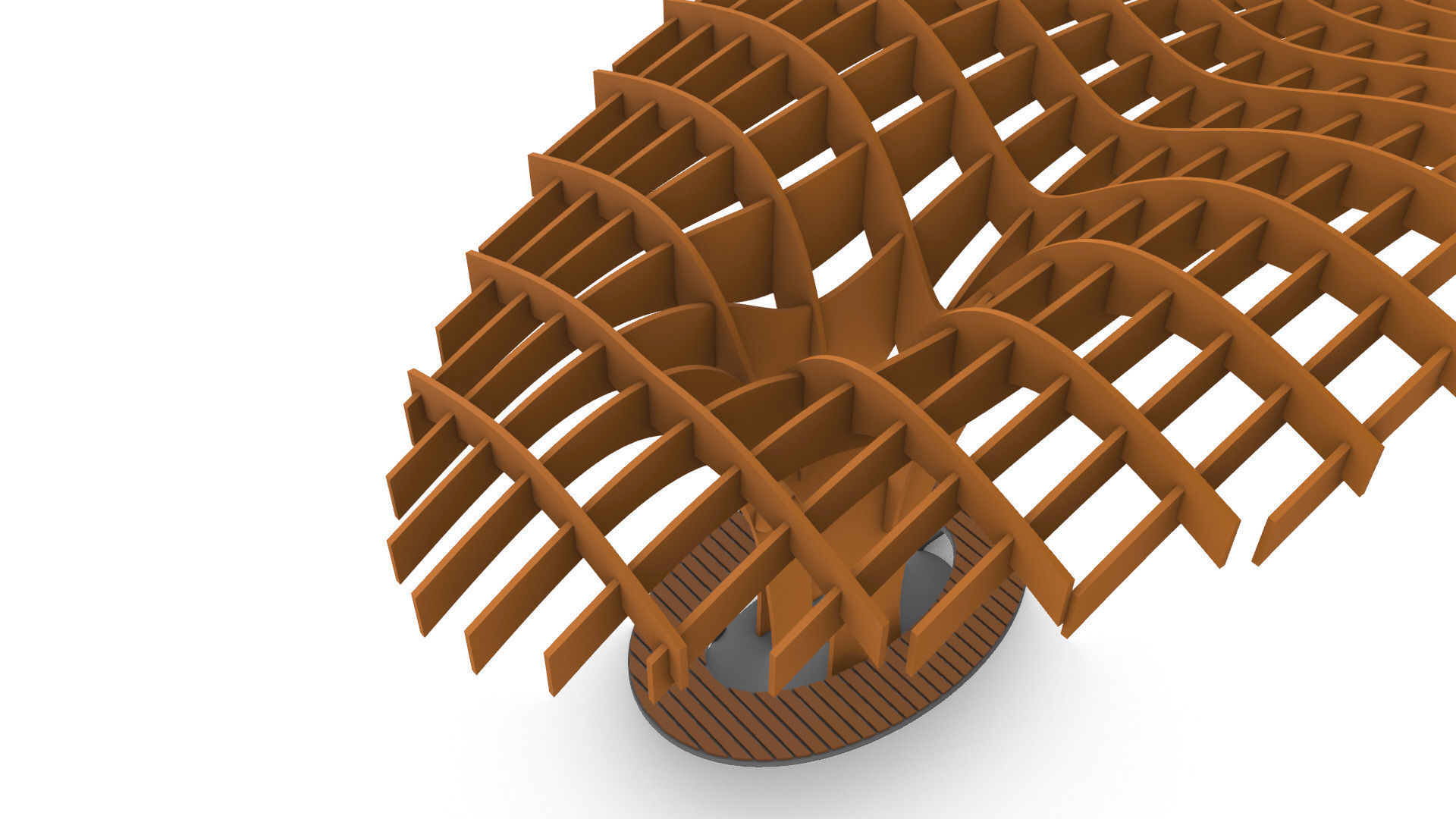

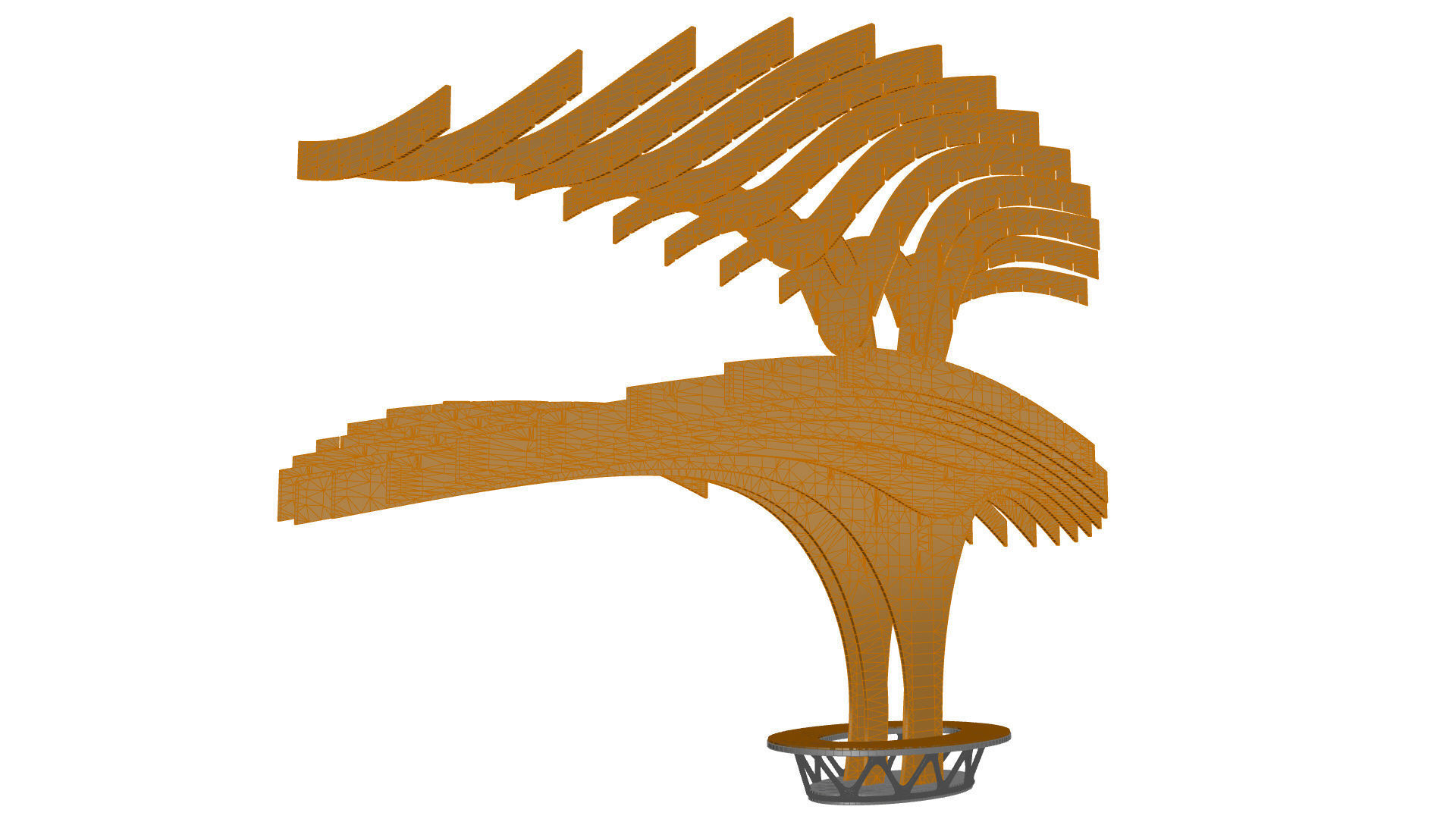

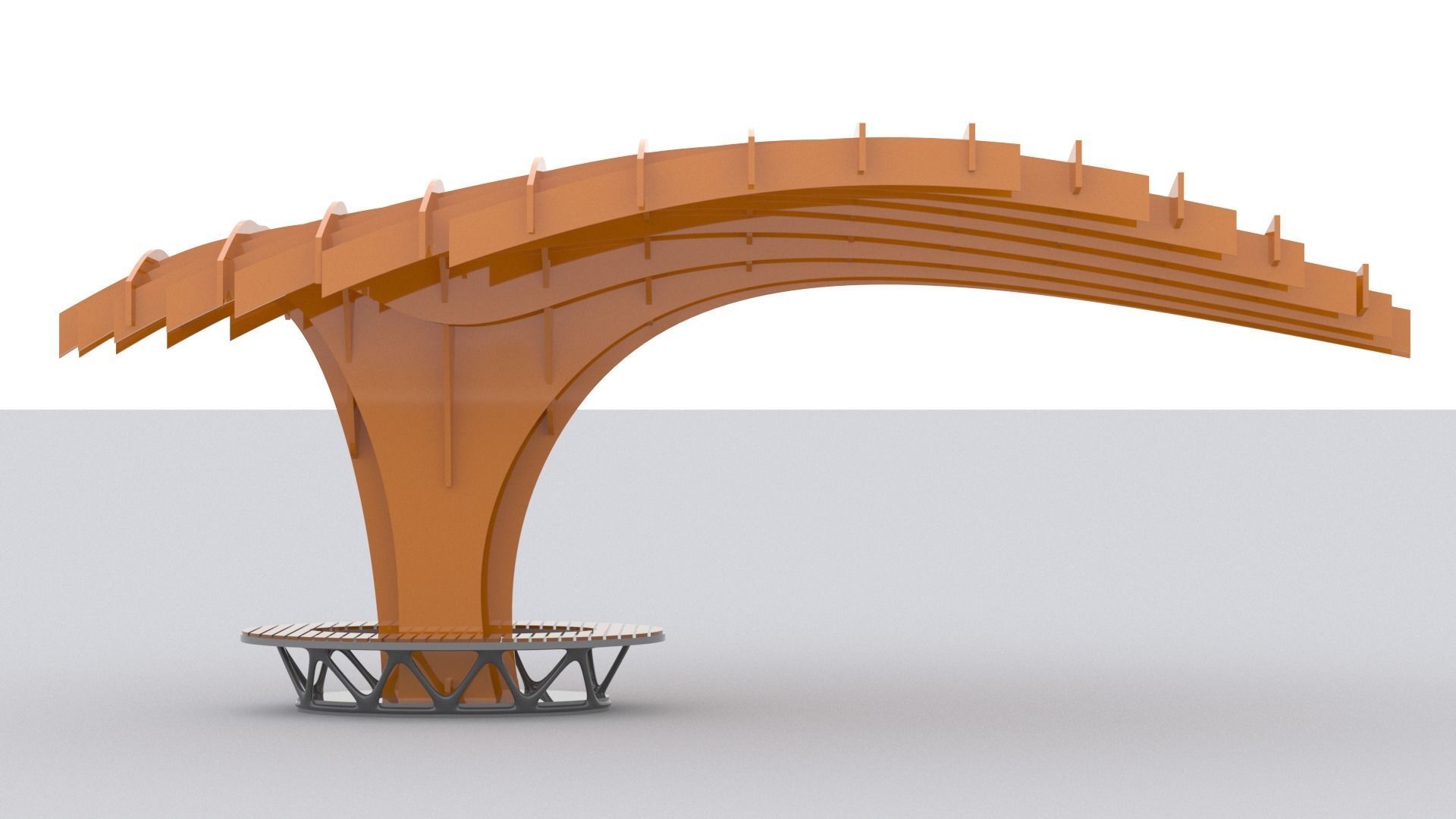

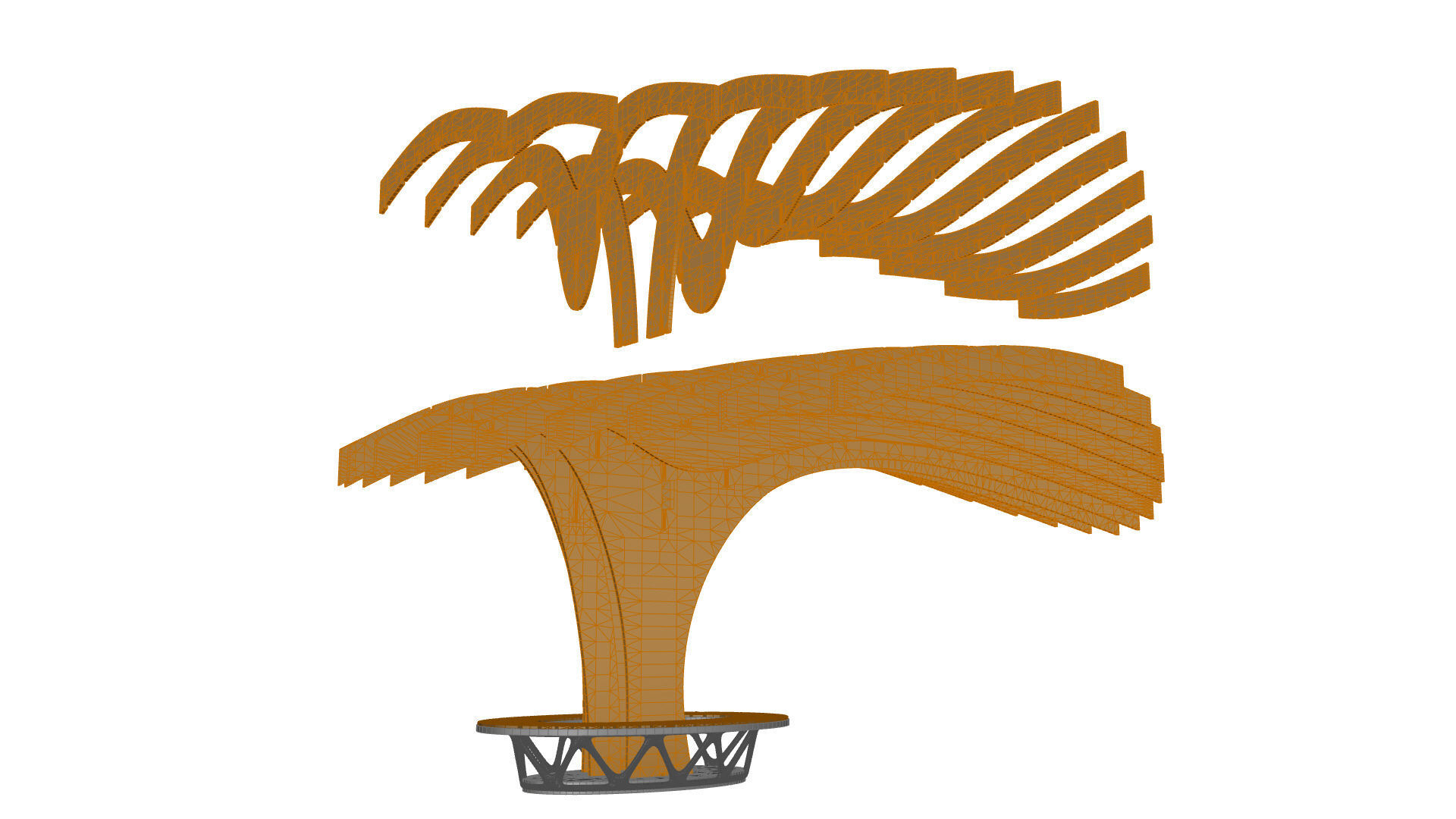

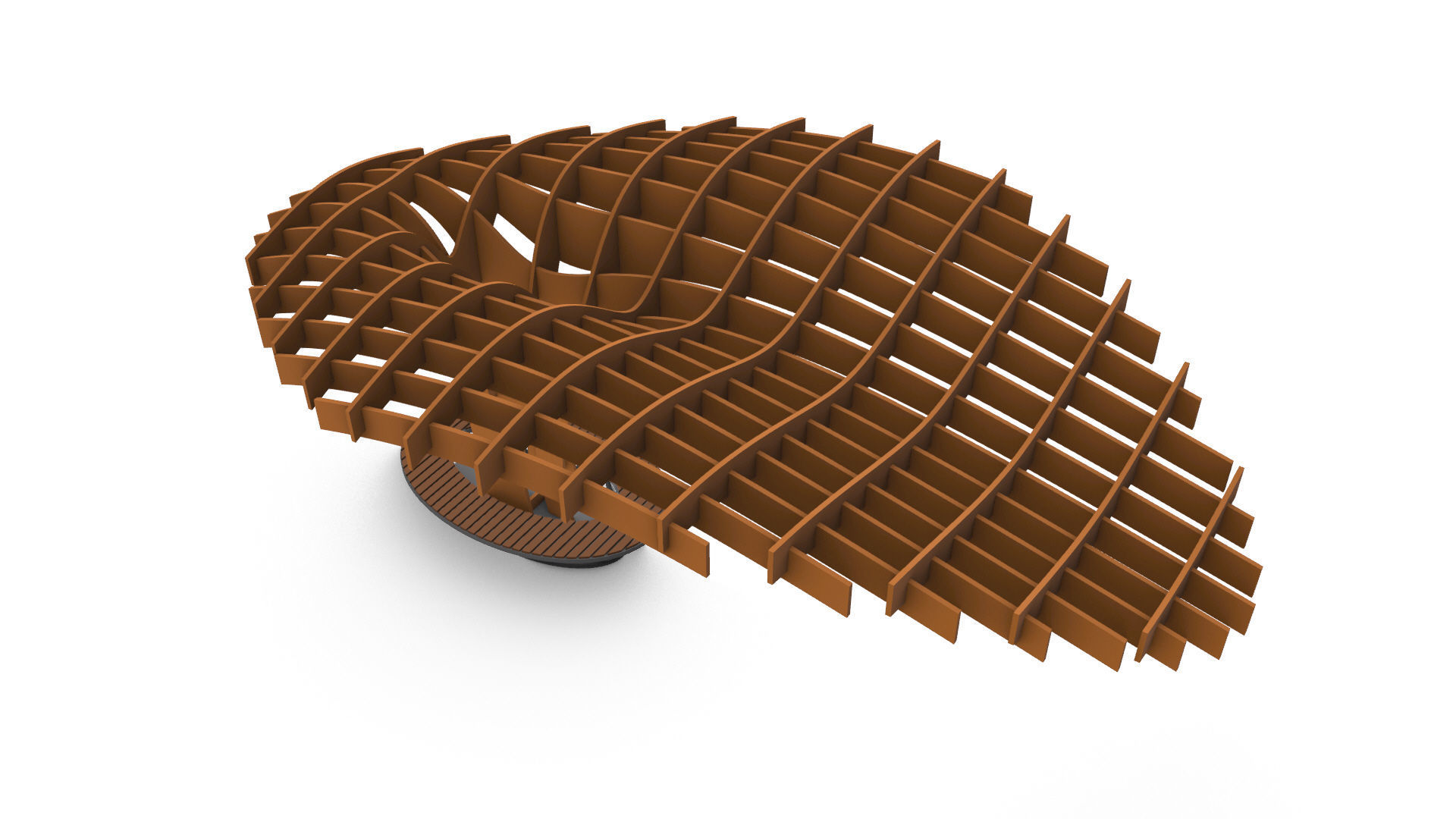

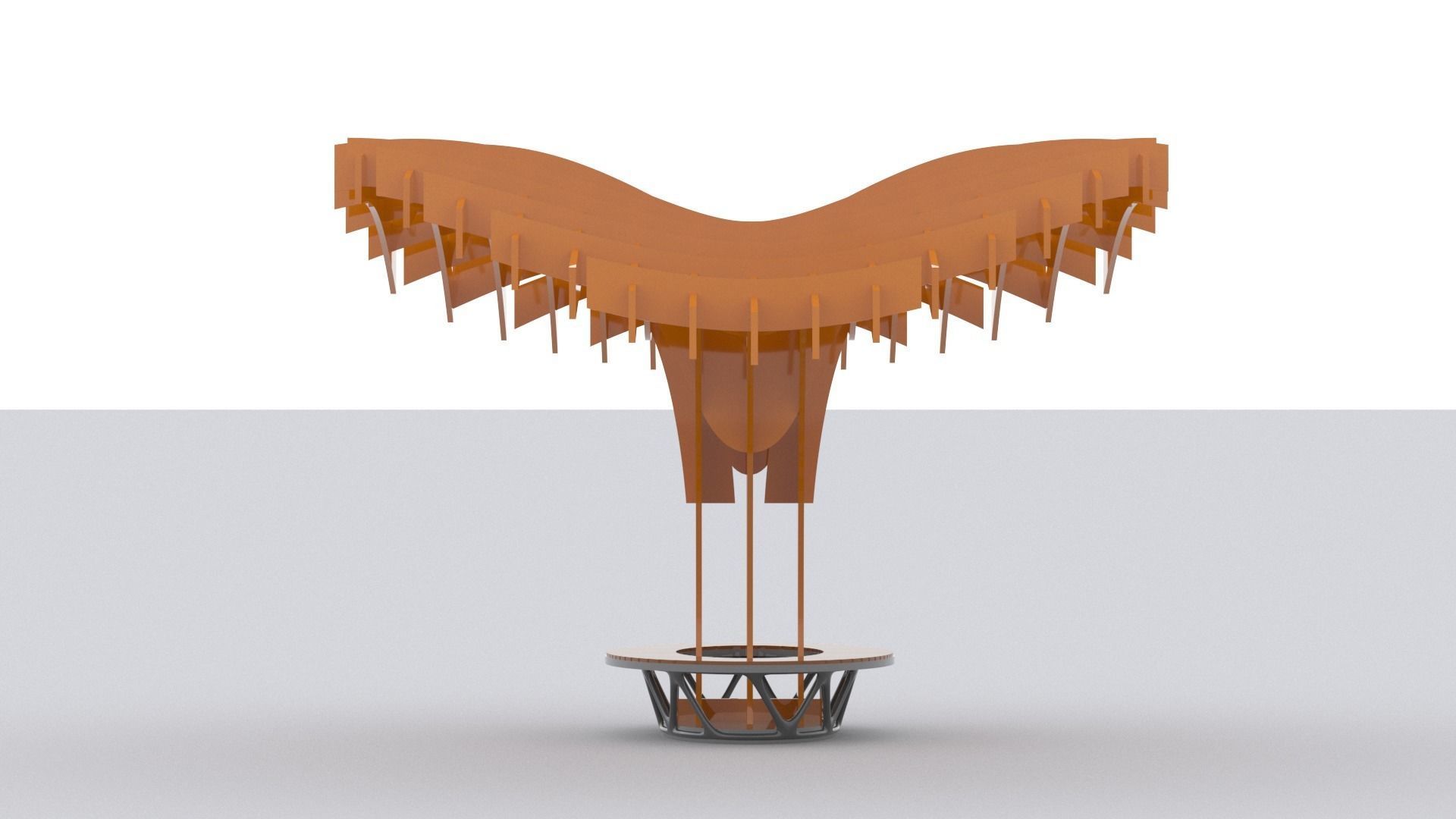

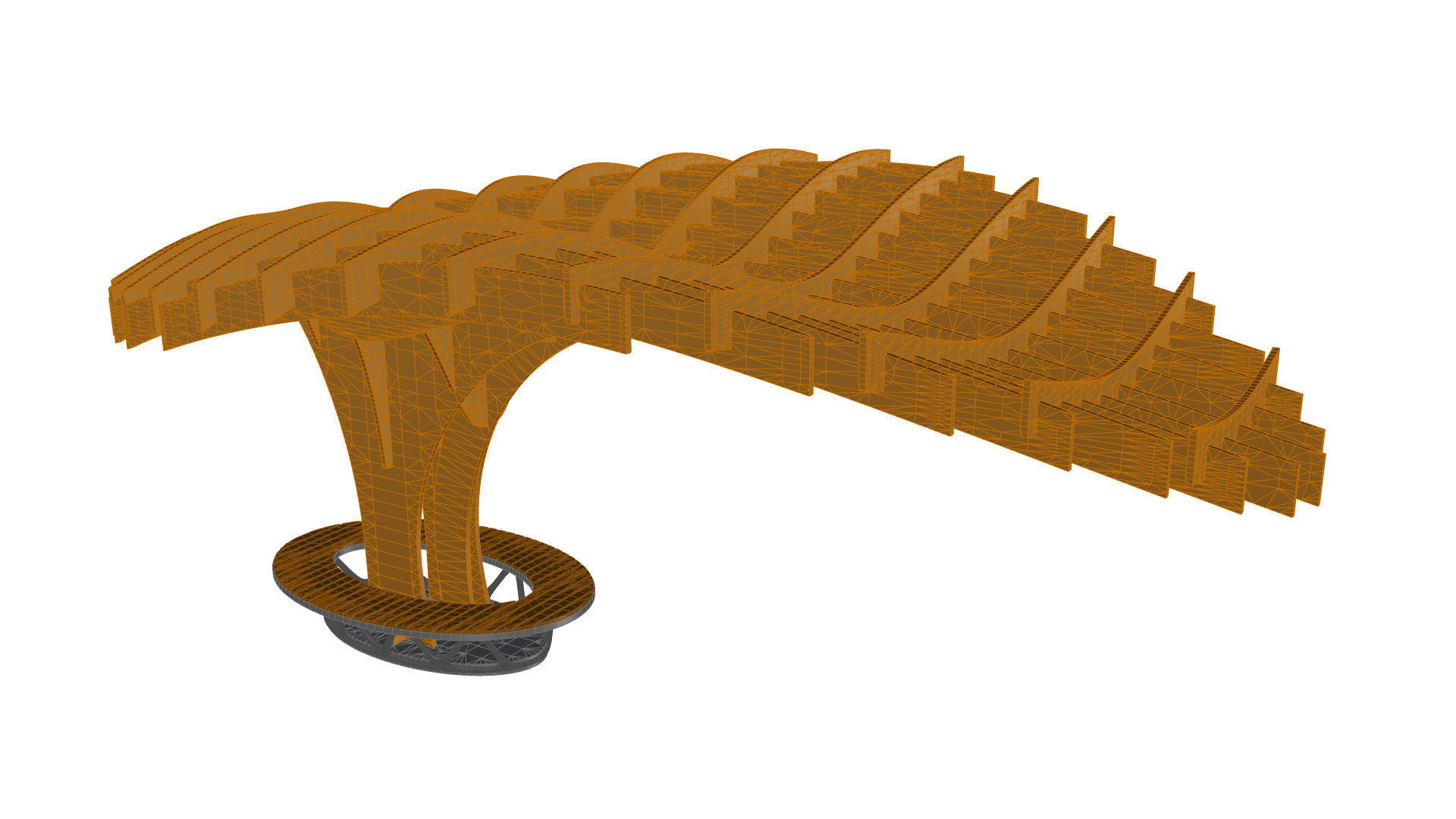

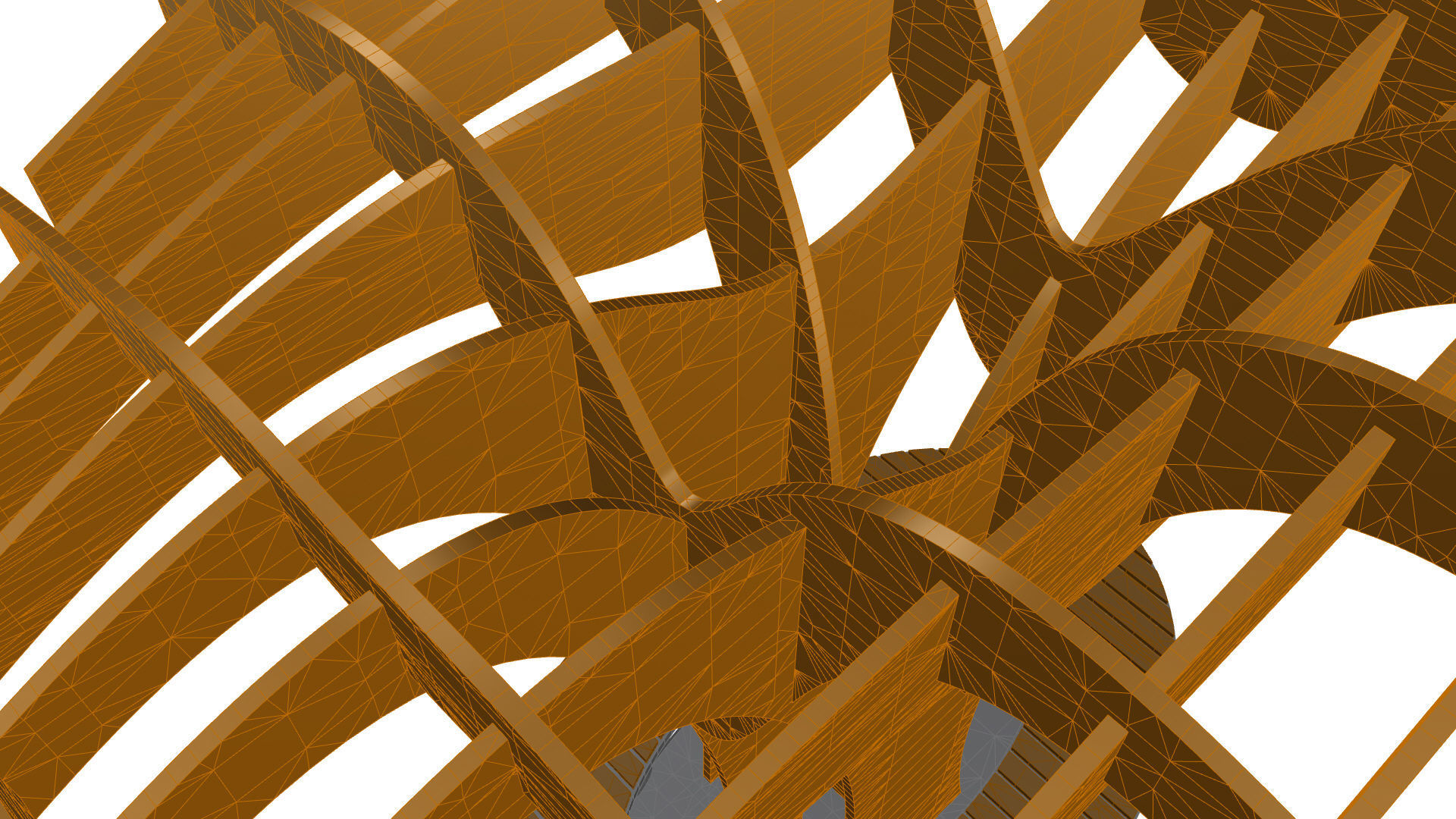

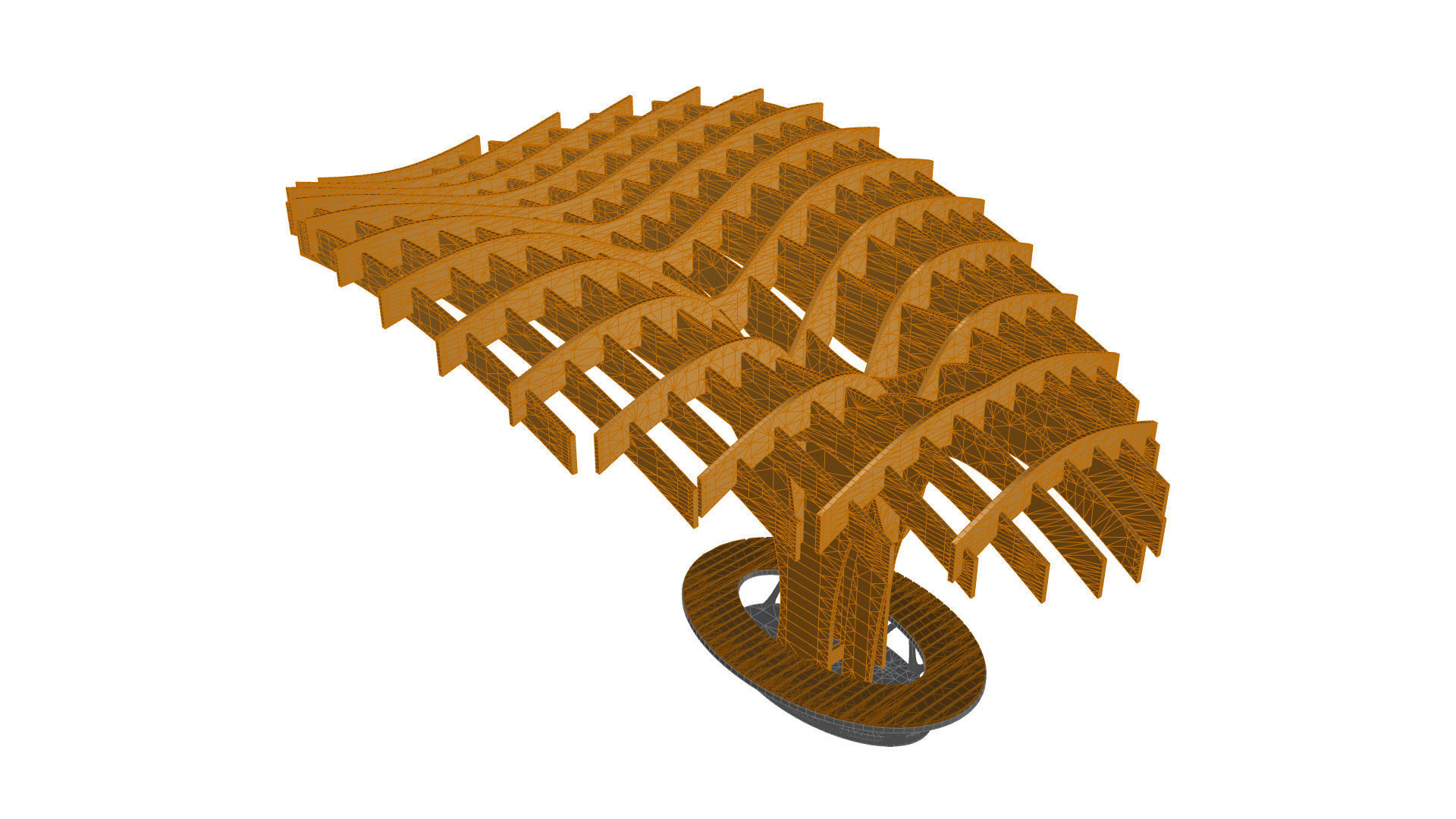

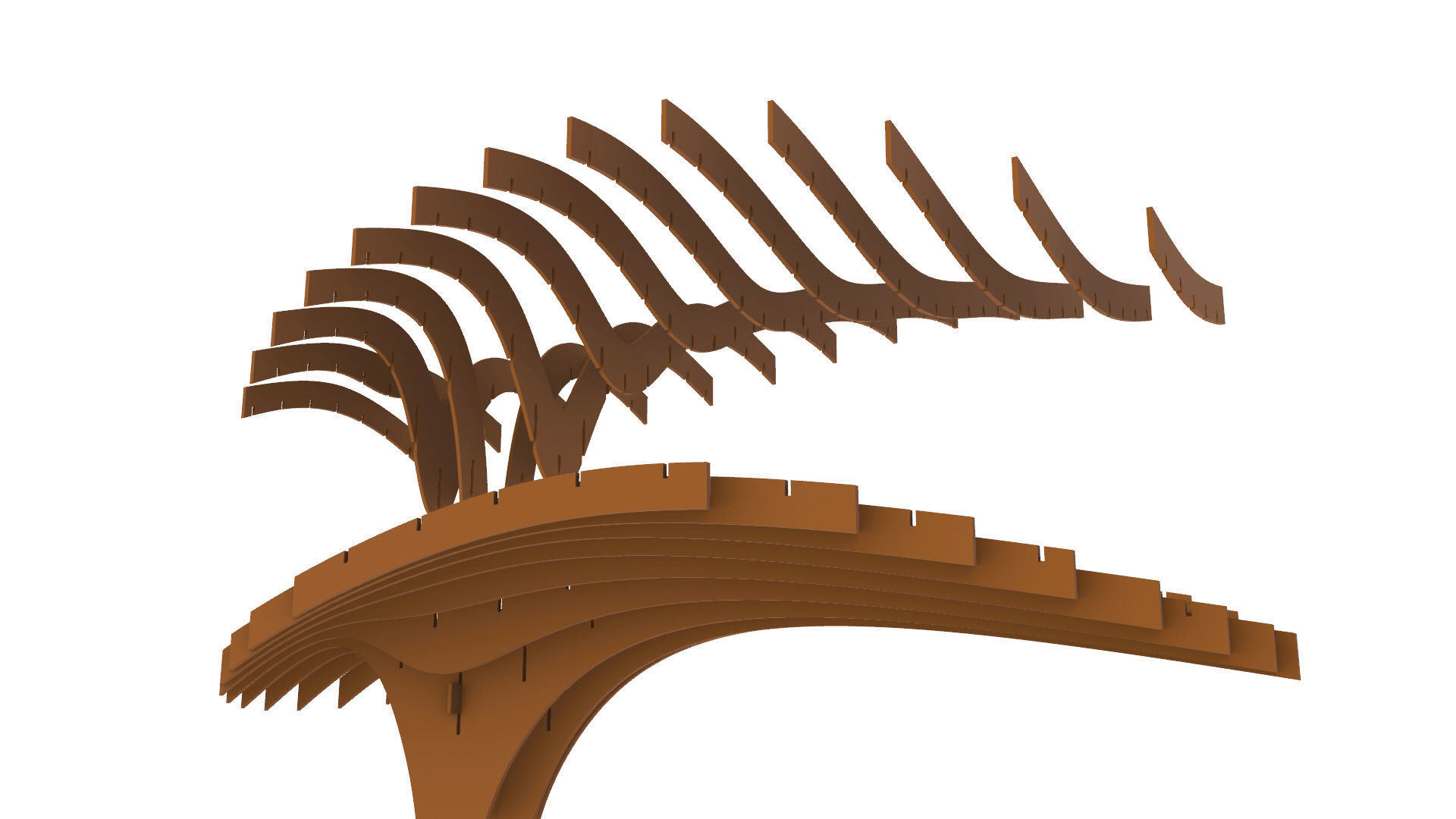

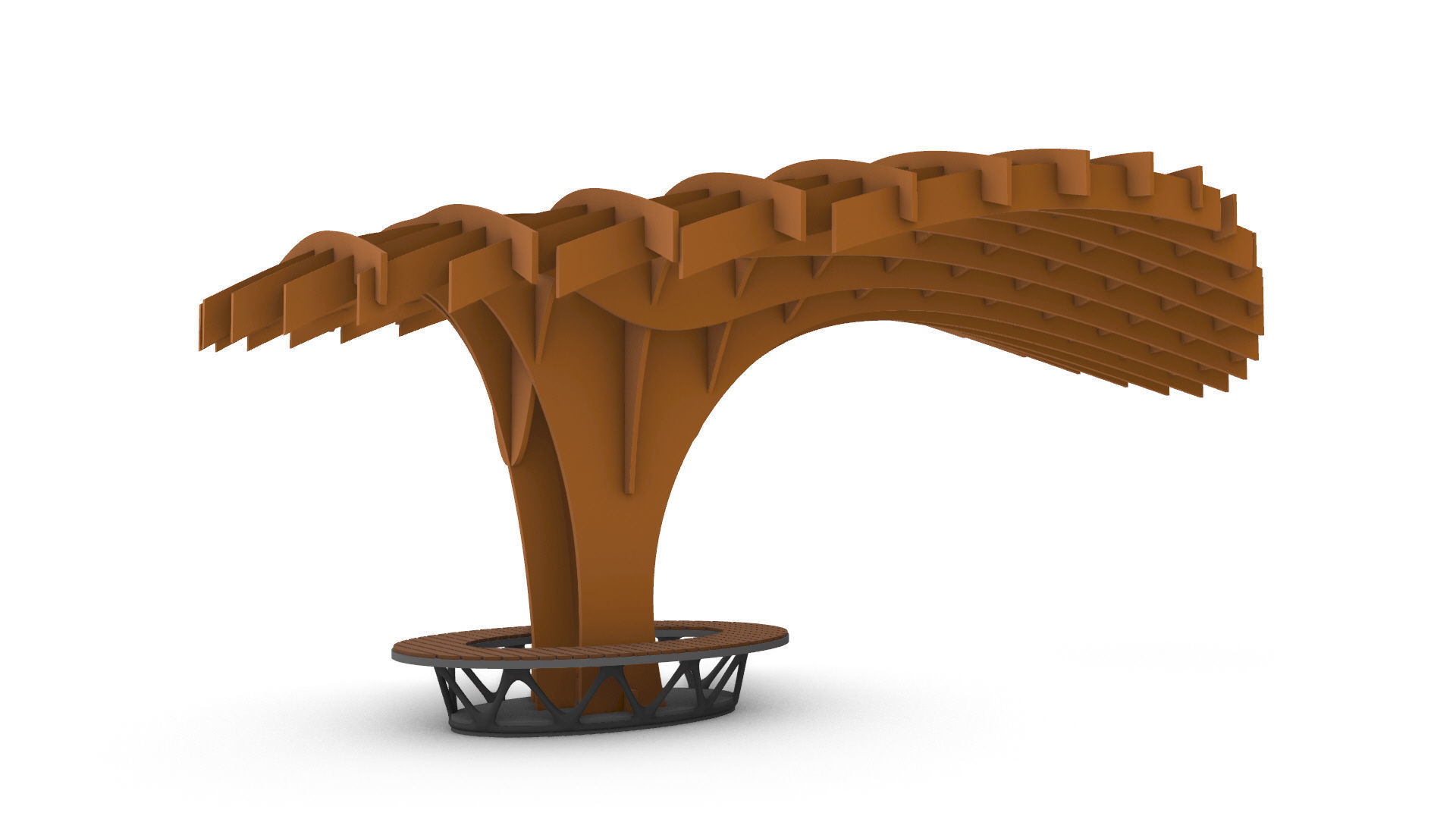

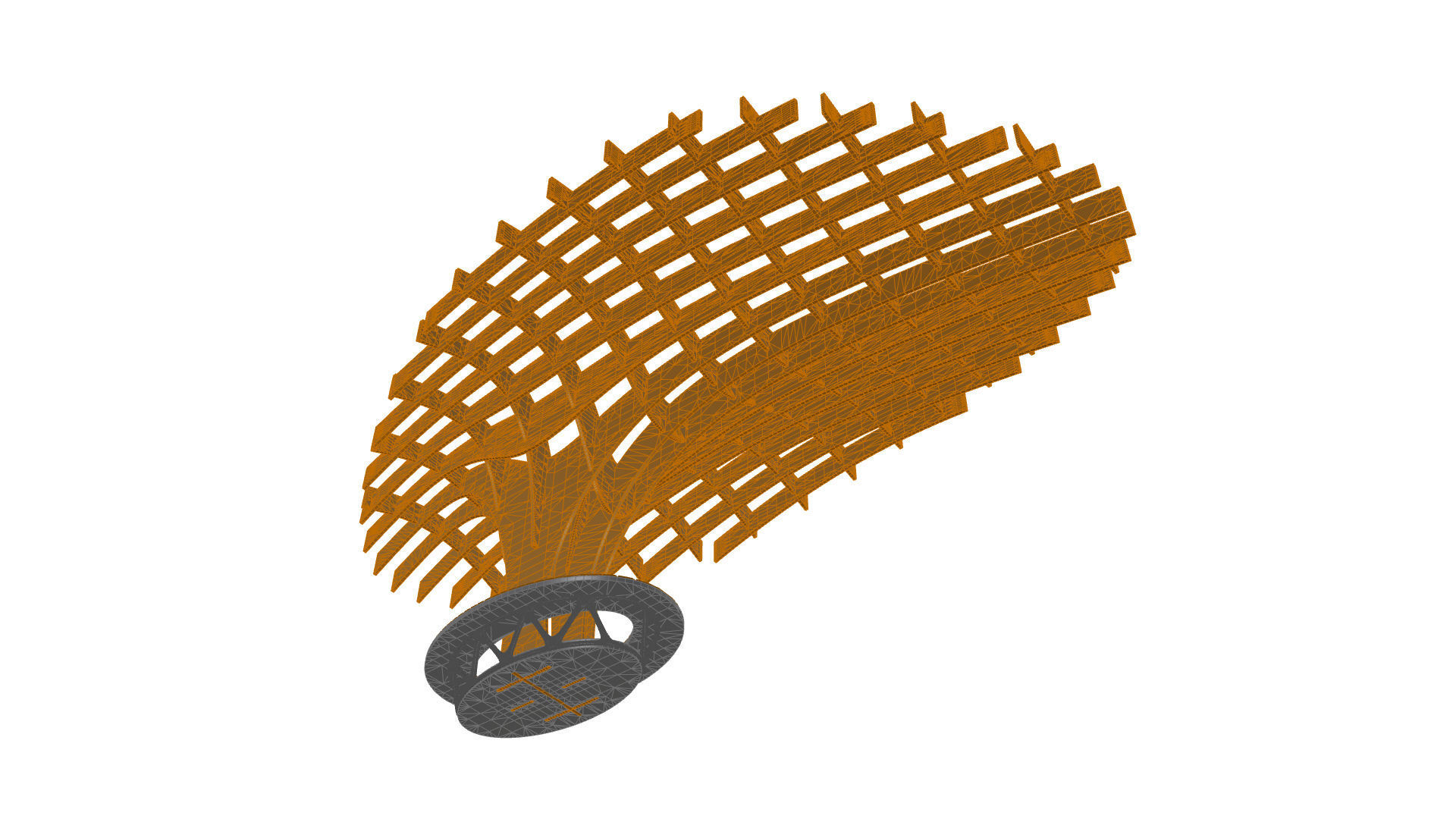

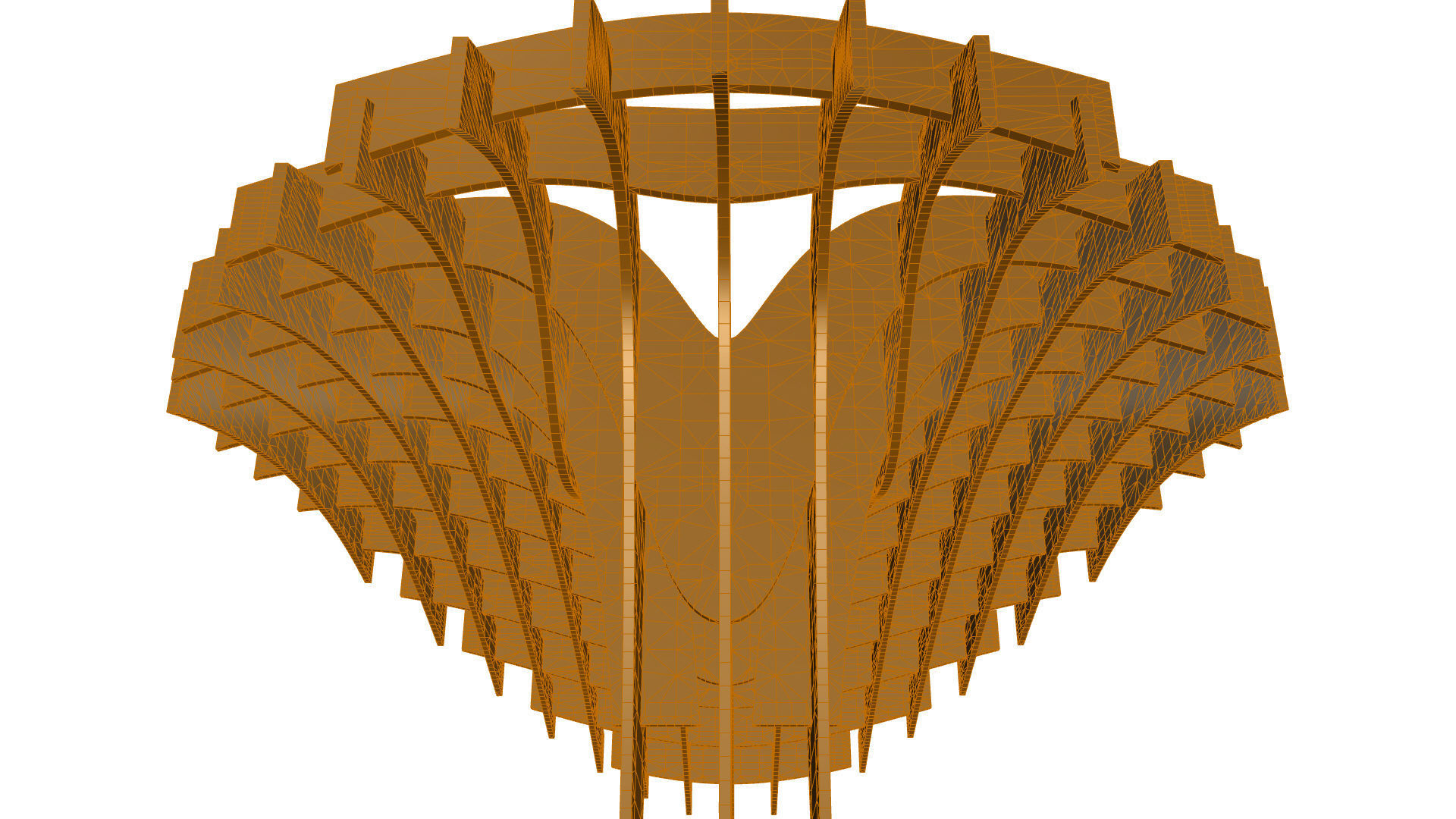

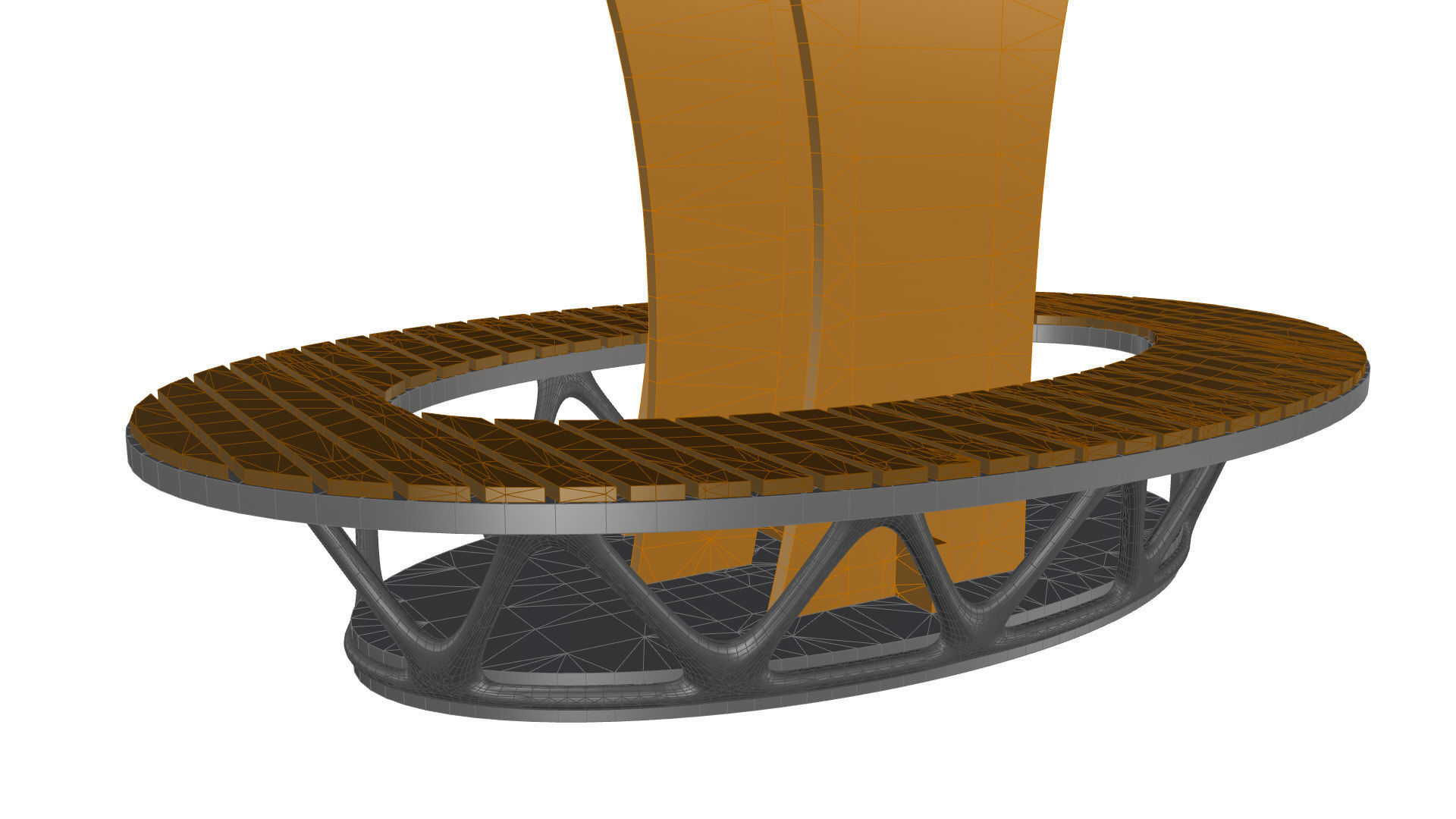

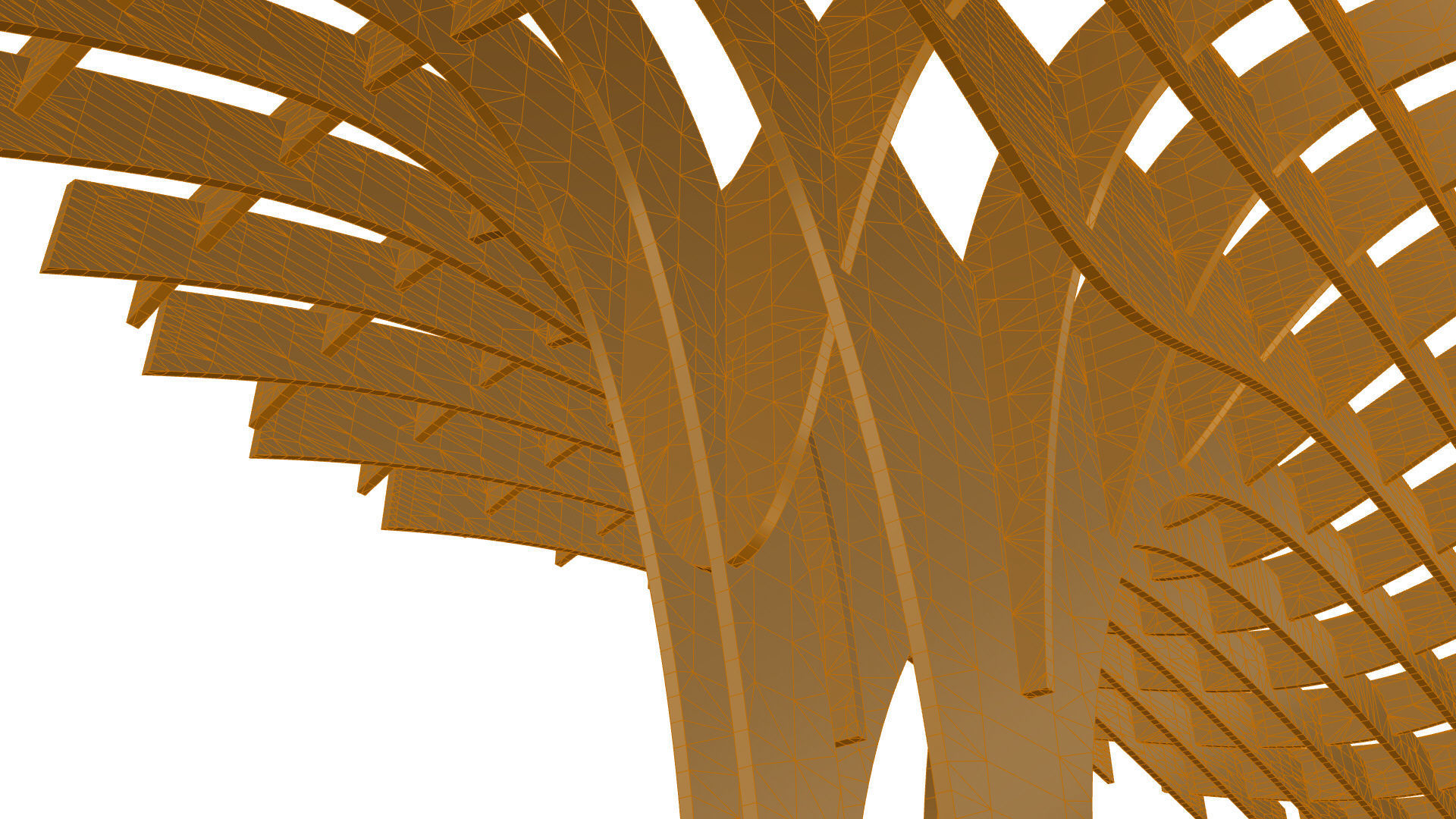

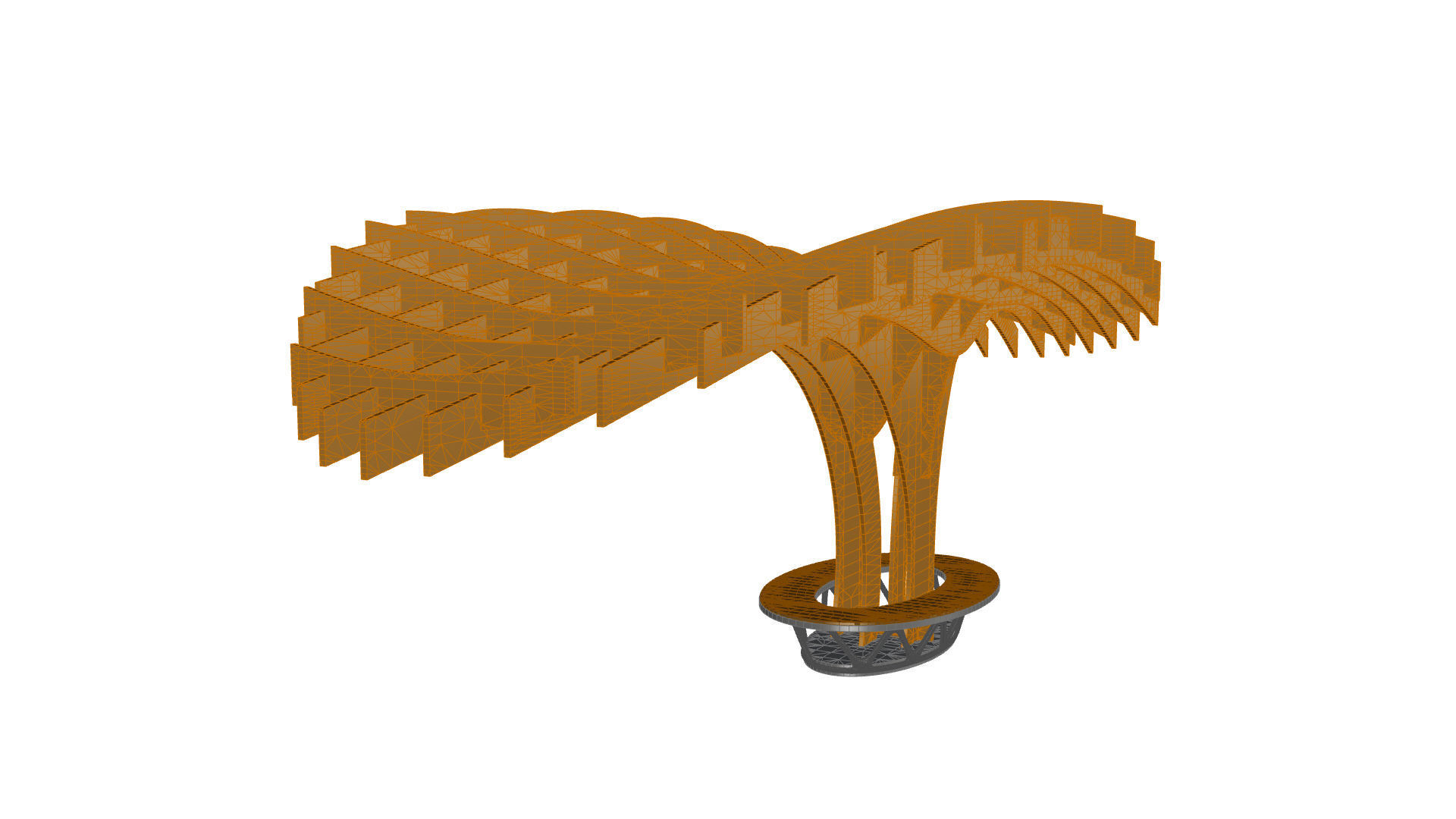

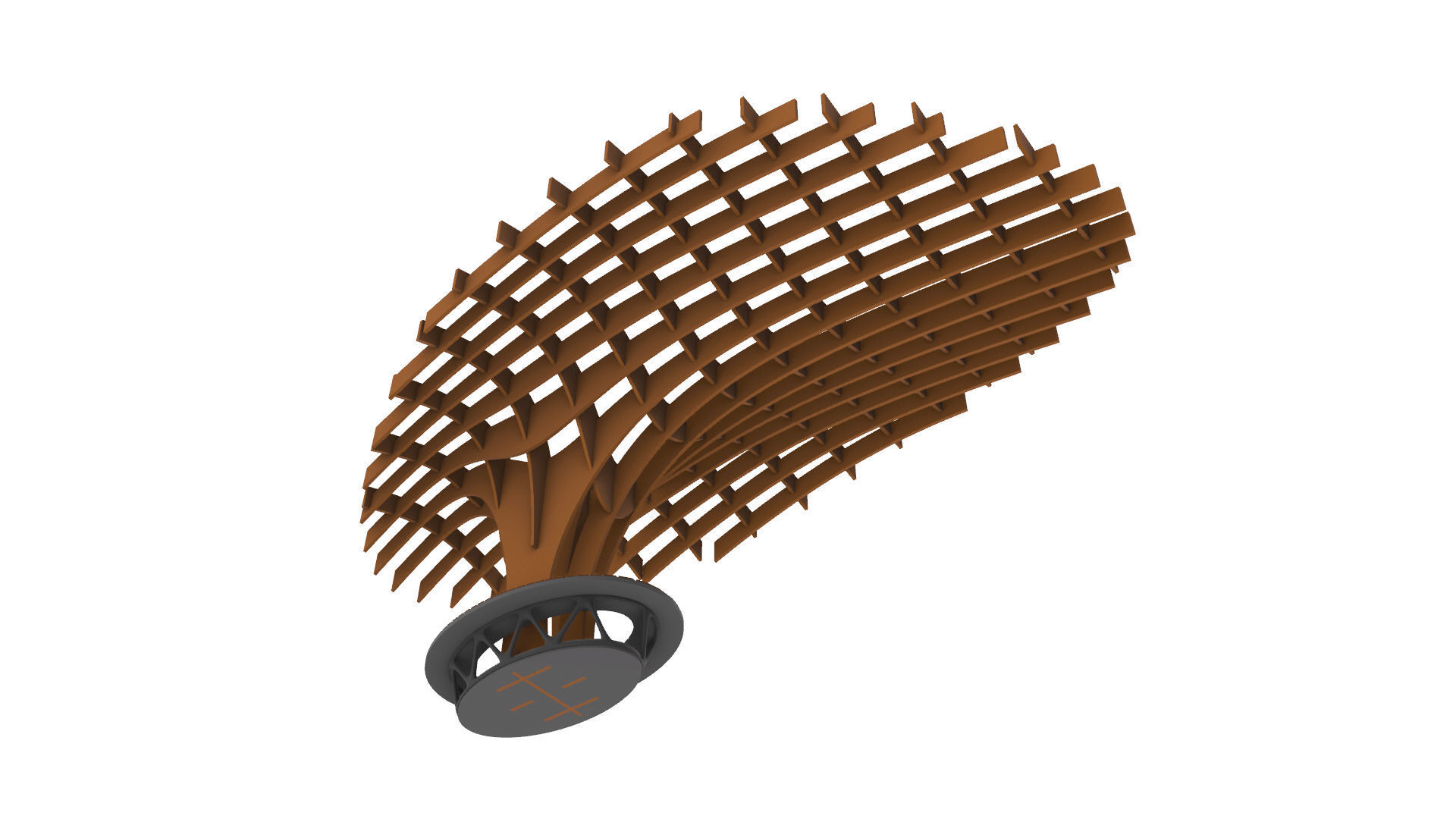

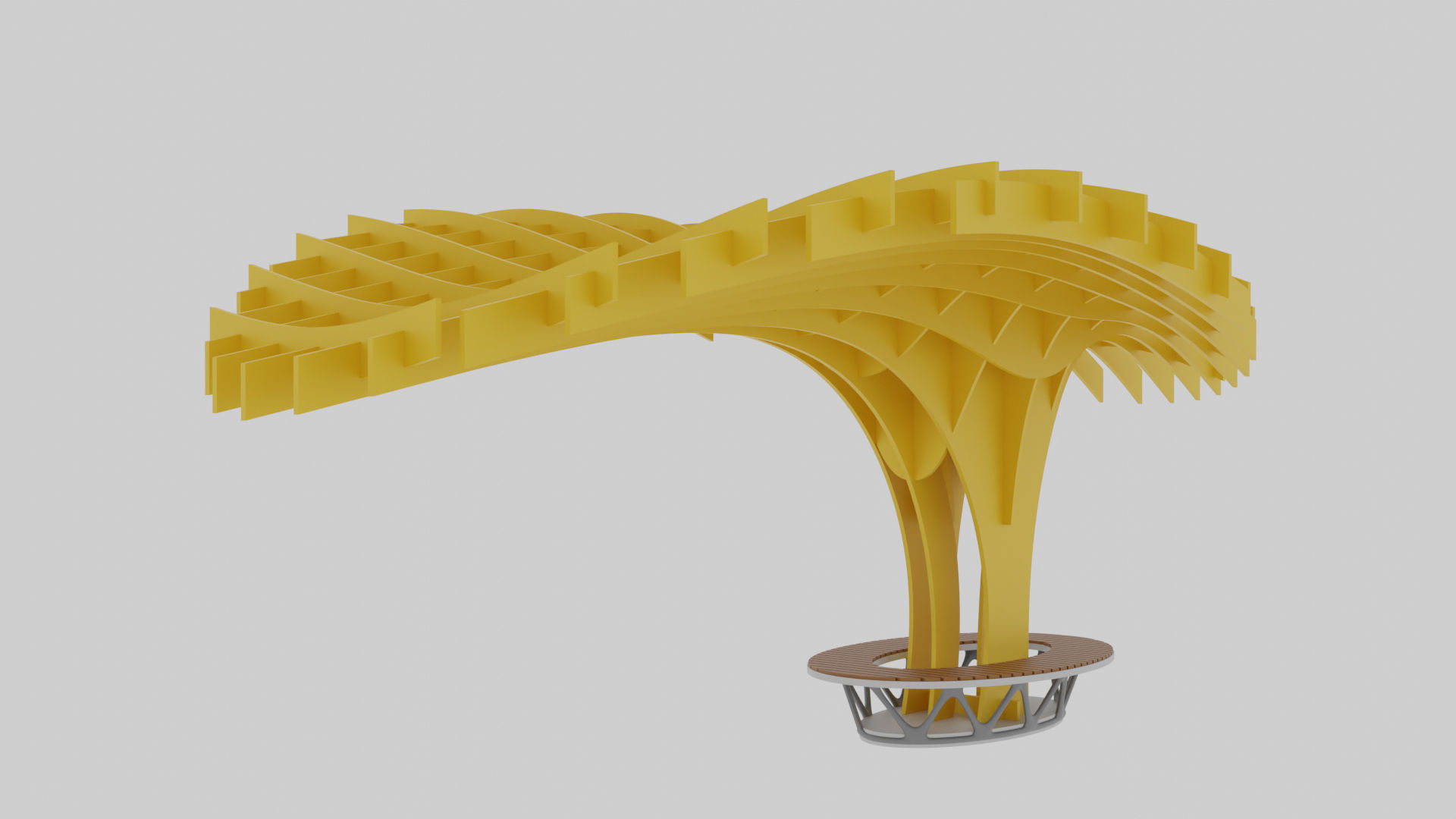

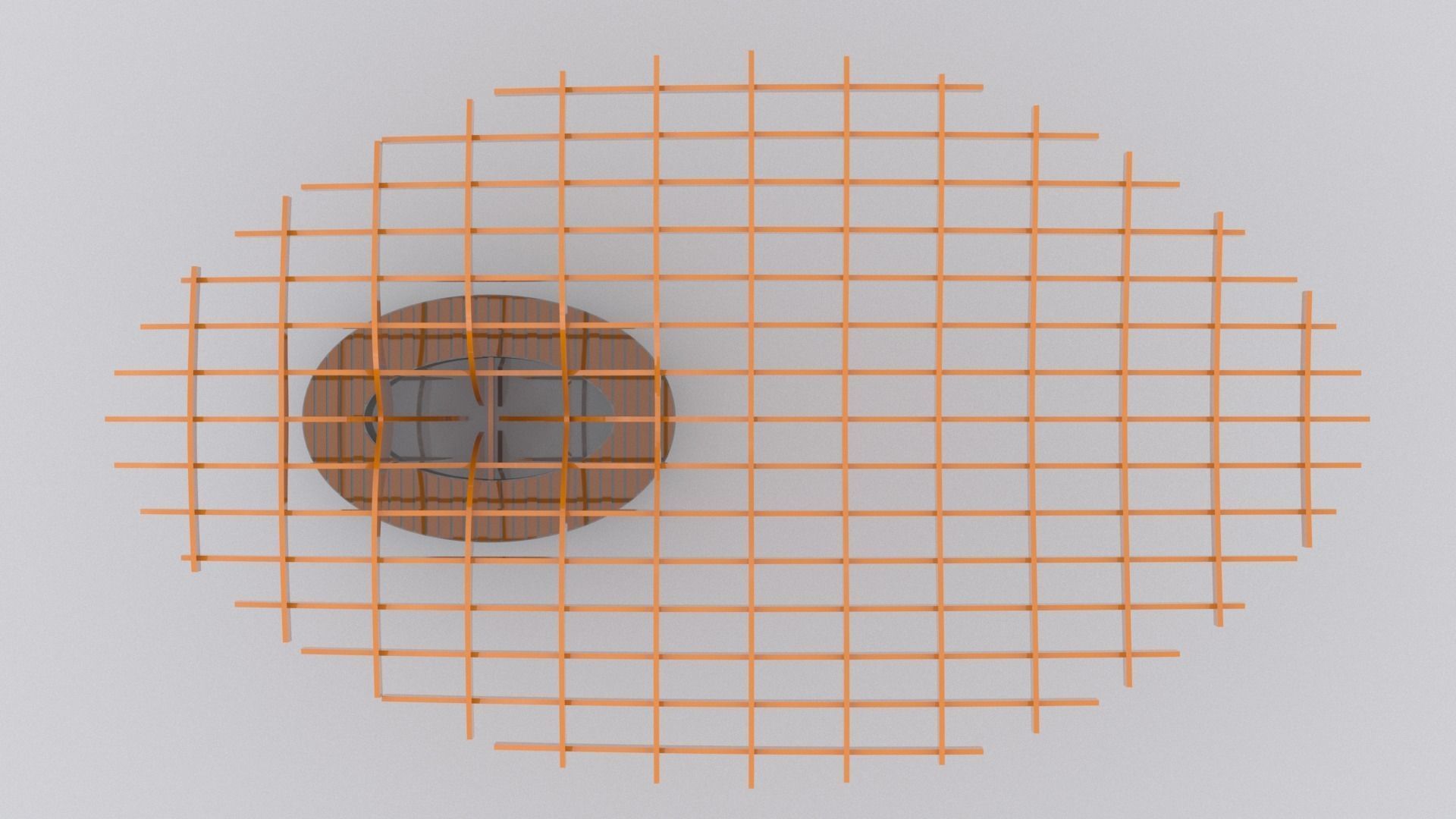

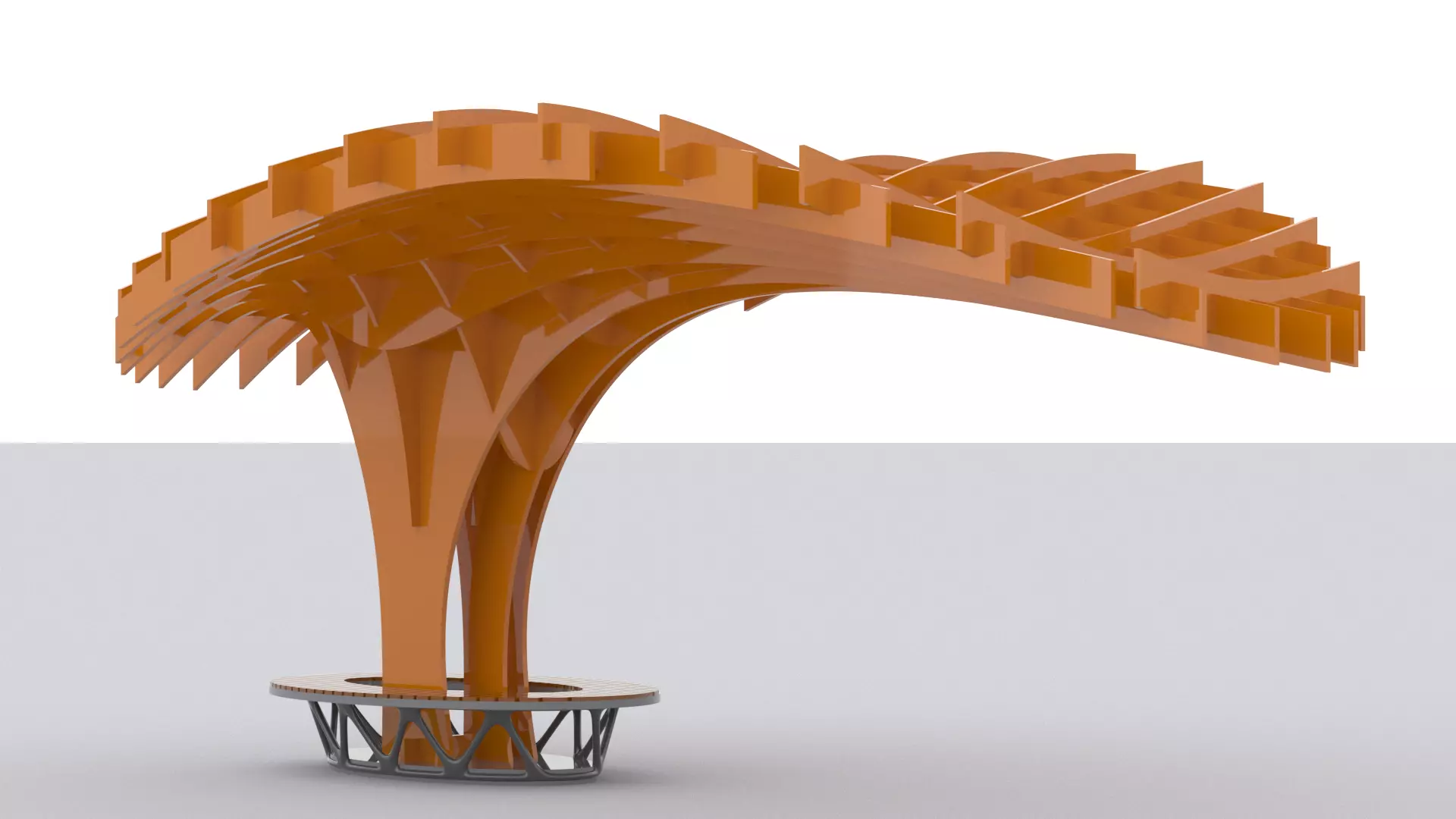

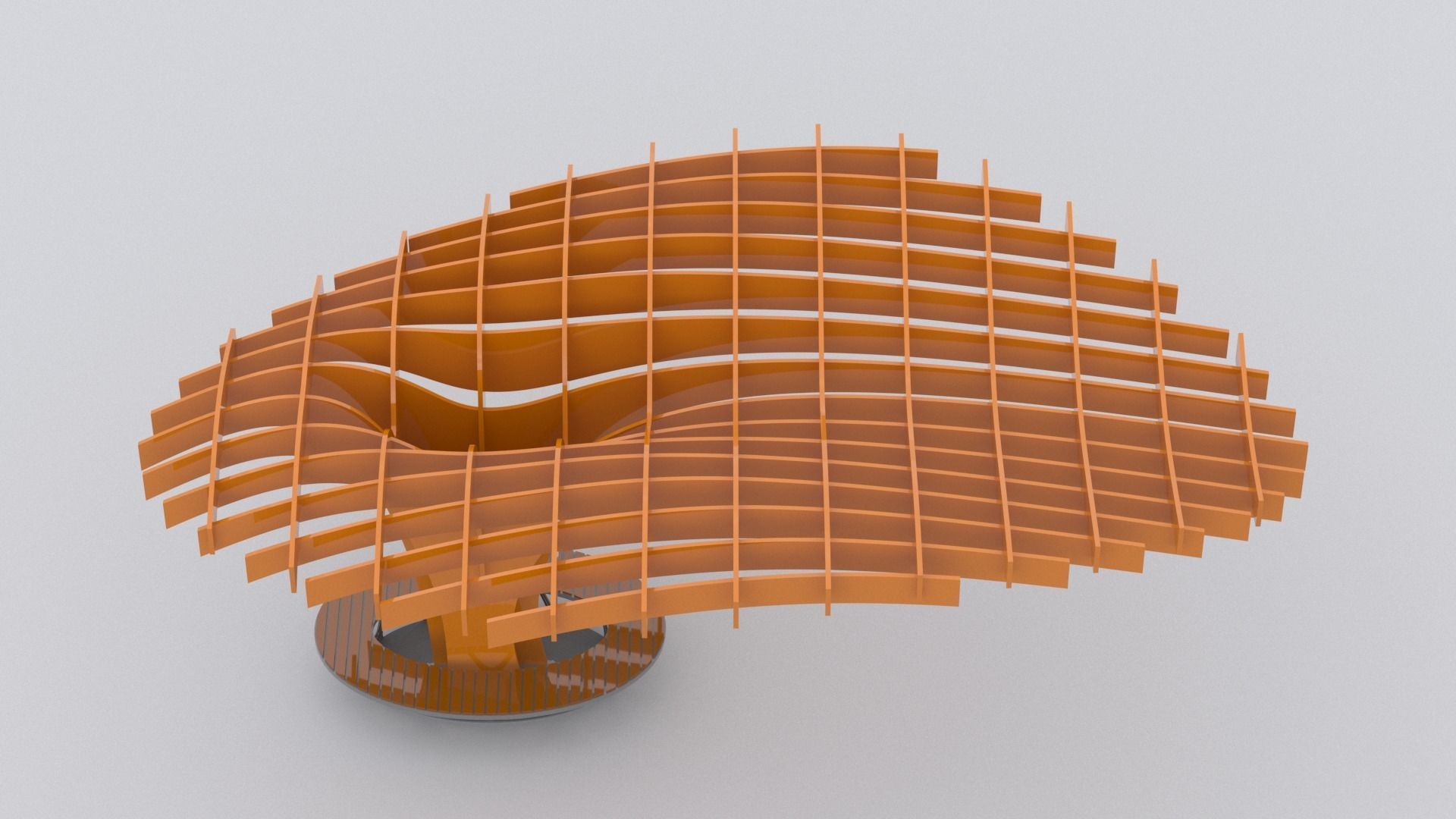

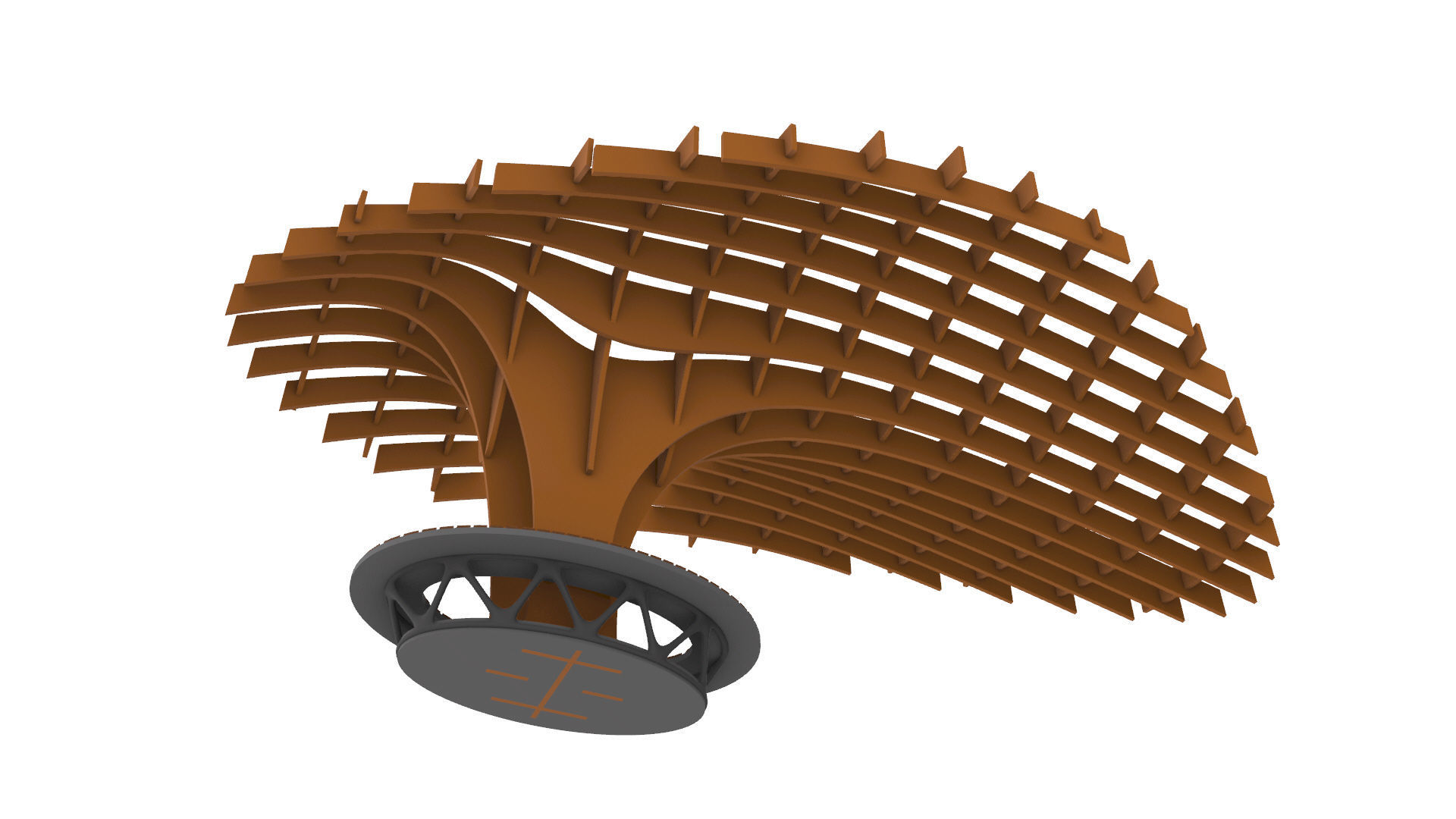

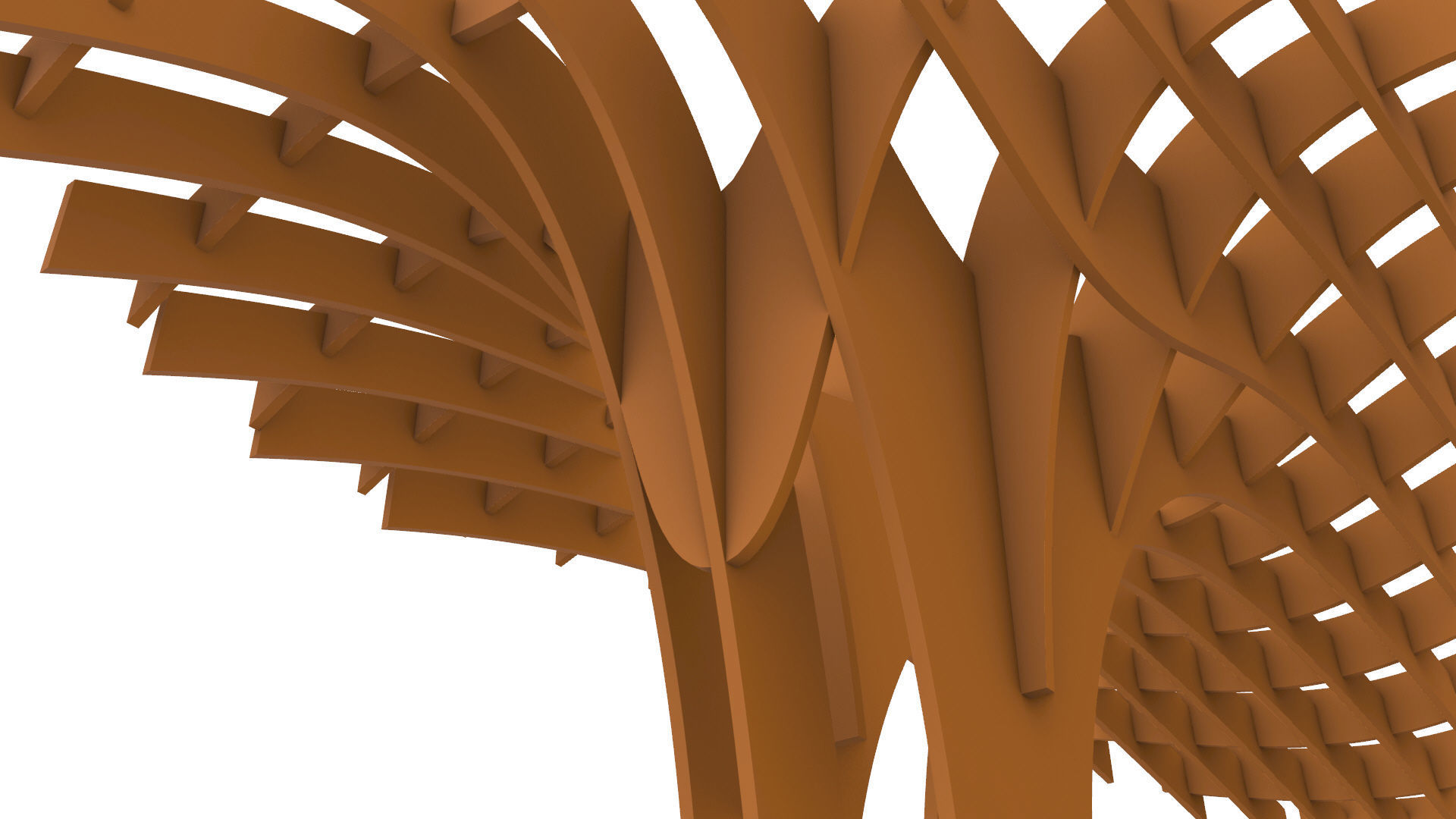

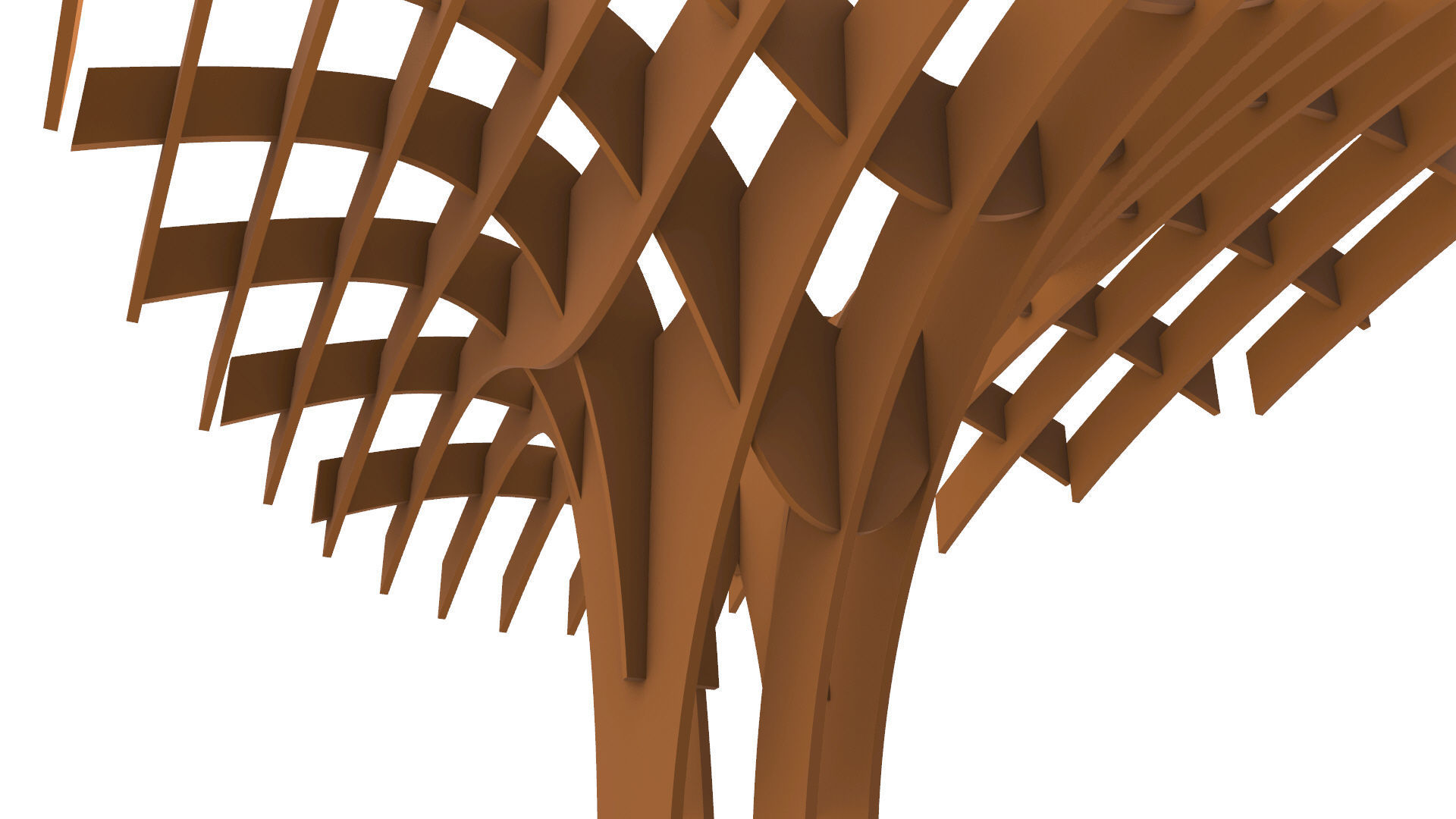

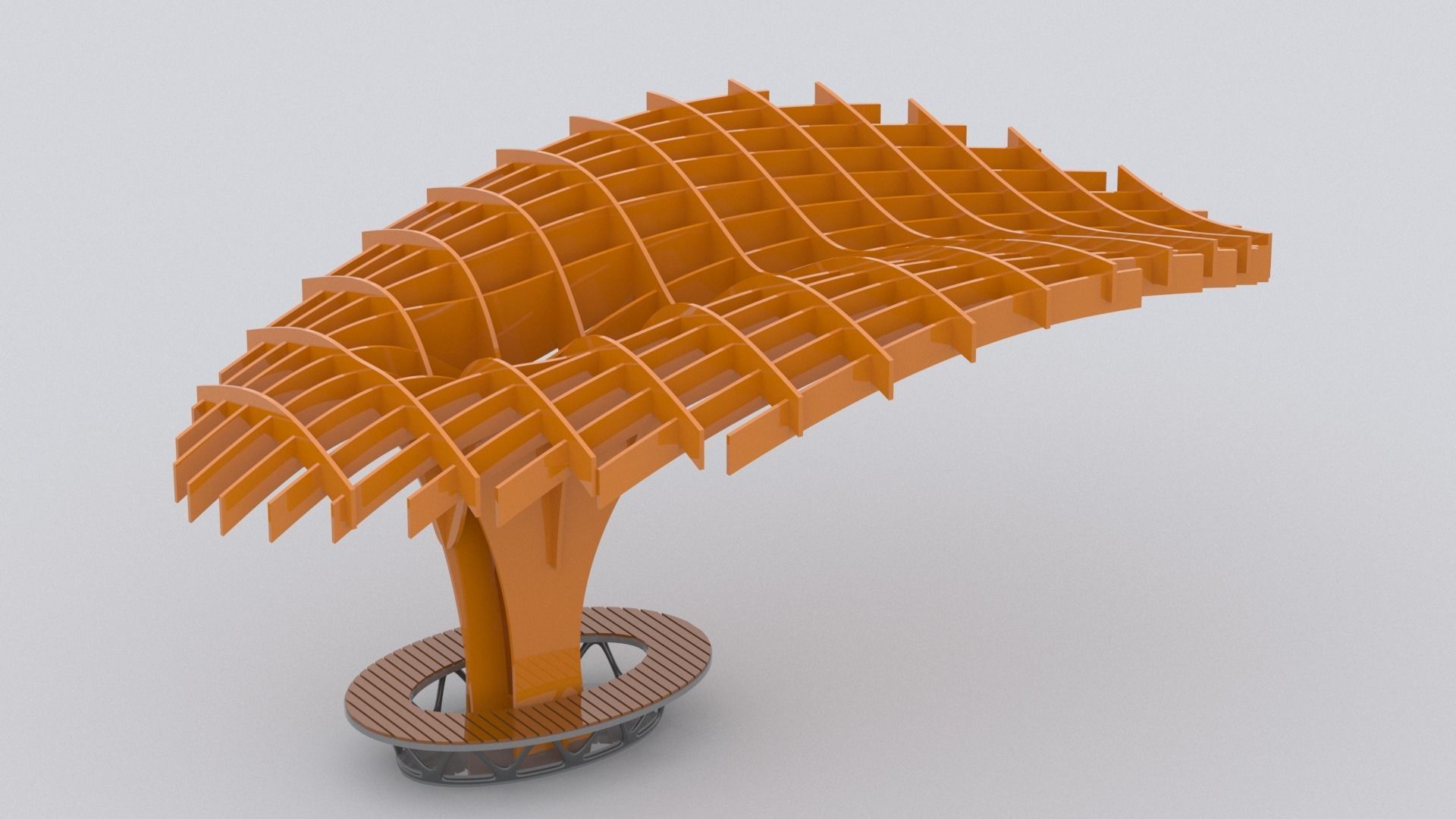

A Wavy Wooden Waffle Pergola in a Cantilever Waffle Structure form, with two sets of perpendicular wooden beams, the wooden beams are interlocked with each other with slits and grooves in each beam section, the beams network is tightened, hold and lifted in the sky by steel beams and columns welded together, the model was created using computational parametric tools to achieve the most accurate geometry with clean details, it could be used for architectural render purposes outdoors, and also for Landscaping and urban landmarks.

Files Units Format are Metric:

• boundary dimensions (Length X Width X Height) = (9.6m X 5.4m X 4.0m).
• Clear Height underneath the Pergola (2.5m to 3.0m)

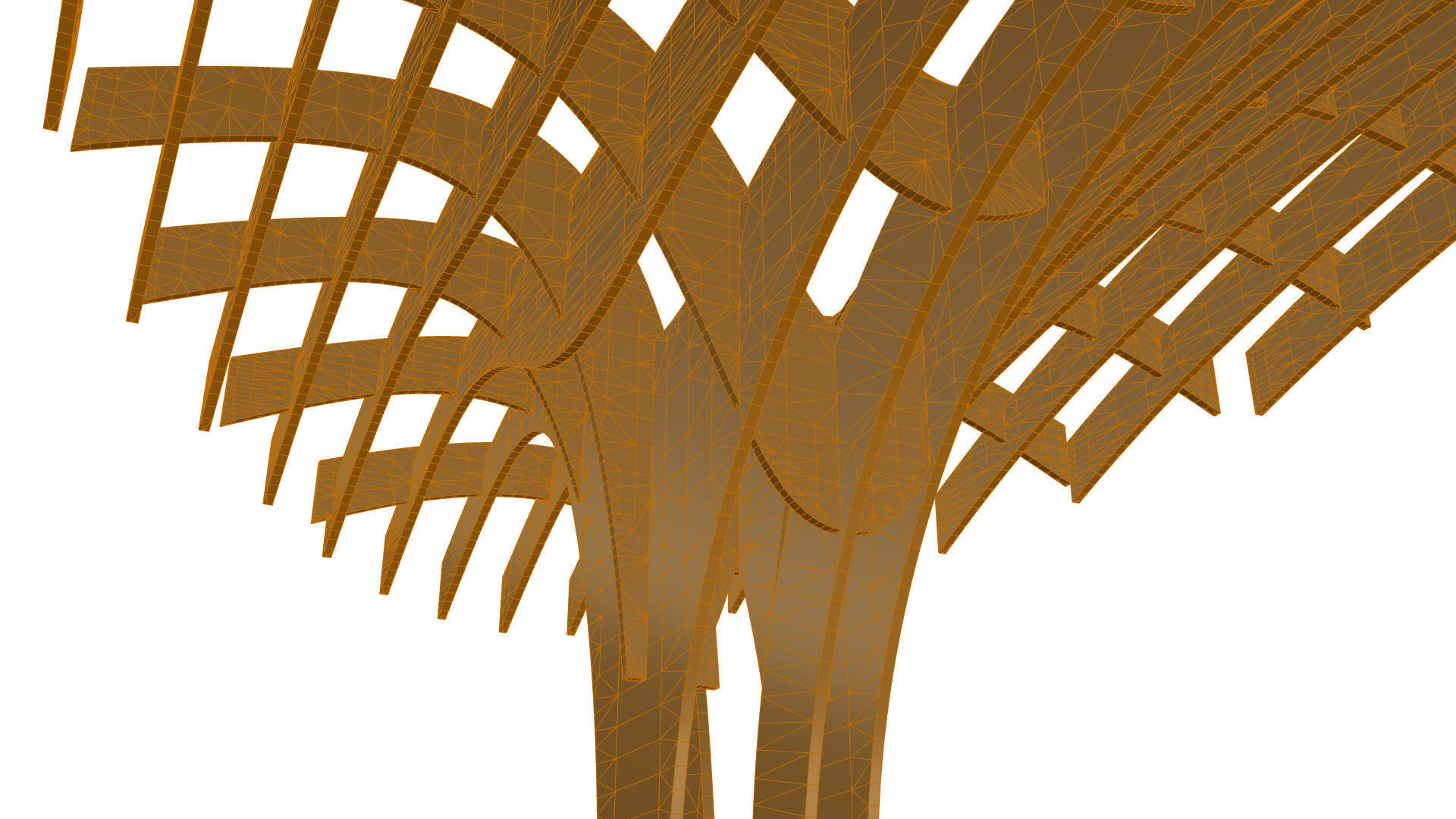

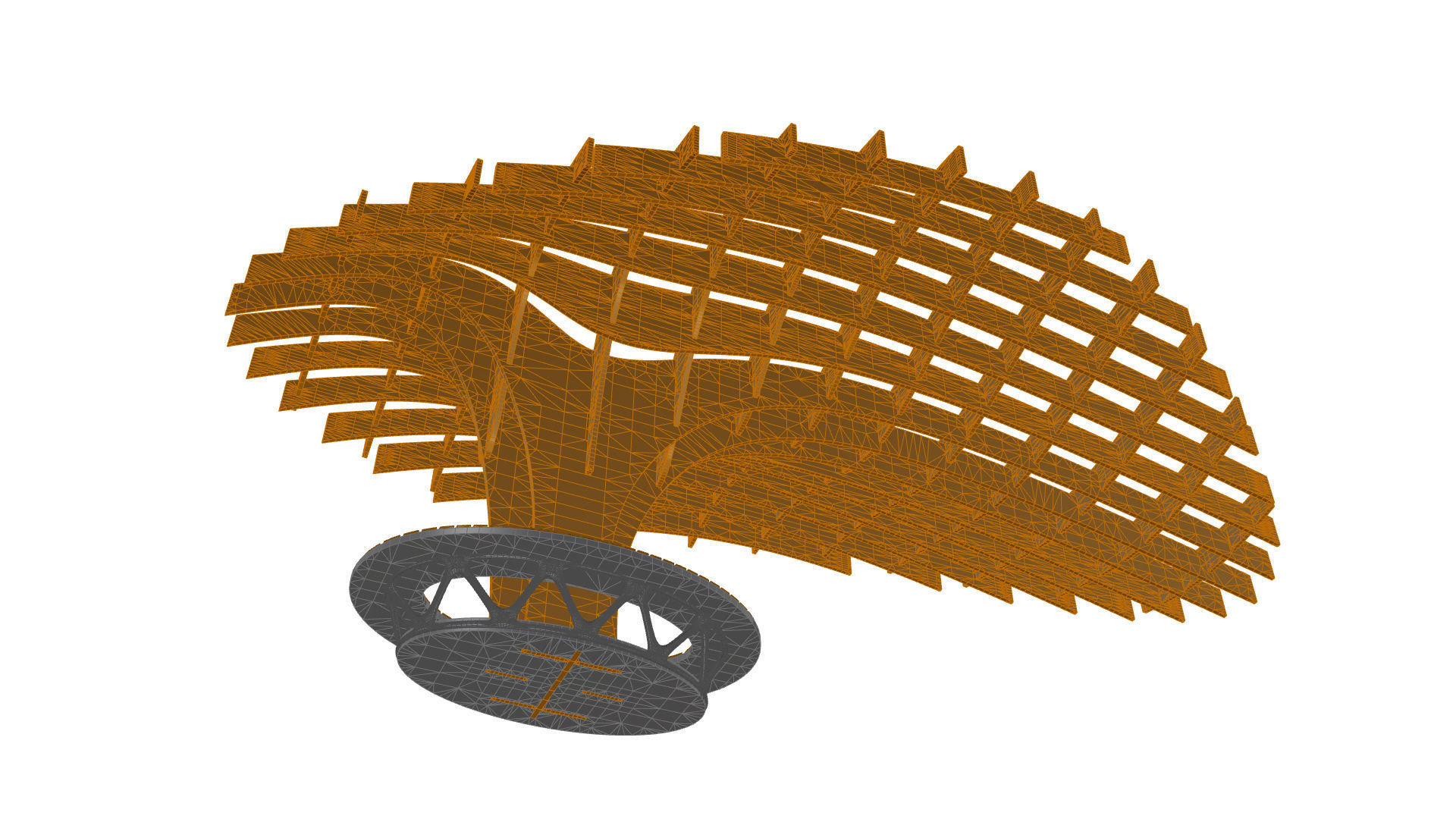

Geometry Total Count >> Polygons: (75427) & Vertices: (80233).

• CNC files are provided in (Format-3dm), (Format-ai), (Format-dwg).

Supported files includes 3ds max Vray, and both Rhino-3dm and Blender-blend in addition to Format-FBX, all units are in meter and are changeable to any desired other format whether metric or Imperial.
