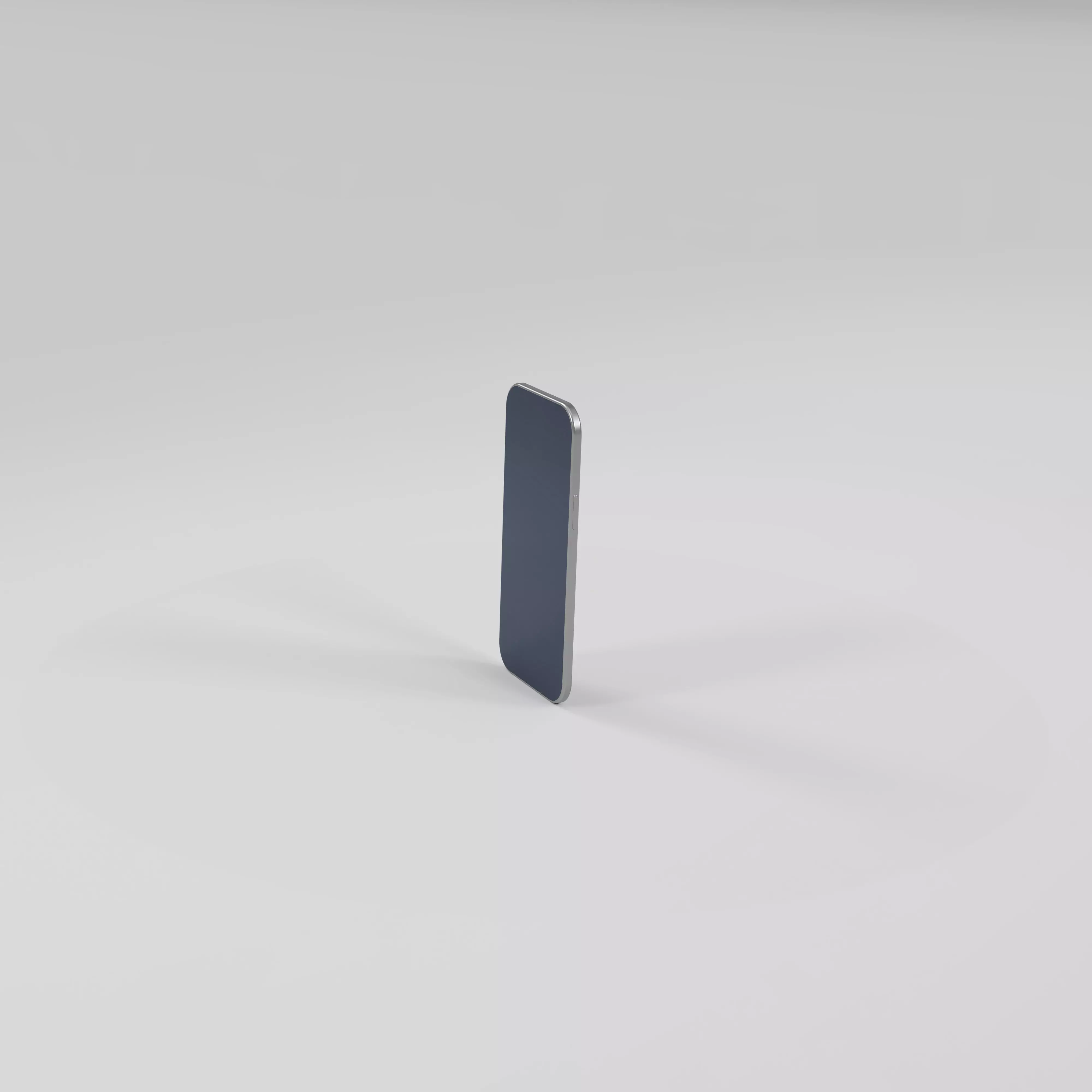

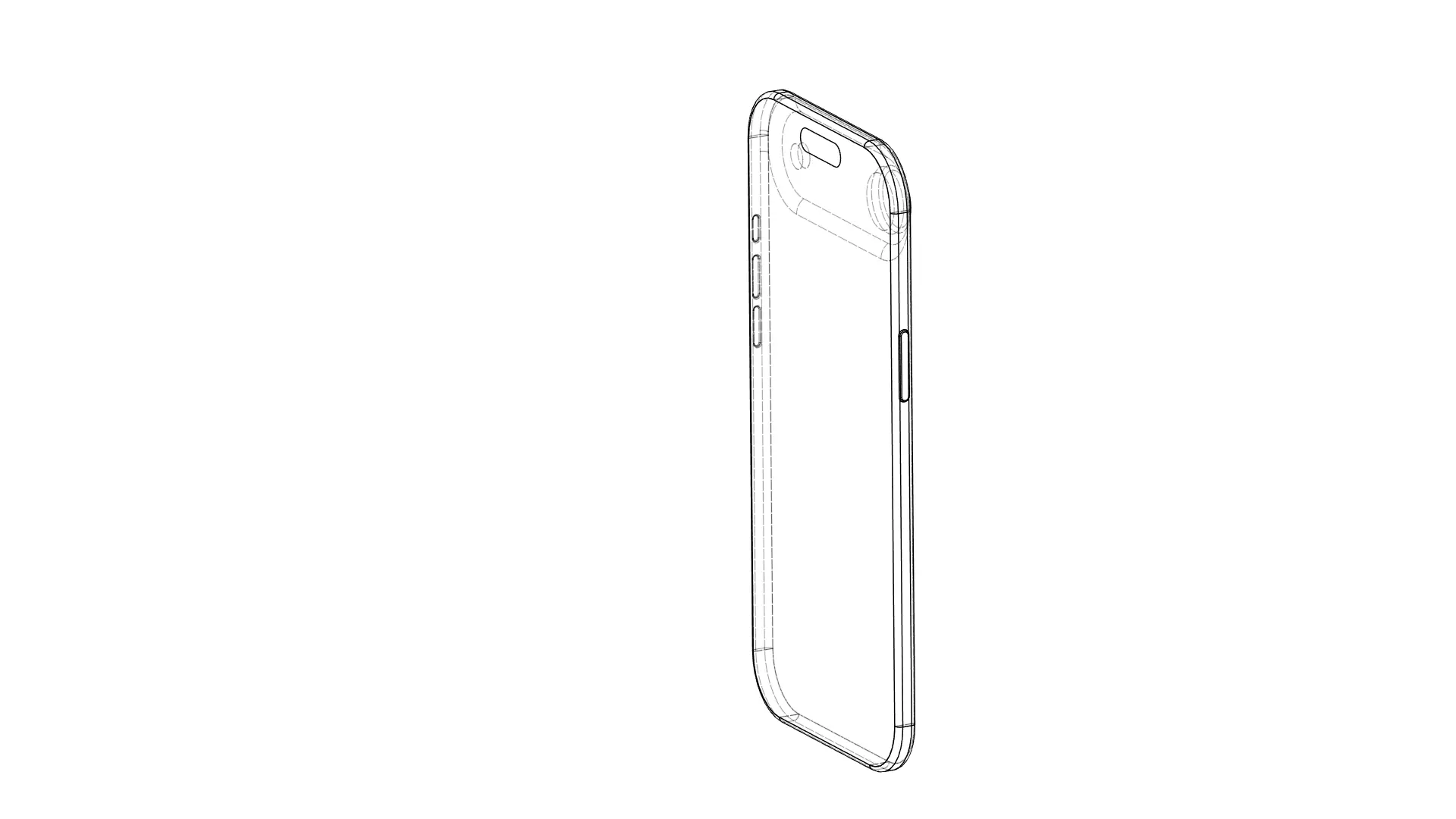

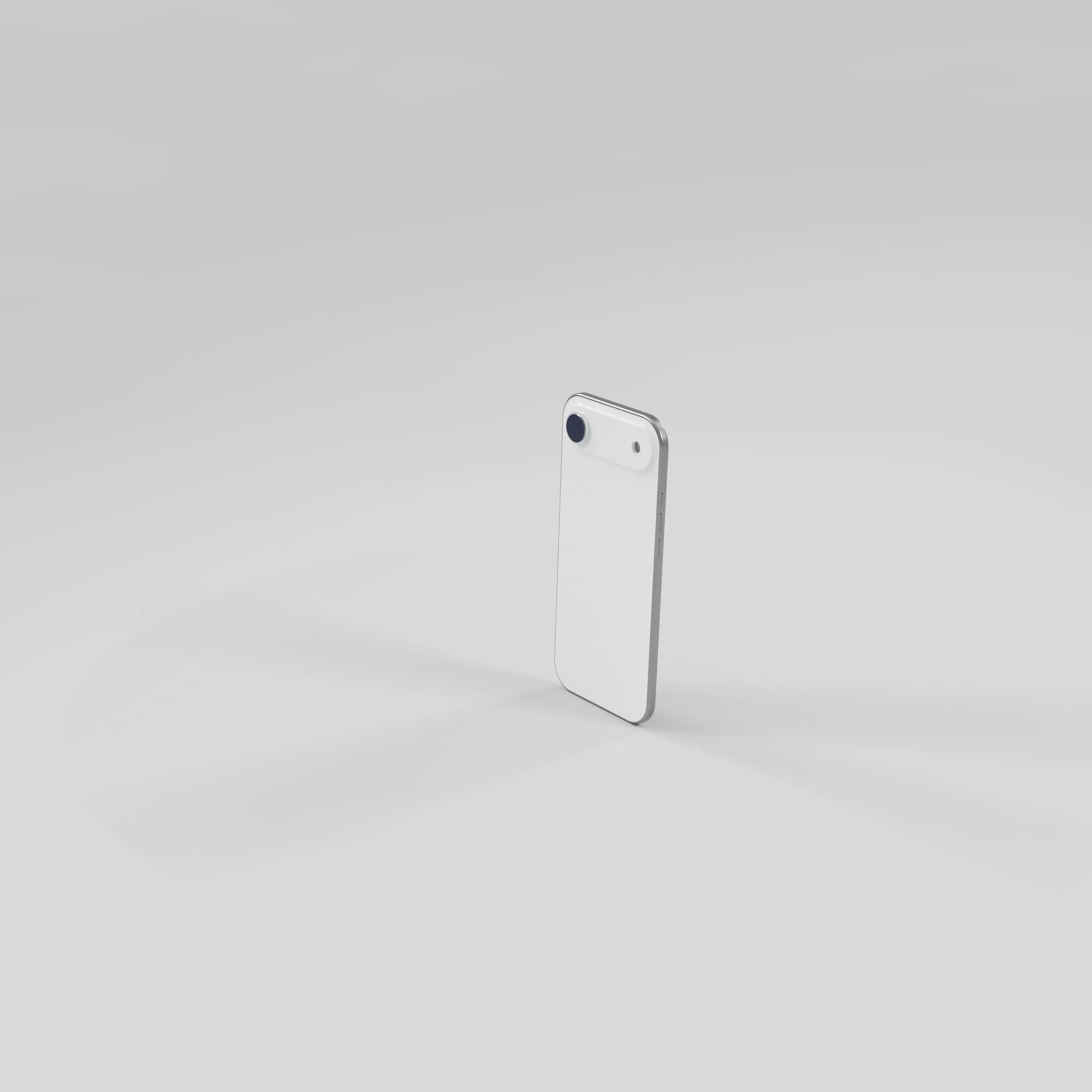

Apple iPhone 17 Air – Unofficial Dimensions for 3D Modeling Reference

As of now, Apple has not officially released the iPhone 17 Air, but based on multiple reliable leaks and industry sources, here are the reported dimensions for reference when designing a 3D model:

Reported Dimensions (Unofficial, Subject to Change)Height: Approximately 163 mm

Width: Approximately 77.6 mm

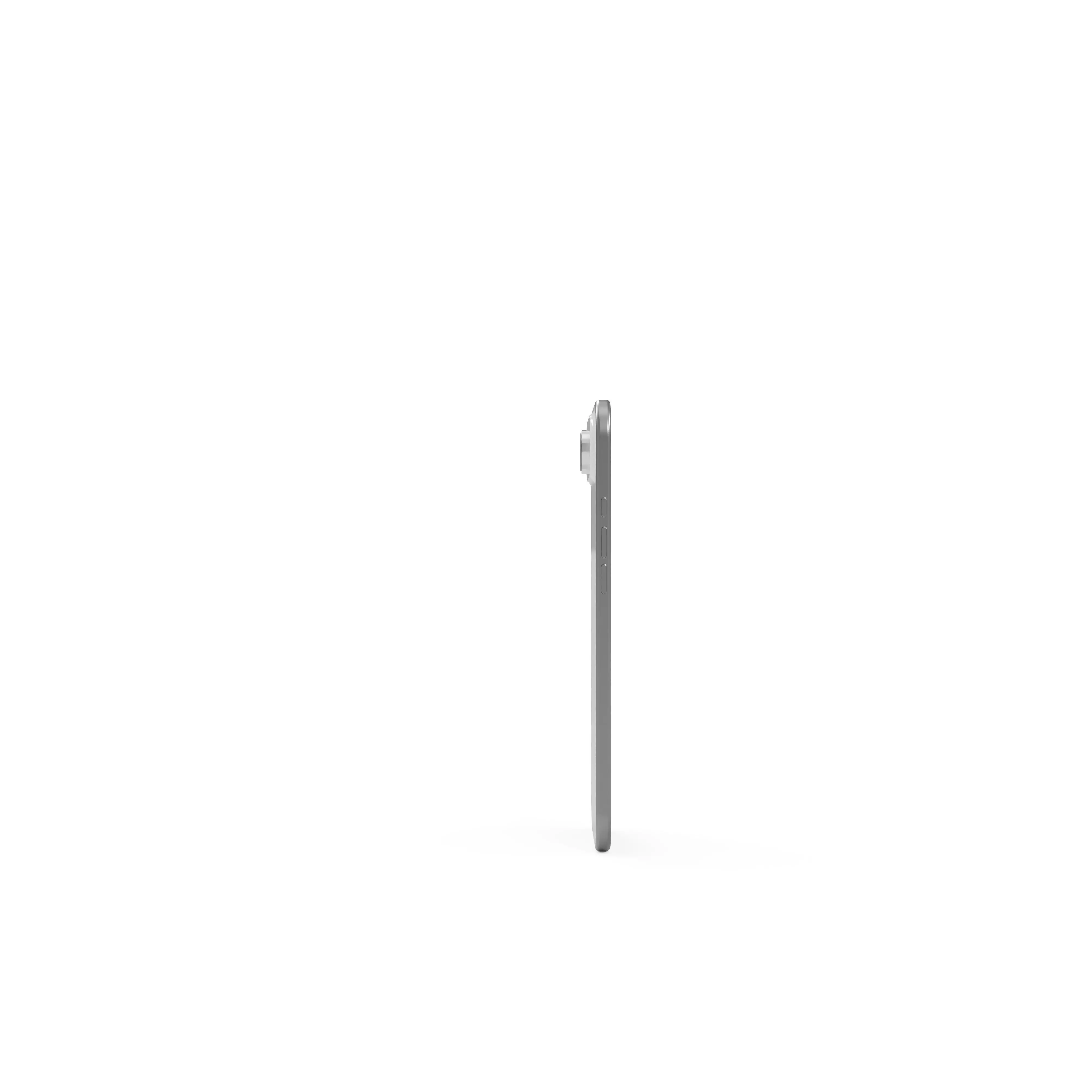

Thickness (main body): Estimated between 5.5 mm and 5.6 mm

Thickness (including camera bump): Not yet confirmed, but expected to be several millimeters more

Weight: Around 145 to 146 grams

Notes:These dimensions are based on early leaks and reports from trusted publications such as The Verge, MacRumors, Tom’s Guide, and 9to5Mac.

Apple has not confirmed these specifications, and they may change at launch.

The iPhone 17 Air is rumored to be Apple’s thinnest iPhone ever, even thinner than the current iPhone 15 Pro models.

Recommendations for 3D Designers:If you are creating STL files or case designs, treat these numbers as placeholders and allow tolerances in your modeling.

Recheck dimensions following the official product launch, expected around September 2025.

Consider designing your model parametrically to make quick adjustments when confirmed specs are released.
