Stratocaster Pickup 3D model
thumbnail
thumbnail
thumbnail
DESCRIPTION

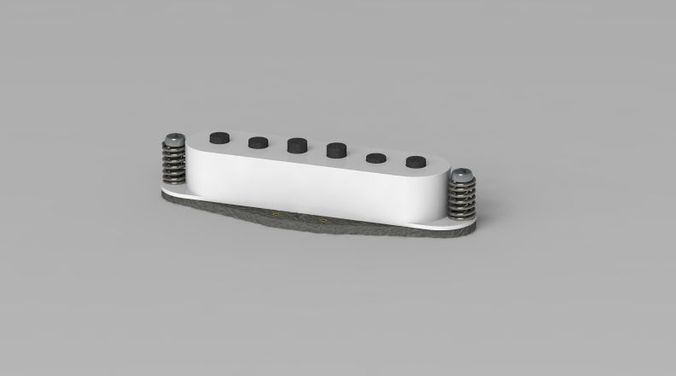

Very accurate copy of a 1962 Fender Stratocaster Guitar Pickup. This is a complete assembly of the strat pickup. Within the next few days I will be uploading the 1:1 DXF files for laser cutting of the bobbin base and top as well as a PDF set of production drawings for those who want to manufacture their own vintage spec stat pickups. Included in the production drwing set will be the resistance of the coils, the thickness and type of wire, from which point to begin the winding process, the number of turns...etc.

Obviously once I upload the production drawings, the price will go up...in the meantime, here are the surface models of all the parts!

Related Tagsguitarmusicmusical instrumentstratocasterstratfenderguitarselectricalguitaristinstrumentselectronicsotherelectric guitar
