DESCRIPTION

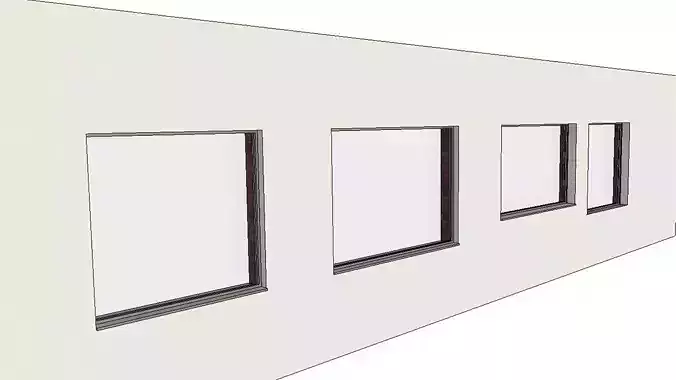

Revit Wall Based 3D Family for a plain fixed window.

Fully Parametric family to match every project need. Family can be cut through any section.

Includes window sill with interior and exterior sill thickness parameters, window sill height from floor, frame width and depth parameter, glass thickness parameter, window offset from wall face, rought width and height ( wall opening ).

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Window Wall Based
  • File Extension : .rfa

PARAMETERS:

  • Sill Height from floor
  • Sill Interior & Exterior projection out of wall
  • Sill thickness ( interior & exterior, can be sloped )
  • Window frame wall offset
  • Frame width and depth
  • Rough Window Width ( wall opening )
  • Rough Window Height ( wall opening )
  • Glass Thickness
  • Sill option ON/OFF
  • Material parameters for window frame, glass and sill )

Family Types :

  • W1500xH1500mm, SILL at 900mm
  • W2000xH1500mm, SILL at 900mm
  • W2000xH1300mm, SILL at 1100mm

User can create unlimited number of different family types to match every project needs.

Related Tagswindowarchitectural
architecture
buildingrevitfamilyhouse
model
glass windowaluminiumparametricbimdesignexteriorinterior
