Pivot Window Horizontal Axis 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

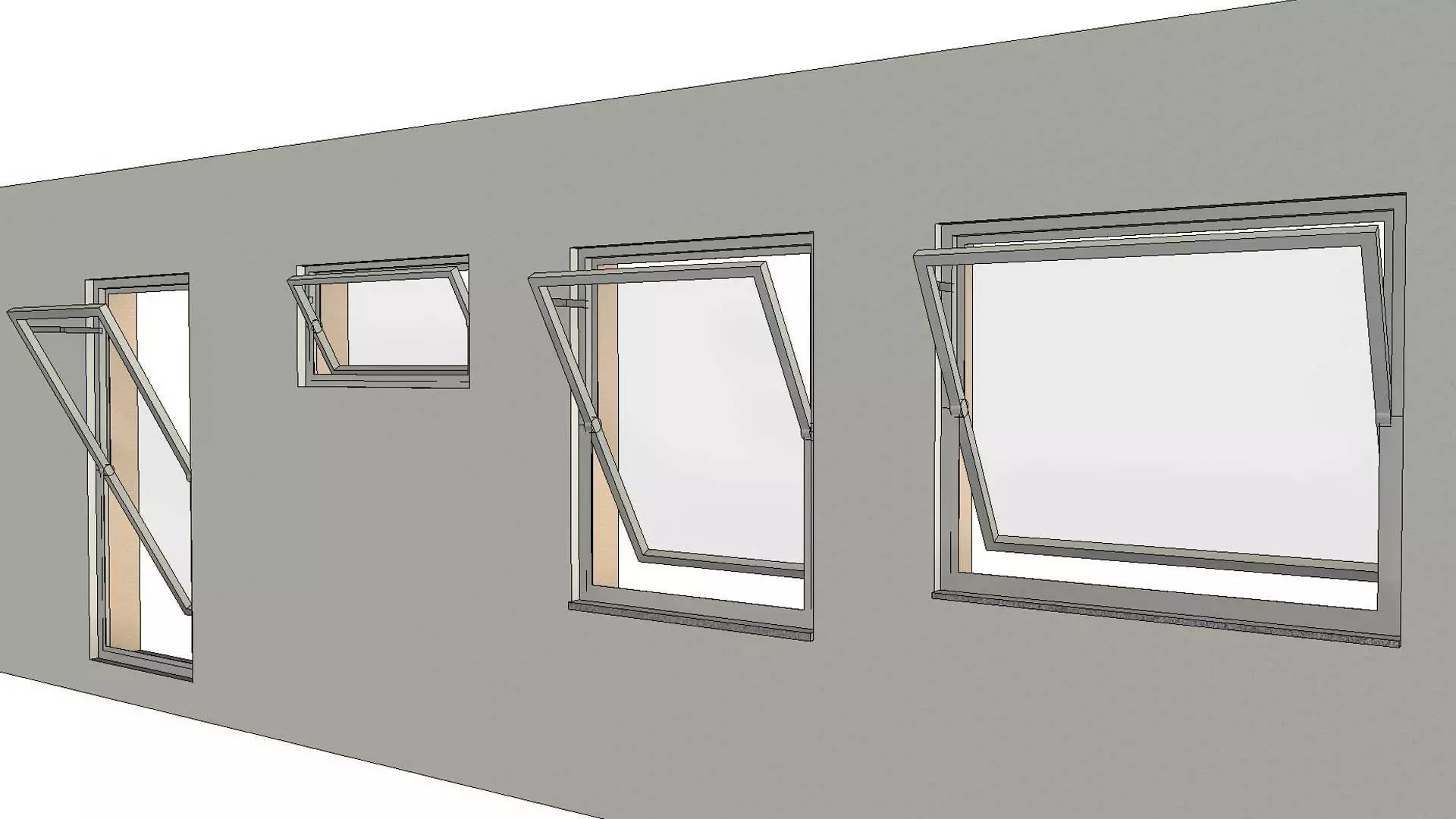

Fully Parametric Revit Family for a horizontal axis Pivot Window. Partially pivot opening window, 30degrees maximum opening with safety hinges.

Model is fully parametric, controlling all design aspects of the model to match any design requirement. This is a wall based family and can be place on any project wall. Window sill elevation parameter as well as width and height can produce a large number of window type variations.

Instance parameter for graphical representation of window being closed or open.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Wall Based Window
  • File Extension : .rfa

PARAMETERS:

  • Window Width and height
  • Window Sill Elevation
  • SIll option ON/OFF
  • Sill thickness
  • Window Panel Frame Width and Depth
  • Window Frame Width
  • Window Interior Setback
  • Stopper Width
  • Open/Close Option ON/OFF
  • ALl materials are parametric

FAMILY TYPES:W1500xH1300, Elevation 1100mm, Sill 20mm, Frame 40mmW1200xH1500, Elevation 900mm, Sill 30mm, Frame 40mmW1200xH600mm, Elevation 1800mm, No Sill, Frame 30mmW1000xH2200mm, Elevation 200mm, No Sill, Frame 50mm

User can create unlimited variations of family types.
