Semi Circular Column 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

This is a fully parametric revit family for a semi circular column. Diameter of the concrete column can be changed by the user. It can be rotated and flipped on both axes to match the design of any project.

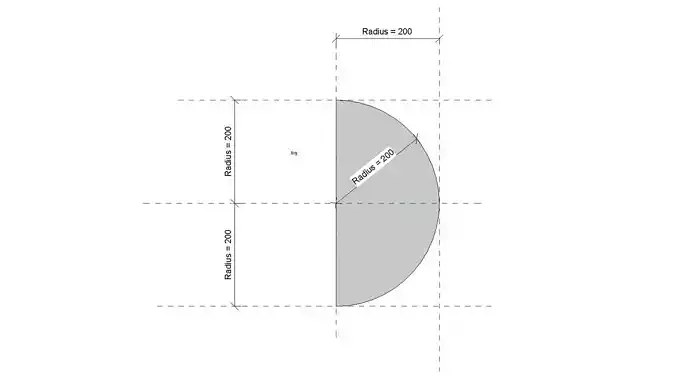

Diameter and/or radius parameter to change the size of the semi circular column. By rotating and flipping on an axis, and changing the column dimensions, it can be adjusted to match any design. Usually, semi circular columns are used where there is an expansion joint if a circular column shape column is desired.

This revit family file belongs in the structural column revit category and can be inserted into any project.

ATTRIBUTES:

  • Revit Version : 2022
  • Family Type : Structural Column
  • File Extension : .rfa

PARAMETERS:

  • Column Diameter
  • Column Radius
  • Material Parameter

FAMILY TYPES:

  • D250mm
  • D300mm
  • D400mm
  • D500mm
  • D600mm
  • D750mm
  • D800mm
  • D900mm
  • D1000mm

Any size of column can be created by the user.
