Double Sliding Balcony Door Revit Family 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

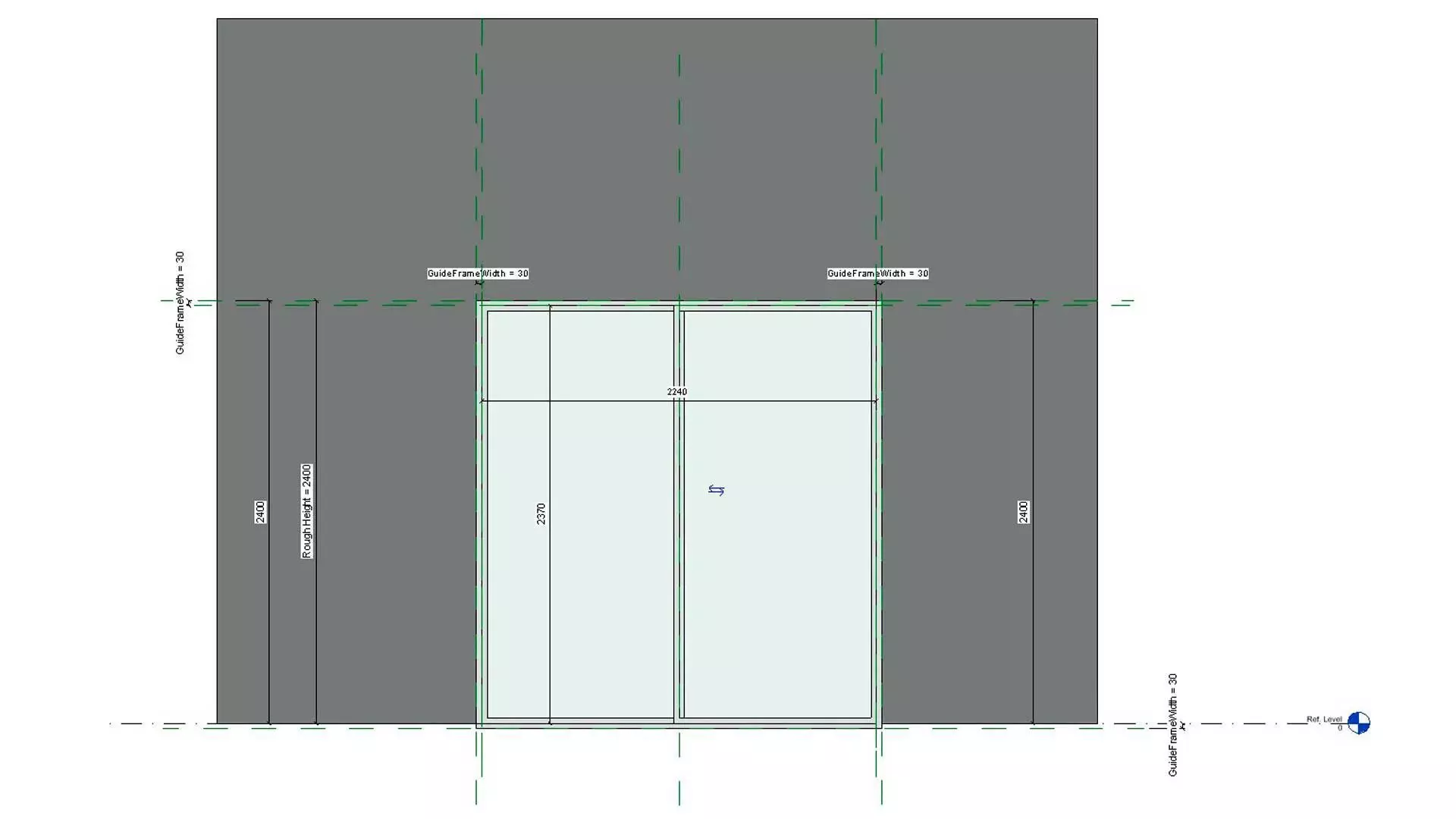

This is a wall based Double Sliding Balcony Aluminium External Door revit family. Fully Parametric.

Both panels slide open ( left and right ) with parameter to control the graphical represantation. User can create family types controling the rough width and height, glass thickness, panel offset from wall, guide frame and panel frame width as well as the materials.

Panels net width and height are calculated automatically from rough width and height and the frame width parameters.

Panels frame depth also is calculated automatically from the glass thickness parameter.

Bottom guide frame is embedded into the floor.

ATTRIBUTES

  • Revit Version : 2022
  • Family Type : Door Wall Based
  • File Extension : .rfa

PARAMETERS:

  • Rough Width ( wall opening )
  • Rough Height ( wall opening )
  • Glass Thickness
  • Panel offset from wall
  • Guide Frame Width
  • Panel frame width
  • Left and right Panel Opening %
  • Materials ( panel frame, guide frame, glass )
  • Panel frame depth, panel width and height are calculated automatically

FAMILY TYPES:

  • W2300xH2400mm, Glass 20mm, Frame 30mm
  • W3000xH2700mm, Glass 24mm, Frame 50mm

User can create unlimited variations of family types by changing the available parameters.

Family can be cut through sections.

Related Tagsdoorslidingbalconyarchitectural
architecture
exteriorglasssliding doorrevitfamilybuildingaluminiumparametricdesignbimhousehouse exterior
