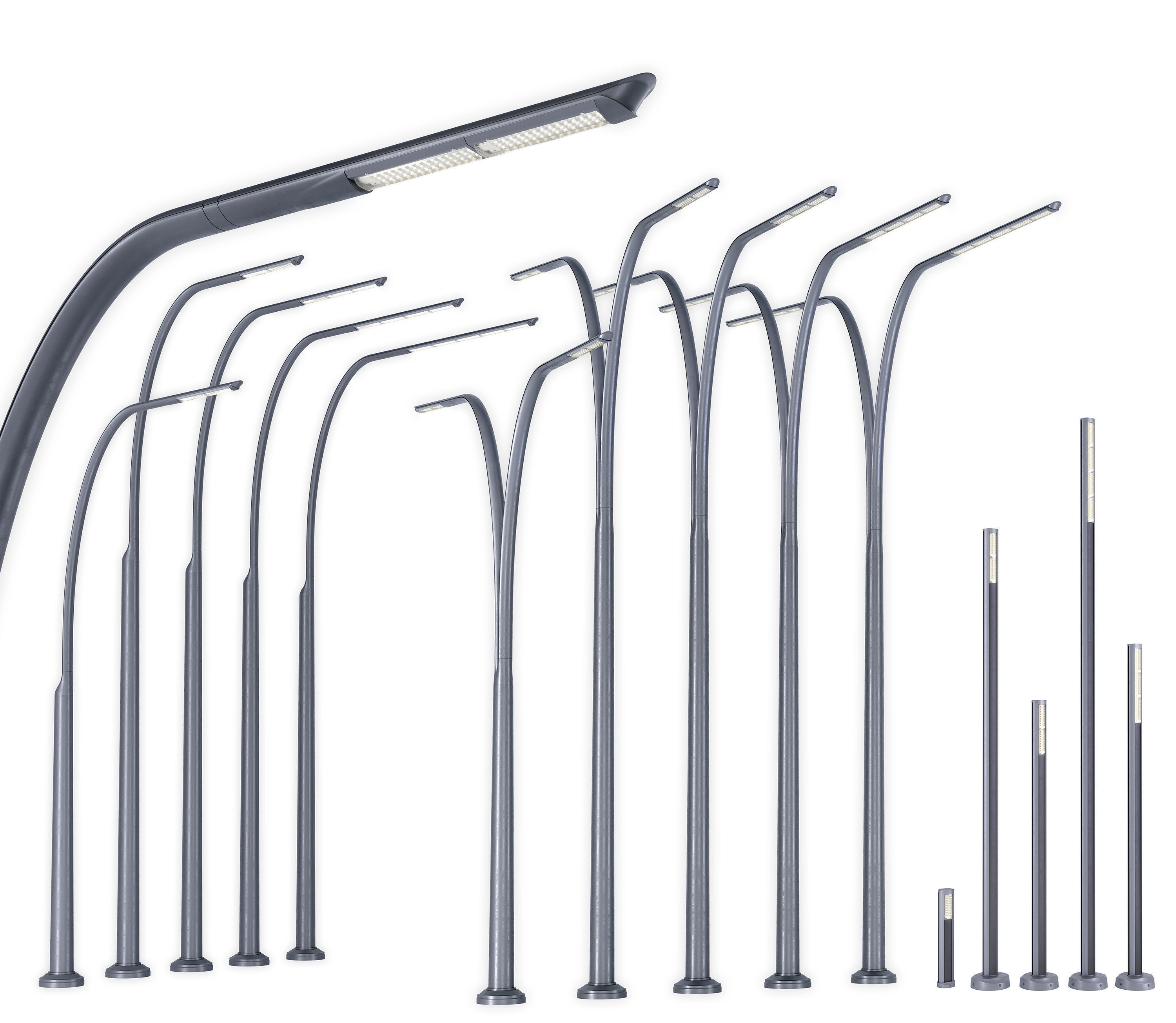

SoleCity urban LED luminaires.

DESCRIPTION OF LAMP POSTS:

• Manufacturer: Signify - Lumec.
• Models SoleCity ULS100 (UBS100-1A) and SoleCity ULS100 (UBS100-2).Height 4.8 m / 6.1 m.The manufacturer also supplies luminaires with a height of 9.1 m. They are not included in the archive, but they are easily obtained by changing the length of the mast (objects with the name “Post…”).
• LED Light Column SoleCity ULLC100Heights: 3.1m; 3.7m, 4.9m, 6.1m.
• Bollard LED SoleCity ULB100Height: 1 m.
• For all luminaires:Protection degree IP66.Light source LED 3000K, 4000K.

FEATURES OF MODELS:

• Each lamp is assembled into a separate group. Similar objects are cloned as Instance.
• Each object has its own unique name.
• Each material has its own unique name.
• The pivot of each lamp is in the center of the object at the bottom point (coordinate Z = 0).
• Each lamp post is made in the actual manufacturer's dimensions.
• Most of the objects are made for subsequent mesh smoothing.
• The stack of modifiers of objects in .max files is not collapsed.

RECOMMENDATIONS FOR USE:

• For close views, if there are not many lampposts, it is recommended to use the default models.
• For distant or medium views, it is recommended to reduce mesh smoothing iterations to 1 or 0 (default is 2).
• To drastically reduce the detail and reduce the load on the computer, you can remove the diodes (the reflector and outer glass will remain) and screws.
• Also, to reduce the detail, you can turn off the EditPoly modifier from some objects (the modifier stack is not collapsed specifically for this).
• This makes the models versatile and suitable for close, medium and long range rendering. Depending on the task, you can easily choose the right option.
• For any questions please write in private messages, I will be happy to answer.

MESH DENSITY for 22 different luminaires and 1 human dummy in the scene:

• High detailing of all objects in the scene (enabled TurboSmooth modifier with 1-2 iterations of mesh smoothing + chamfering with the EditPoly modifier) - for rendering at close range. These settings are saved in .max files:

Polygons: 3 072 312.Vertices: 1 641 977.

• Turn off the TurboSmooth modifier, turn off the EditPoly modifier (chamfer rounding):

Polygons: 326 686.Vertices: 306 860.

• Remove diodes (objects Diode_), screws (objects Hexahedron_, Screw_):

Polygons: 209 770.Vertices: 166 532.

DESCRIPTION OF FILES OBJ and FBX:

SoleCity_by_Signify_Lumec_OBJ - file with the OBJ extension executed in VRay, mesh smoothing iterations have been reduced from 2 to 1, each lamp post is completely ungrouped and assembled into one object.

SoleCity_by_Signify_Lumec_ (VRay) _G-Explode_FBX - file with the FBX extension, executed in VRay, mesh smoothing iterations have been reduced from 2 to 1, each lamp post is completely ungrouped and is a set of original objects.

SoleCity_by_Signify_Lumec_ (VRay) _G-Attach_FBX - file with the FBX extension made in VRay, mesh smoothing iterations have been reduced from 2 to 1, each lamp post is completely ungrouped and assembled into one object.

SoleCity_by_Signify_Lumec_ (Corona) _G-Explode_FBX - file with the FBX extension made in Corona Render, mesh smoothing iterations reduced from 2 to 1, each lamp post is completely ungrouped and represents a set of original objects.

SoleCity_by_Signify_Lumec_ (Corona) _G-Attach_FBX - file with the FBX extension made in Corona Render, mesh smoothing iterations have been reduced from 2 to 1, each lamp post is completely ungrouped and assembled into one object.

FORMATS:

• 3ds Max 2015 (VRay)
• 3ds Max 2012 (VRay)
  • 3ds Max 2015 (Corona)
  • 3ds Max 2012 (Corona)
  • FBX
  • OBJ
