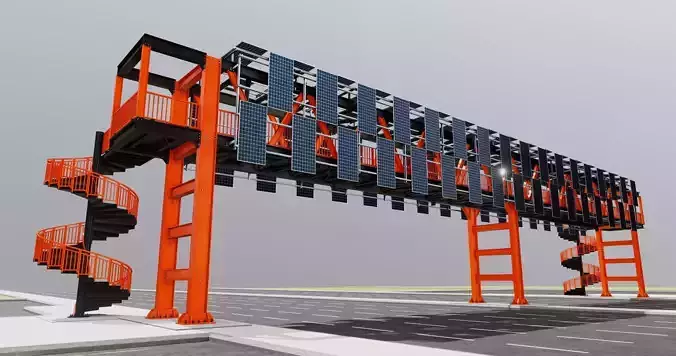

Solar Pedestrian Overpass Type-1 3D model

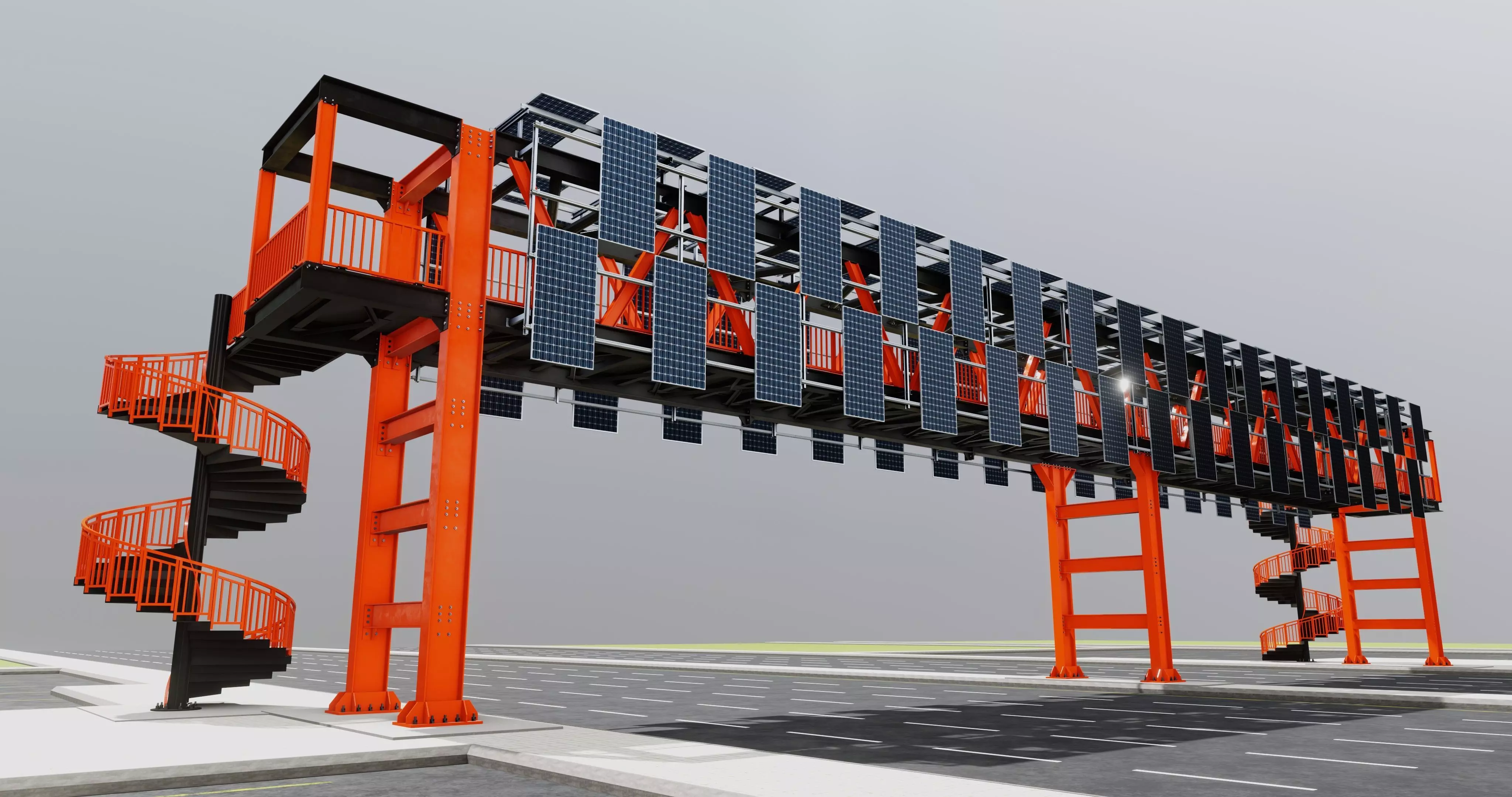

Solar Pedestrian Overpass Type-1

56.1 kW (DC) energy production with the installation of 102 solar panels on the top, front and back of the platforms

Truss Type Platform Construction

Three Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 40,8 mt.

Distance Between Two Columns : 20,4 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Spiral Stair Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

Spiral Stair Type

Stair Step Width : 1,657 mt.

Step Sizes : 50/565 mm. * 150 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 1064598

Vertices : 1529698

Objects : 9513
