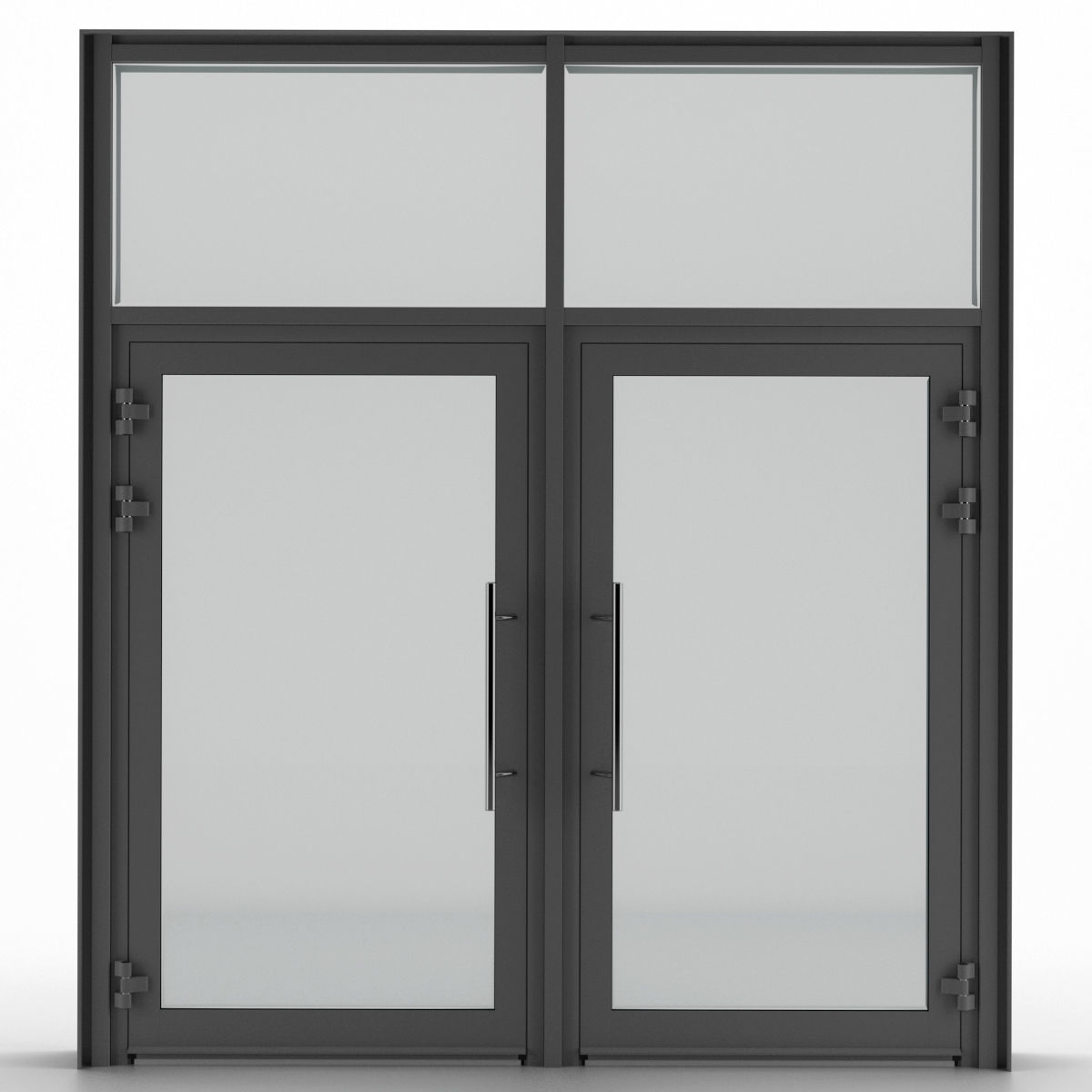

Double-leaf entrance group made of aluminum system 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Aluminum construction with two adjacent entrances 1050 and 1000 mm wide, 2070 mm high. The dimensions are easy to change. A shaped element and a warm threshold have been added.

Made from ALUTECH ALT F50 + W62 system.
Three-section hinges 3АН67. Office pens 650 mm. No lock. Double-glazed windows 6-6-6-8-6.

Hidden geometry has been simplified. Single-part RAL is used. The surfaces are not fused. You can paint the model according to your design with different colors outside and inside. Dimensions of the model - 2676х250х2979 mm
Use TurboSmooth modifier with anti-aliasing groups.
If you purchased a model and found an error in the geometry, write in private, I will correct and replace the file for you.


I will make a model of any configuration from this aluminum system to order. Write to private.
Due to the difference in time zones, I can not answer right away, I beg your pardon for that.
Thanks for watching!

Related Tagsdoorfacadealuminumglassofficeentrancearchitectural

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Double-leaf entrance group made of aluminum system 3D model

Royalty Free License
Created by
v0lchara
v0lchara
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
MAX2 files
Size: 25.1 MB
V-Ray | 2017
V-Ray | 2014
Exchange formats
OBJ
OBJ | 2 files<br />File Size: 8.57 MB
FBX
Autodesk FBX<br />File Size: 3.83 MB
MAT
mat<br />File Size: 84 KB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Polygon mesh
A model built from polygons (triangles or quads) connected in a mesh.
67484 polygons
The total number of polygons (flat shapes) that make up the 3D model.
 / 74553 vertices
The number of points (corners) that define the shape of the model's polygons.
Unwrapped UVs
Non-overlapping
Publish date
2021-11-25
Model ID
#3403930
