F16 HUD Remote Control Panel 3D model
Via HUD Remote Control Panel the pilot chooses different parameters for flight and navigation the can later be can be selected on the HUD. The Remote Control Panel is located on the right console.

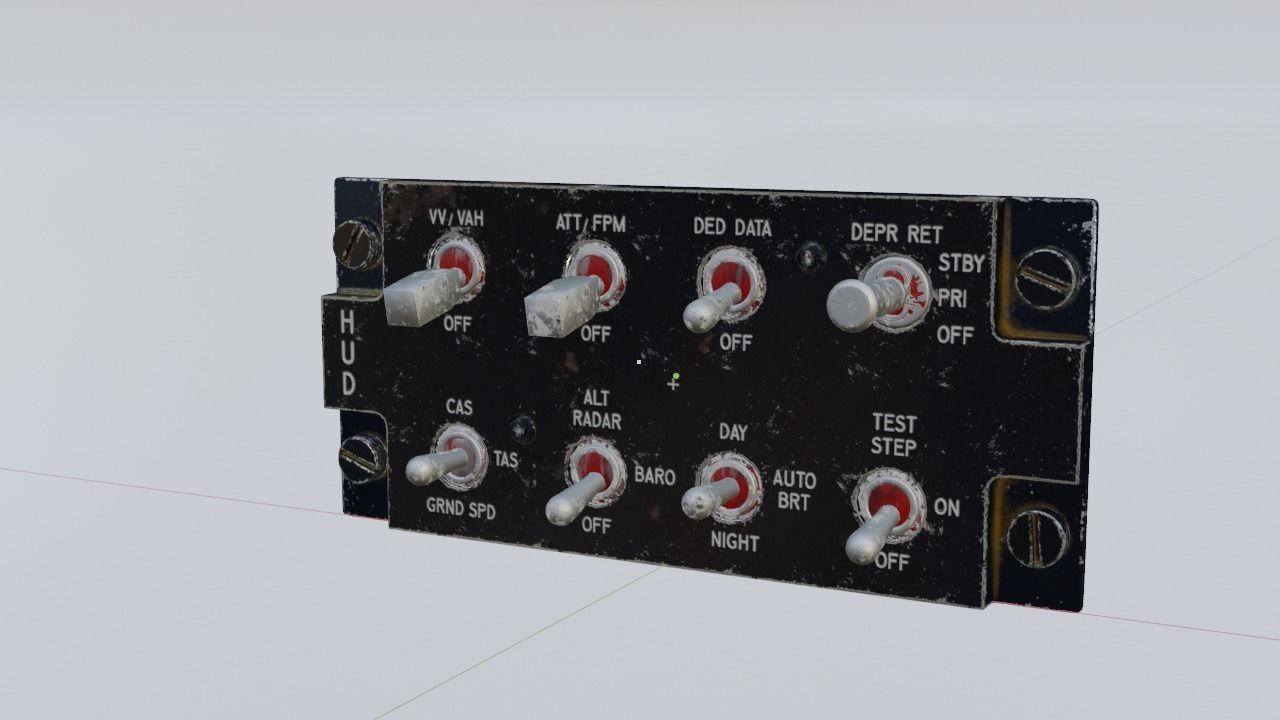

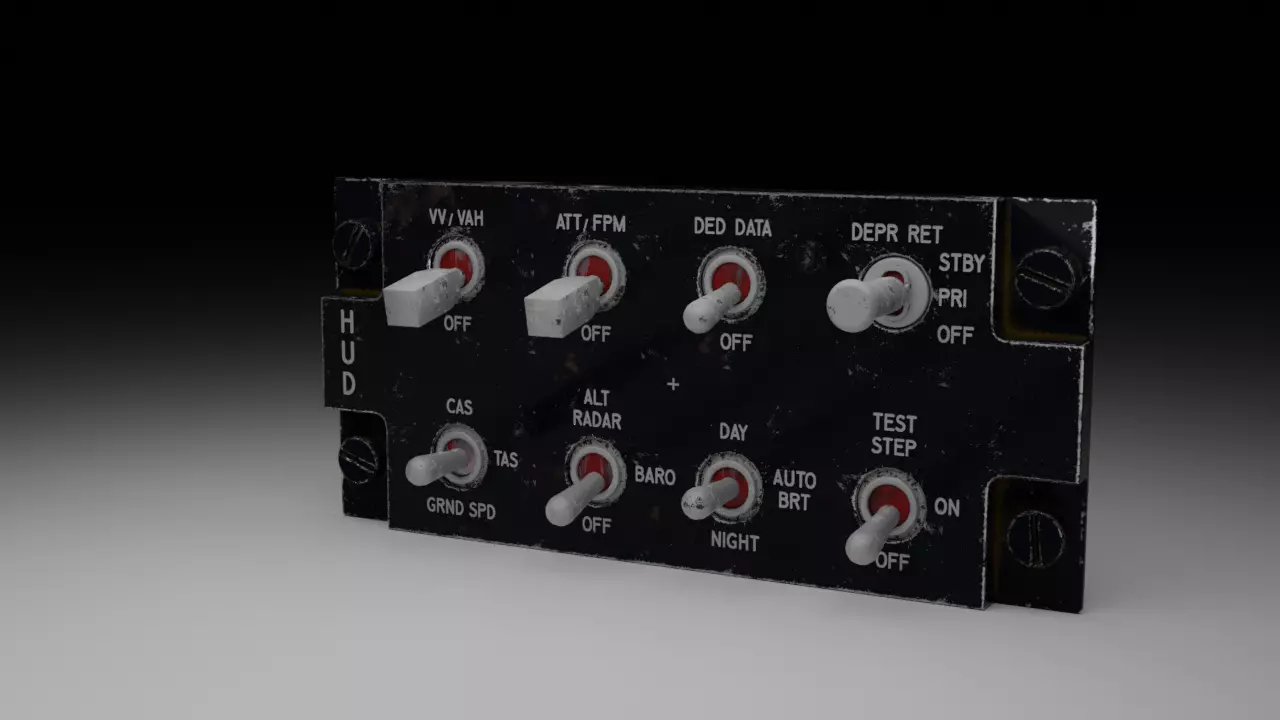

The panel is comprised of x6 3-way toggle switches. They switch On/Off different Modes shown on the HUD ranging from displaying the Vertical Velocity, Velocity, Altitude, Heading and Bank Angle Indicator, all the way to switching from radar altitude to barometric altitude. Also it can test the HUD's display with a stepped pattern or a four test pattern.
The model done is for the F16 Blocks 40/42 current and the 50/52. If needed for Blocks 25, 30/32, 40/42 old and MLU versions please contact me for the necessary textures.

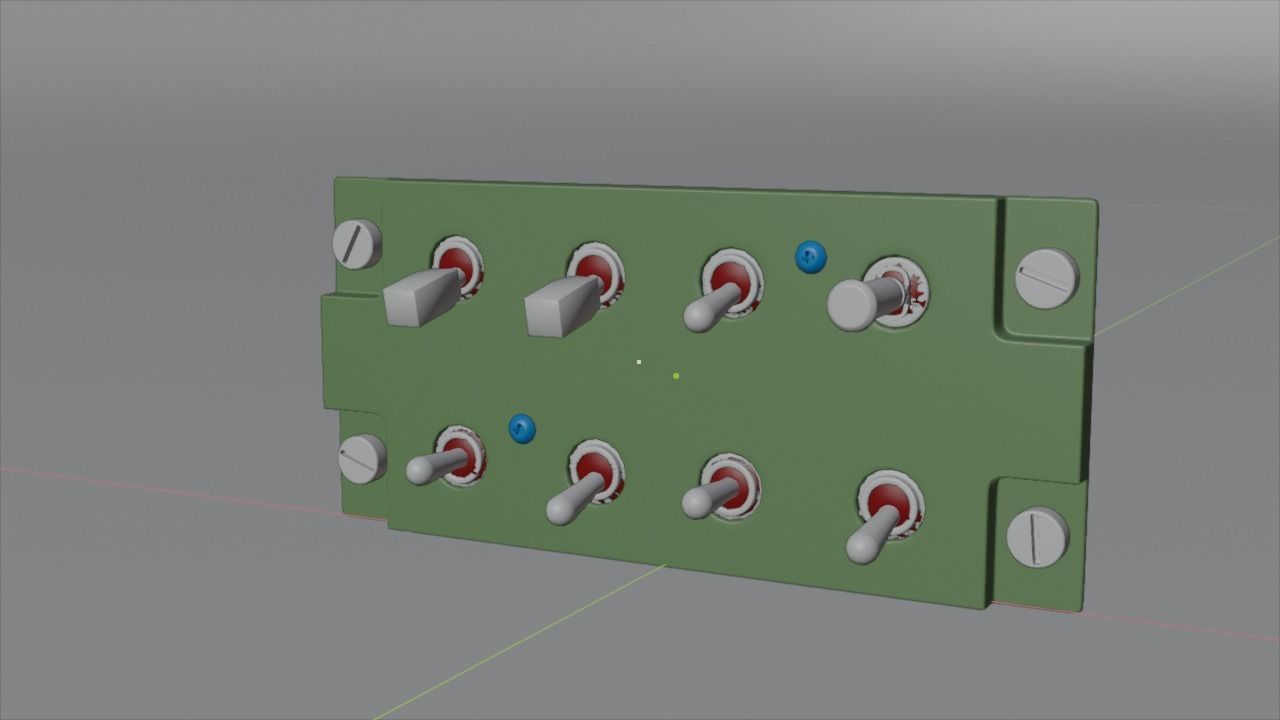

The model was created in Blender 2.81 for the Cycles engine on a 1:1 scale to the real one, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.
- Vertex Count: 30,477
- Poly Count: 28,856
I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.
