DESCRIPTION

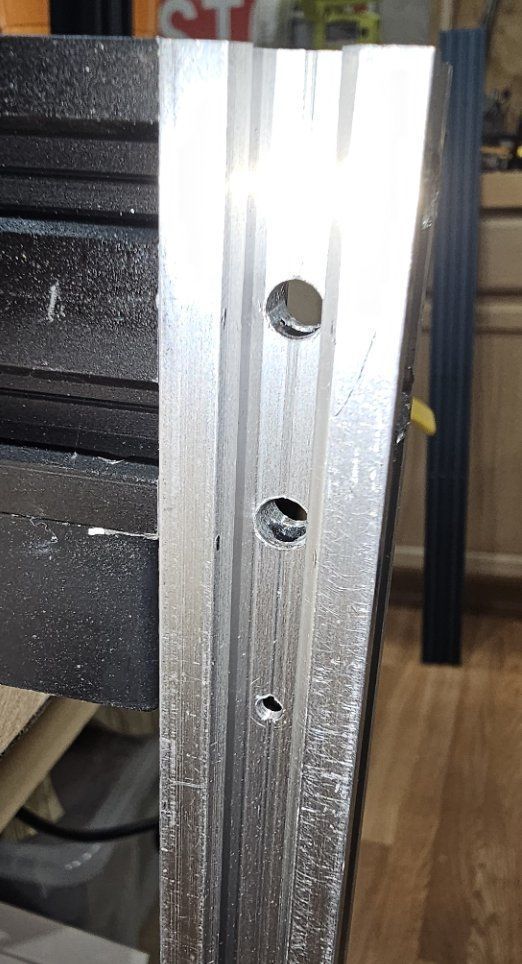

These guides are for drilling M5 Holes in relation to 2040 Extrusions on a 2020 Extrusion.

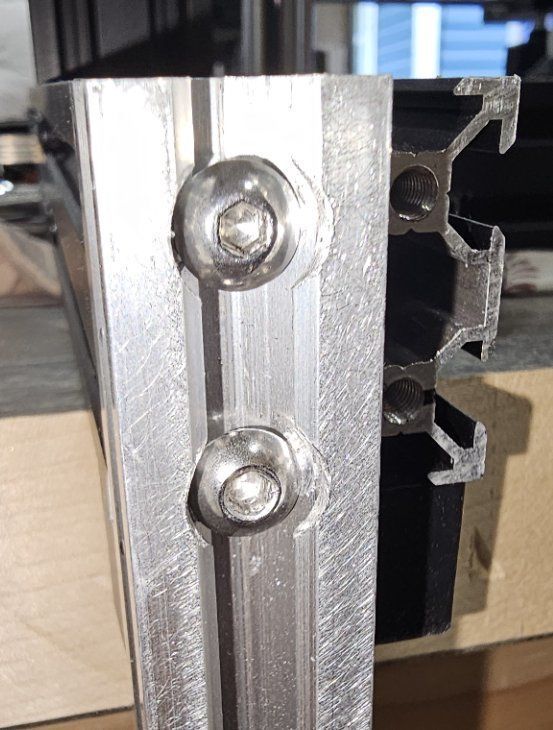

Has offset holes on one side in order to connect 2040 Extrusions perpendicular to 2020 corner extrusion.

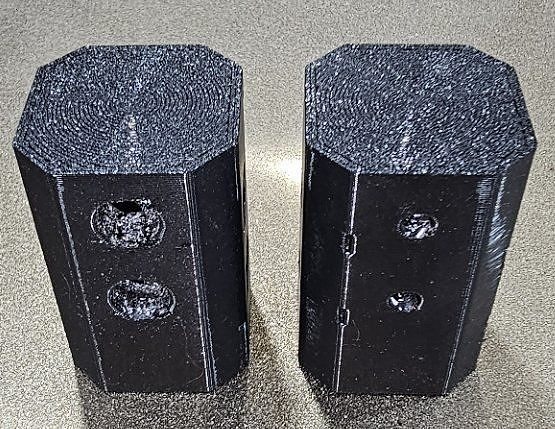

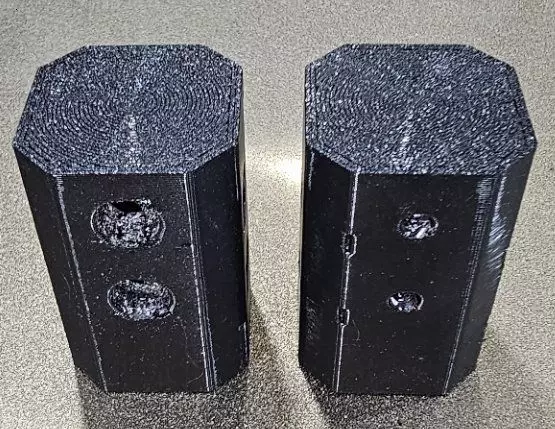

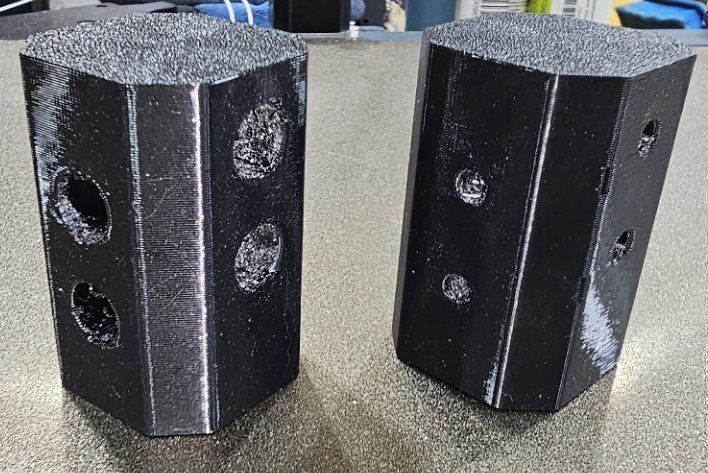

First model is to drill M5 Holes

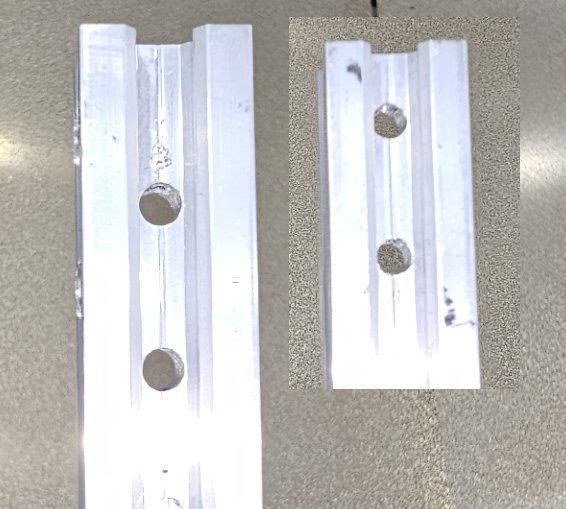

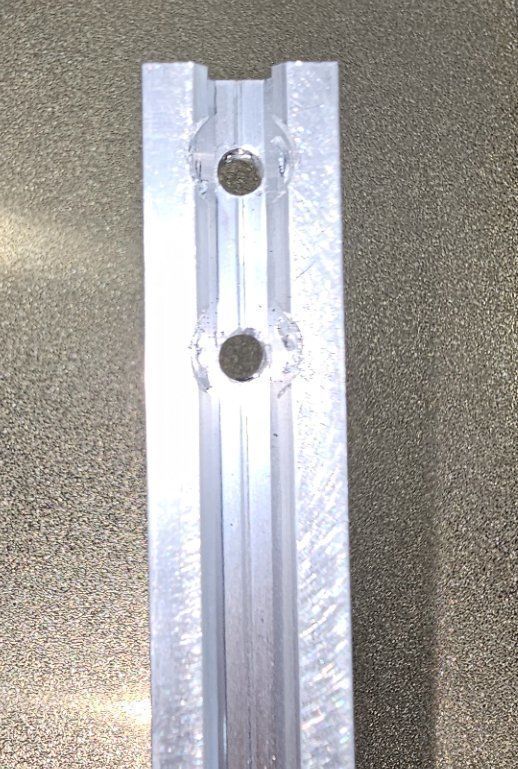

Second model is to drill out the v-slot in order to use as a thru hole for M5 screw opposed to using the hole as a access point

Printed using PETG W/ 15% infill on a Flashforge AD5M
