Weld gage

Weld gage Free 3D model

Description

So I figured I would start making some weld gages. I will continue to add them to this model as I make them. The first one is a fillet weld gage for 3/16" (4.8mm) and 1/8" (3.2mm) fillet welds.

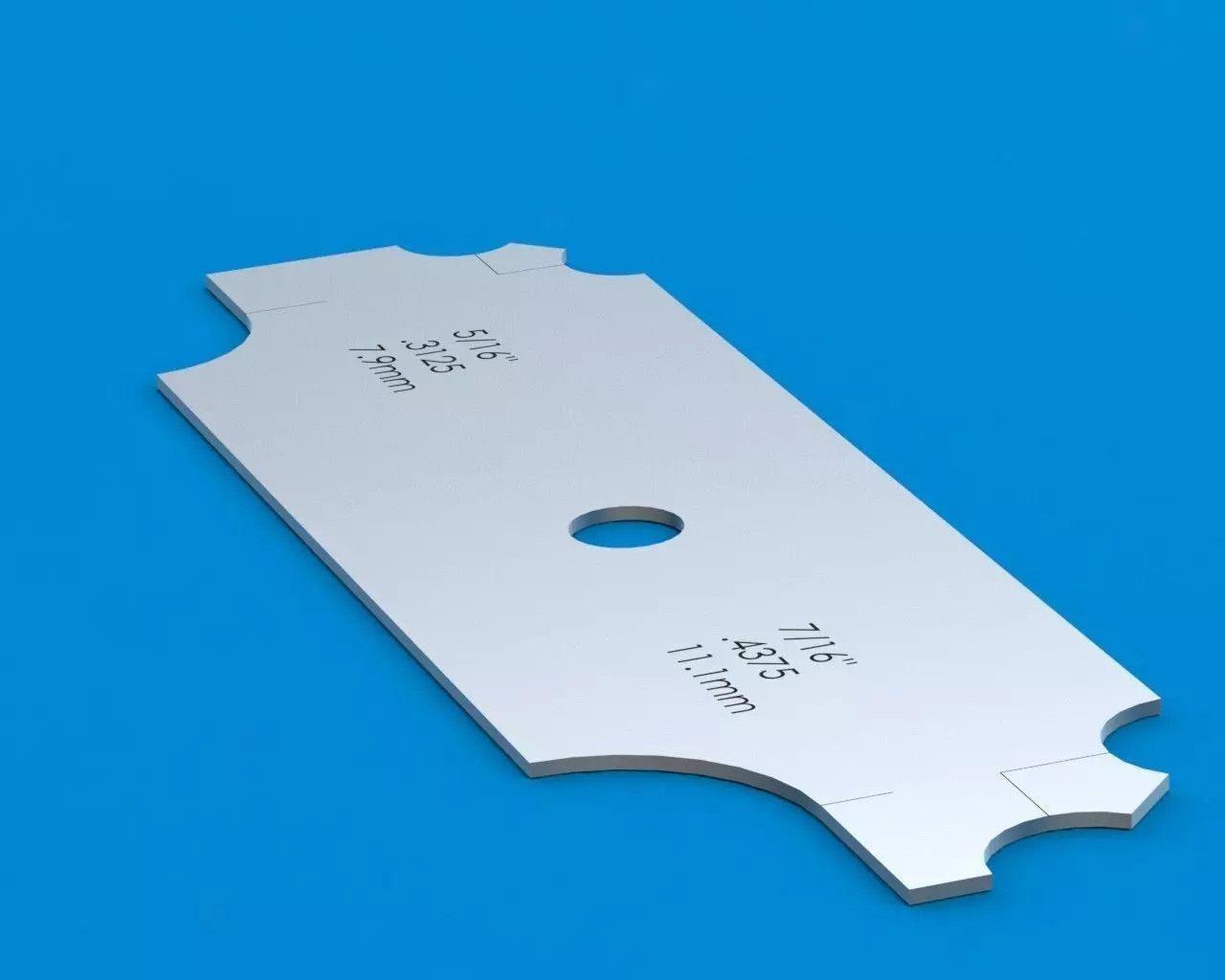

added the 5/16" (7.9mm) and 7/16" (11.1mm) gage
