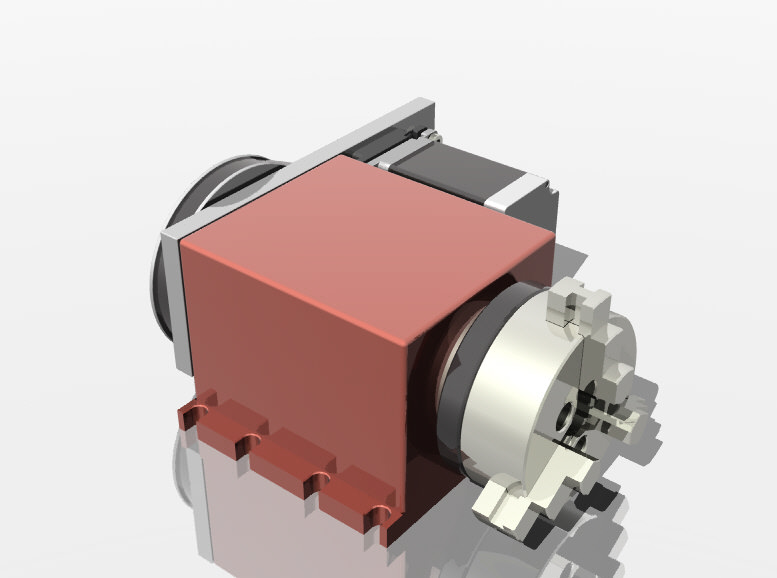

  • CNC Router Rotational Axis the 4th Axis A axis 3D model_0

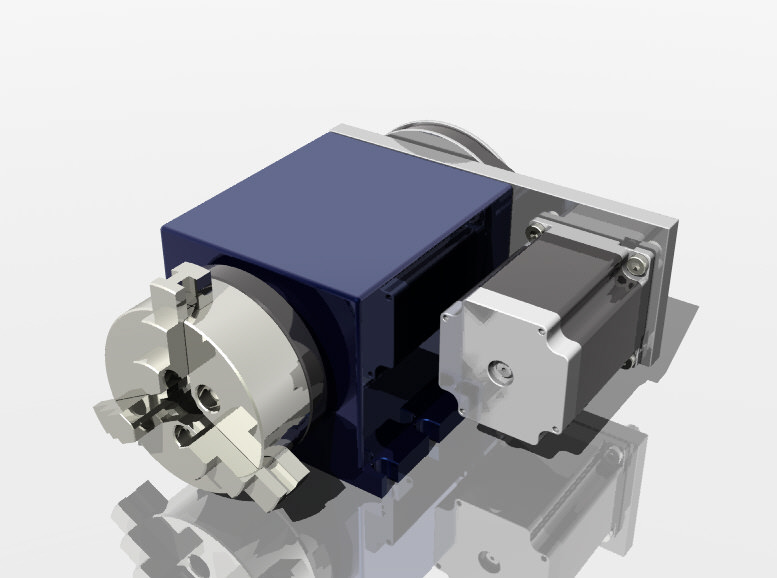

  • CNC Router Rotational Axis the 4th Axis A axis 3D model_1

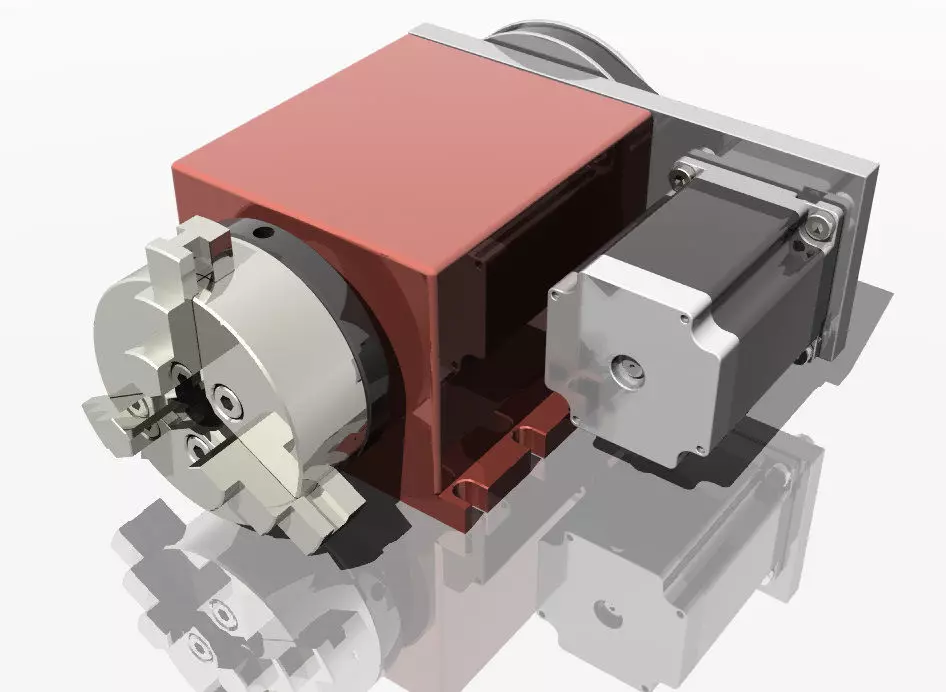

  • CNC Router Rotational Axis the 4th Axis A axis 3D model_2

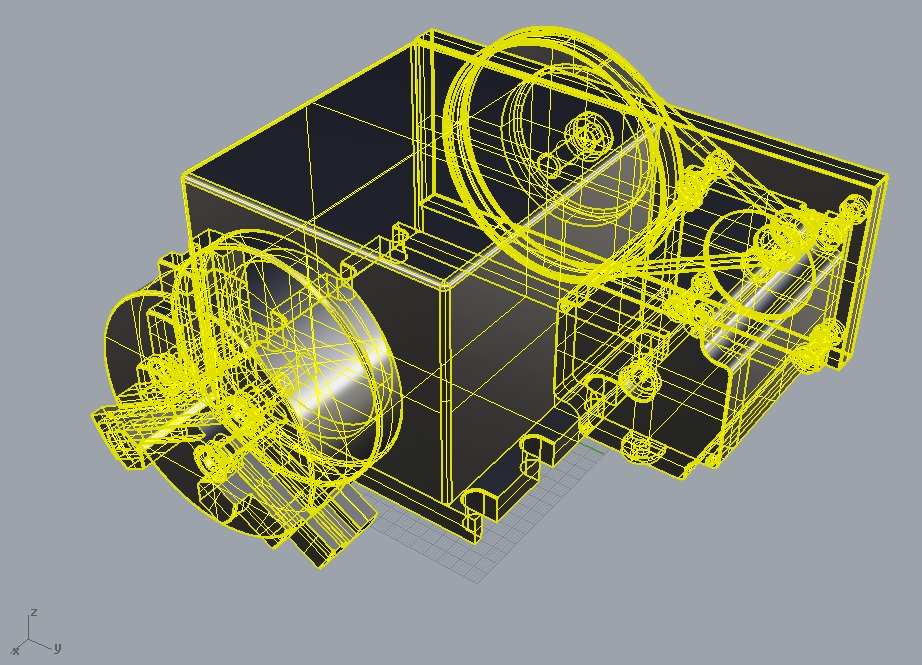

  • CNC Router Rotational Axis the 4th Axis A axis 3D model_3

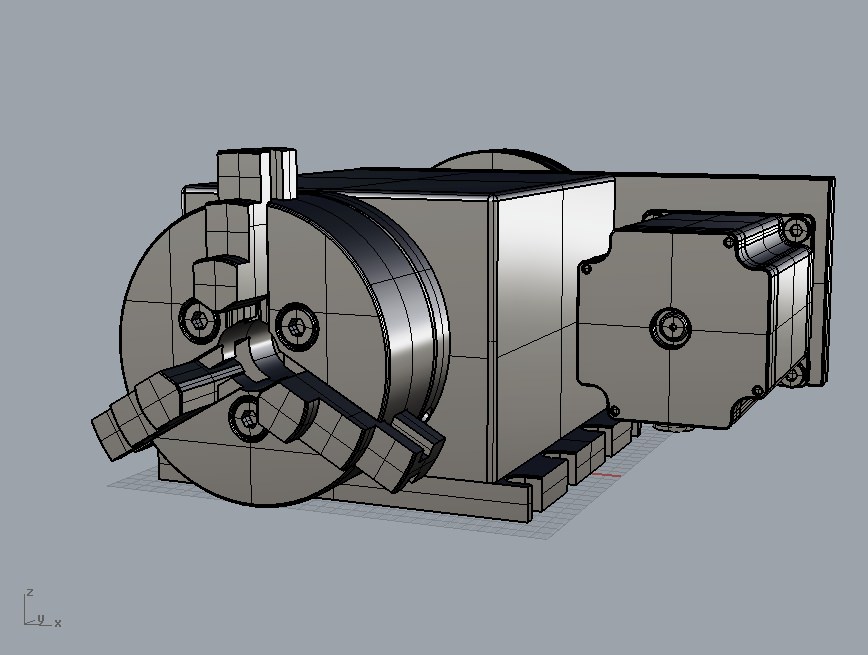

  • CNC Router Rotational Axis the 4th Axis A axis 3D model_4
1 / 5
Useto navigate. Pressescto quit

CNC Router Rotational Axis the 4th Axis A axis 3D model

Description

CNC Router Rotational Axis, the 4th Axis, A axis

| **-

stepper motor type: Nema 23 stepper motor 3A 2 phase 4 wires

Chuck type: 80mm 3 claws centring chuck

center height:50mm

total height: 110mm

Total length: 220mm

Rated torque: 1.2N/M

Reduction ratio: 6:1**

|
