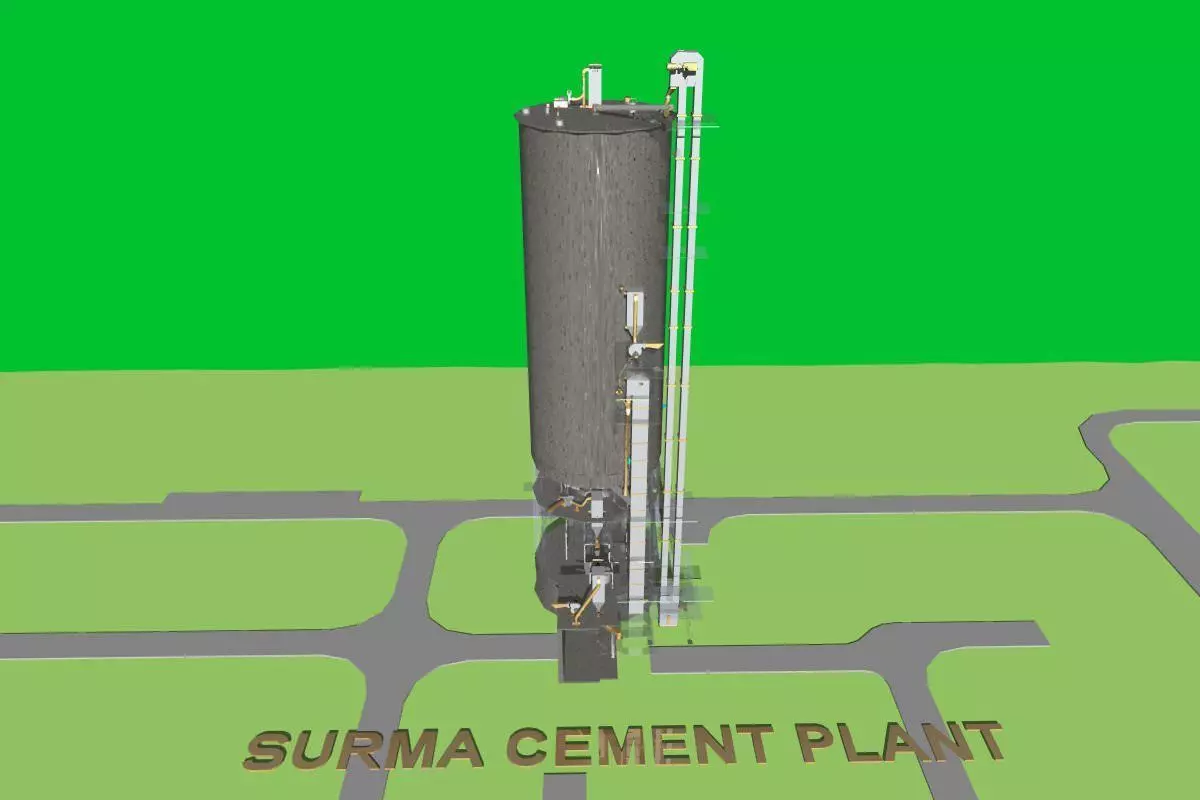

Surma Cement- Control Feed Silo Free 3D model
Description
Silo height - dia 14.5 x 66.5 m, Silo feeding & Kiln feeding Bucket Elevator Filter with fan top, inside the silo & near the deck slab. 7 Nos filter batteries. (Over pressure) OP- (Under Pressure) UP-630-3 Nos Silopilot (Level indicator) Nivo Pilot (Maximum indicator)- 2 Nos Sounding pipes dia 160mm – 4 Nos. Man Hole dia 710 mm – 6 Nos. CF Bin & Air slides arrangement. CF door Load cells – 3 Nos. Rotor Scale. Air receiver En - masse conveyor. Air Slides
Surma Cement- Control Feed Silo
Surma Cement- Control Feed Silo
3D Model formats
Format limitations
- AutoCAD (.dwg)7.34 MB
3D Model details
- Publish date2014-04-08
- Model ID#65658
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures -
- Materials -
- UV Mapping -
- Unwrapped UVs Unknown
- Plugins used -
- Ready for 3D Printing
