Hi friends,***************His need is:-

" i want to make this part mold (8 cavities) . blade inserted in plastic ejection mold. careful about blade sharpens ins not damage be mold plates. Plz tell me how i save blade sharpens when i molded.... can i use insert soft materiel in blade holding area or you have any another plane.? "

Conclusion and result:-

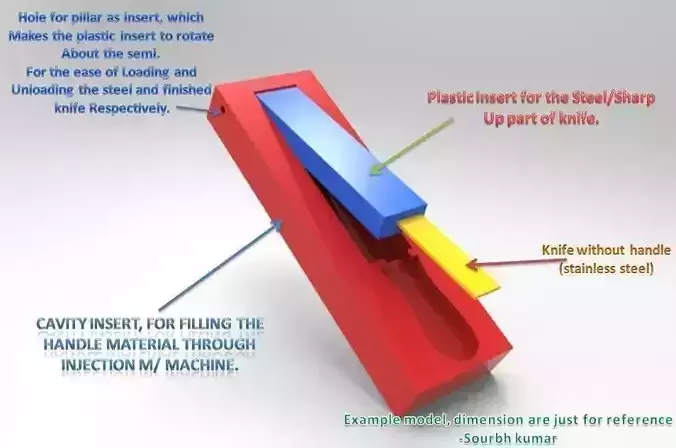

This is sample model, just to let you understand.Feel free if you have any doubt.The semi rotatable plastic insert make your work easier. And with this there is no worry of fall down the loaded part.Easy to eject, Load and unload the component.Don't forget to use the Angular type Ejector pins for easy removal of finished part at suitable angle.After the operator will manually remove the finished component.

And let me model some more solution for this part..!!Up-to just wait..!!!

//Thanks//
