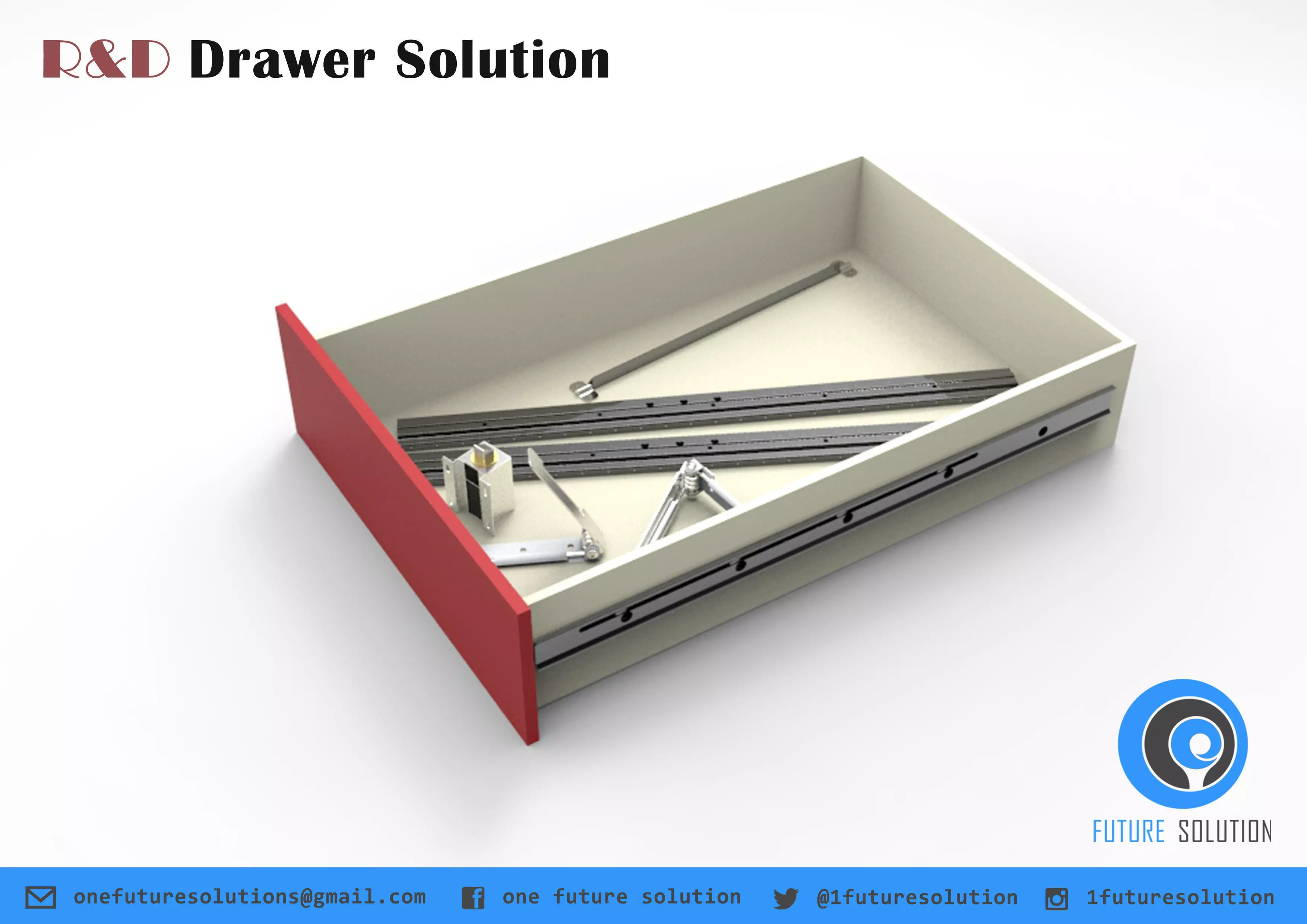

R and D Drawer Solution Free 3D model

R&D Drawer Solution

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

File Types : .SLDPRT, .SLDASM, .IGS, .OBJ, .STL.

Vertices : 3654205

Polygons : 7309600

Case Study :

Unfortunately, some people unknowingly put packages into the drawers that are too large and thus prevent the drawers from operating properly. The drawer can become stuck and ultimately can damage the package along with the terminal.

Step - step using this mechanism :

1. Ensure specifications dimensions of the package can be included in the size of the drawer.

2. Sometimes the user will enter the oversized package and forced her to get in on a smaller drawer slightly to save costs.

3. If the package height is higher than specifications determined , but the user tries to enter it into the drawer . Then the package can not be entered because the top drawer ( cabinet ) are a kind of stopper to prevent this.

4. If the user successfully put it by force , and the drawer is closed . So with this mechanism oversized package (height) can come out easily without fear of damaging the terminal.

You can download this model for Free, but you should to hit ♥ button as the payment :).
