Old radio Free 3D model

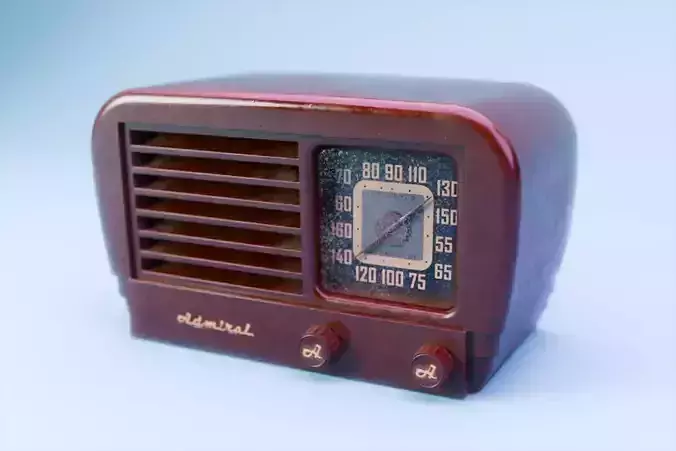

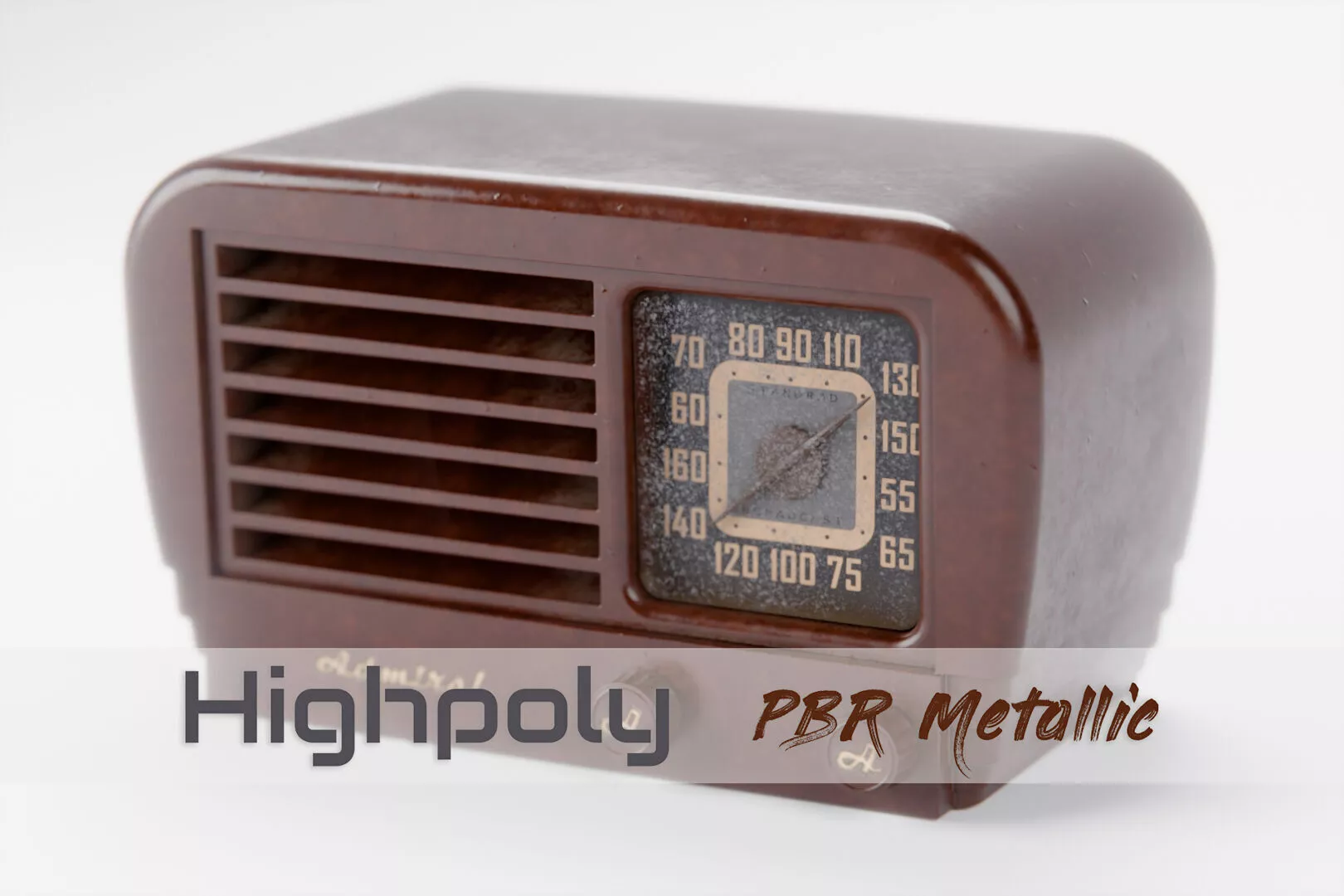

An Admiral 7T10 vacuum tube transistor radio from the 1940’s with internal components.

Design, tube models and dimensions are based on the schematics provided by a museum.

Some smaller details are missing due to lack of reference.

Model details

• Highpoly triangulated mesh
• Subdivision-ready : NO
• Non-overlapping UVs : YES
• Rigged : NO
• PBE metallic roughness + opacity textures
• Glass parts are not optimized for refractive shaders
• Normal map format : OpenGL
• NON-overlapping UVs : YES
• Texture resolution : 2K (2048 x 2048)
• AO maps : NO
• Color mask : NO
• Model is scaled to real world dimensions

Texture maps

• Base Color
• Roughness
• Metallic
• Normal
• Opacity
• Normal (OpenGL)
• MRH (R = Metallic, G = Roughness, B = Height)
