DESCRIPTION

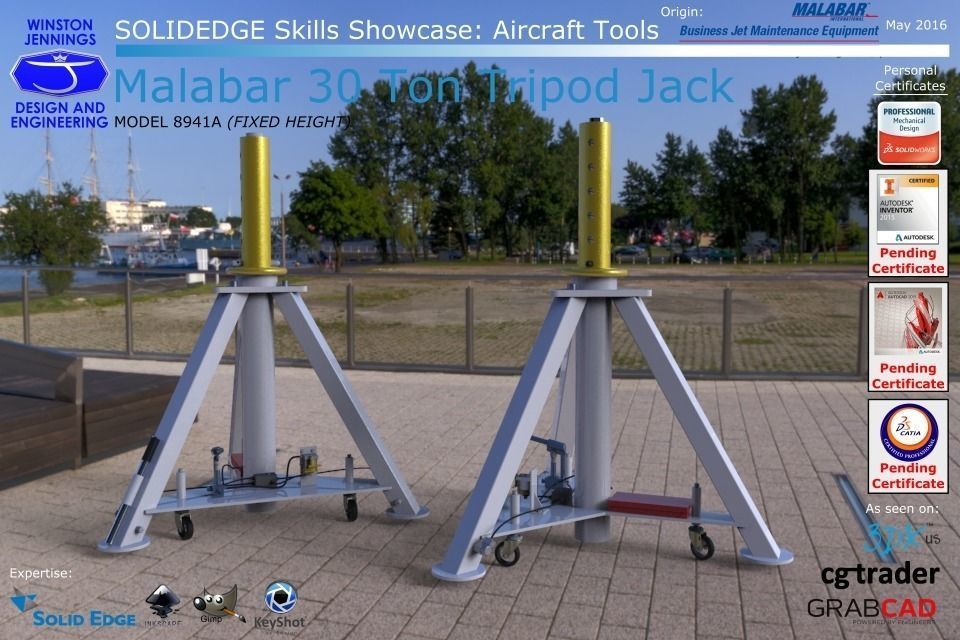

The Malabar 30 Ton Tripod Jack was modeled using the Part and Assembly environment in Solidedge

Specification:

Rated Capacity............. 30 tons (27.2 m. tons) Side Load ...................... 15% of vertical load Roll Under Height ............ 46.8 inches (1189 mm) Low Height ......................... 46 inches (1168 mm) Hydraulic Lift ...................... 38 inches (965 mm) Extension Screw ................ 12 inches (305 mm) Total Extended Height ..... 96 inches (2438 mm) Oil Pressure at Rated Capacity ..3056 psig (215 kg/cm2) Safety Pop-off Valve set at .... 33.0 tons (29.9 m. tons) Proof Load ................................ 45.0 tons (40.8 m. tons) Reservoir Capacity ...............3.4 Gallons (12.8 liters) Hydraulic Fluid ................. MIL-PRF-5606 or equivalent Approximate Jack Net Weight ................7 lbs (266 kg)

Reference material, http://www.malabar.com/pdf/product/tripod/sd8941A.pdfReference caster, http://www.mcmaster.com/#standard-casters/=12hxyn4

Modeled in Solidedge ST6Rendered in Keyshot 5.0

Don't forget to hit "like" button before you leave :)
