Radiomaster GX12 Radio Multi Stand fully 3d printed 3D print model

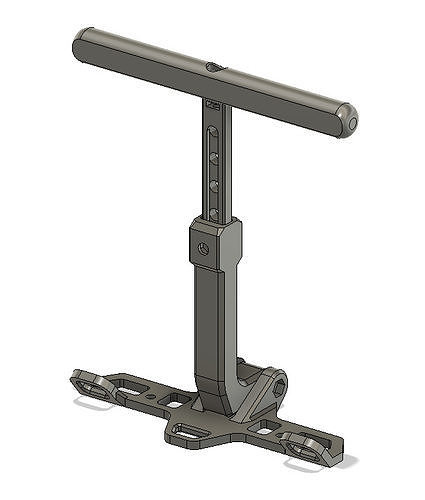

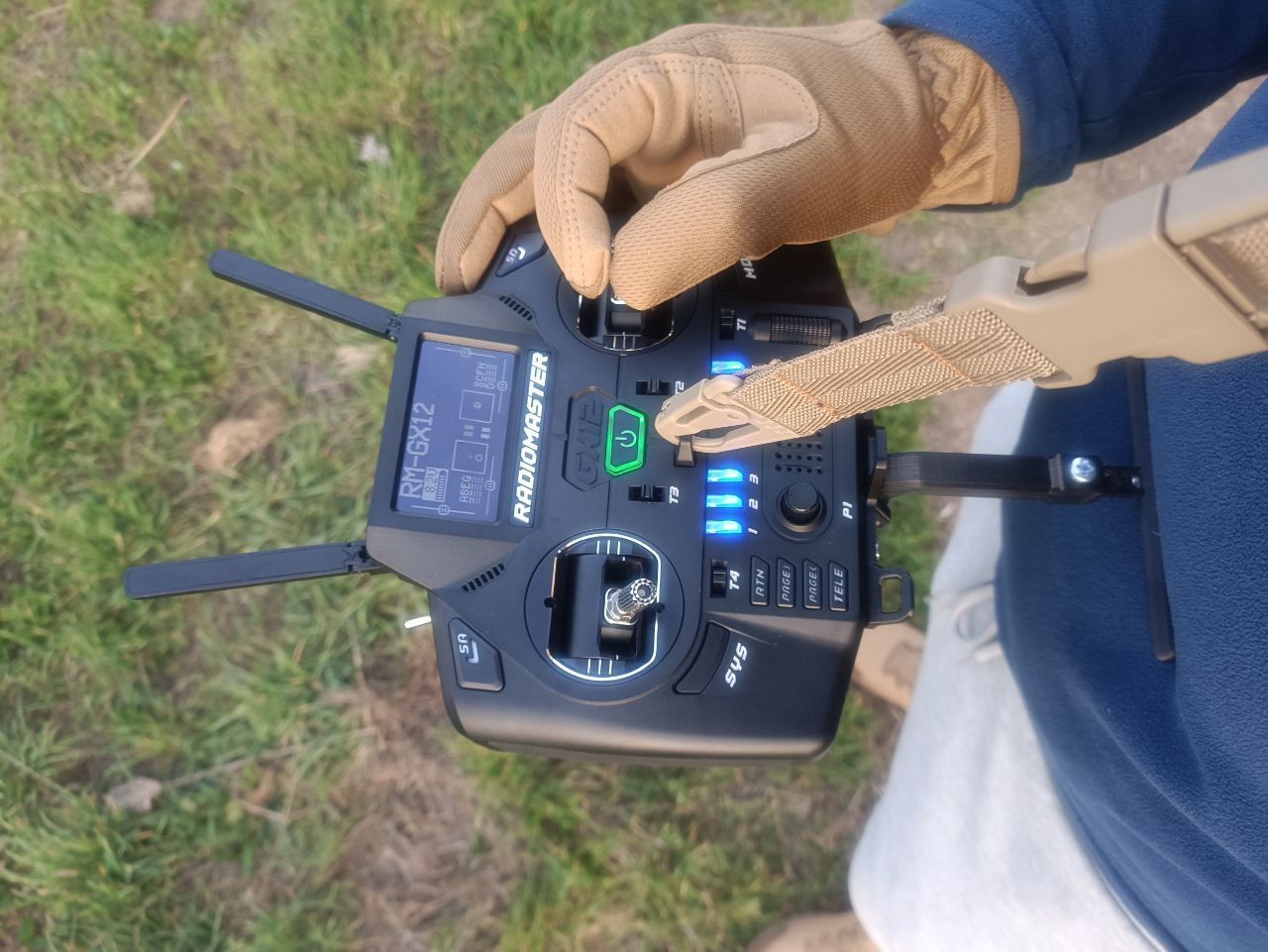

The device is designed to make it easier to hold the radio during flights. This makes flying your drone much more comfortable and takes the pressure off your hands.It has a folding mechanism that takes up almost no additional space when transporting the radio. Depending on the version, you can also adjust the distance between your body and the controller, 85-125 or 105-165 mm. I have developed several types of body supports so that everyone can choose a configuration that suits them.

Available versions of Multi Stand:

• 85-125mm adjustment with a 90mm wide stop
• 85-125mm adjustment with a 110mm wide stop
• 85-125mm adjustment with a 140mm wide stop
• 105-165mm adjustment with a 90mm wide stop
• 105-165mm adjustment with a 110mm wide stop
• 105-165mm adjustment with a 140mm wide stop(This is available for both 1 and 3 point mounts. And also for stops with diameters of 12 and 15 mm)

Added:

• Length adjustment mechanism for bolt/screw M3
• Several types of the most compatible knobs found in the free space.(This is not my development, so please thank the author via the links in the folder)

Additional material (for M4 version):M2.5*15-16mm screw - 1 pc.M3*10-12mm screw - 2 pcs.M3*20mm screw - 1 pc.M4*10-12mm (bolt/screw/wing screw/thumb screw) - 1 pc.M2.5 nut - 1 pc.M3 nut - 1 pc.M4 nut - 1 pc.

Additional material (for M3 version):M2.5*15-16mm screw - 1 pc.M3*10-12mm screw - 2 pcs.M3*10-12mm (bolt/screw/wing screw/thumb screw) - 1 pc.M3*20mm screw - 1 pc.M2.5 nut - 1 pc.M3 nut - 2 pcs.

*** Please note that if you need to quickly change the length of the Multi-Stand by hand, use bolts with an additional torque or a wing screw of the required length and diameter (m4 with a thread length of 10-12 mm). We have integrated the mechanics of quick length change directly from the gun industry into this device. The length adjustment that you can see here is almost exactly the same as the mechanics of folding the stock on an ar15/m4 rifle. It's a very simple but extremely durable and wear-resistant mechanism that fits perfectly into 3D printing!*** It is recommended to print with PETg or other durable plastic with 100% filling*** For “Leg pt1” it is recommended to use a nut with a light thread locker (in the form of a liquid thread locker or a nut with a plastic insert)*** If you don't like the knobs we have selected for you, you can use any other knobs you find on the Internet or buy in the store*** You can block the adjuster screw from being completely unscrewed by slightly damaging the thread from the middle of the folding mechanism (you need to crimp the last 1-1.5 mm of the thread with a hand tool)
