CABLE ROUTING GUIDE FOR SAFE INSTALLATION 3D print model

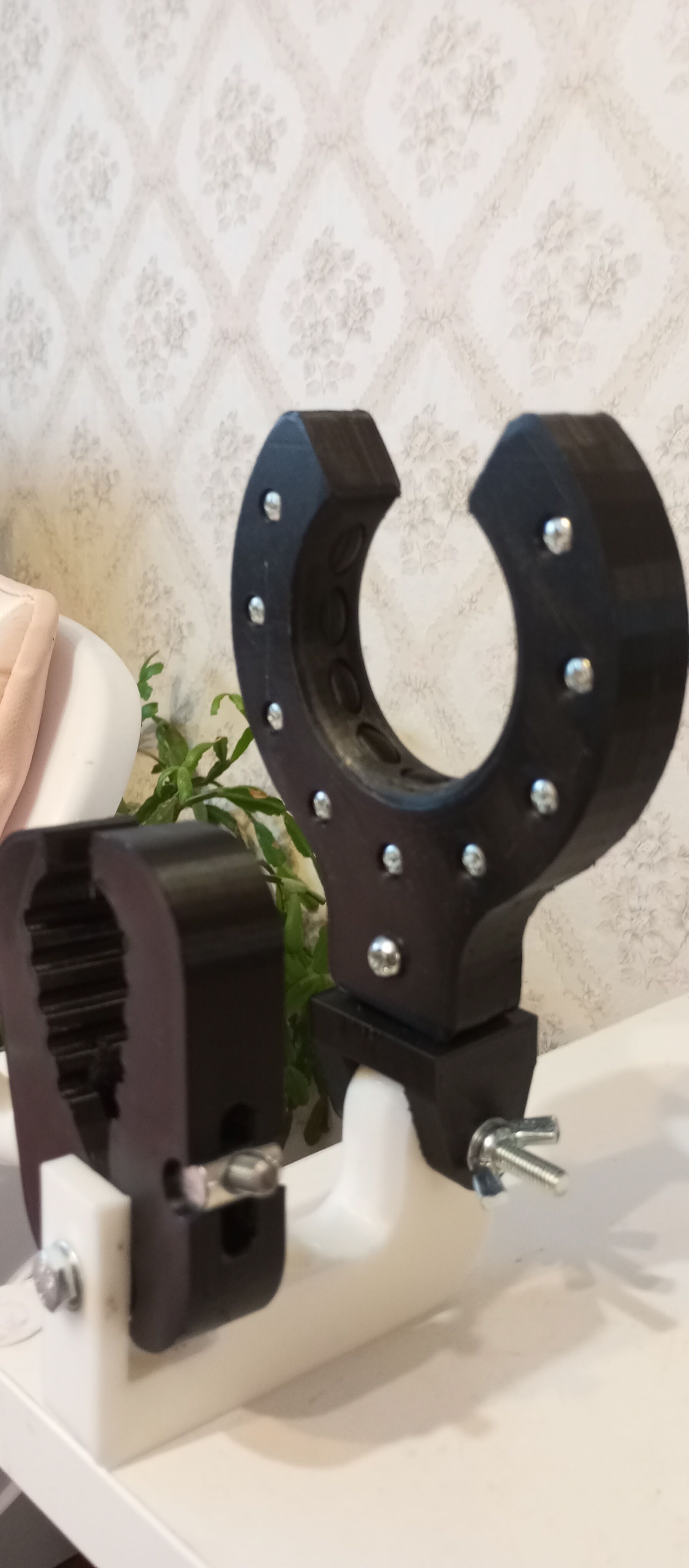

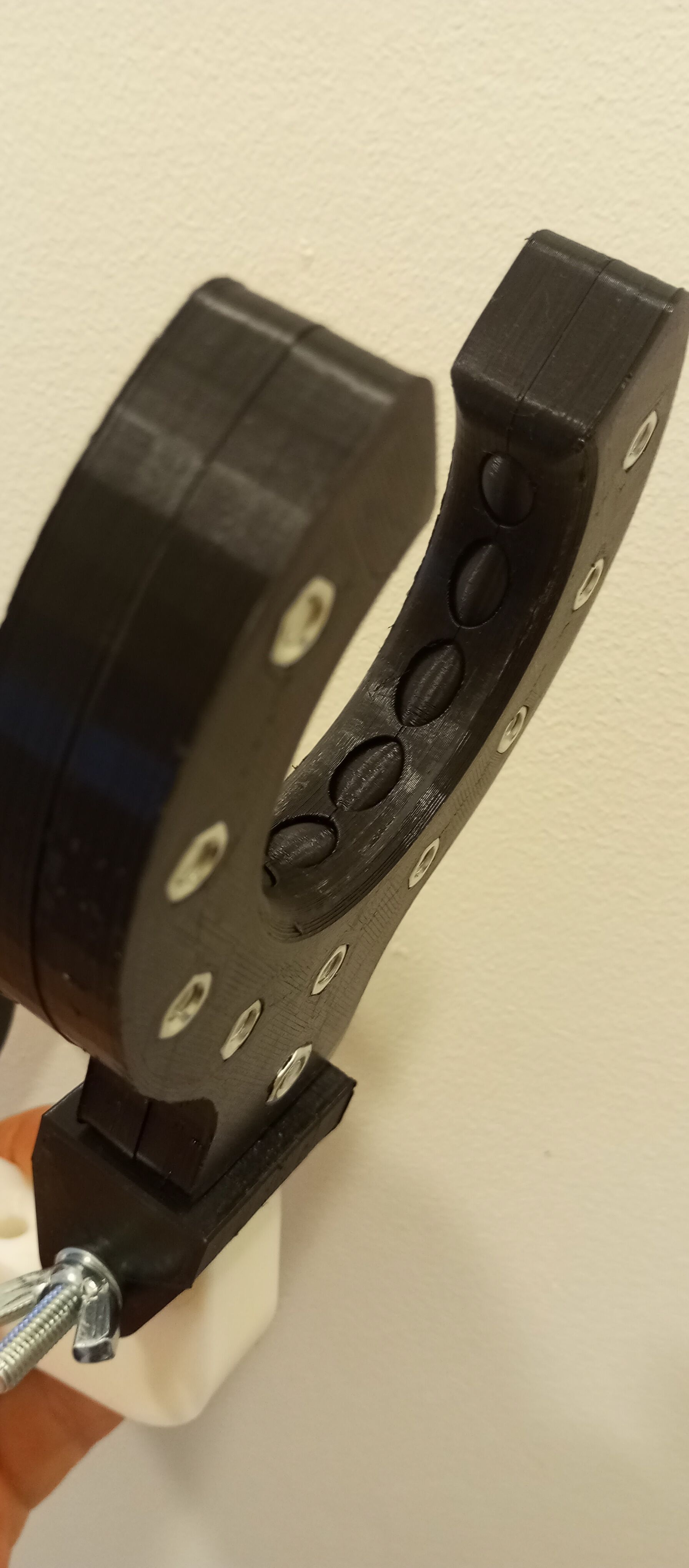

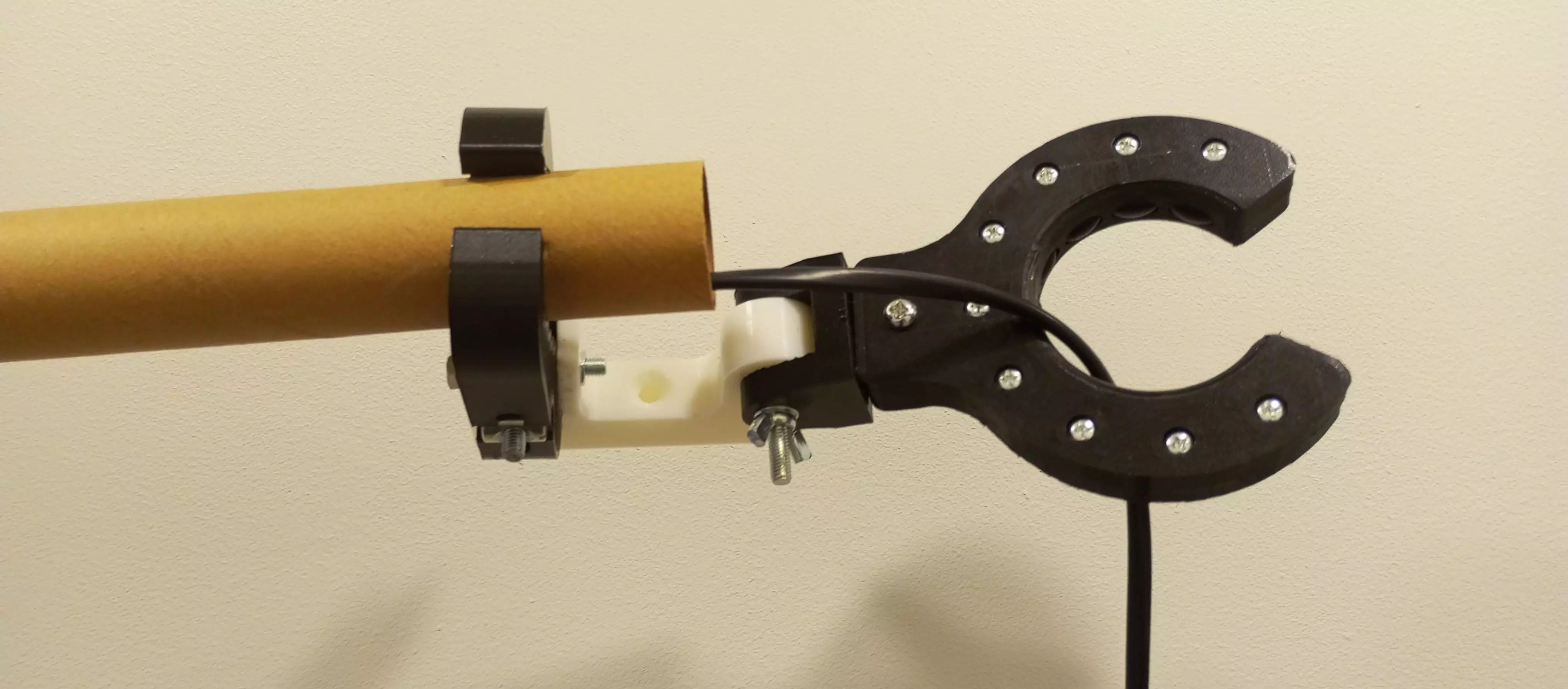

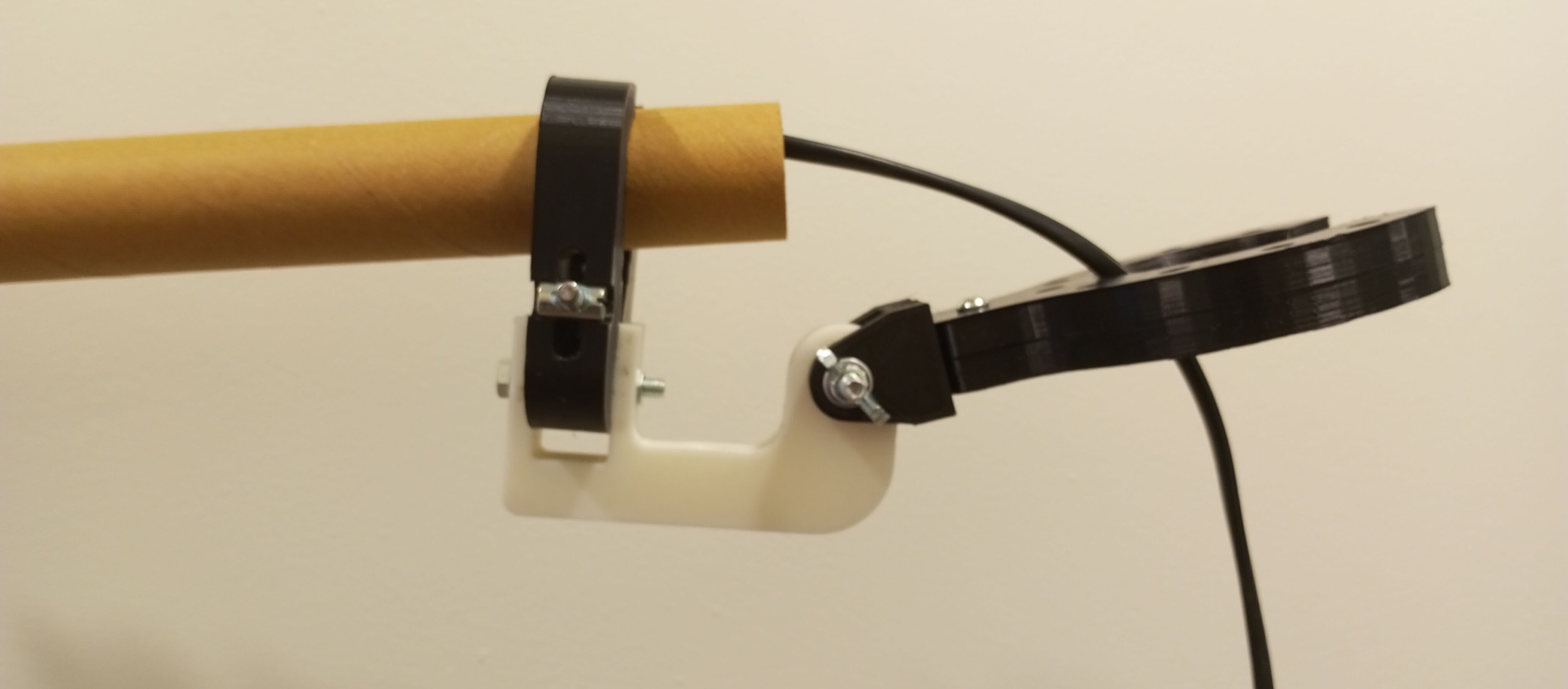

3D MODEL DESCRIPTIONThis 3D-printed tool is designed to protect cables from damage when pulling them through pipes or conduits with sharp edges. The device features built-in rollers that reduce friction and prevent cable wear.

Features:Effective Protection: Prevents cable insulation from being damaged.Versatile Use: Suitable for different pipe diameters.Easy Installation: Secures with screws and is easily adjustable.Durable Design: Printed from strong plastic, with the option to use reinforced materials.

Perfect for:Electrical installation workPulling cables through pipes and conduit systemsIndustrial and construction applications

File Format: STL for 3D printing.

3D PRINTING SETTINGS3D Printing Material: Nylon or other durable plastic (recommended for the clamp, other parts PLA).Bolts and Nuts:9× M5 bolts (15mm)9× M5 nuts1× M6 bolt (50mm)1× M6 bolt (40mm)1× M6 bolt (20mm)3× M6 nuts1× M6 threaded rod (100mm)1× M6 long nut1× M6 wing nut (18-20mm height)1× M6 furniture nut (barrel nut)Dimensions: Length: 100mm Height: 190mm
