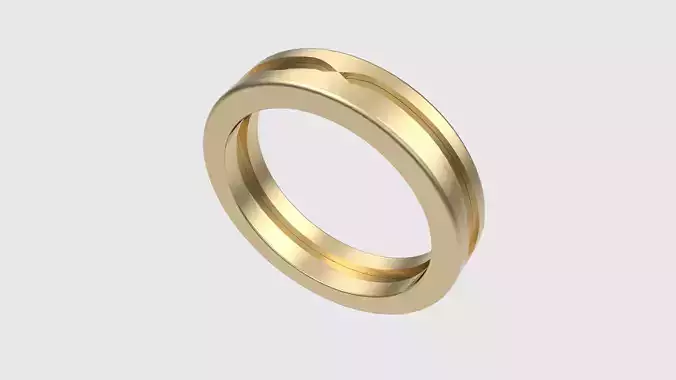

Triple-Element Interlocking Band JDBCo 3D print model

Sophisticated Three-Part Interlocking Ring With Modern Elegance
(Ready To Print 3D-Model For Jewelry Manufacturing)

Discover the allure of our sophisticated Triple-Element Interlocking Band, a modern marvel in jewelry design. This ring features an innovative three-part structure that seamlessly integrates form and function. Each segment is thoughtfully crafted to interlock with precision, creating a dynamic interplay between movement and stability. Ideal for those who appreciate contemporary aesthetics, this design celebrates the art of subtlety and complexity combined. Its sleek appearance makes it perfect for daily wear or special occasions, embodying both minimalism and luxury simultaneously. Make this exquisite piece your signature accessory today.
Designed by JDBCo

Our models are optimized for easy production. All technical aspects have been carefully considered.
Please feel free to ask any questions about our designs, discounts or technical support.

Model details:
(calculated)

Model file: model_main.stl
Size X: 25.943 mm
Size Y: 4.200 mm
Size Z: 25.943 mm
Polygons: 2102
Vertices: 1051
Volume: 329.112 mm³
Surface Area: 814.917 mm²

Model file: model_part2.stl
Size X: 27.142 mm
Size Y: 2.901 mm
Size Z: 27.142 mm
Polygons: 6922
Vertices: 3461
Volume: 307.960 mm³
Surface Area: 862.376 mm²

Model file: model_part3.stl
Size X: 27.142 mm
Size Y: 2.900 mm
Size Z: 27.143 mm
Polygons: 6864
Vertices: 3432
Volume: 307.989 mm³
Surface Area: 862.371 mm²

Weights in materials:
(calculated)
Platinum: 20.22 g
Gold 18K: 15.97 g
Gold 14K: 12.10 g
Silver: 9.92 g

Our jewelry designs can generally be produced with any of the following metals: gold (yellow, white, rose), silver, platinum, other metals.

Actual sizes and weights may vary from the calculated values.

Our jewelry designs can generally be manufactured using the following primary methods:

1. 3D Printing (Additive Manufacturing)

• Method: Using 3D printers with materials like PLA (Polylactic Acid), resin, wax, plastic, or metal.
• Applications: Creating detailed prototypes and final models. High precision, capable of producing complex geometries.
• Materials: PLA for easy printing and eco-friendliness, resin for high detail and smooth surface finishes, wax and plastic for prototyping, metal for final pieces.

2. Investment Casting

• Method: Creating a wax model via 3D printing or CNC machining, then casting metal.
• Applications: Producing high-quality metal pieces suitable for mass production. Uses 3D printed models made from PLA, resin, or wax.

3. CNC Machining

• Method: Using computer-controlled machines to cut and shape metal.
• Applications: Producing precise and larger items. Suitable for complex designs and high precision.
• Materials: Metal for final products.

Also, possible to use the secondary methods:

4. Electrical Discharge Machining (EDM)

• Method: Shaping metal using electrical discharges.
• Applications: Creating very complex shapes with high precision.
• Materials: Metal for detailed and intricate designs.

5. Laser Cutting and Engraving

• Method: Using lasers to cut and engrave materials.
• Applications: High precision cutting and engraving for various materials, fast processing.
• Materials: Metal, plastic, and other suitable materials for detailed cuts and engravings.


Please have no hesitation to reach out with any questions or proposals regarding our models, prices and special offers.
