This image presents a highly detailed 3D CAD (Computer-Aided Design) model of a luxurious diamond-encrusted gold cocktail ring, intended for fine jewelry production. The design features a large central faceted gemstone, securely held by prong settings, and a pavé-style arrangement of numerous smaller diamonds surrounding the main stone and covering the entire body of the ring.

The image includes multiple views of the ring along with precise measurements and gemstone specifications:

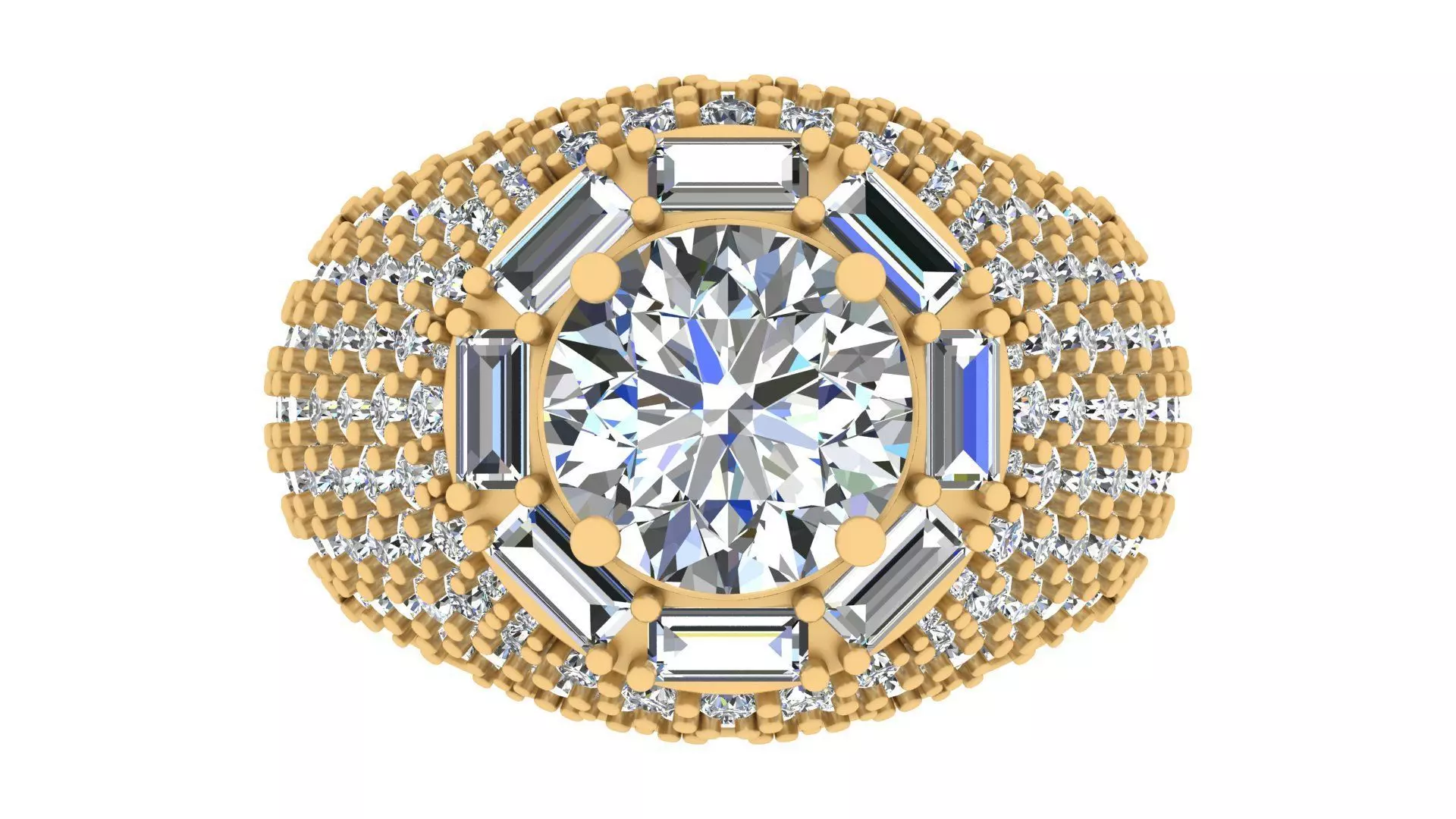

1. Top View:Shows the full layout of the design with a central gemstone surrounded by a symmetrical pattern of smaller diamonds.

The overall width of the ring from the top view measures 16.40 mm, ensuring a bold, eye-catching presence.

1. Side View:Displays the elevated prong setting holding the central stone, giving it prominence and elegance.

Reveals the curved surface of the ring encrusted with diamonds for a seamless, sparkling effect.

The height of the ring provides a balance between grandeur and wearability.

1. Front View (Cross-Section):Highlights the inner band diameter of 16.90 mm, ensuring the correct fit.

The band thickness is 2.18 mm, providing strength and durability.

The overall height of the ring is 7.80 mm, demonstrating its raised profile.

1. Material and Weight Details:The weight of the ring varies based on the gold purity used:

18 Karat Gold (18K): 17.13 grams (CAD weight)

14 Karat Gold (14K): 15.10 grams (CAD weight)

These weight estimates provide an idea of the final piece’s heft and material cost.

1. Gemstone Report (Gem Reporter Panel):The CAD design includes a detailed gemstone report, listing various diamond sizes and counts used in the ring.

The diamonds are meticulously arranged to enhance brilliance while maintaining a balanced distribution.
