Art Deco Diamond Cluster Halo Ring — 3D CAD ModelProduct TitleArt Deco Square Halo Engagement Ring 3D Model | Diamond Cluster Design | 3DM, STL, OBJ Jewelry CAD File for Manufacturing
*** All Files Types Include

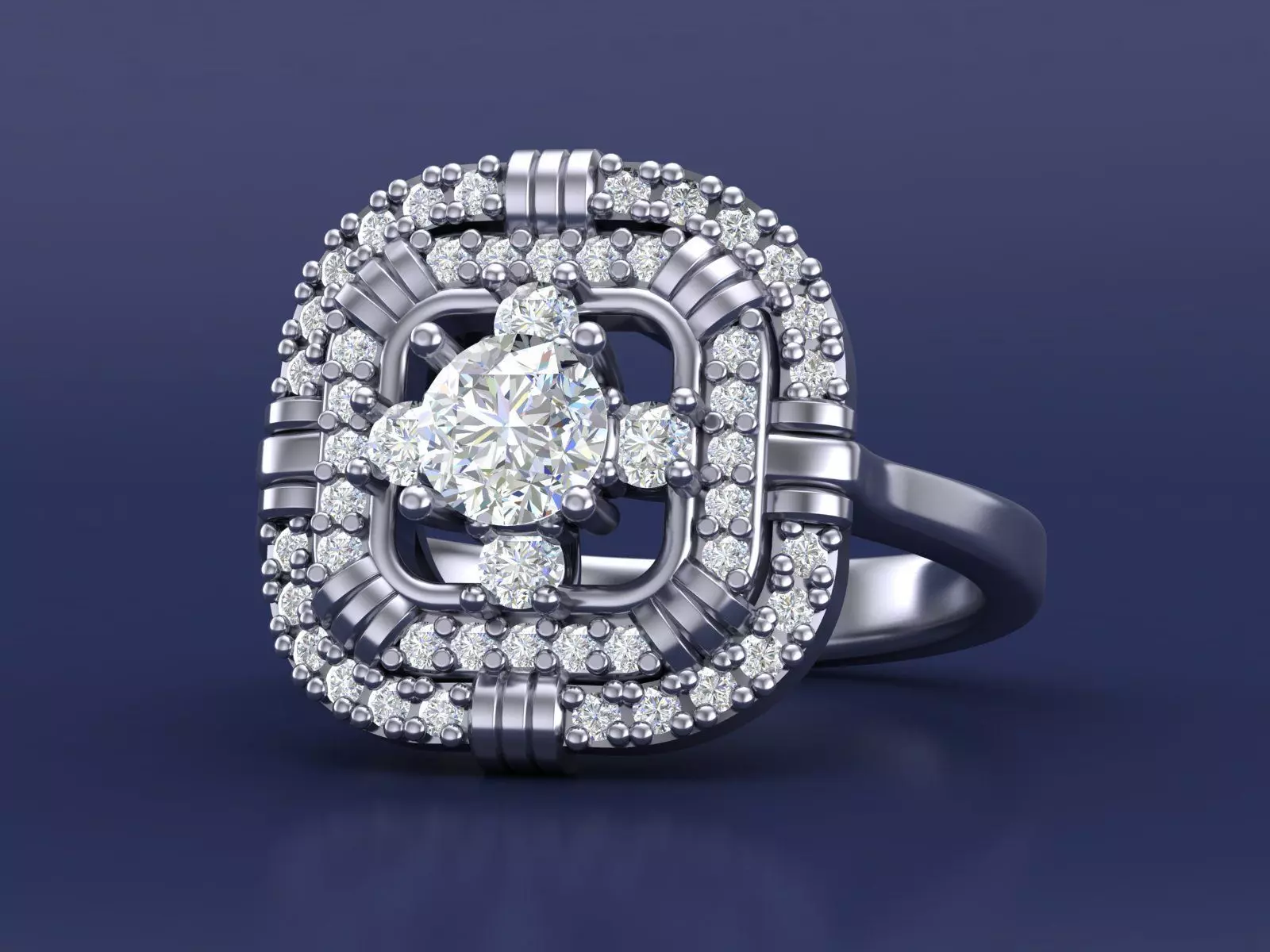

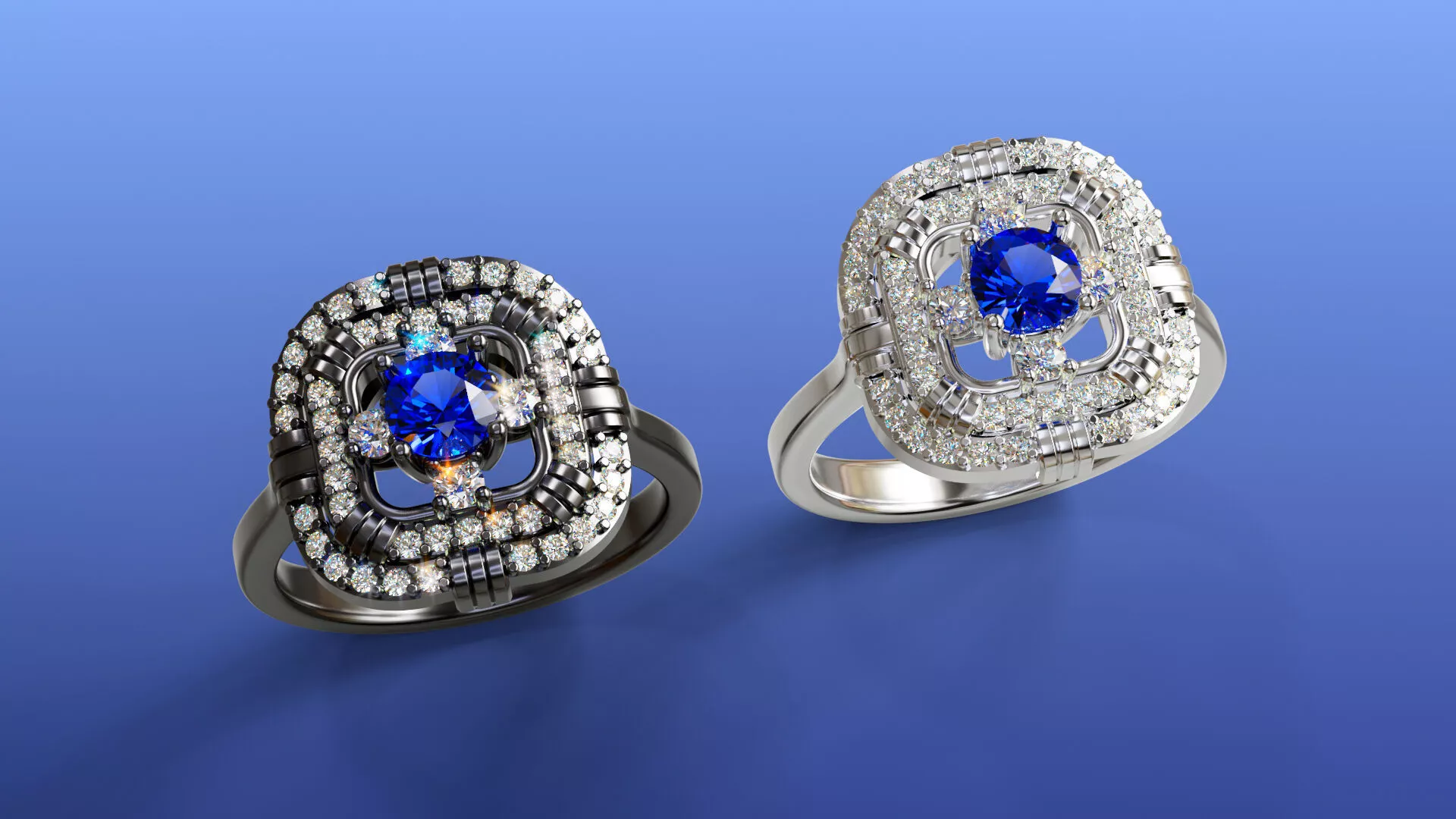

DescriptionDesign OverviewThis Art Deco–inspired ring showcases a bold, geometric square-cushion silhouette built around a round center gemstone, cradled by a tiered arrangement of pavé diamonds and sculptural metal fluting. The stepped, architectural detailing along the gallery — alternating ribbed bars, milgrain-style bead accents, and openwork sides — pays homage to classic 1920s design language while remaining wearable for modern settings. The split-shank band flows seamlessly into the softened square halo, and the piece has been rendered in multiple finishes including yellow gold, rose gold, white gold, and blackened metal, paired with center stones such as sapphire, ruby, and emerald to demonstrate its versatility across gemstone and metal combinations. The result is a statement cocktail or engagement ring that balances vintage character with clean, symmetrical modern lines.
3D Modeling DetailsThe file is fully engineered in solid, manufacture-ready 3D geometry with accurate gem seating, prong structure, and closed-volume solids suitable for direct rendering or production. Included in the working files are complete gem reports (round diamond melee in multiple calibrated sizes plus a center stone), verified metal weight calculations across a wide range of alloys (9K, 10K, 14K, and 18K white gold, sterling silver, and rose gold variants), and precise dimensional call-outs — overall face width of approximately 14.5–15mm, band diameter around 16.9mm (adjustable for sizing), and a total height profile suited to comfortable everyday wear. The model has been checked from all working views (perspective, top, side, and through-the-finger) to confirm proportion, symmetry, and stone placement accuracy prior to delivery.
Manufacturing InformationThis CAD file is production-ready and compatible with resin 3D printers, wax printers, and CNC milling workflows used in professional jewelry manufacturing. Files are provided in industry-standard formats — including 3DM, STL, and OBJ — allowing compatibility with Rhino, Matrix, 3Design, and most major jewelry CAD/CAM software. The design supports casting in gold (9K–18K, yellow, white, or rose), platinum, and silver, with gem specifications provided for standard round melee and a center stone that can be substituted to fit sapphire, ruby, emerald, diamond, or other gemstone preferences. Ring size can be scaled to any standard sizing chart prior to printing or milling, and all prong and setting geometry has been structured to support secure, real-world stone setting.
Licensing & Sales TermsThis listing includes the complete native 3D file along with exported STL and OBJ formats for immediate use in production or further customization. The design is intended for use by jewelry designers, manufacturers, 3D printing services, and CAD marketplaces, and may be used to produce finished physical jewelry for retail or personal sale. Redistribution or resale of the raw 3D file itself (as a digital CAD product) is not permitted without separate licensing; buyers are welcome to modify stone sizes, metal type, or ring sizing to suit production needs. Please contact the seller for bulk licensing, exclusivity arrangements, or custom modification requests.
