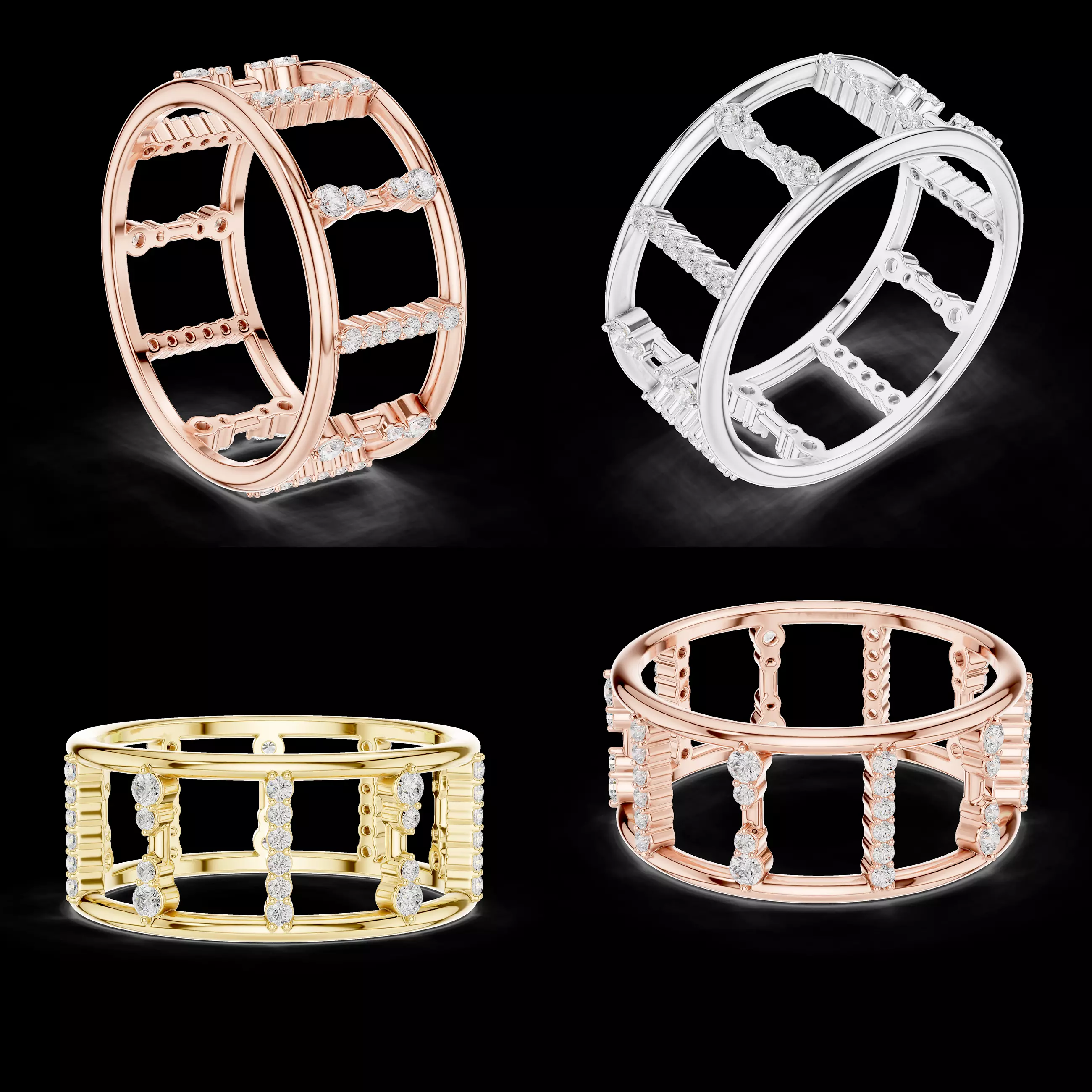

This architectural open grid diamond wide band ring CAD design features a bold cylindrical structure with evenly spaced vertical diamond-set bars connected by smooth circular bands. The open framework creates a modern industrial aesthetic while allowing light flow, reducing weight, and enhancing brilliance.

The balanced geometry and reinforced inner supports provide excellent durability and casting reliability despite the wide band profile. Precision-aligned stone channels ensure secure setting and clean finishing. This design is ideal for statement jewellery collections that demand strong visual impact with contemporary elegance.

The CAD model is professionally built, production-ready, and fully editable for size adjustments, stone layout modifications, or structural refinements.

Usage

Wide band ring manufacturingStatement and fashion jewellery collectionsLuxury contemporary jewelleryDesigner showcase piecesCustom jewellery CAD projects

Included Files

3DM fileSTL file

Product Details

Ring Style: Wide band statement ringDesign Type: Open grid architecturalStructure: Multi-bar vertical frameworkBand Profile: Bold and symmetricalSurface Finish: High polishCAD Scale: Real jewellery scaleModel Status: Production ready

Important Points

Optimized open structure for lighter weightStrong internal support for casting stabilityClean stone alignment and spacingComfortable inner fit despite wide bandEditable CAD geometrySuitable for high-end jewellery production

Customer Support

Support is available for resizing, stone count adjustments, structural edits, and custom CAD development.You can contact anytime for modifications or new jewellery design requirements.
