Gemini Pendant 3D print model

THE FOLLOWING READINGS ARE TAKEN IN MILLIMETERS AND FURTHER CHANGES ARE POSSIBLE ON DEMAND

The 3D model depicted is a Gemini zodiac symbol - inspired jewelry component (likely a pendant or ring element) designed in the Matrix jewelry CAD software. Below is a detailed breakdown of its design, dimensions, and technical elements:

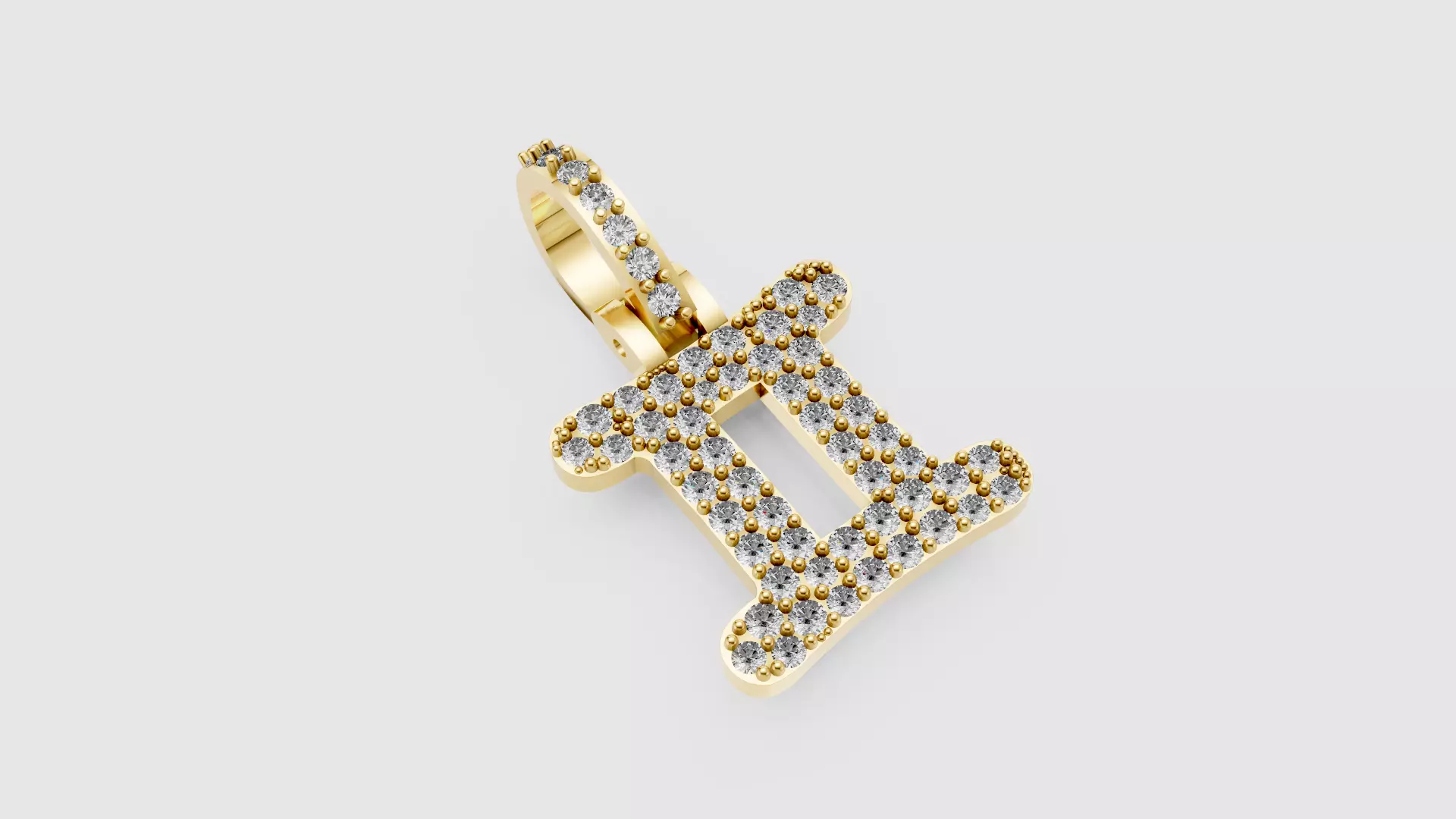

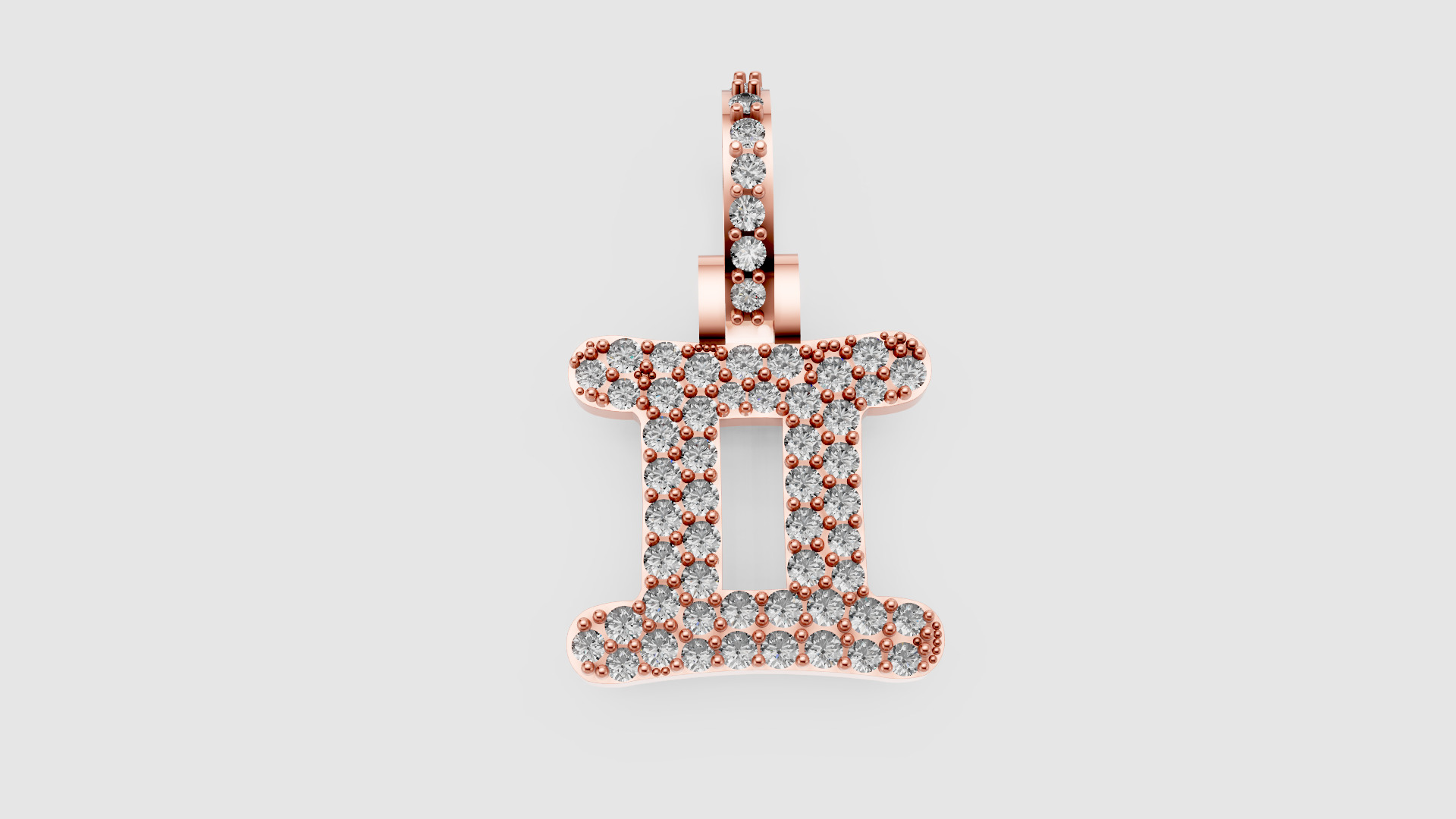

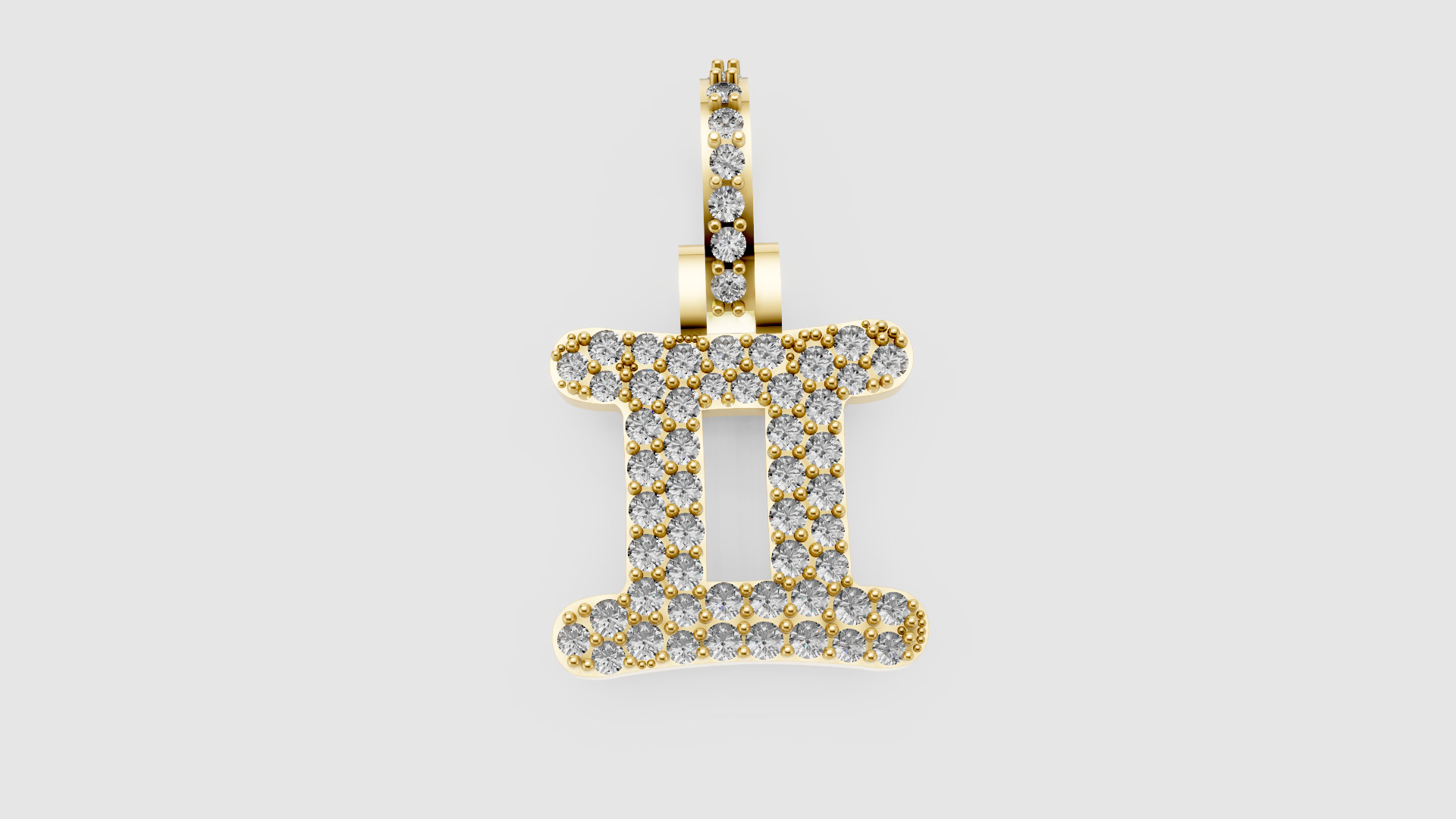

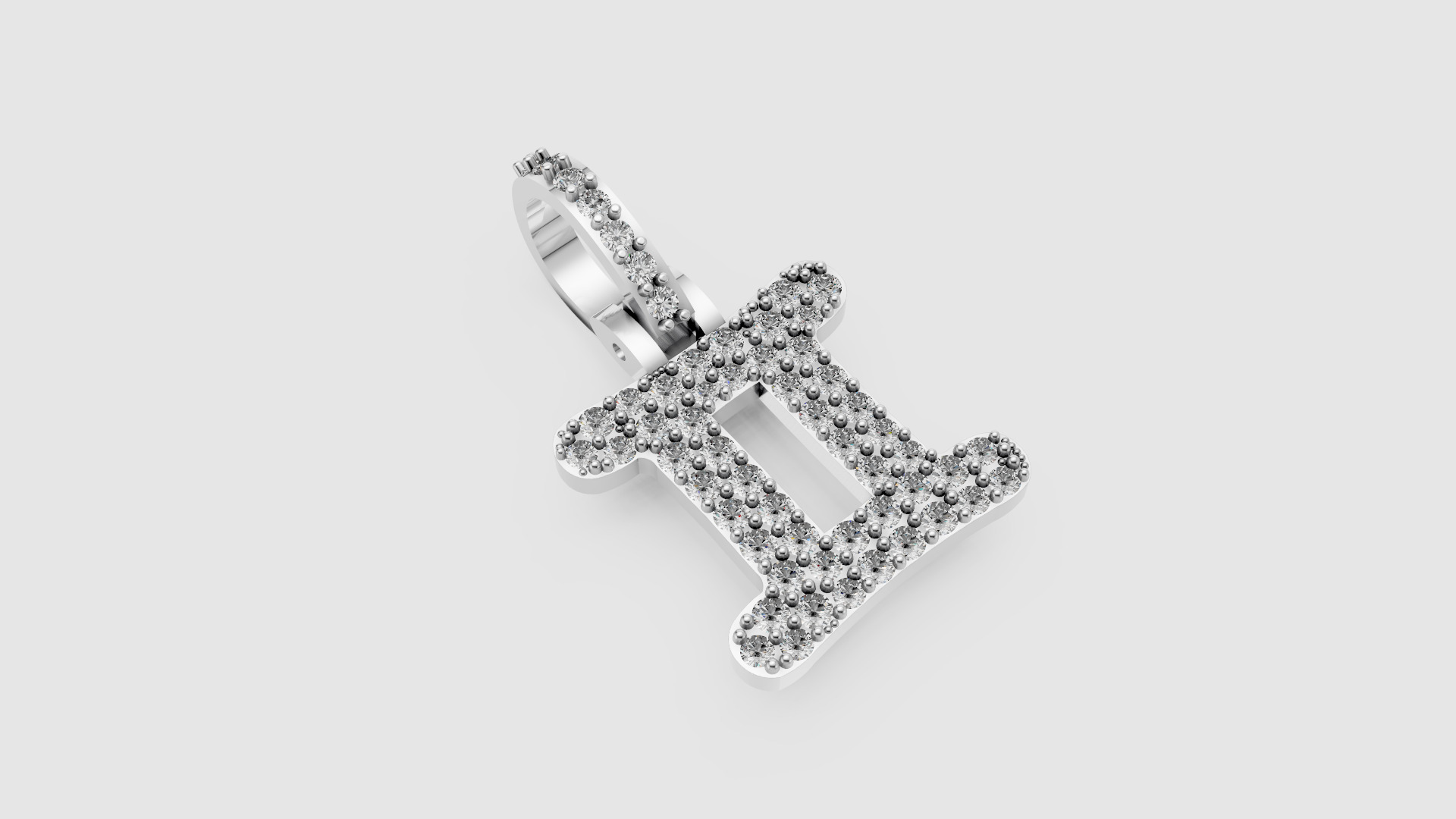

1. Overall Design & AestheticThe model takes the form of the Gemini twin - pillar motif. It has a green - hued metal framework (presumed to be a precious metal such as gold or platinum). The metal structure is lavishly adorned with light - blue gemstones (probably diamonds) and smaller purple accent stones, resulting in an intricate, high - end jewelry design.

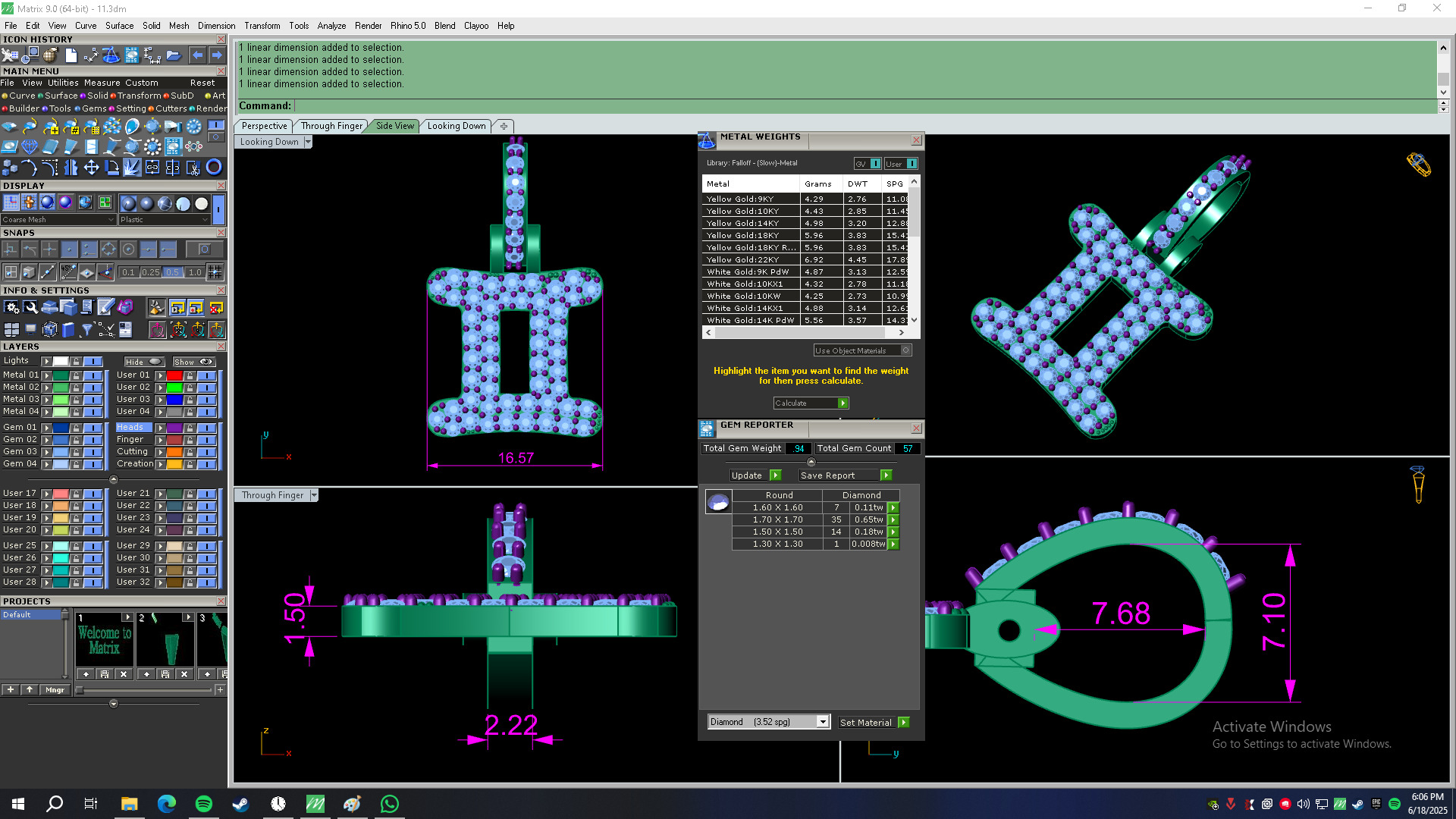

2. Dimensioned Views (By Window/Perspective)The interface presents the model from multiple angles, each with specific dimensional details:

Top - Down View (“Looking Down”)This view shows the front - facing profile of the Gemini symbol. A purple dimension line indicates that the total width of the Gemini - shaped component is 16.57 units (the unit is most likely millimeters, standard in jewelry design). The gemstones are arranged in an orderly pattern across the metal base.

Side View (“Through Finger”)This perspective reveals the three - dimensional thickness of the metal structure.

A pink dimension line marks a depth of 1.50 units (measuring the vertical thickness of the metal framework).Another pink dimension line shows a width of 2.22 units (measuring the horizontal span of the metal base in this view).Close - Up Detail View (Lower Right)This view focuses on a circular component (possibly a bail for attaching the piece as a pendant or a clasp).

A purple dimension line indicates an inner width of 7.68 units (the opening within the circular structure).Another purple dimension line shows an outer height of 7.10 units (the total vertical span of the circular component).

1. Technical Context (Software & Panels)Design Software: The model is created in Matrix (a specialized CAD program for jewelry design), as seen from the interface elements like toolbars, layer managers, and menu options (e.g., “Surface,” “Solid,” “Render”).“METAL WEIGHTS” Panel: This panel lists weight parameters (Grain, DWT, SPG) for different precious metals (such as yellow gold 9K–22K, white gold 10K–14K). It supports the calculation of the metal needed for production.“GEM REPORTER” Panel: This panel provides detailed information about the gemstones:Total Gem Weight and Total Gem Count (there are 57 gemstones in total).Specifics for round diamonds (for example, “1.60 × 1.60” size with a weight of “0.110w”), ensuring precision in gemstone selection and setting.In summary, this 3D model combines creative design (the Gemini zodiac symbol) with engineering accuracy (precise dimensioning, material specifications, and gemstone tracking). It represents the detailed process of professional jewelry design, where aesthetic appeal and technical feasibility are seamlessly integrated
