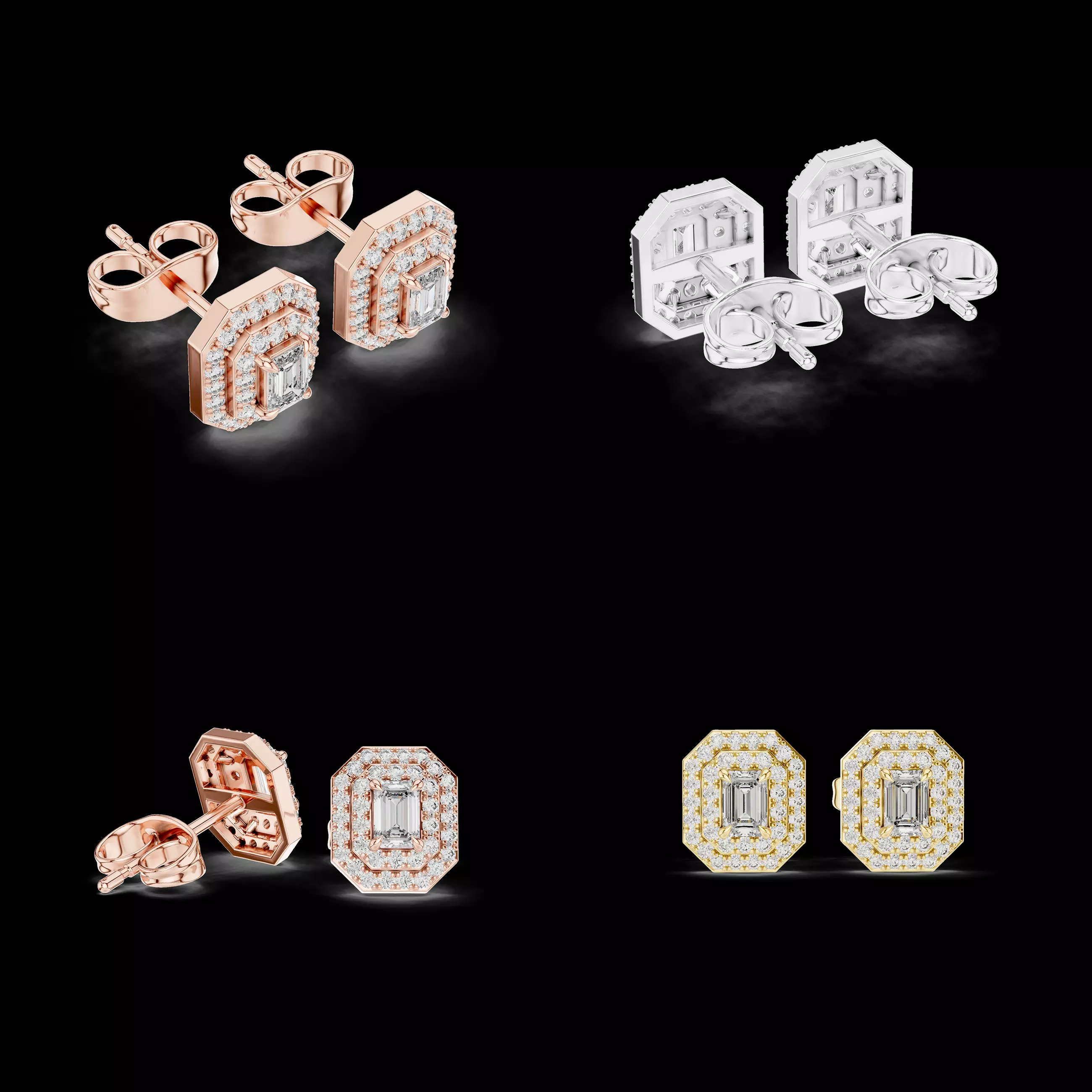

This octagon-shaped diamond stud earrings CAD design is developed for high-end jewellery manufacturing with a strong focus on precision, durability, and visual balance. The design features a prominent emerald-cut center stone framed by a refined double halo arrangement, enhancing brilliance while preserving a clean geometric aesthetic.

The structured octagonal outline gives the earrings a modern luxury appeal, making them suitable for premium and bridal jewellery collections. Each halo layer is carefully spaced to ensure proper stone setting tolerance, allowing smooth setting and secure placement during production. The prong structure is optimized to maintain stone safety without interfering with light performance.

The backside construction includes intelligently placed cut-outs to reduce overall metal weight while maintaining structural integrity. This helps achieve cost efficiency in gold usage without compromising strength. The post and screw-back system is engineered for long-term wear, ensuring comfort, balance, and stability once worn.

All surfaces are designed with smooth transitions and correct wall thickness, allowing flawless casting, polishing, and finishing. The model is fully compatible with professional jewellery manufacturing workflows and can be produced in yellow gold, white gold, rose gold, or platinum as required.

This CAD model is suitable for both custom jewellery orders and serial production, making it a versatile addition to any professional jewellery design library.

Usage

Diamond stud earrings manufacturingLuxury and bridal jewellery collectionsCustom jewellery developmentCasting, stone setting, polishing, and finishingProfessional CAD-based jewellery production

Included Files

3DM file compatible with Rhinoceros softwareSTL file suitable for high-resolution casting

Important Points

Designed specifically for jewellery manufacturingAccurate stone setting proportionsBalanced metal thickness for casting reliabilityOptimized back structure for weight controlClean geometry for smooth polishing and finishingPerfect left and right symmetry maintained

Customer Support

Complete after-sales support is provided for this CAD model.Assistance is available for file verification, minor adjustments, and production-related questions.Support is focused on ensuring smooth manufacturing and customer satisfaction.
