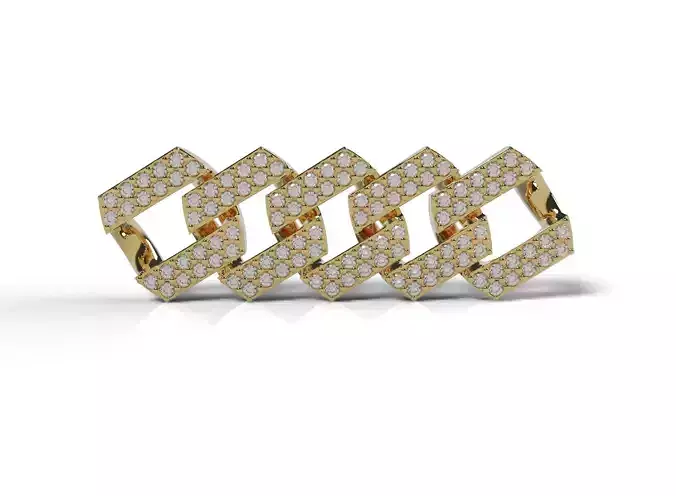

Cuban Links Flat Top 10mm with diamonds for Chain and Bracelet 3D print model

*This is a 10mm Cuban Link that will fit for both chains and bracelets. *

As you can see from the previews, I tested that model by 3D printing the links myself and assembling them together. It sits nicely and will curve as shown without the need of extra handwork. I can assure that all of them were tested so that they do not twist or have poor curvatures when sitting on a neck or wrist. They are meant to be directly 3D printed, cast and assembled. The stone seats have been cut with the right tolerance to minimize the use of a bur when setting diamonds if 1.00mm are used.

This chain will have 4 links per 1 inch at a weight of approximately:

• 3.40g in 10kt / inch
• 4.00g in 14kt / inch
• 4.60g in 18kt / inch

Each link will fit 22x 1.00mm to 1.10mm stones. (1mm with little room and 1.10mm tightly)

Included in the files are:

• 10mm Link with Stones
• 10mm Link without Stones
• 100mm high pre-assemble tree with 28 links and cutting mark for the sprues.

All STL files were repaired and the mesh was downsized to what I consider enough for a 25um resolution printer. It will allow for easier handling through your slicer when 3D printing large quantities of links.

I usually only sell STL files. I may consider selling 3DM files in the future but for now, it is off the table.

I take pride in making 3D models that will make the manufacturing process as seamless and as easy as possible. If you have any feedback, please send them to me.
