Vacuum hook collection

Vacuum hook collection 3D print model


Commercial license: You can print and sell these models. Available models:

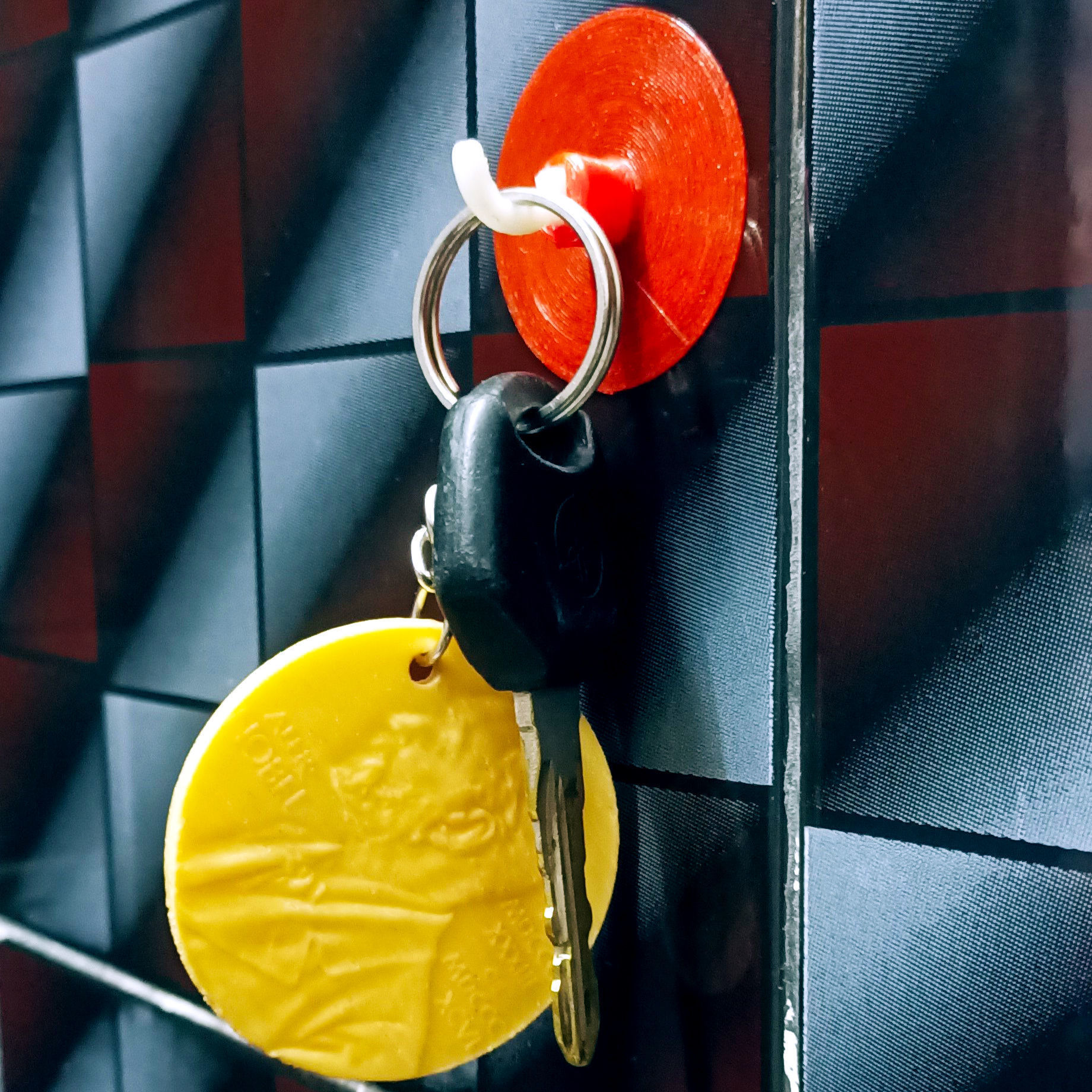

  1. Plane round model,

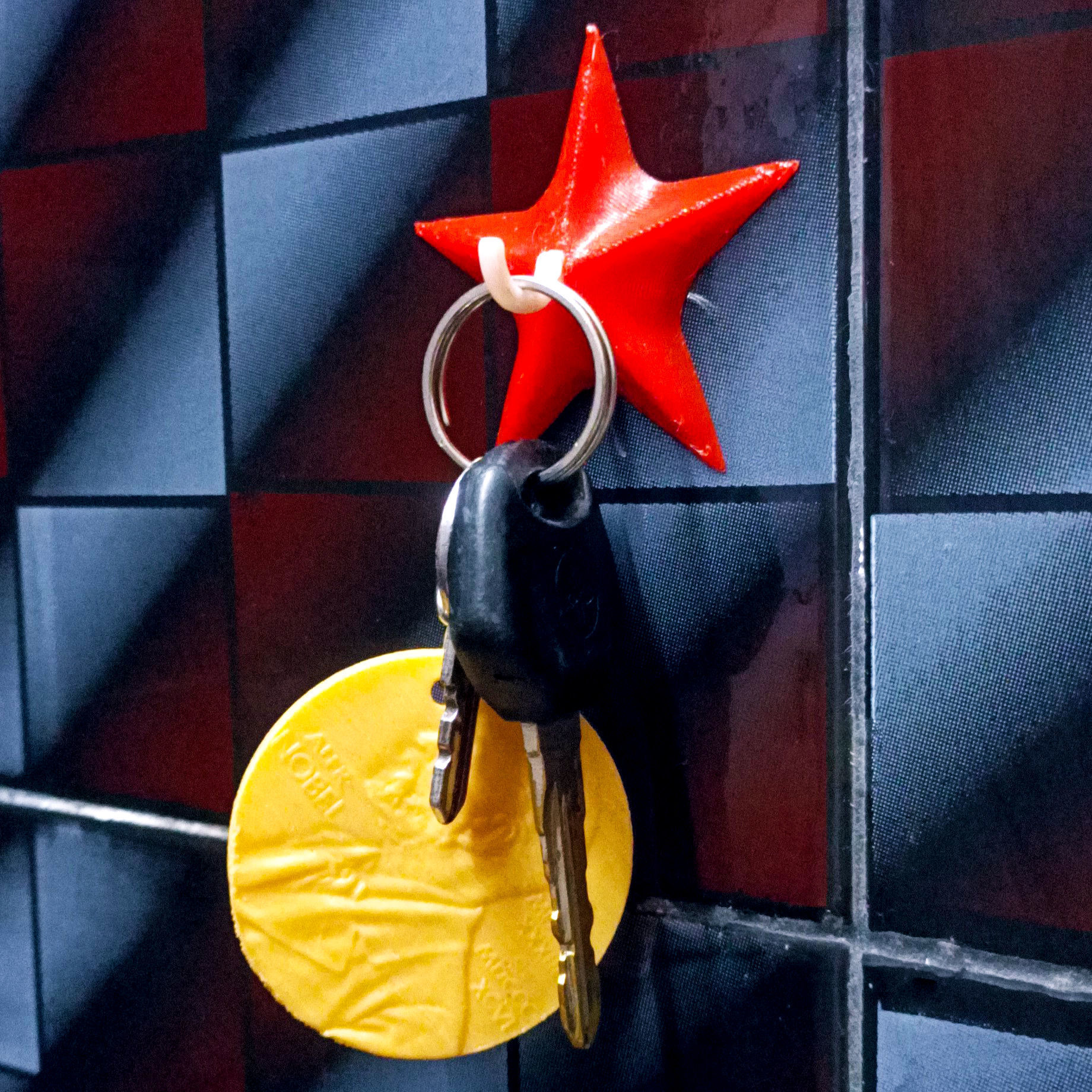

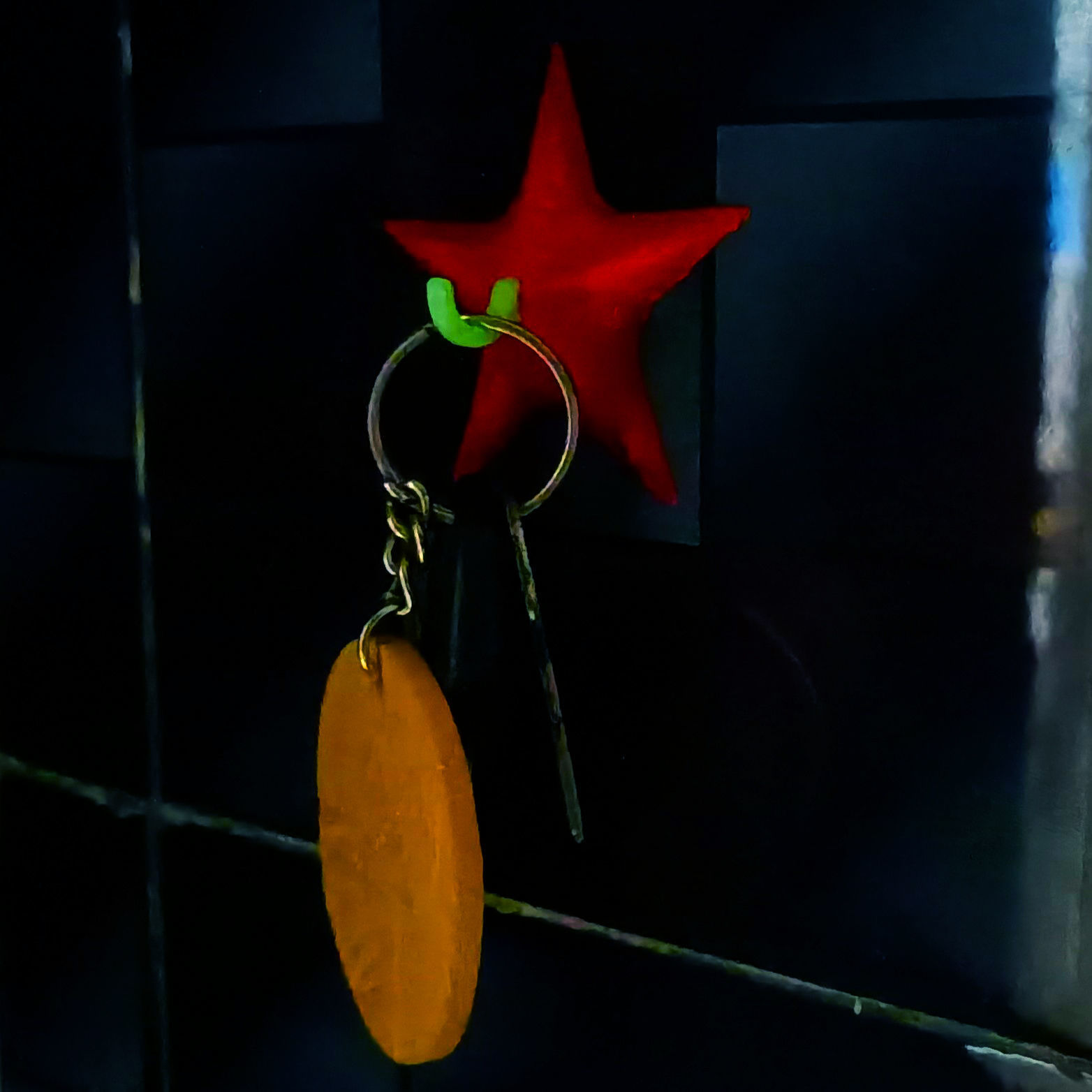

  2. Plane star fish,

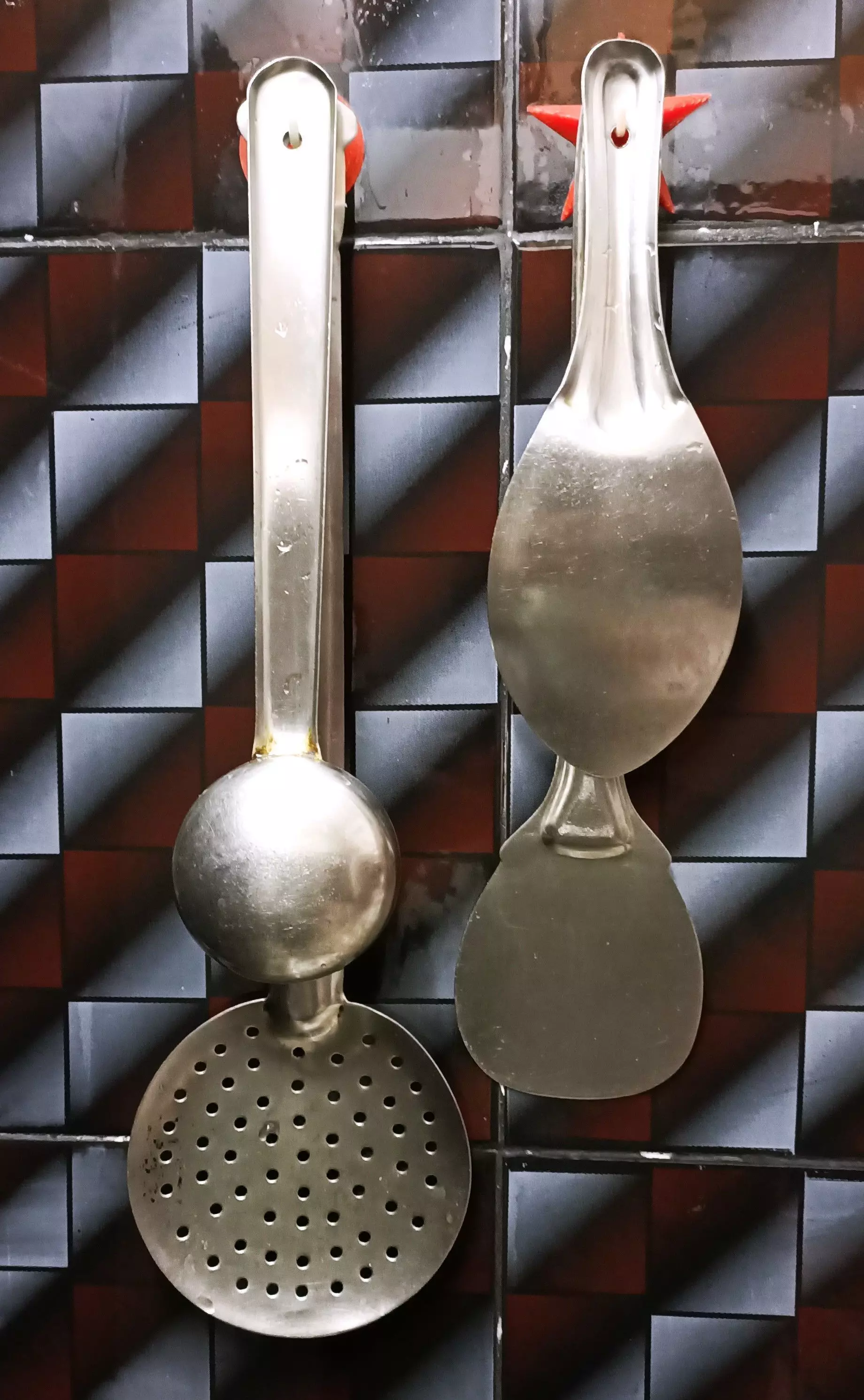

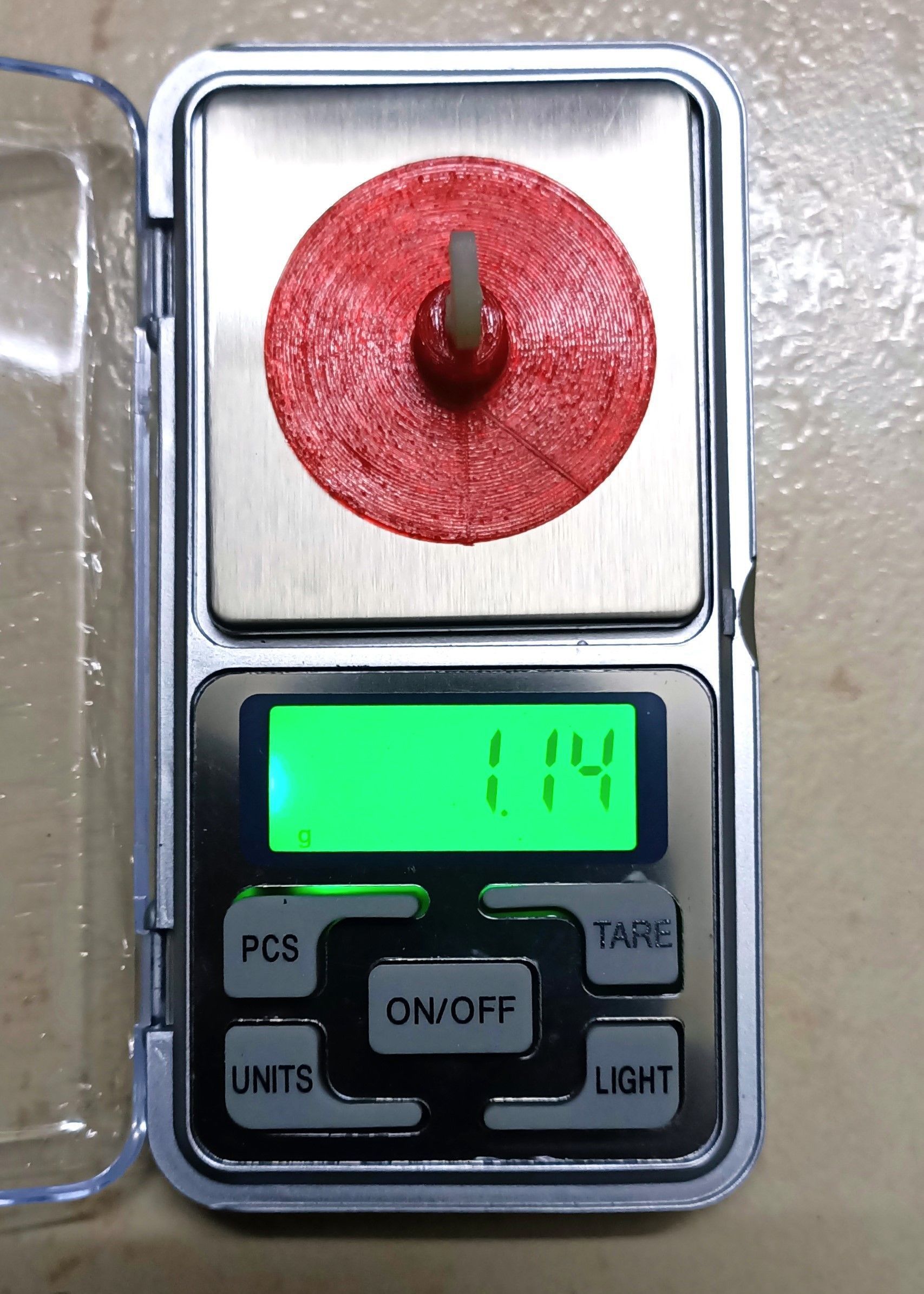

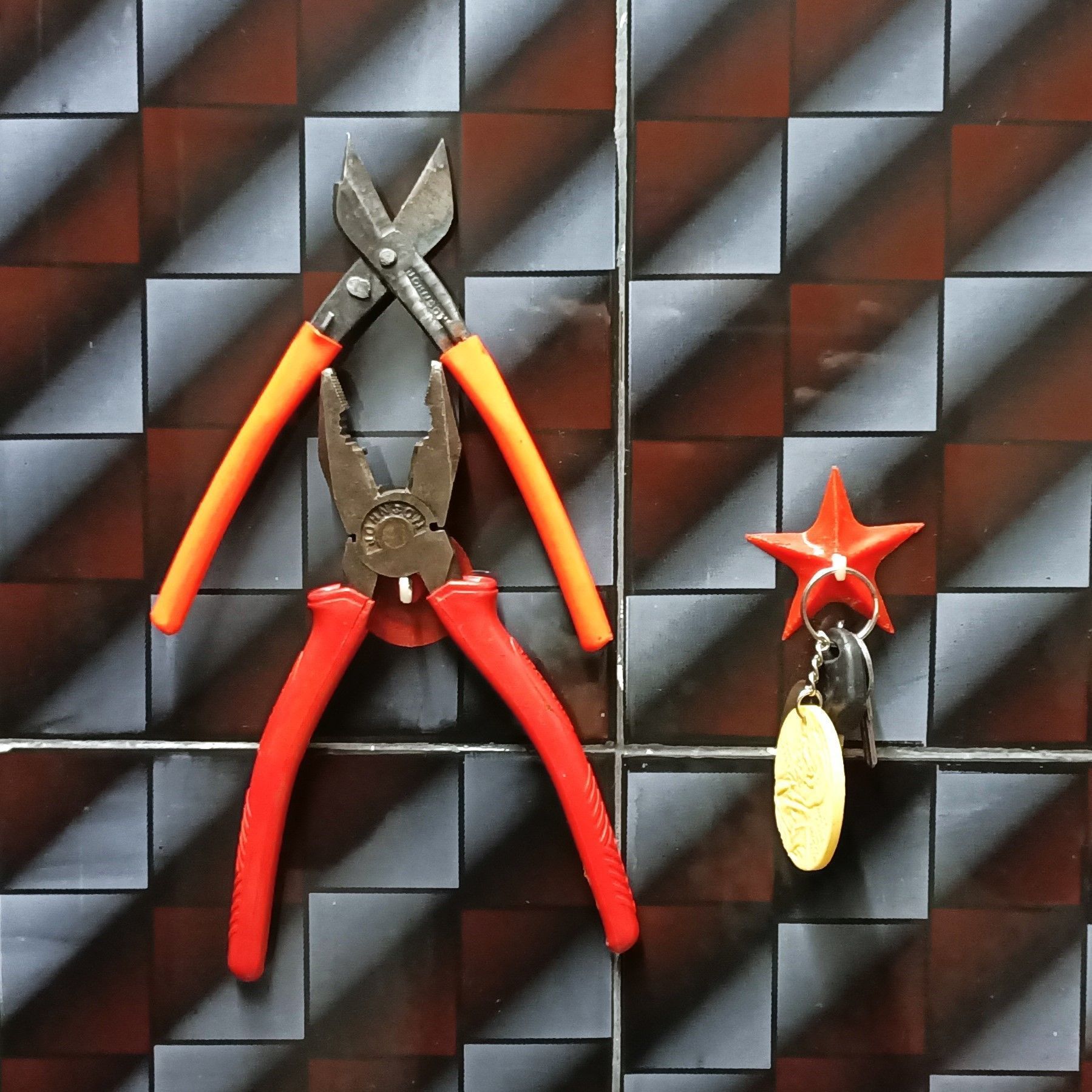

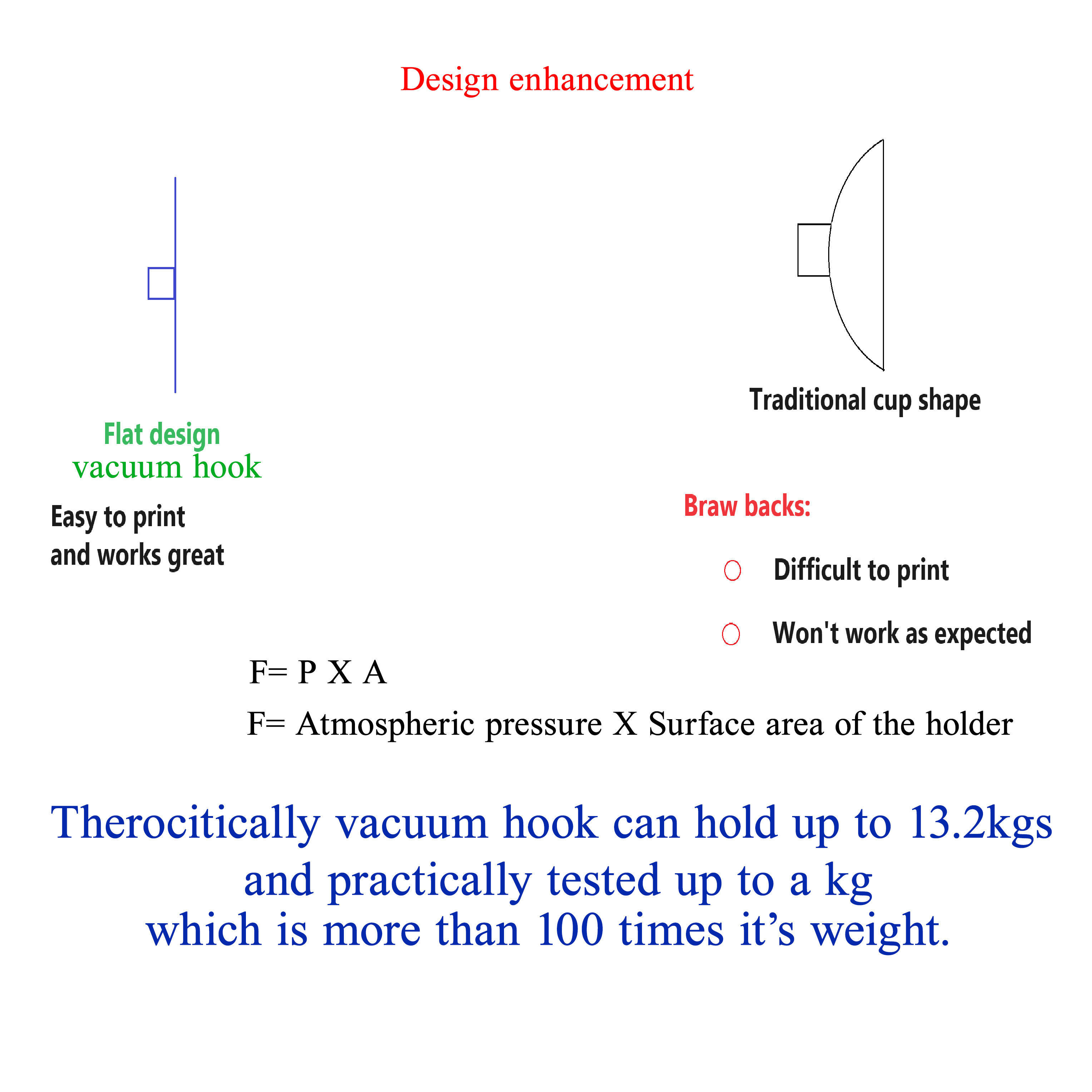

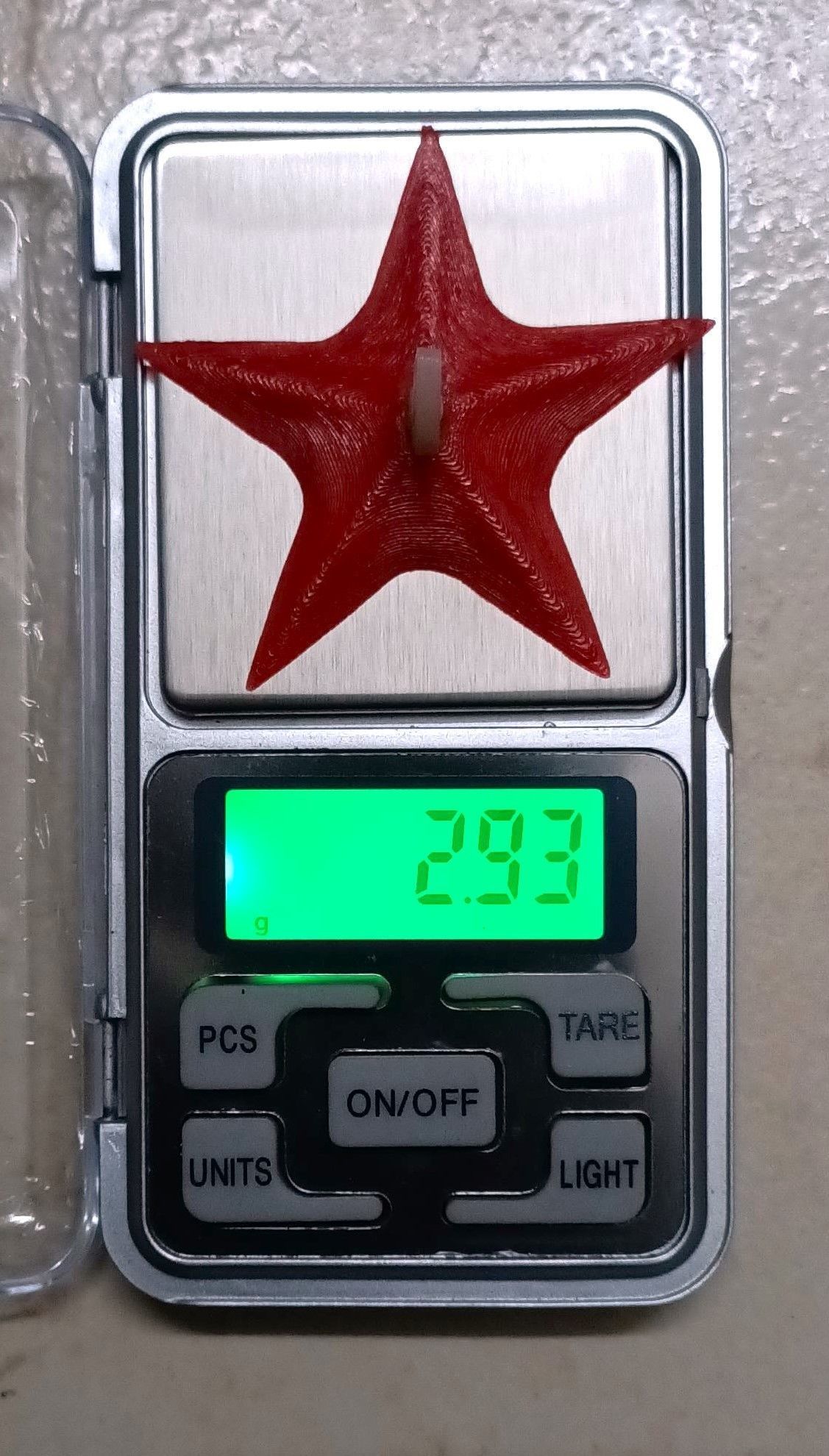

  3. Star fish. Concept: The flat surface of these models with water as medium creates a strong vacuum grip when pressed against a non-porous smooth surface. Theoretically these model can hold up to 11kgs and practically tested up to 1kg which is more than 300times there weight.

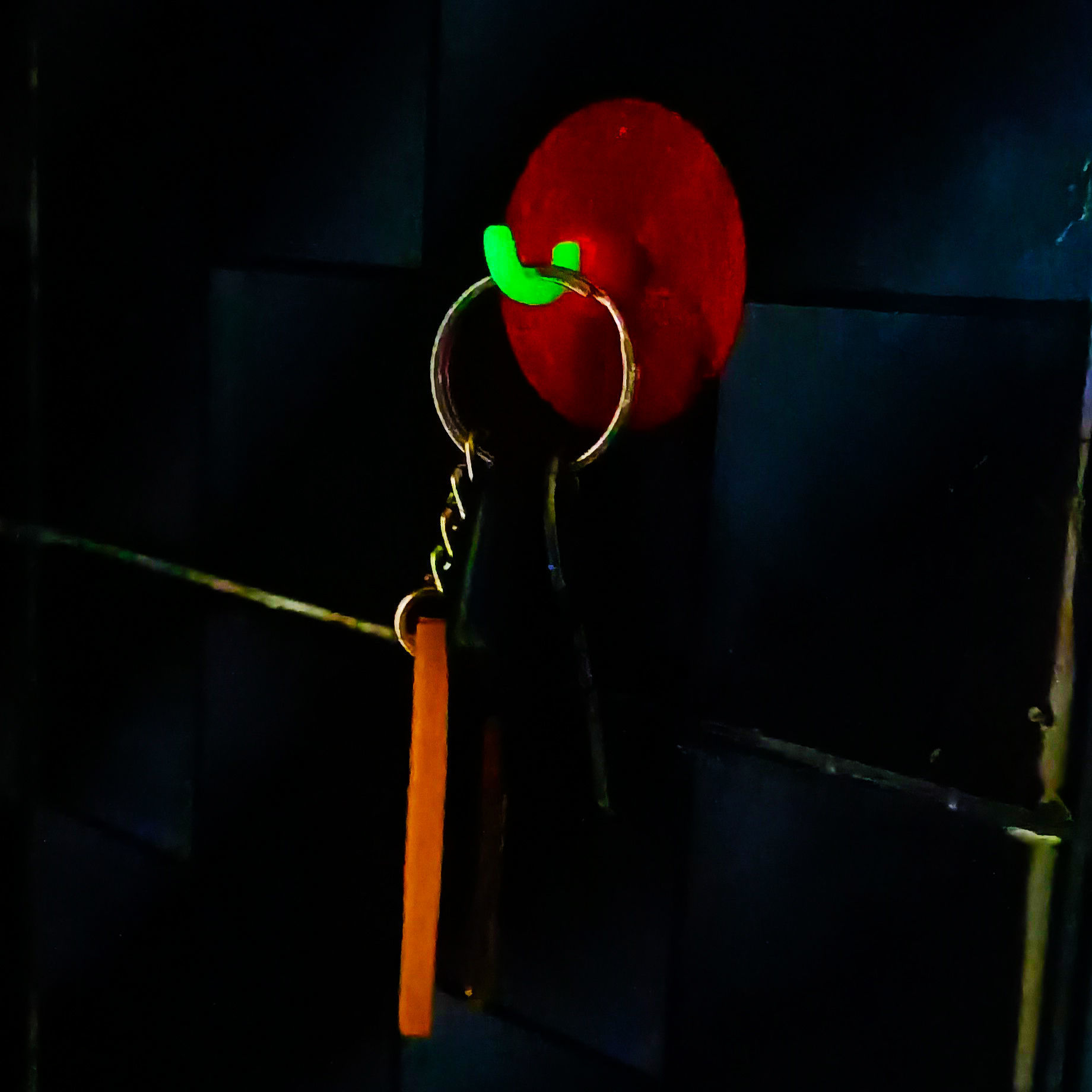

Benefits:  Safe and secure,  Using fluorescent (Glow in the dark) material for hook will give an advantage of finding keys in the dark,  No need to drill hole / use adhesive.

Note: The print must be on smooth surface using glass bed is preferred but not compulsory, use high bed temperature to avoid glue stick/adhesive. Make sure that there are no air bubbles after pressing against wall.

Materials: Holder: Any flexible resin/Filament – TPU, Nylon, E.T.C Hook: strong resin / Filament - PLA, PETG, ABS, E.T.C,

3D printing settings:

Printer: FDM / RESIN,

Retraction: 5mm speed 60, Nozzle Temp: minimum 190 to 210 C for PLA / minimum 200 to 230 C for TPU Bed Temperature: 90 C (no glue stick/adhesive needed) Infill: Minimum 8%, Print in place, Print speed: 25 Support: No supports needed, Layer height: 0.2, (use high diameter nozzle for fast printing) Build plate adhesion: brim at least 1mm, Print time: Plane models: 13minutes Star fish: around 30minutes, Hook: 2 minutes.

The hook is a snap fit no adhesive required for assembling.

Thank you, Have a wonderful day. Regards, Sigma Designers.
