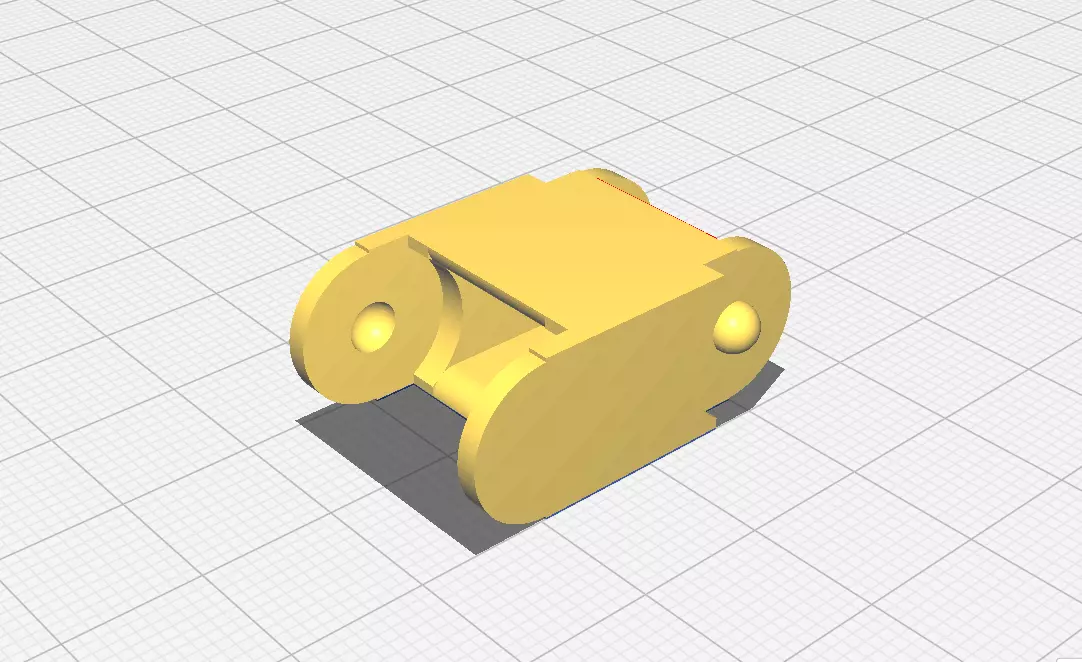

Wire Chain 3D print model

Custom Mechanical Linkage – STL Model OverviewMaterial Recommendation:

• PLA (Polylactic Acid) – Ideal for prototyping and light-duty mechanical applications.
• Color: Yellow (as rendered; customizable based on filament choice)
• Print Settings (Suggested):
• Layer Height: 0.2 mm
• Infill: 30–50% (for strength)
• Supports: Enabled (due to overhangs near triangular brace)
• Print Orientation: Flat on central body for stabilityDesign Features
• Dual Circular Mounts:Each end features a circular plate with a central hole, suitable for pivoting, bolting, or pin insertion.
• Reinforced Triangular Brace:Adds structural rigidity between the circular ends and the central body, minimizing flex under load.
• Compact Rectangular Core:Serves as the main load-bearing section, with clean edges for easy alignment and mounting.
