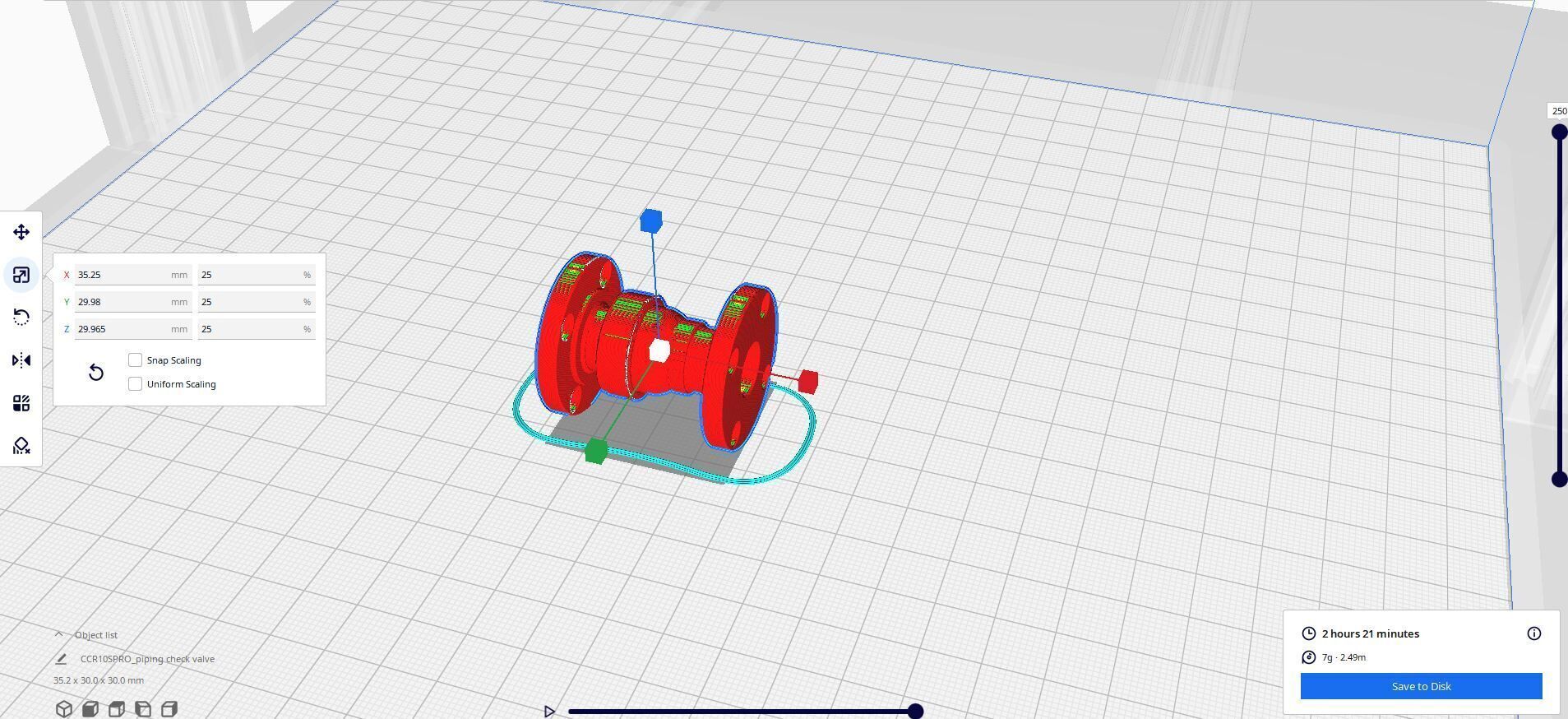

Piping check valve 3D print model

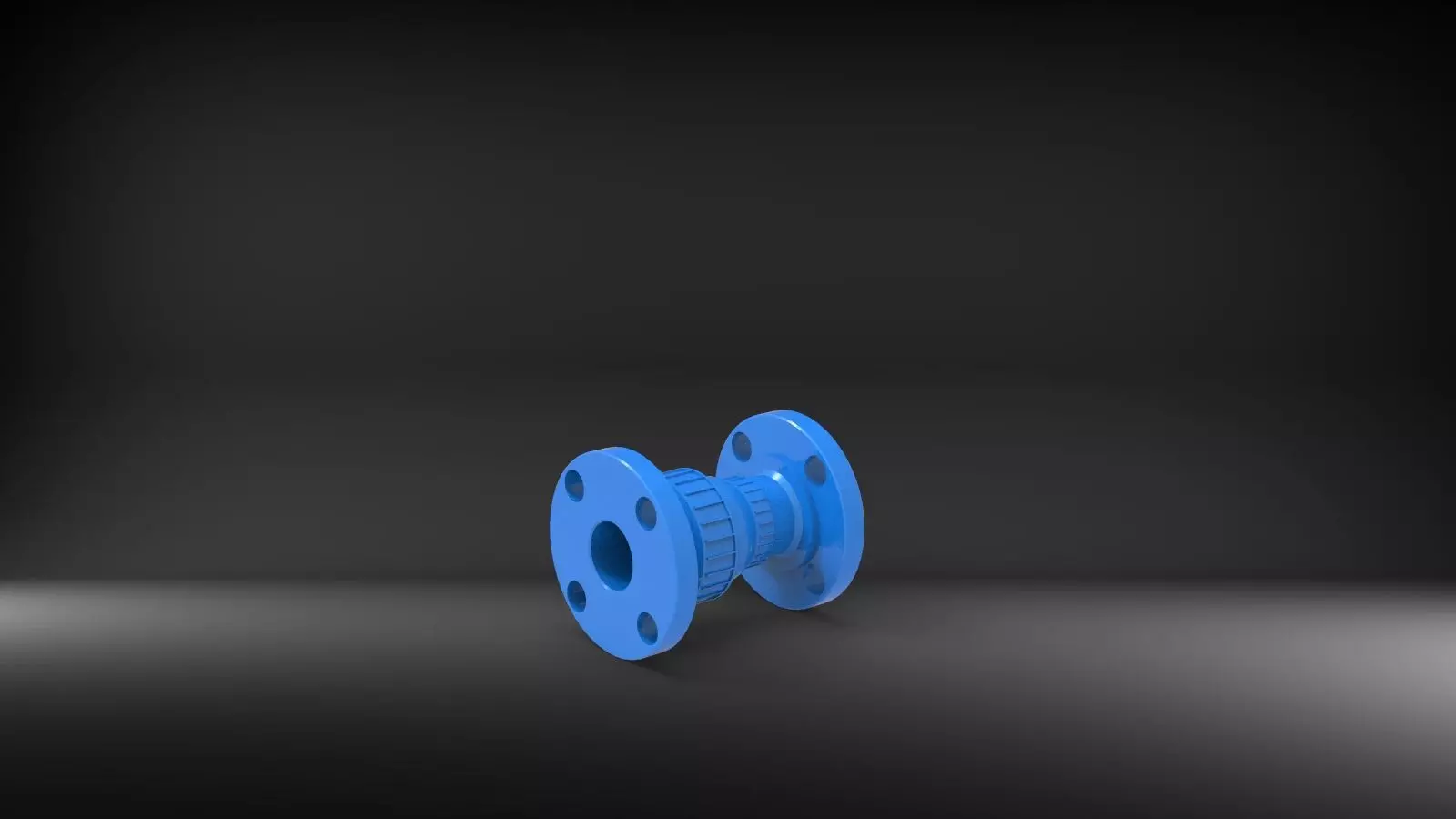

The 3D design of a piping check valve illustrates a critical unidirectional flow component used to prevent backflow in piping systems. The model typically features a cylindrical valve body with flanged or threaded ends, containing an internal disc, swing, or lift mechanism that automatically closes when reverse flow occurs. Designed for minimal pressure drop and reliable sealing, the check valve is commonly used in water, gas, steam, and chemical lines. This component enhances system safety and efficiency, making it essential for pumps, pipelines, and industrial process systems.
