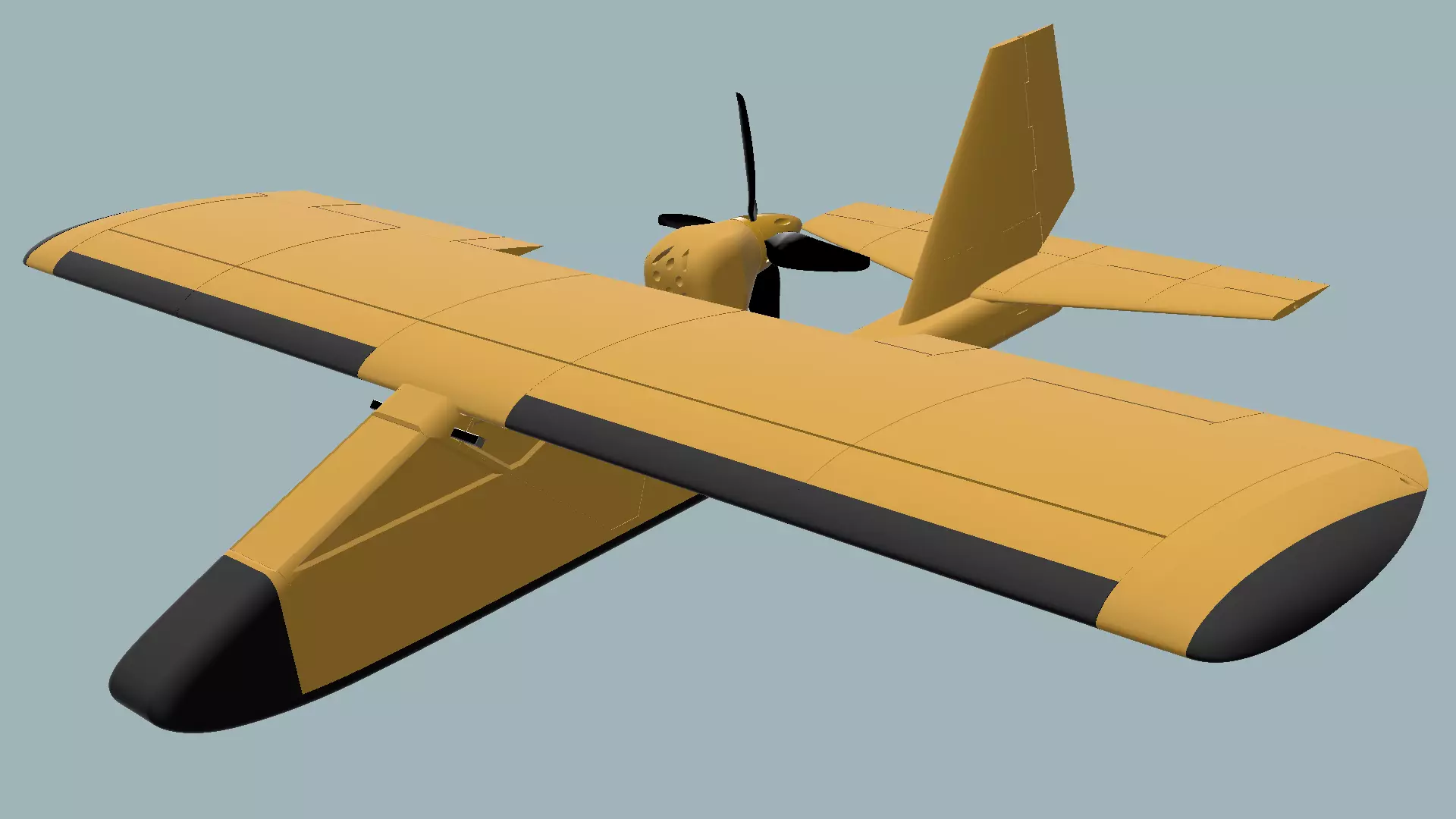

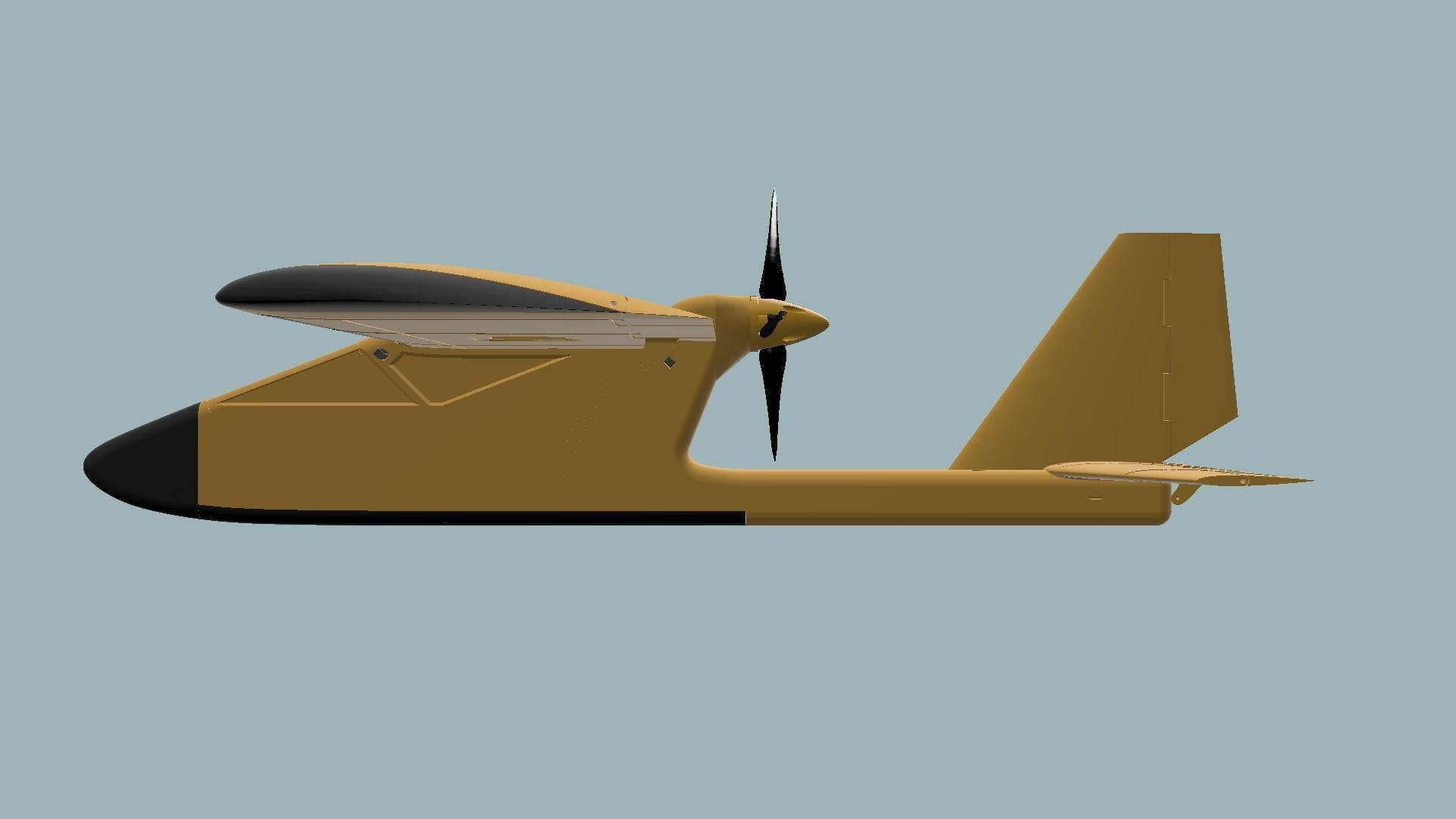

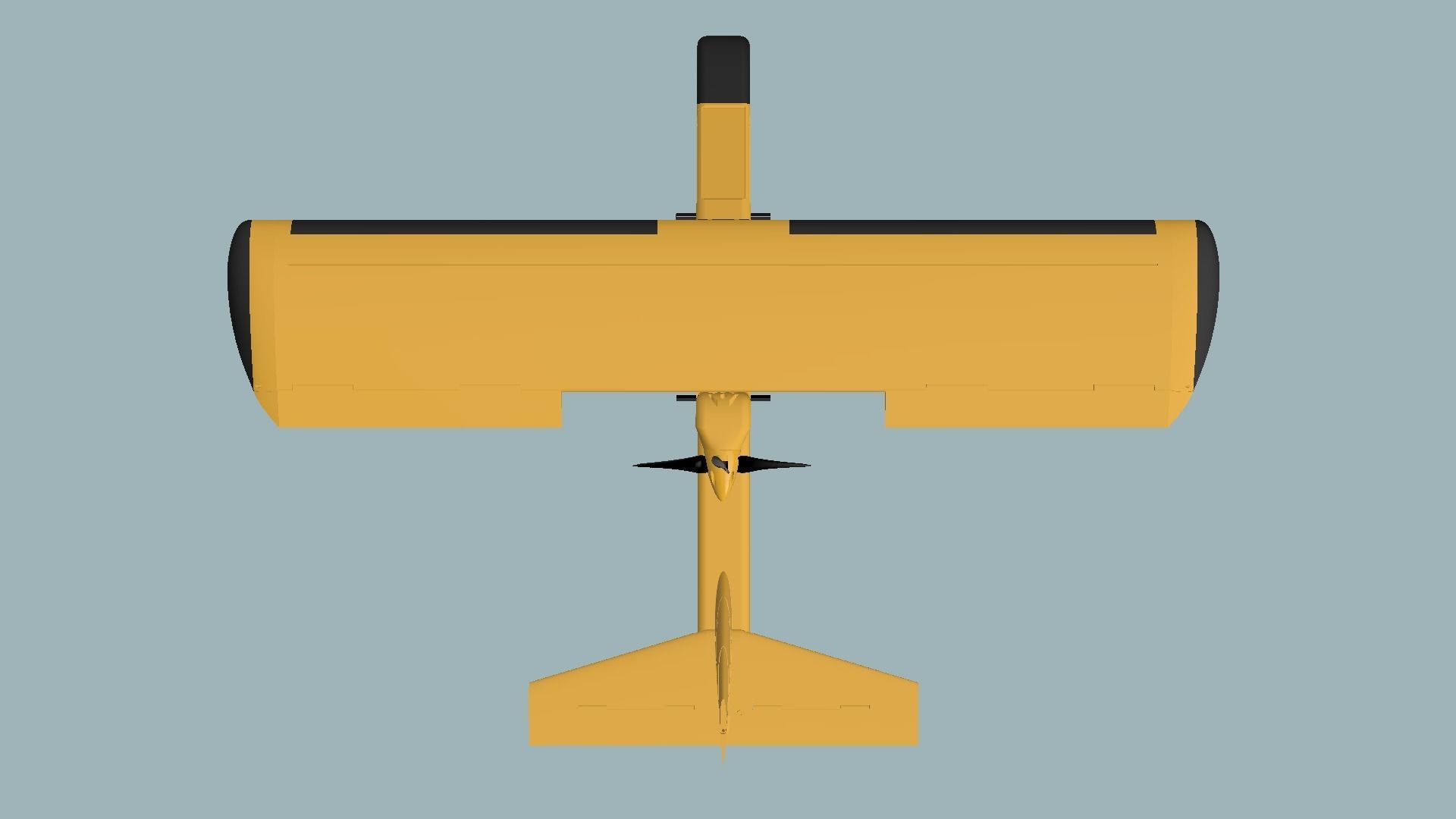

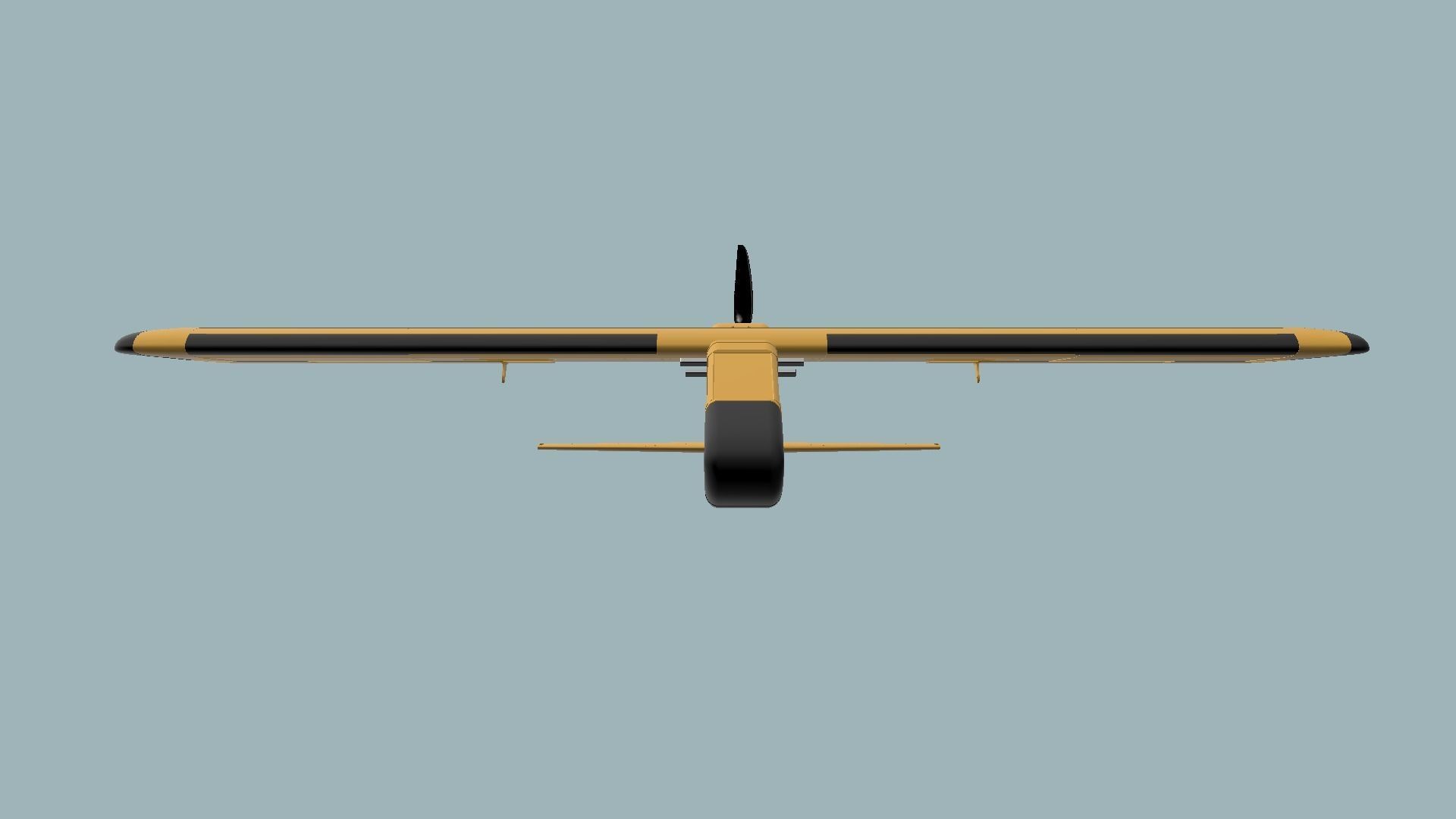

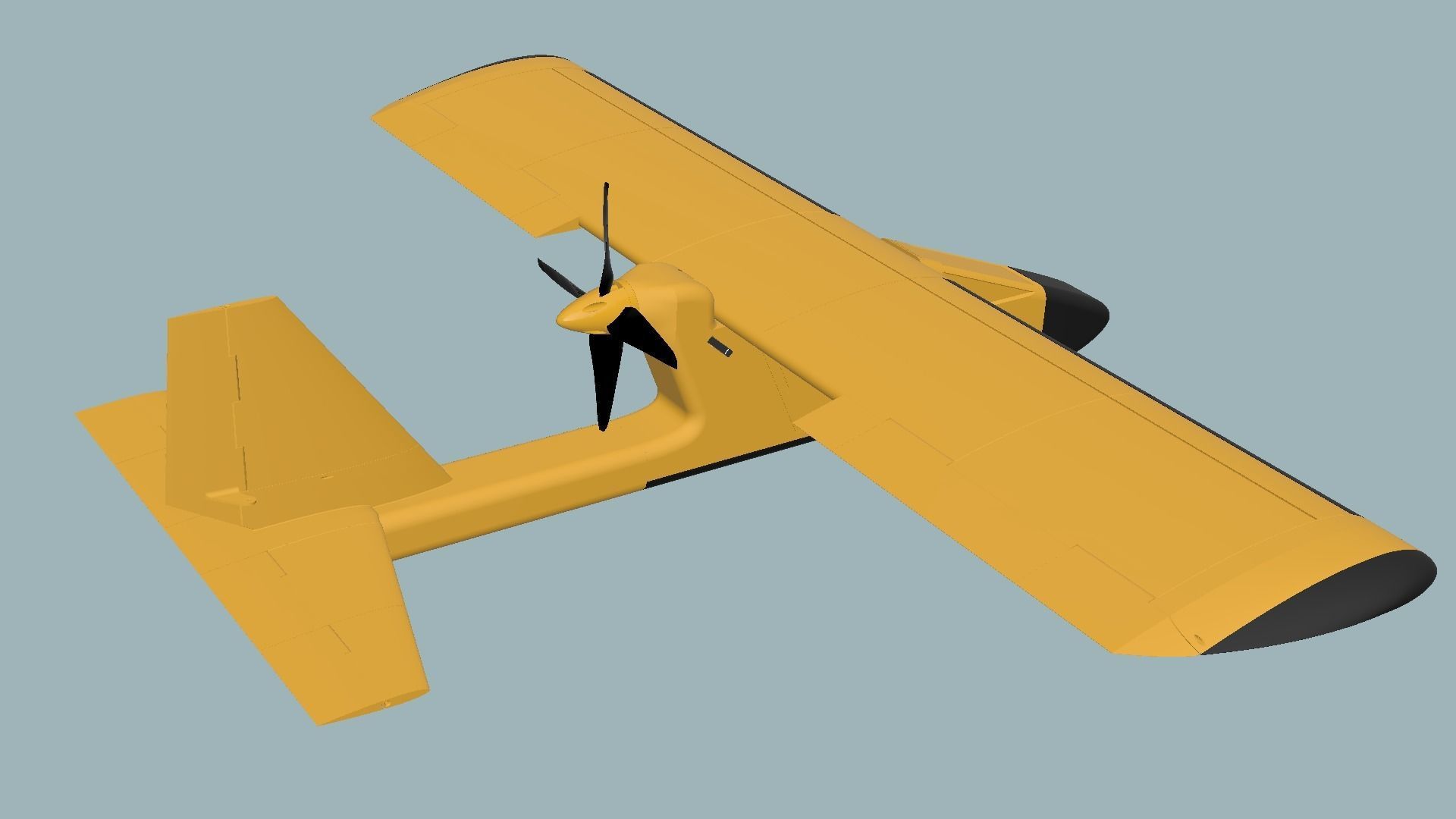

Albatros for beginers 3D print model

This model is designed for beginner modelers. It is not afraid of drops and hard landings. The nose of the model is made of TPU, the same material is used for the bottom of the model, wing tips and wing leading edge inserts. Due to its springy properties this material will help to avoid breakages in hard landings, not strong impacts or touching obstacles. The rear location of the pusher propeller minimizes its breakage. And the upper wing position gives stability in flight.Almost all parts are printed on a 3D printer, you only need to buy electronics and various small things. So print, assemble and learn to fly!The main thing is not to be afraid, try and everything will work out! Well, and if you made a mistake and broke the model, it's okay, just print out the broken parts again and go to the sky!

This model for FDM 3D printing

General characteristics:Wingspan – 980 mm.Length – 735 mm.Height – 187 mm.Wing area – 53 dm2.Wing profile – CLARK Y airfoil.Weight of plastic – 470 g.Weight without battery – 630 g.Take-off weight (3s 1300 LiPo) – 750 g.Maximum weight – 900 g.

Electronics:RC FlySky I6 (transmitter and receiver for 6 channels) or similar, 5 channels used.Motor class А2212 980 – 1400KV.ESC 30А.MG90 servos 4 pieces (9g).LiPo 3S 1300 – 2200 mAh battery.

Propeller: 7x6 CW 4 blades. It is possible to print and make the propeller. You can use 7x6 CW 3 blades to reduce the airspeed.

Plastic:LW-PLA – 400 g.LW-TPU – 40 g.PLA – 20 g.PETG – 10 g

See more in Albatross assembly instructions.pdf
