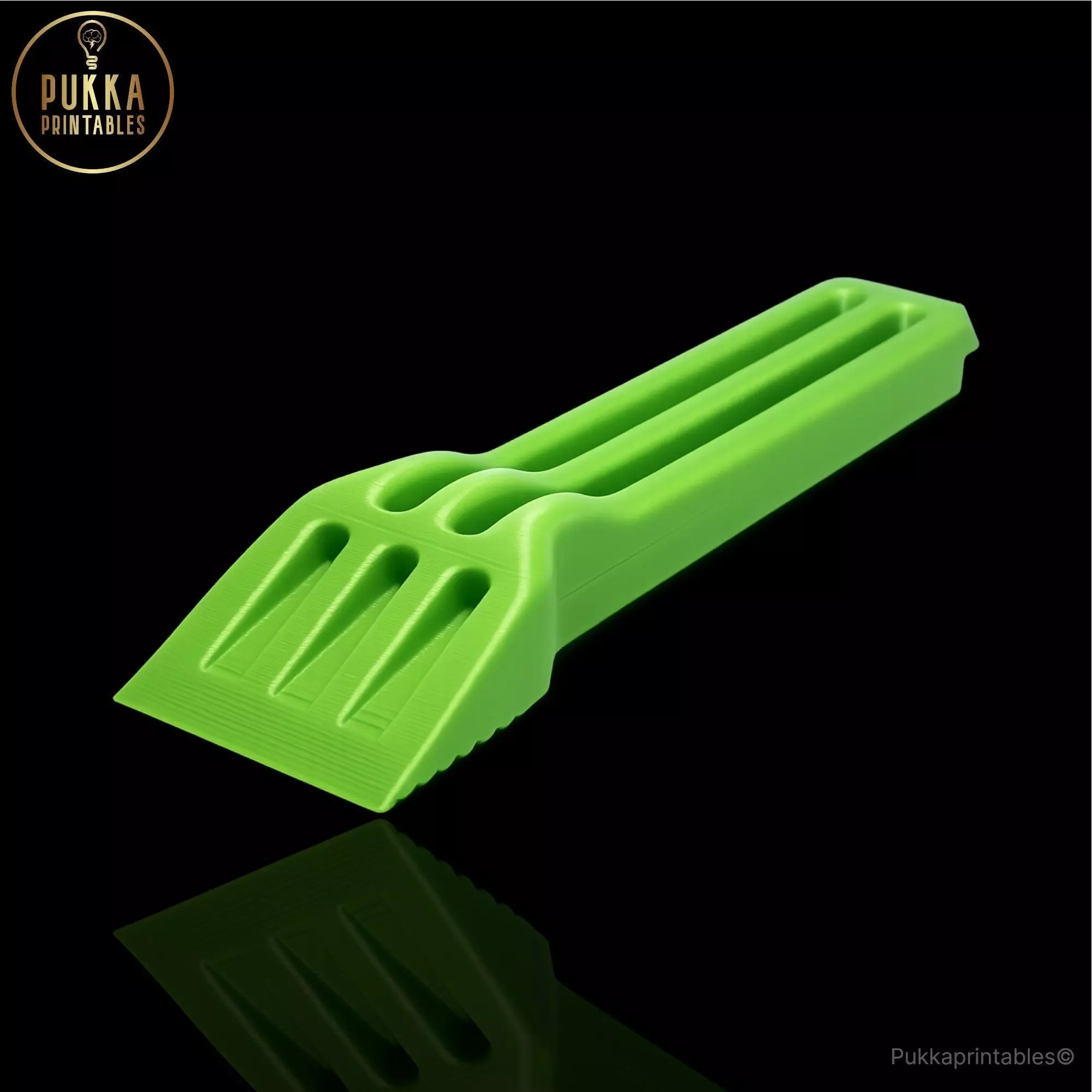

A functional 3D model of a toe and heel lever tool engineered for adjusting window and door units and repositioning double-glazed panels within frames. The geometry is optimised for flat printing to increase structural reliability and print success on FDM machines. An integrated scraping tip facilitates removal of sealant or silicone residue. This design is intended for real-world use in fitting and installation tasks.

Features

Toe and heel adjustment tool for windows and doors.Raises and repositions double-glazed units.Pointed scraping tip for sealant or silicone residue removal.Deep cut-outs for improved strength in FDM prints.Flat-bed print orientation for enhanced reliability.

Technical Details

Maximum dimensions: 190 mm × 45 mm.Print orientation: flat on build plate.Suitable materials: PLA, PETG.No support structures required.Designed for practical use with deep cut-outs for strength.

Files Included

• STL × 1

Usage Notes

• Print orientation: flat on bed.• Supports: not required.• Material recommendations: PLA or PETG.• Nozzle size: 0.4 mm or 0.6 mm recommended for optimal detail and strength.
