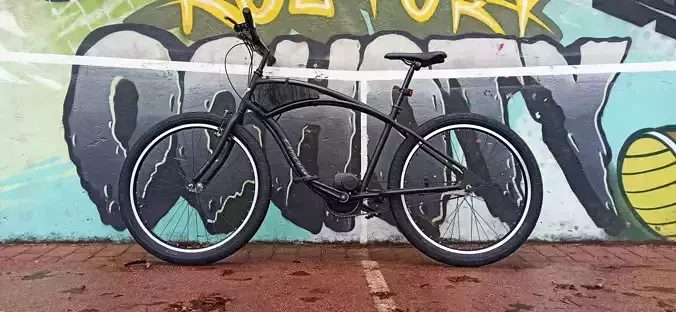

DIY Electric Bike Electra Cruiser in-frame battery box 3D print model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Perfect fitting box for Electra Cruiser bike. Print this temple first to try on Your bike :https://drive.google.com/open?id=1tRf_dB_mwFtF4C7Sq6to27dI0PXOf4FX

  • box can hold up to 44 18650 cells + BMS - inner width: ~75mm
  • can be printed without any support (min printing area ~30x30cm)
  • requirement: 5 x M4x10mm screws + M4 Nylon Nuts (for side cover) 4 x M5x15mm screw + washers + M5 Nylon Nuts (for top and front mount) 1 x M5x20mm screw + washer + M5 Nylon Nut (for bottom mount)
  • 8.1mm hole at the bottm for charging socket (2.1/5.5 or 2.5/5.5)
  • two 3.4mm holes for power cables (i.e. 14 AWG)
Related Tagsebikeelectracruiserbatterybox
tsdz2
bafang
bicycle
electric
hobbydiyhobby diyelectronics18650
liion
