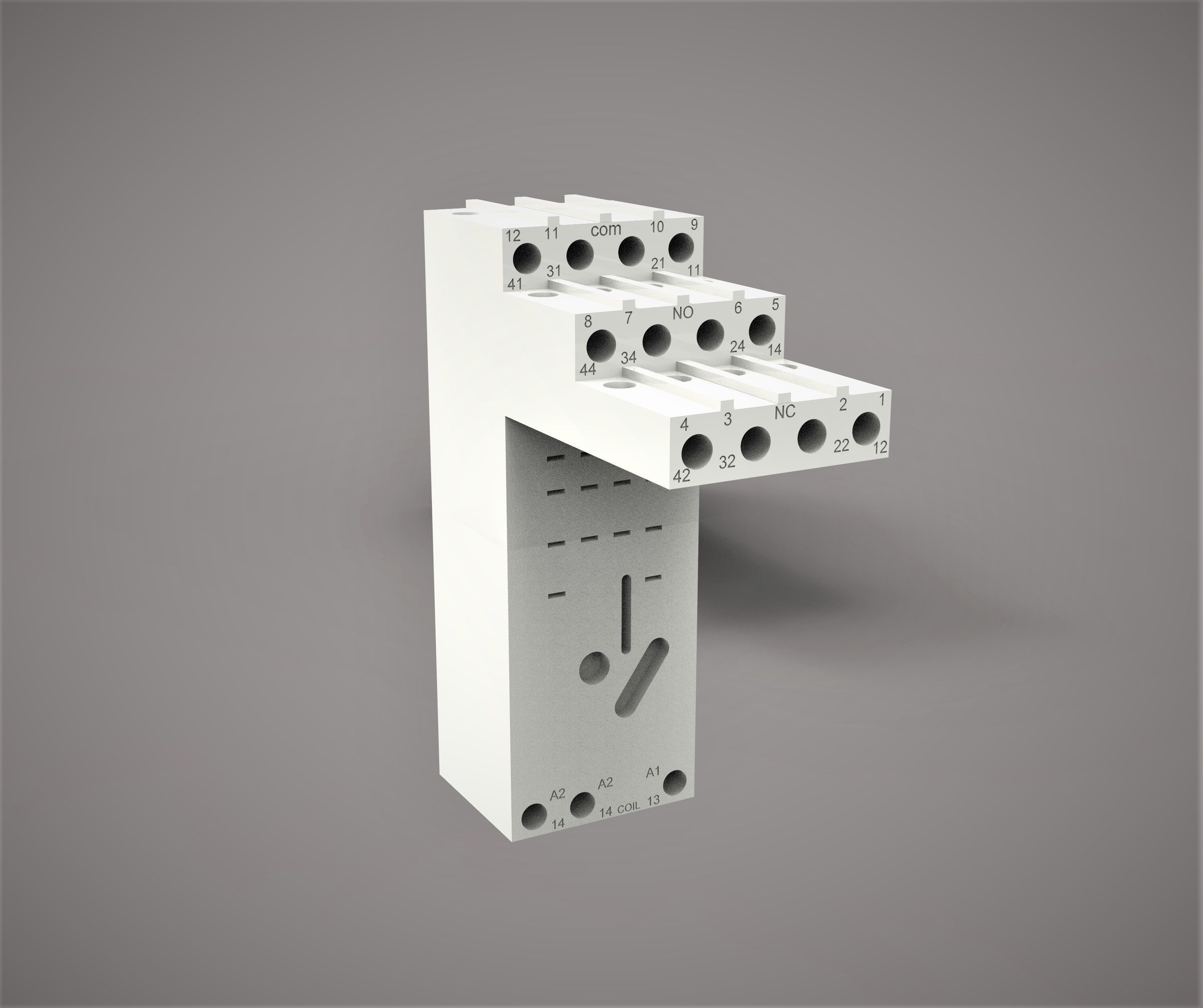

CR-M4LS base for CR-M 24PC relay 3D print model
thumbnail
thumbnail
DESCRIPTION

The CR-M4LS socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 4 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.

Product net width: 21 mmProduct net height: 61 mmProduct net thickness: 82 mm

Related Tagselectroniccomponentsautomationrelaybasehobbydiyhobby diyelectronics

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

CR-M4LS base for CR-M 24PC relay 3D print model

Royalty Free License
Created by
3
3dworldmodels
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT
Size: 1.74 MB
2019
Exchange formats
OBJ
OBJ<br />File Size: 5.98 MB
IGE
IGES<br />File Size: 1.03 MB
STL
Stereolithography<br />File Size: 325 KB
SAT
3D ACIS<br />File Size: 745 KB
STP
STEP<br />File Size: 1.12 MB
BIP
KeyShot<br />File Size: 4.86 MB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is prepared for 3D printing
The designer indicates this model is prepared for physical 3D printing and includes printable file formats.
Units
Millimeters
Publish date
2021-03-13
