5 Petal Iris Gift Box 3D print model

I say this quite often but in this case it really is true; this IS a design I've been wanting to get right for AGES. Like, literally for as long as I've been doing this 3D design & printing lark.

When I first started I was on a website called Thingiverse, to download some designs which I could use to test out my new 3D printer (the crap hobby one I used to have, not the two profession-grade beauties I have now). One design which a lot of people on there had made, and which I immediately became fascinated with, was a mechanical box where you twisted the surrounding ring and the top opened like an iris. It was called, funnily enough, an Iris Box and ever since then I've wanted to make my own. But I'm the artist in a family of engineers, and I could never quite wrap my head around how to make the bloody thing work if I drew it myself. For the intervening... oh... going on four years now I've been trying off and on to make my own, and FINALLY recently I got the time to sit down, concentrate and really have a proper go at it. And finally... IT WORKS!! So now I know how to make the damned things I'm putting it here so you can make it too!

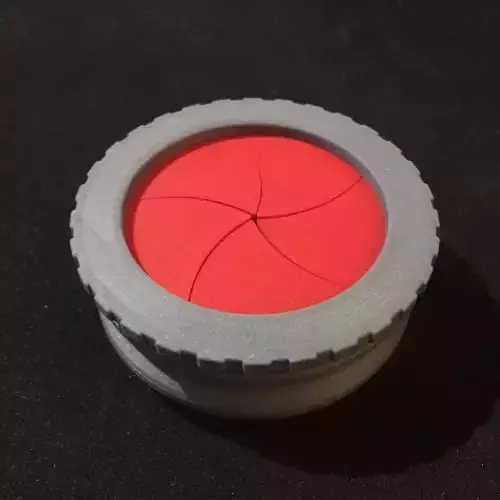

The box consists of a nice rounded pot-shaped box, onto which the iris mechanism is attached while still leaving the mechanism sufficient space to work. The petals are printed in a different colour to give a nice finish both when the box is closed and also when it's open, when they then resemble the petals of a flower. A sort of techno-based box-shaped flower, kind of like the Borg Queen would have in her space-greenhouse. Or something like that anyway. I've added several different varieties of mounting pin so if you lose one you'll still have spares; the pins I've included are both the complete variety and also ones with top caps you can stick on separately if it's easier for you to assemble the box that way.

  • jjayrisaacs
    2019-12-06 20:44
    Very elegant design, any chance of you adding an exploded drawing. It would be helpful in the assembly process. Thanks, J
    This product has no reviews yet
    5 Petal Iris Gift Box
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 0% in 48.0h
    3D Modeling
    Hire me
    3D model formats
    • Stereolithography (.stl) (4 files)-
    3D model details
    • Publish date2019-10-18
    • Model ID#2131053
