3D printed rotary air motor

3D printed rotary air motor 3D print model

Description

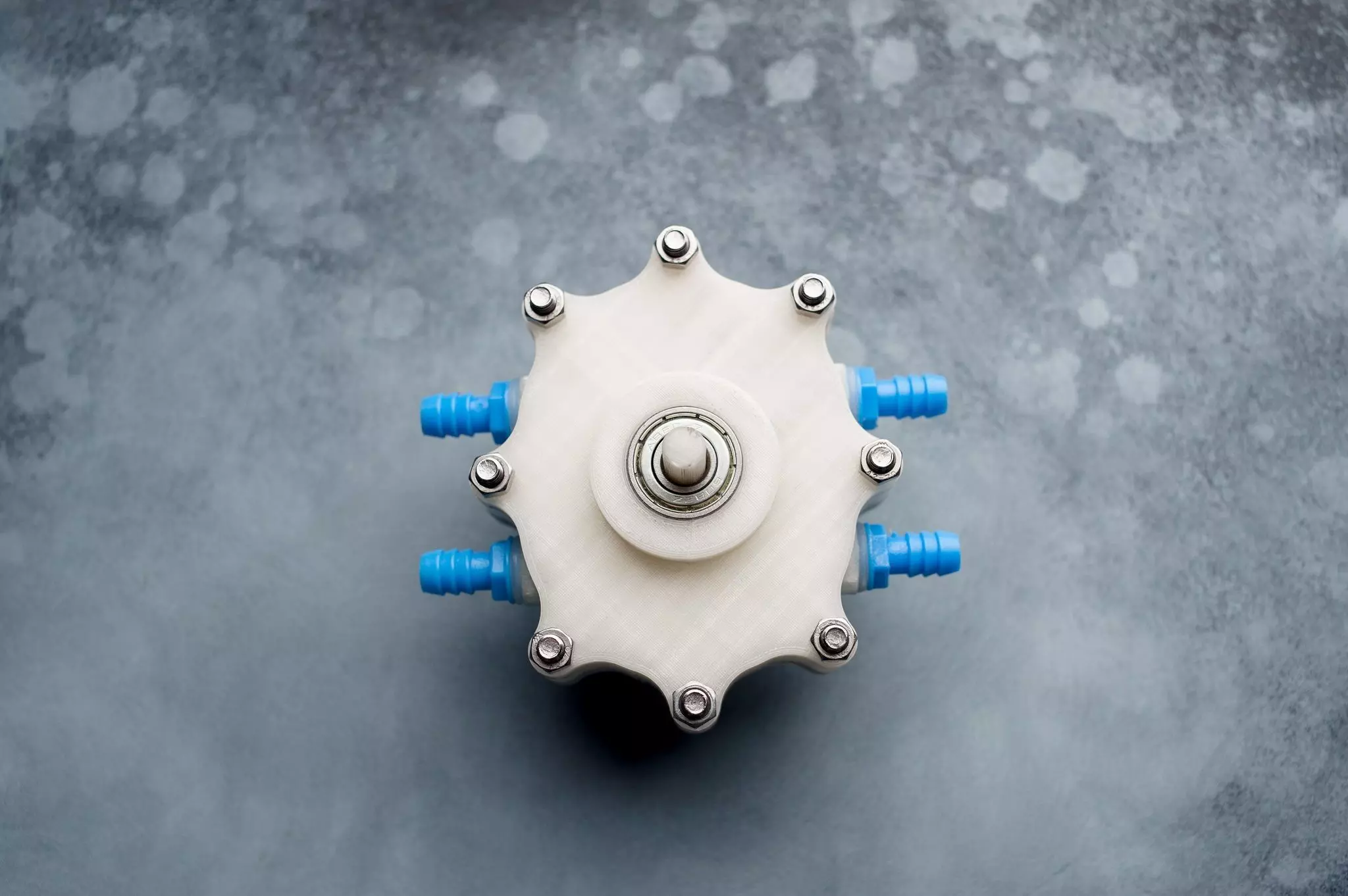

Thank you for your interest in my design! All of the funds from my sales are going towards my college fund. I call it (Rotary air motor, 3 piston, 2 cylinder or (RAM-3P2S-1). it is a fun project to print, functunal, isn't difficult to assemble and looks amazing!

Parts needed:

  • 4 standard ball bearings (scateboard bearings)

  • 8 M4 or M5 bolts, both will work

  • plastic water connector (blue part with O-ring)

  • tubing for intake and exaust (fits on plastic water connector)

  • 1x motor body

  • 2x shaft

  • 2x motor front and back plate

  • 1x rotor

Instrictions:

Sand all flat faces of parts that contact eachother. The pistons should slide in and out just by tilting the motor side by side, the shaft also may need to be sanded down so it is flush on the faces of the rotor.
