The JT8D-9 is a low-bypass turbofan engine, part of the widely used JT8D family introduced in the 1960s. Rated at approximately 14,500 pounds of thrust, it powered early jetliners such as the Boeing 727 and McDonnell Douglas DC-9. Featuring a twin-spool design with a bypass ratio of about 1:1, the JT8D-9 offered improved efficiency over earlier turbojets while remaining durable and reliable for short- to medium-haul operations. Known for its robust construction and ease of maintenance, the JT8D-9 contributed significantly to the global success of second-generation jet aircraft.

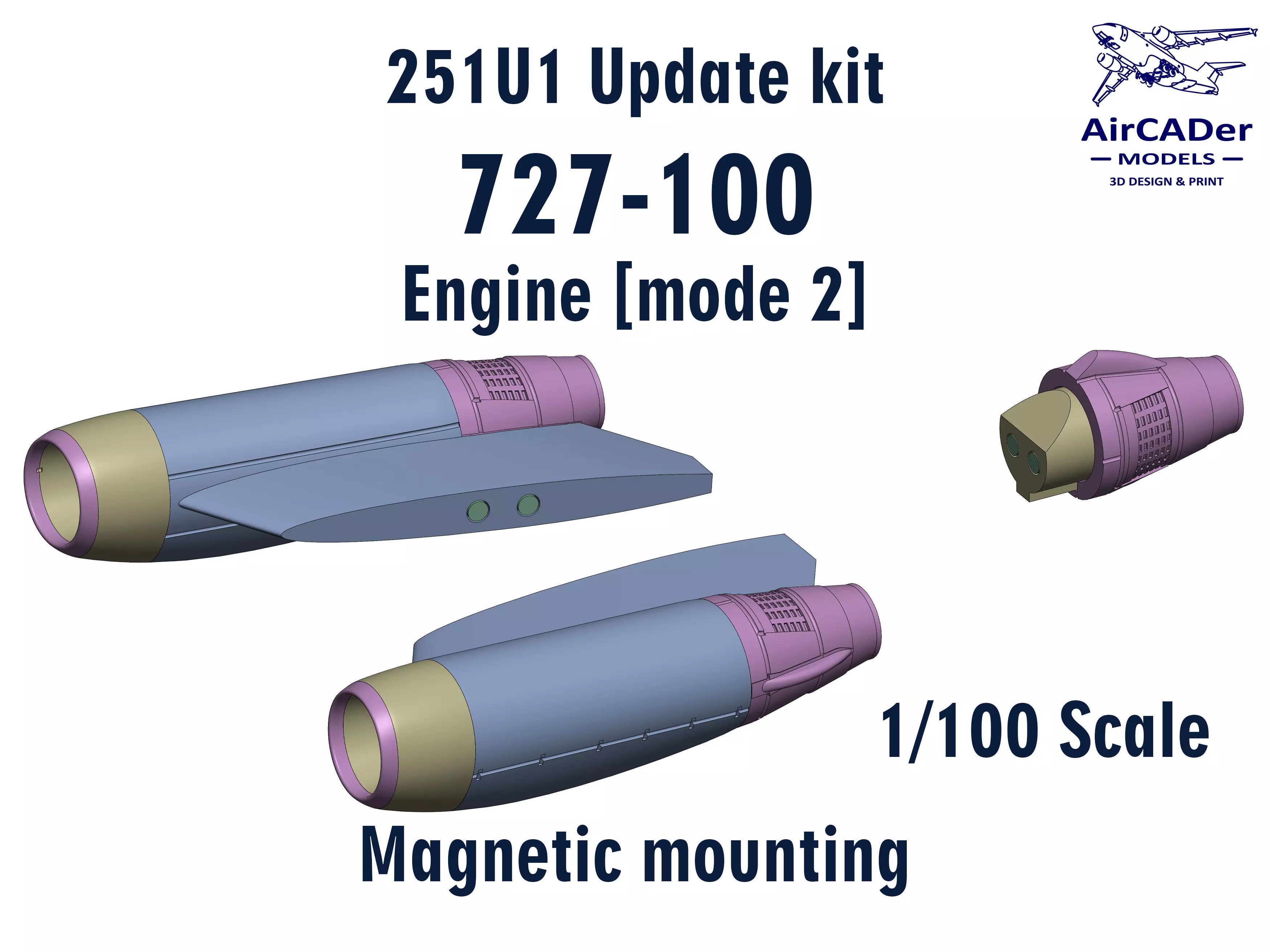

• Model code: 251U1 Update kit 727-100 Engine [mode 2]*
• Version: magnetic mounting**
• Revision: original (2025-09-22)
• Scale: 1/100
• Engines: JT8D-9
• Parts quantity: 14 (+ 6 magnets 2x2 if need)
• 3D print complexity: 3/5
• Assembly complexity: 3/5

*251U1 Update kit 727-100 Engine [mode 2] is compatible with 1/100 scale model kits 727-100 down/up: 25101 and 25102

**allow you to assemble/disassemble the models for easy transportation and storage. However, you can assemble this model without using magnets, for this you need to glue the appropriate parts

The model requires gluing. 3D Printing Guidelines and Assembly Instructions are included.

Importantly! The model is divided into parts that are oriented for easy printing. Solid model not included in this kit.

If you want to know more about current projects, follow me on Facebook or Instagram.

https://www.facebook.com/AirCADer.Models/

https://www.instagram.com/aircader.models/

If you want to print and sell my models, please contact me first.

3D printing settings

The model is optimized for a 0.4 mm nozzle and 0.15 mm layers. Approximate ⌀1.75 mm filament length for one set - 5 meters. Parts were tested on Qidi Q1 Pro. The manual includes information about supports and printing recommendations.

Files format: .stl Providing files in other formats must be discussed separately.
