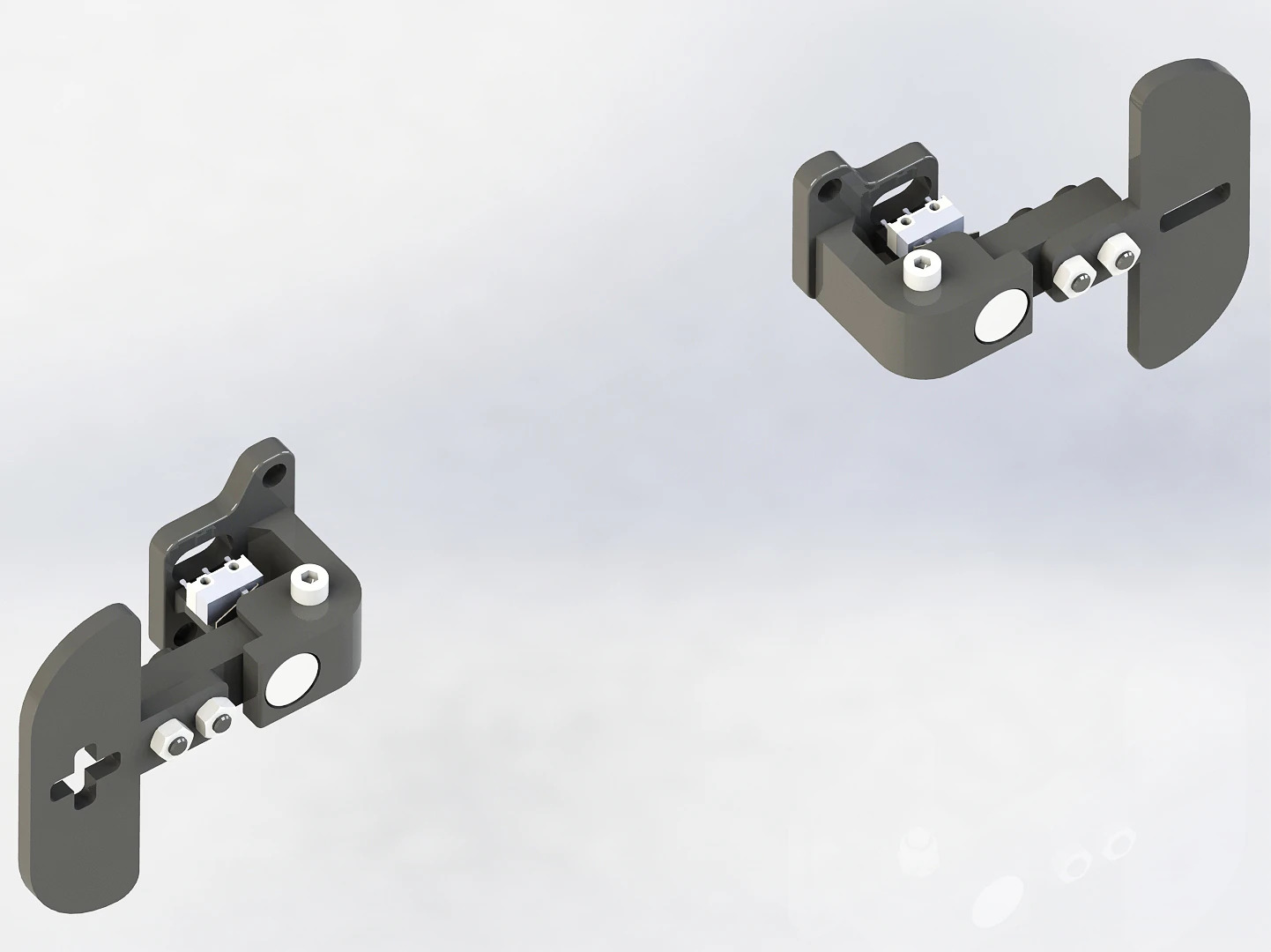

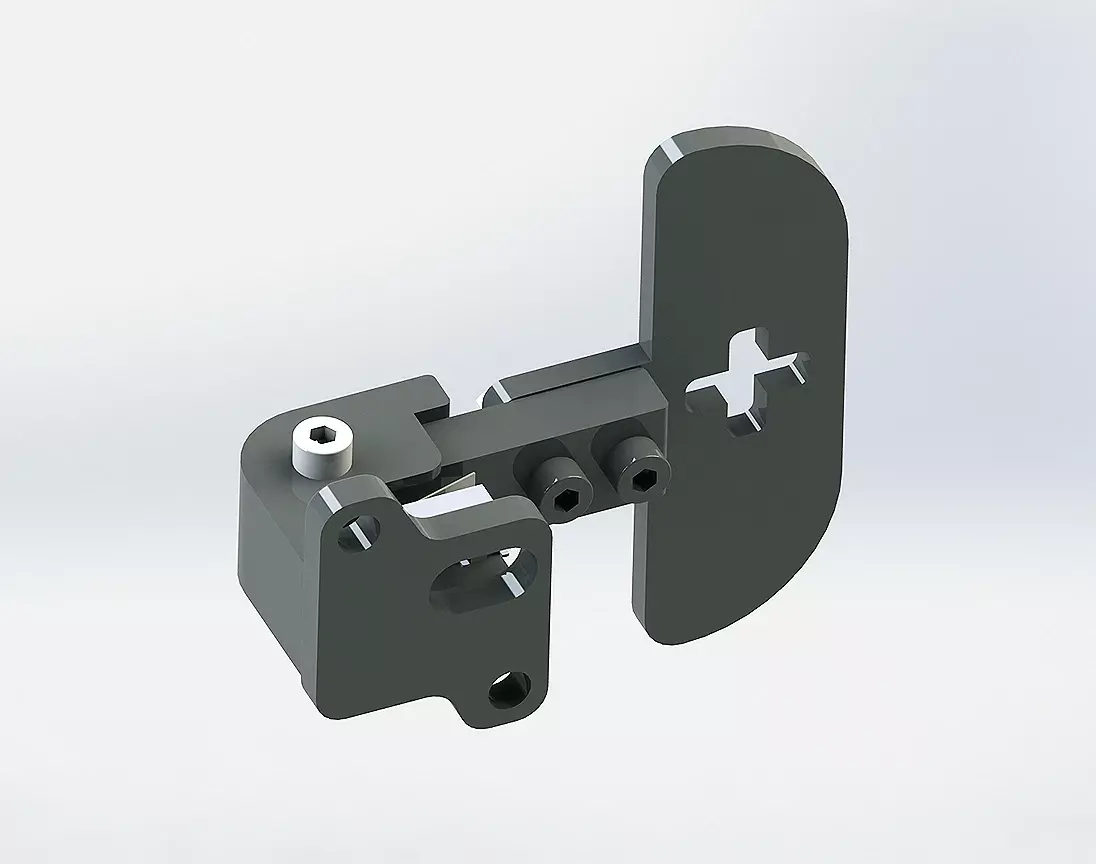

DIY Magnetic Paddle Shifters

DIY Magnetic Paddle Shifters Free 3D print model

Description

Would you like to upgrade your sim racing steering wheel? Or add gears to your wheel? Very easy and inexpensive, this sim racing paddle shifters is made for you.

EASY TO BUILD:

The sim racing paddle shifters CAD plans is designed to be easy to build without expensive tools or advanced knowledge! In the event of a issue, you can ask free assistance in the Help & Questions section.

CHEAP:

These magnetic paddle shifters can be built with a small budget, depending on the parameters you have chosen (choice of material) and the equipment you have (3D Printer).

STRONG AND CUSTOMIZABLE:

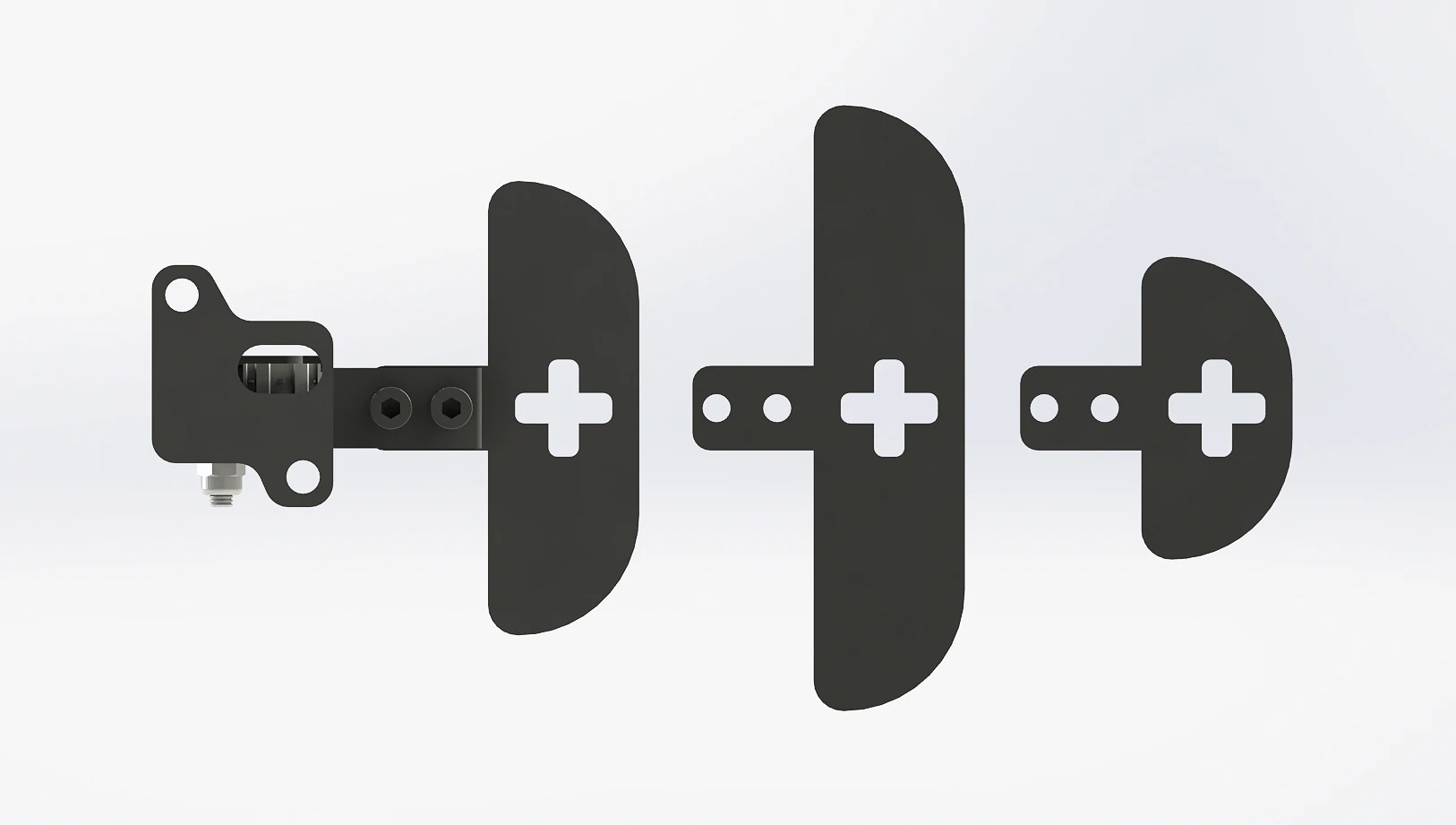

Your paddle shifter has a strong structure, stable and smooth mechanism. You can choose the size of your paddle and the material (3D printing, Laser Cutting, CNC Cutting in carbon or aluminum).

SHOPPING LIST:

Arduino Pro Micro Board: https://s.click.aliexpress.com/e/_Dn5cACzMicro USB Cable: https://s.click.aliexpress.com/e/_DlI4MhXMicroSwitch [Option: Handle 11.5mm]: https://s.click.aliexpress.com/e/_DF3zvunØ12×5-4mm N52 Magnet [Option: 12×5-4 MM]: https://s.click.aliexpress.com/e/_DFfVH5t

SCREWS LIST:

M4x25 Bolt (Quantity: 2)M4 Lock Nut (Quantity: 2)M4x16 Bolt (Quantity: 4)M4 Nut (Quantity: 4)M5x16 Bolt (Quantity: 4)

The DIY Sim Racing Paddle Shifter is made to be 3D printed. Only the paddles shifters plates are available in STEP/DXF format (in addition to STL format) to allow laser cutting and CNC machining (aluminum or carbon).

You can get others Sim Racing CAD files here : https://www.diysimstudio.com/sim-racing-shop/
