Shape Shifting Wheel

Shape Shifting Wheel 3D model

Description:

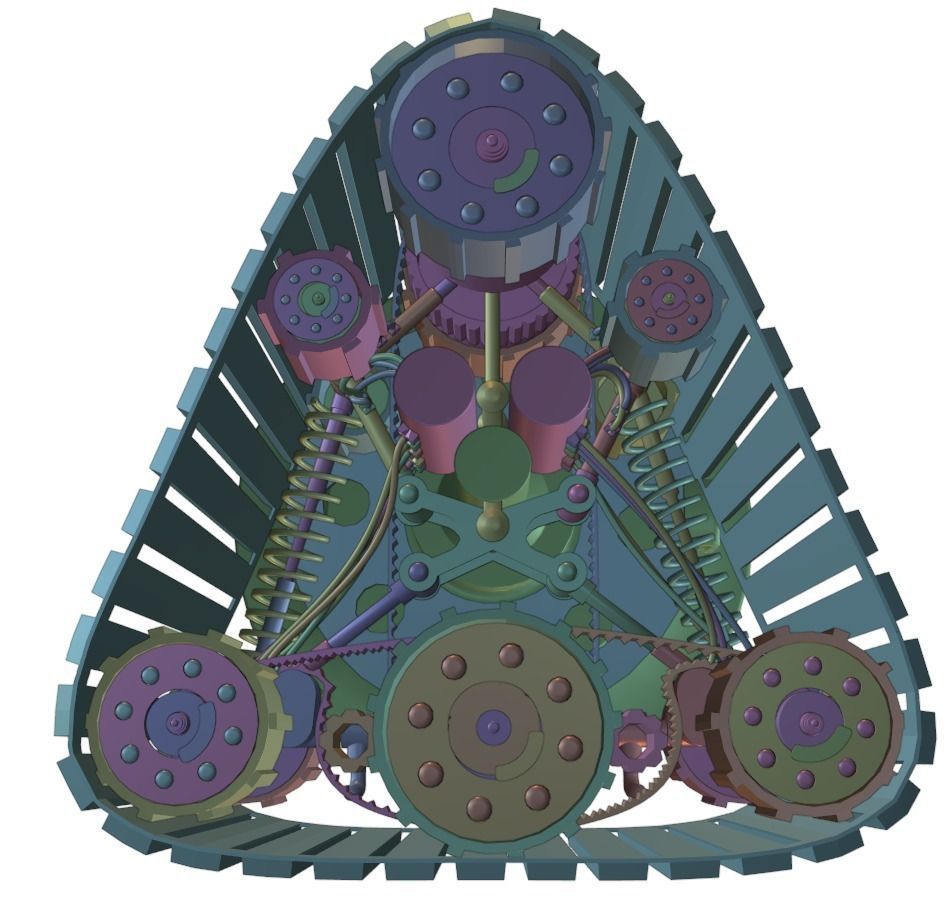

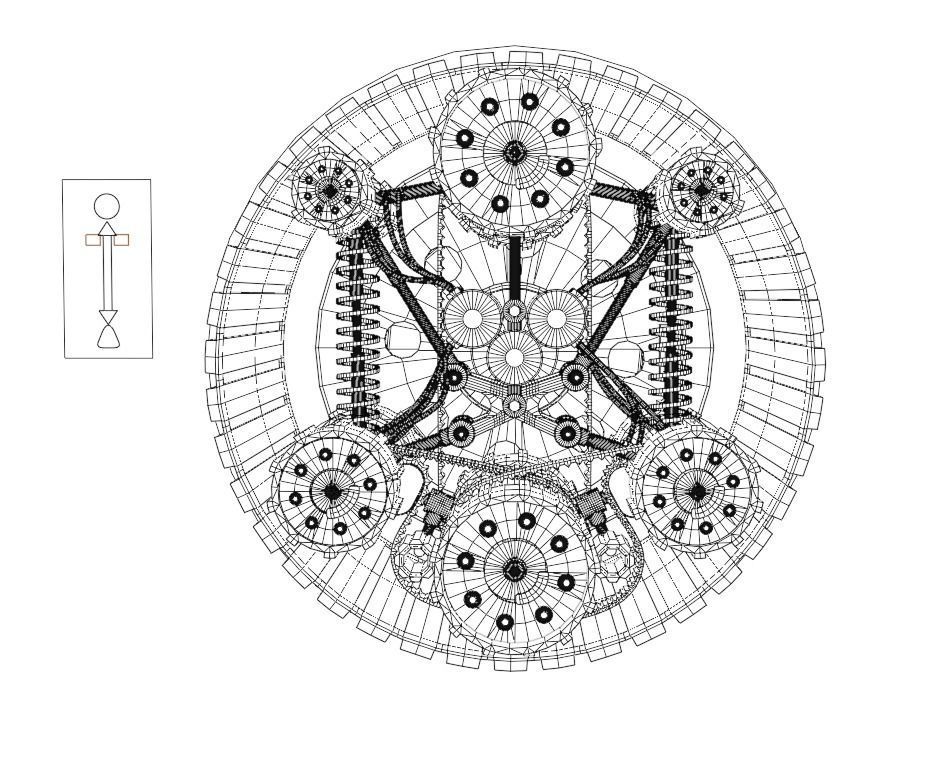

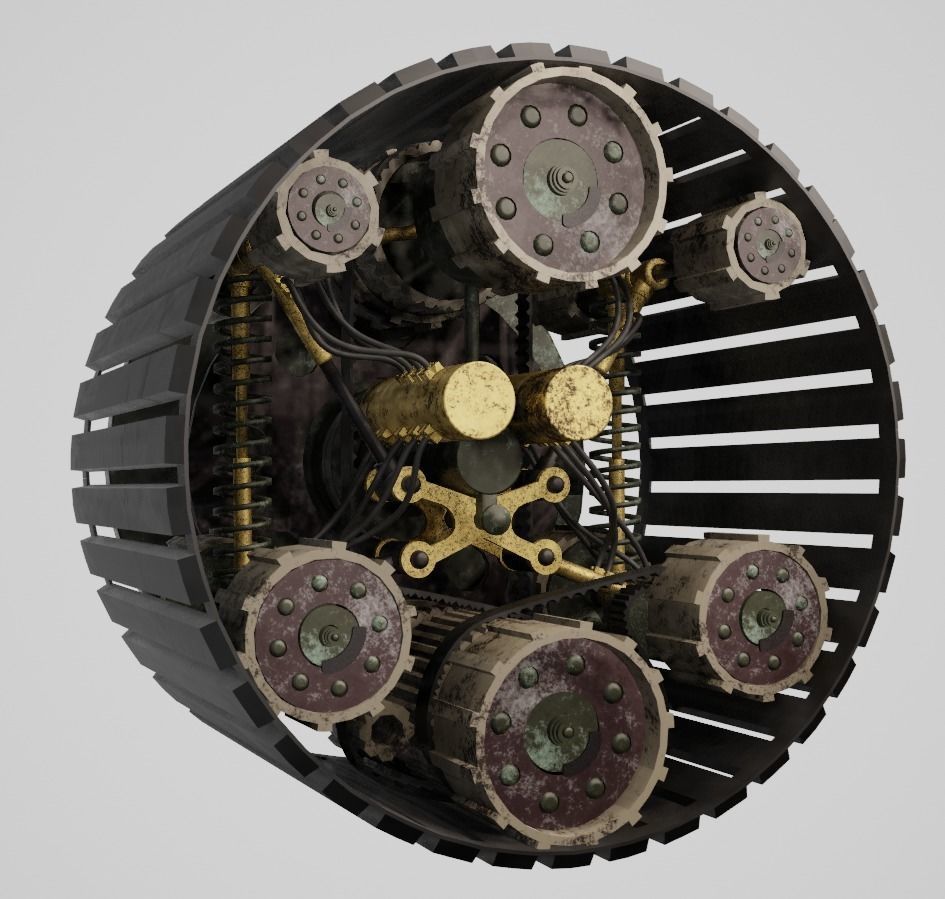

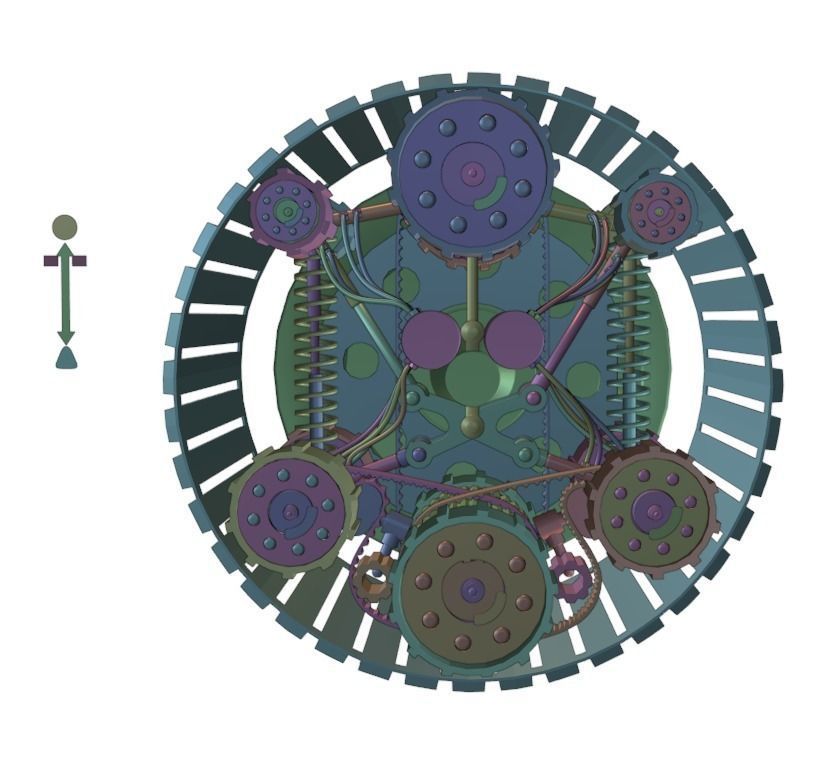

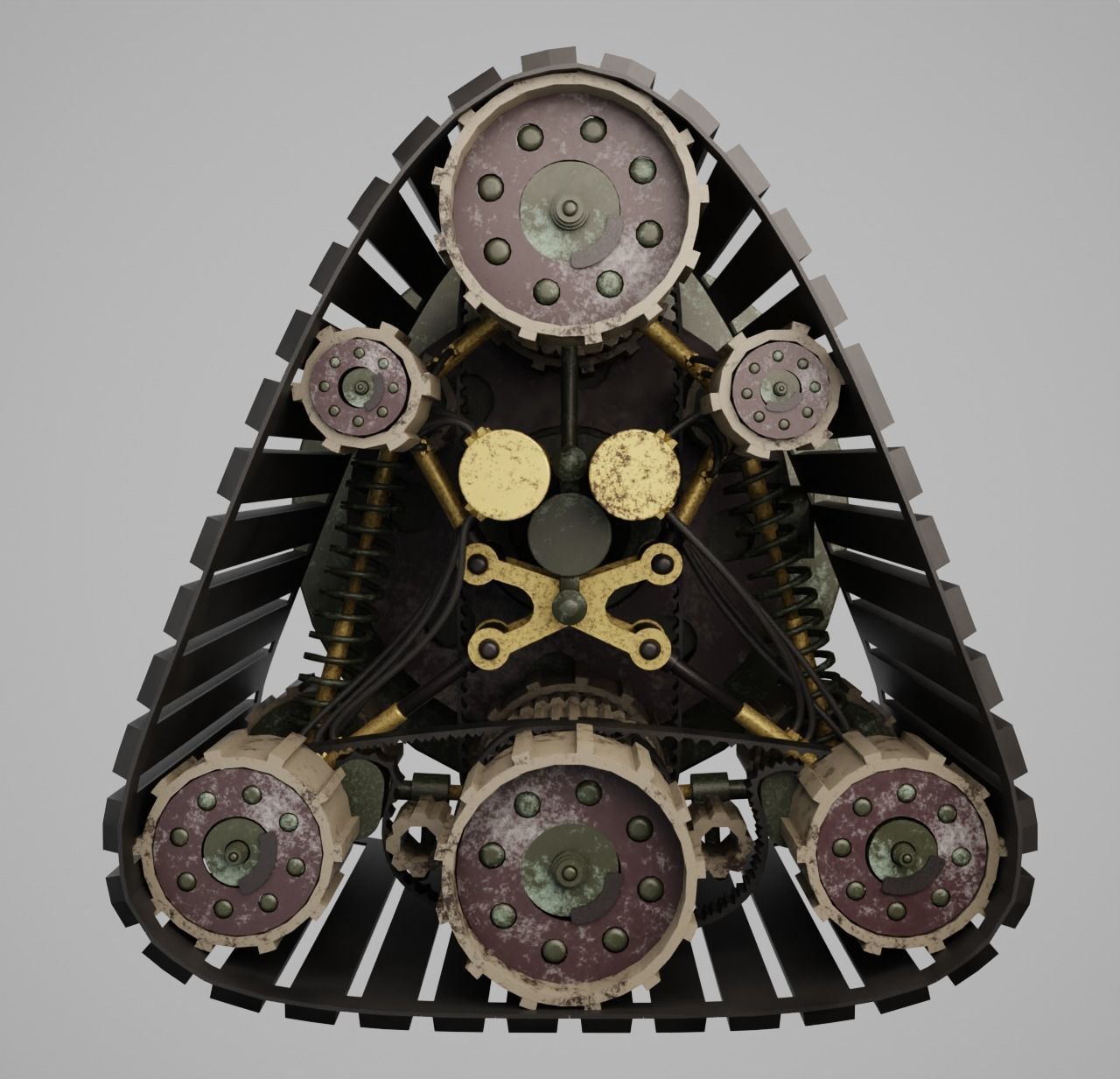

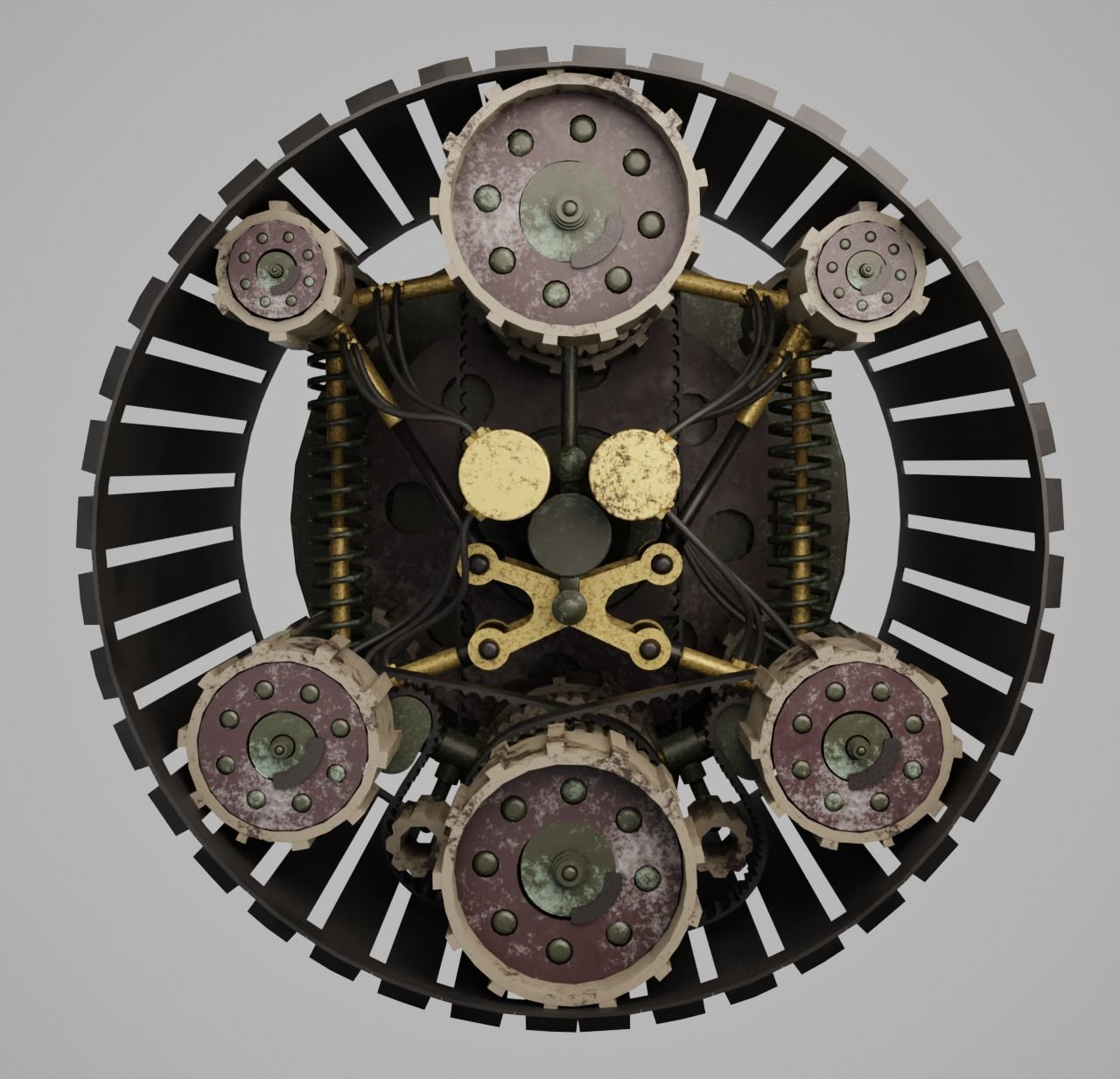

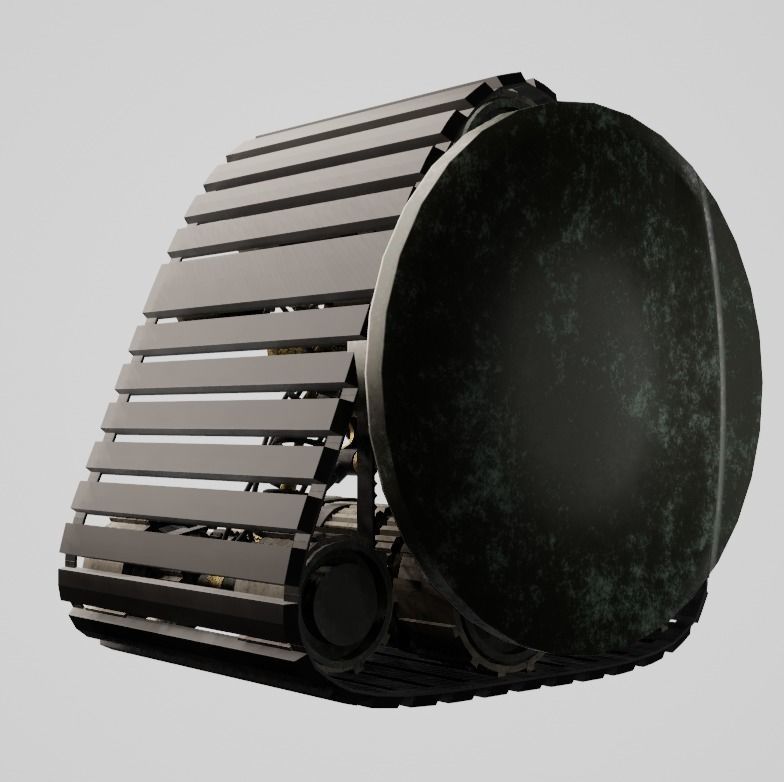

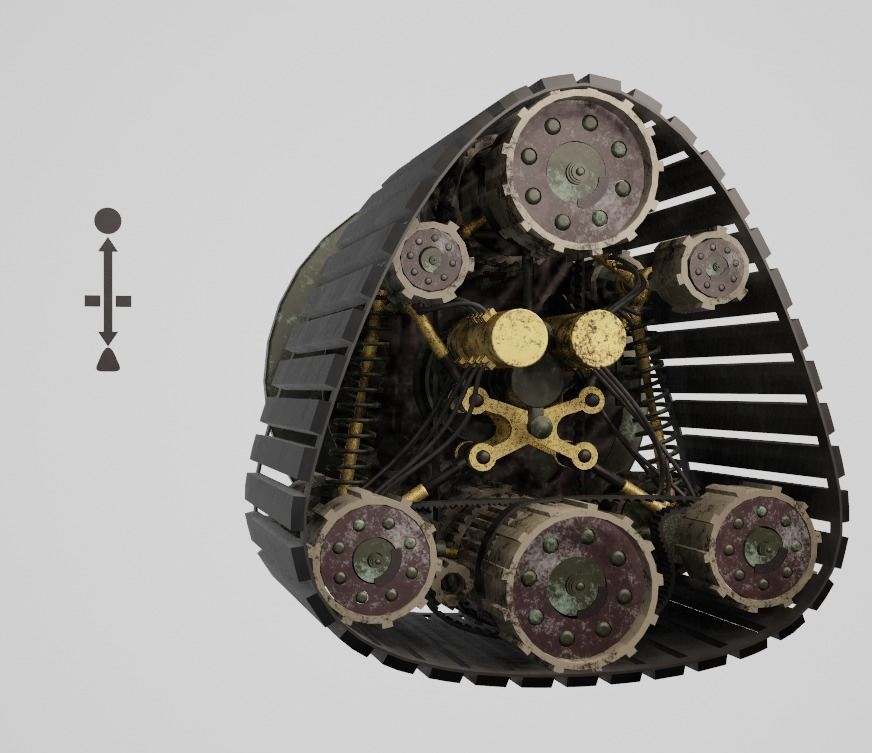

Shape shifting wheel from Tire Round Shape to Track drive triangular shape, it is controlled via drivers and contraints, it is NOT rigged, the main shape of the wheel is adjusted via the controller, it drives a shape key of a curve that gives the belt of the tire its shape, it also drives local rotation of two controllers that mainly drive the base of the tire. The whole tire has a parent object so it can be animated.

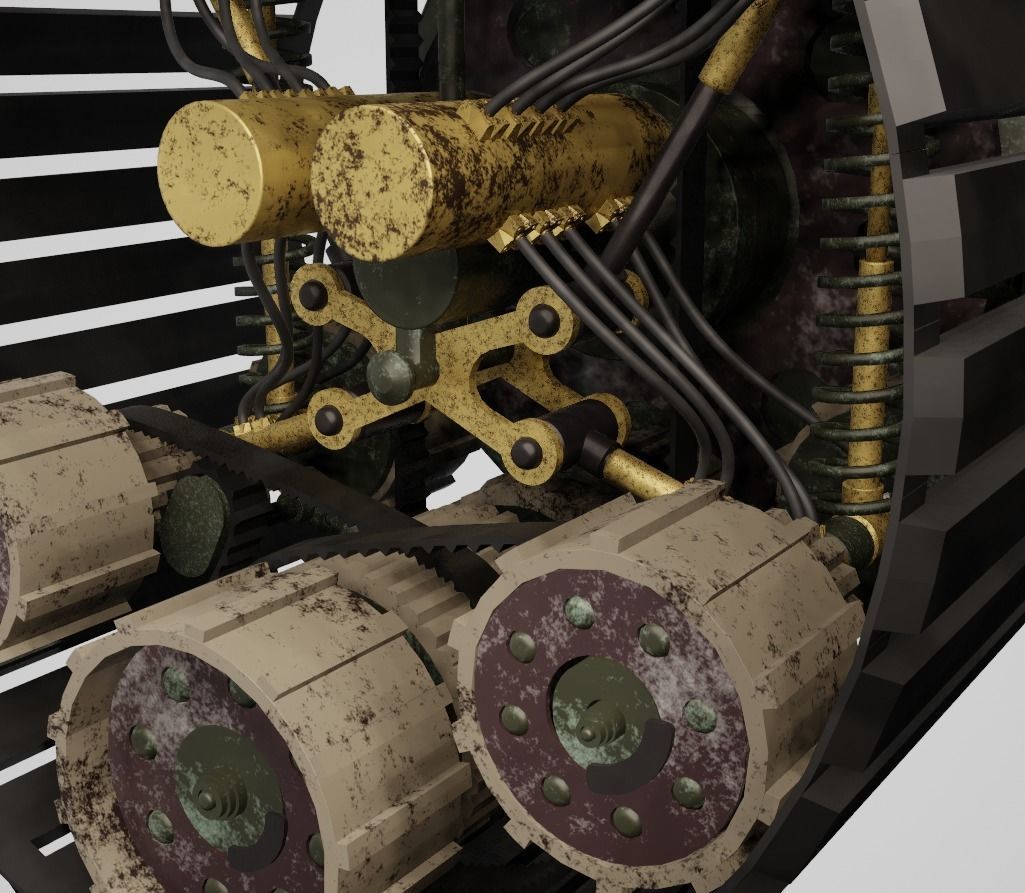

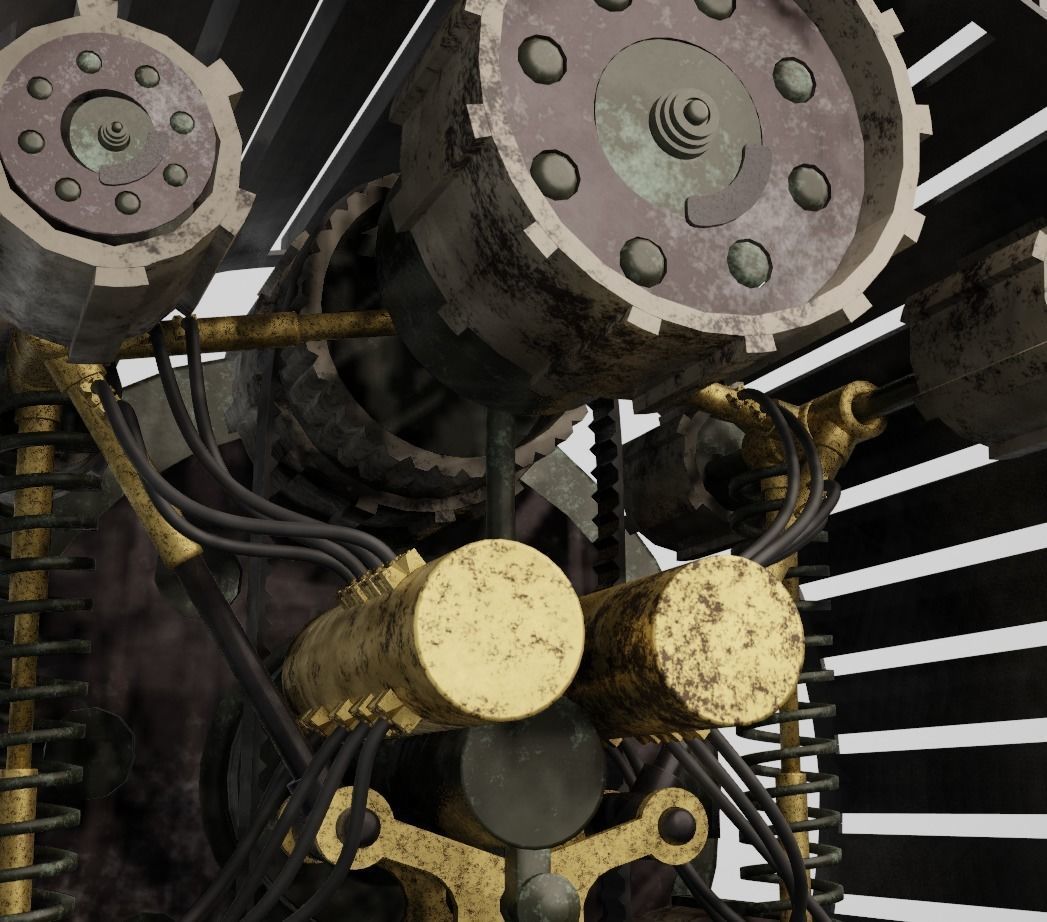

It has a pseudo hydraulic system that controls the position of the tire, it does it by having the hydraulic arms parented to oposite sides of the main controller and contrained to their counterpart, it does NOT have bones or poses. the hydraulic cables are curves hooked to parent objects

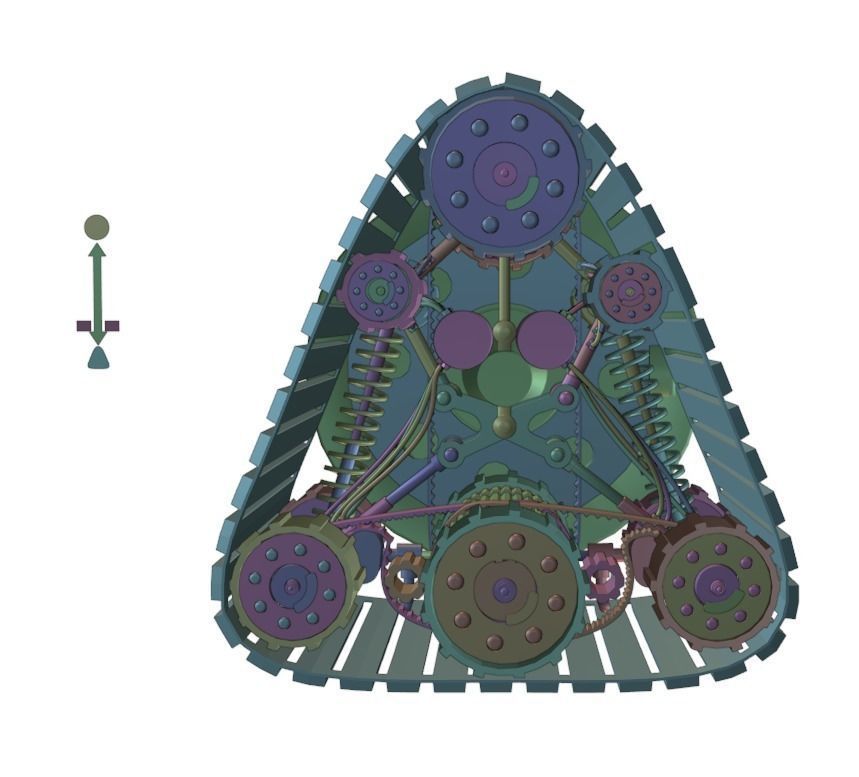

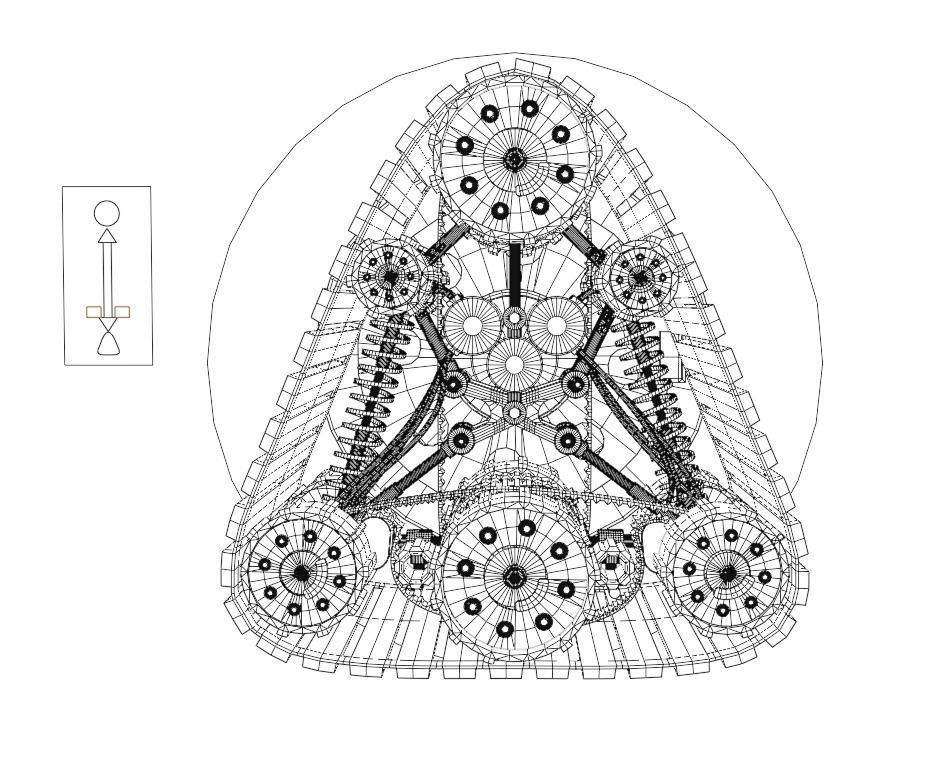

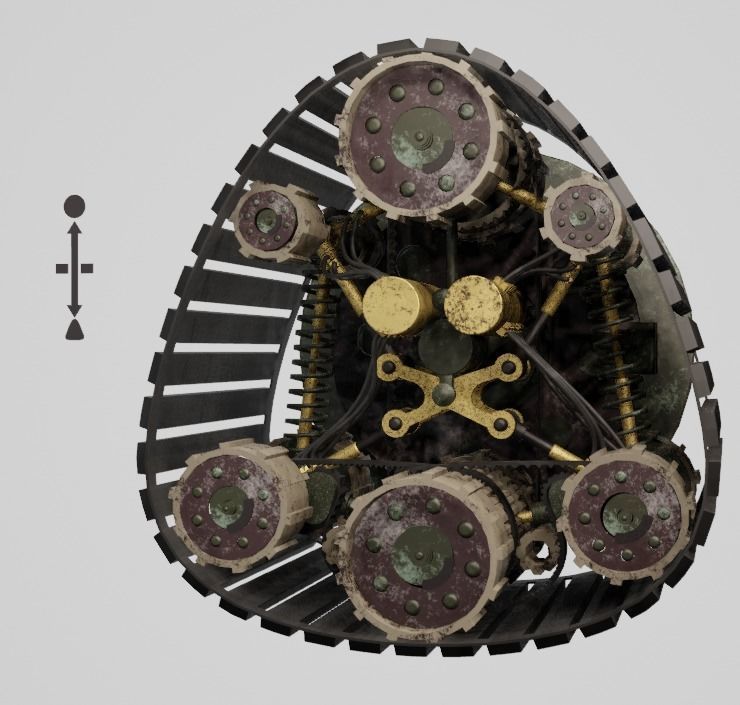

The controller can be engaged from 0 to 100 and the shape behaves acordinly.

Included:

1. Animation Basic modification of local location of the bels in an axis so they wrap around the curve.

2. Materials Every material as seen in the thumbnail, compatible with eevee and cycles (Procedural created via node system in blender 2.83) not baked into images

3. Scene Native .blend The scene and lighting setup used in the thumbnail, including the compose setup of denoising and ambient oclucion.

1. Exchange files This do Not support the shape controller or animation but if you need both shapes are in individual files.

Fbx, Stl, Glb, Obj

I'm by no means a mechanic or an engeneer, so sorry if you are offended by this weird contraption haha, it is ment to be used as a cyfi pice of tech. I hope you enjoy using it as much as i had making it

⟅( /◉⩊◉)/ enjoy!

Item rating
0 0
Shape Shifting Wheel
$10.00

Editorial License
Shape Shifting Wheel
$10.00

Editorial License
Response 100% in 1.1h
3D Modeling
Low-poly Modeling
Rendering
UV mapping
PBR modeling
Hire me

3D Model formats

Format limitations
Native
  • Blender 2.8 (.blend)6.93 MBVersion: 2.8Renderer: Cycles 2.8
Exchange
  • OBJ (.obj, .mtl) (4 files)26.8 MB
  • Stereolithography (.stl) (2 files)19.4 MB
  • Autodesk FBX (.fbx) (2 files)8.35 MB

3D Model details

  • Publish date2020-09-02
  • Model ID#2589481
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices -
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
