M2 Bradley and M270 MLRS Tracks
M2 Bradley and M270 MLRS Tracks Low-poly 3D model
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_0
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_1
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_2
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_3
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_4

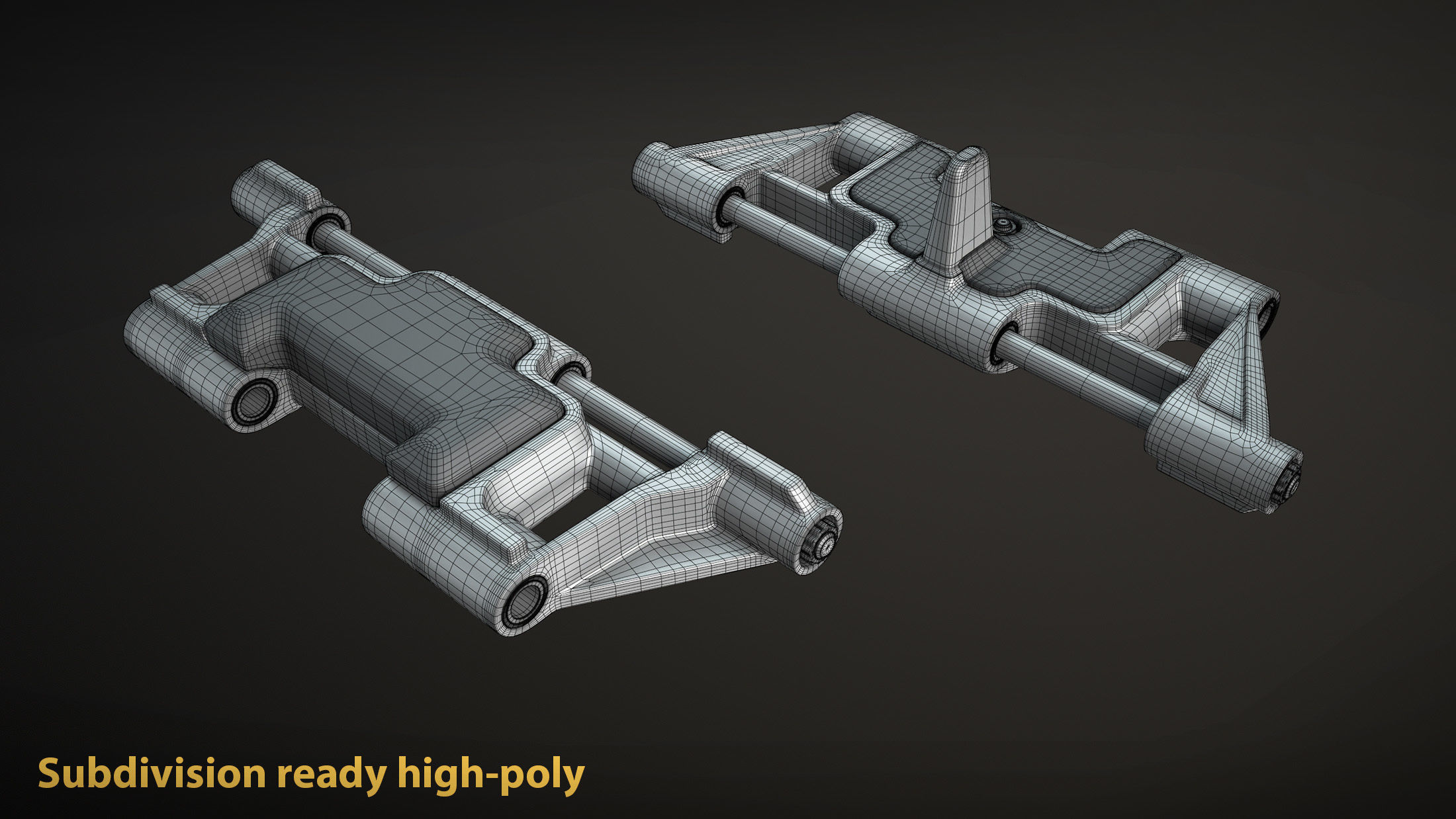

  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_5
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_6
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_7
  • M2 Bradley and M270 MLRS Tracks Low-poly 3D model_8
1 / 9
Useto navigate. Pressescto quit

M2 Bradley and M270 MLRS Tracks Low-poly 3D model

Verification details of the FBX file
Files
FBX file format
Scene
Supported object types
Geometry
No N-gonsManifold geometryNo faceted geometry
Textures and Materials
Missing required texturesPower of 2 texture sizesNo embed texturesAssigned materialsTexture aspect ratio
UVs

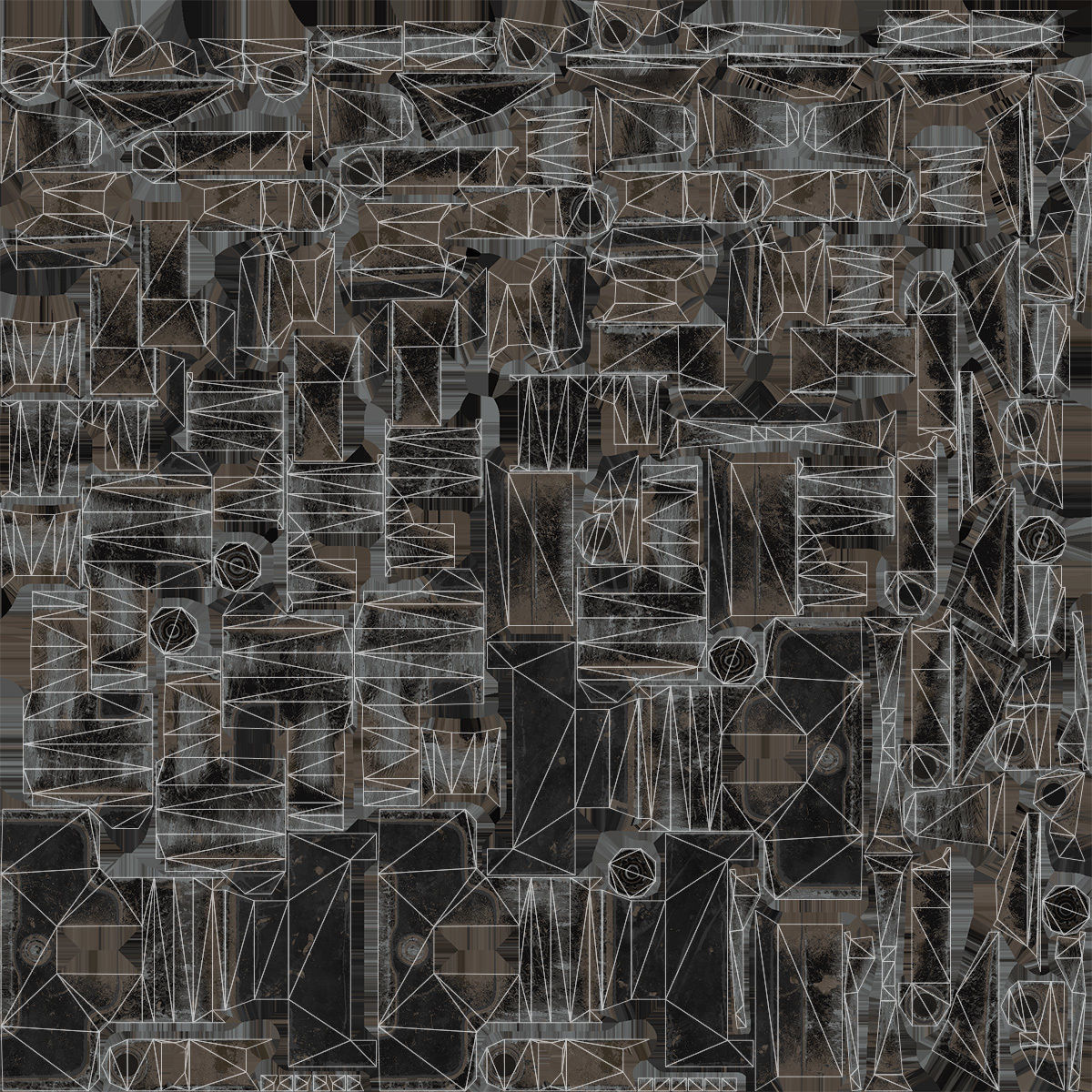

UV unwrapped modelNo overlapped UVs per UV island
Naming
Allowed characters
Description

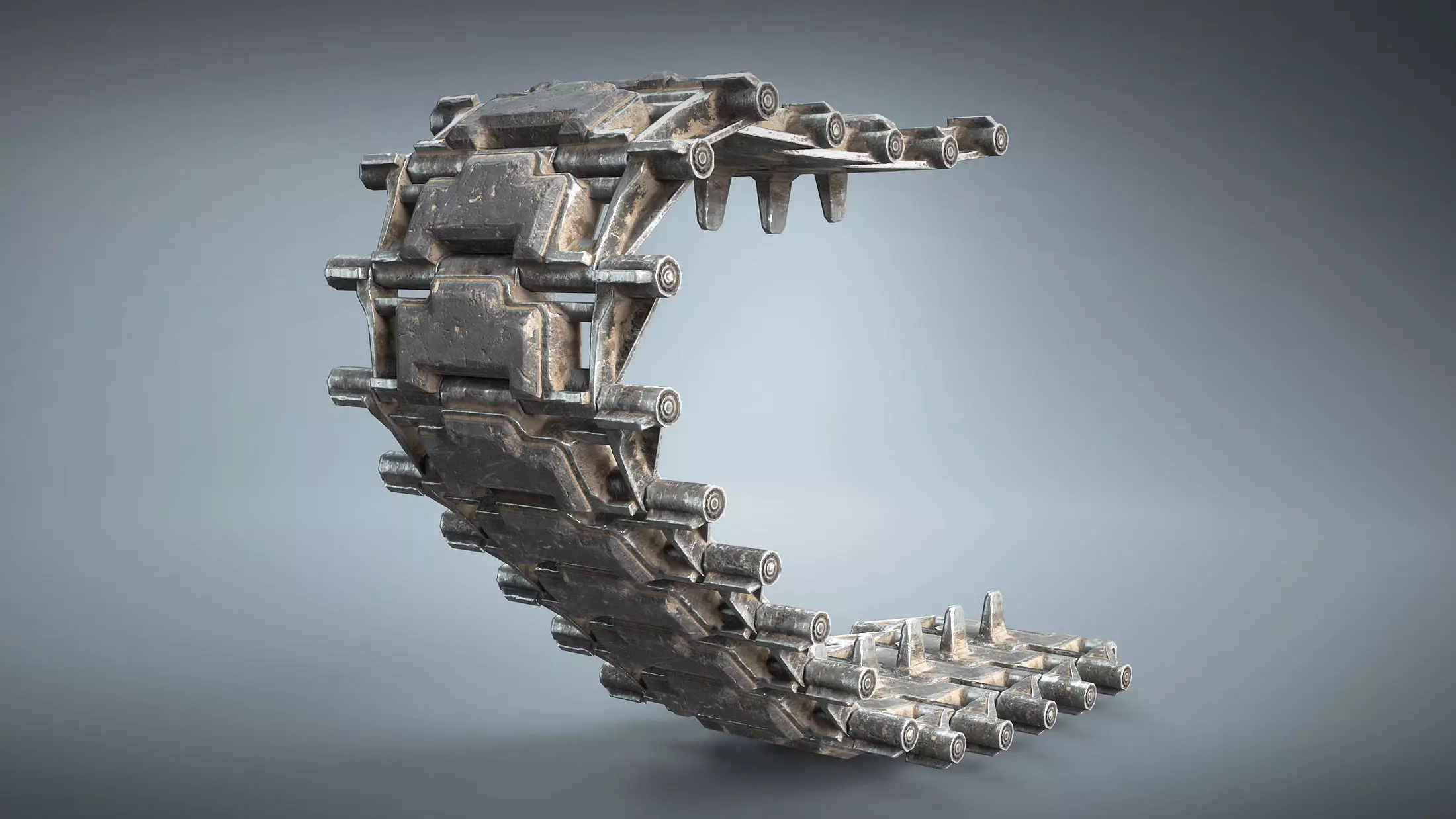

Product included high-poly and textured low-poly 3d-models. This is tracks for military vehicles M2/M3 Bradley, M270 MLRS, CV-90 Warrior, LVTP 7.

Features:

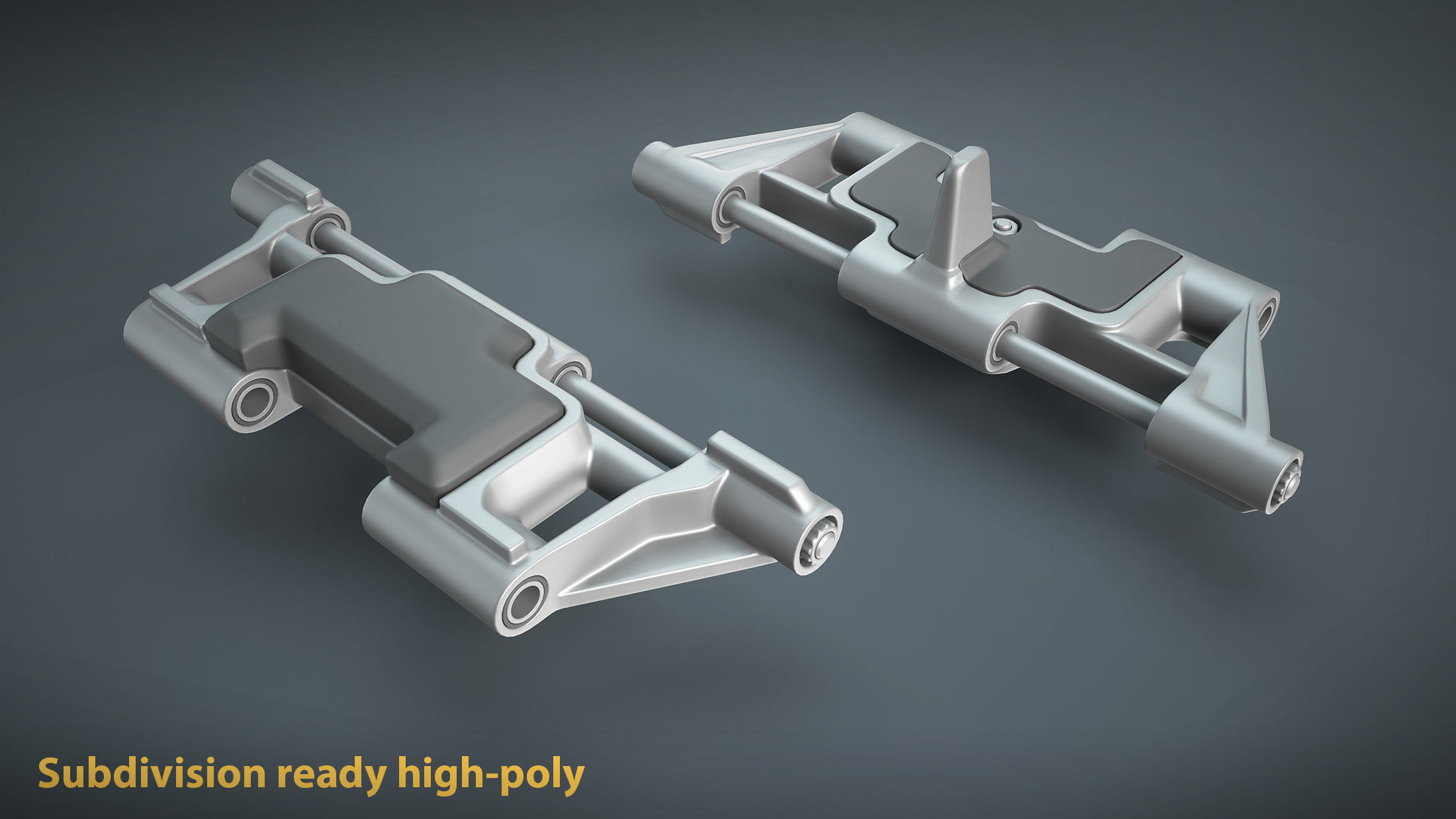

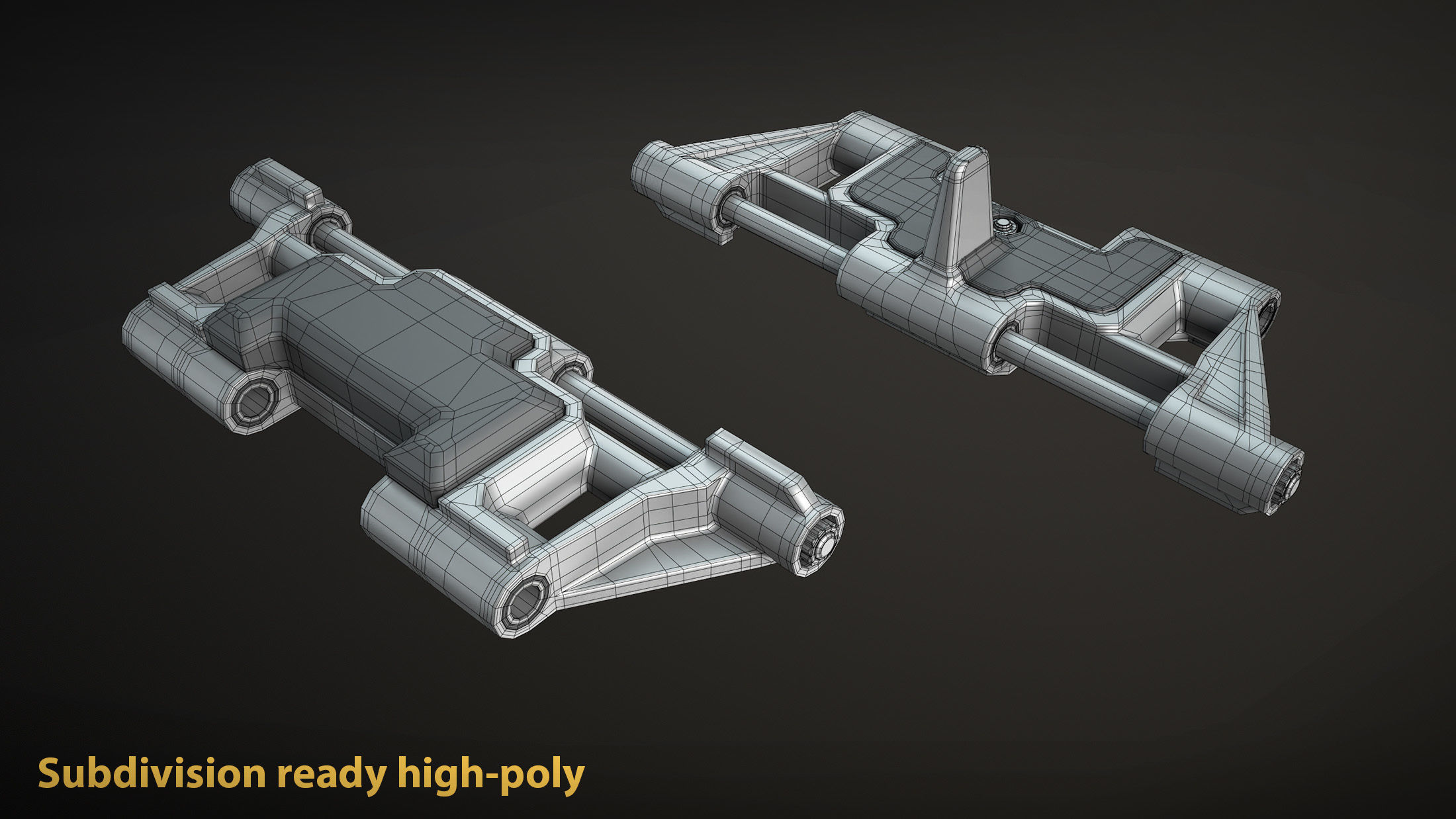

  • 2 version of tracks: textured low-poly and high-poly model for subdivision
  • Modeled in Blender 3
  • All images are taken in Marmoset Toolbag 4 with ray tracing
  • Included Marmoset Toolbag (ver. 4.02) scene
  • Included Substance Painter (ver. 2020.2.2 (6.2.2)) file project
  • Low-poly model is triangulated
  • High-poly model has no texturs and UV's
  • High-poly model looks fine without subdivision

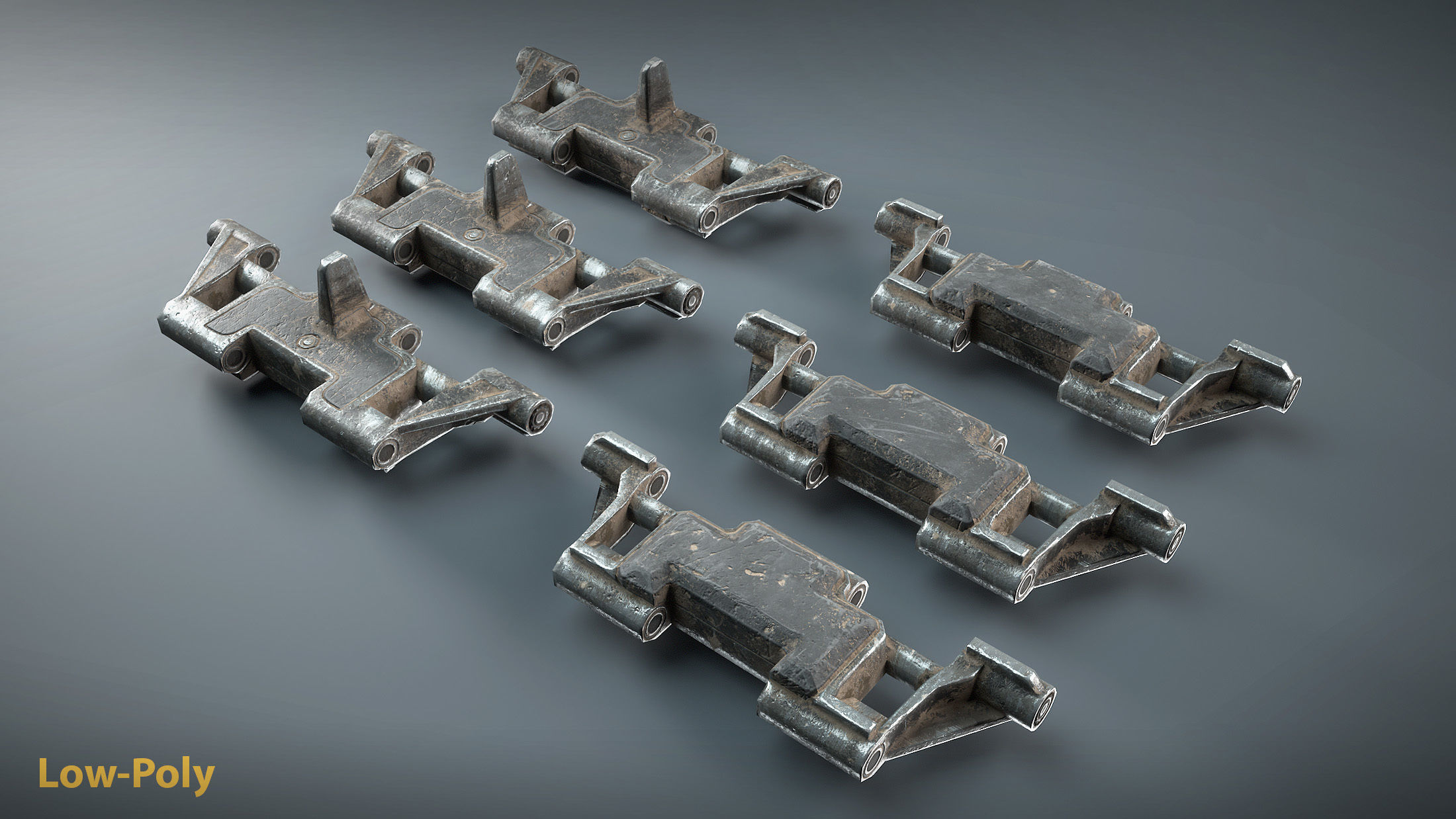

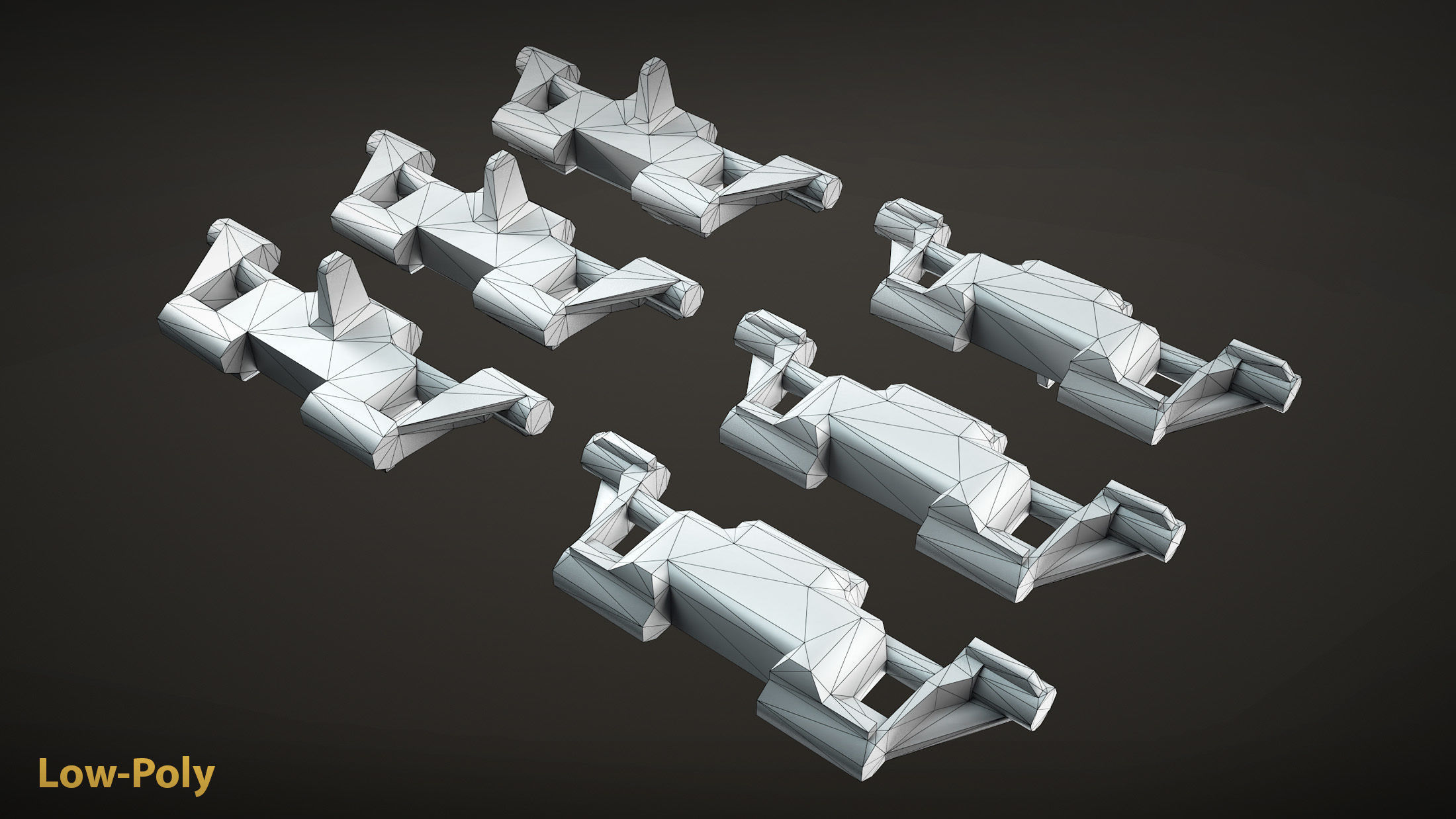

Polycount for low-poly (1 track):

  • 436 tris
  • 502 verts (in game engine)

Polycount for high-poly (1 track without subdivision):

  • 17 936 tris
  • 8 969 verts

Polycount for high-poly (1 track with subdivision):

  • 71 676 tris
  • 35 845 verts

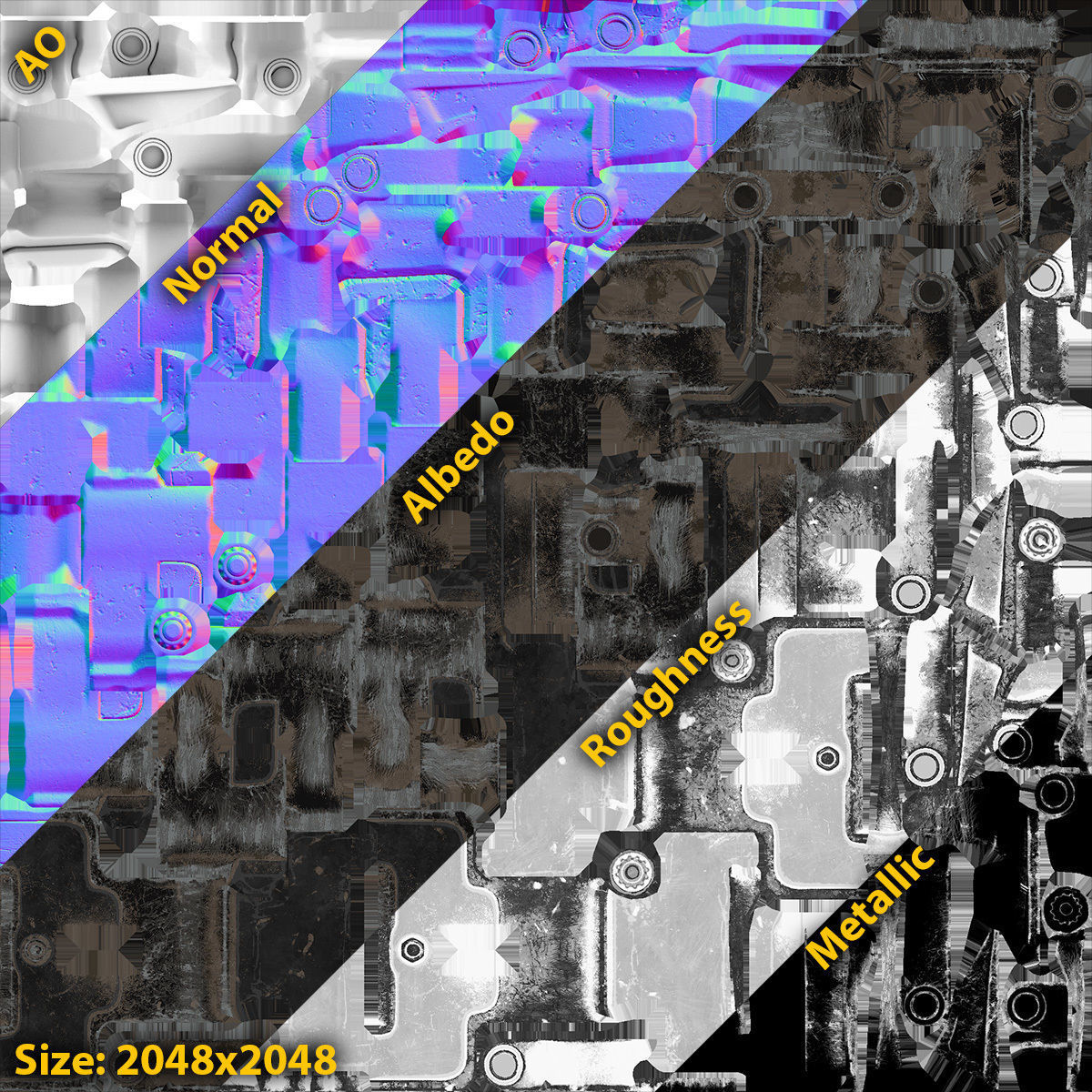

Texture Set:

  • 2048x2048
Write comment
Item rating
3 0
L
linkfreek
linkfreek 2023-01-18 17:16:30 UTC
Recommended
3D model is actually quite tiny, perhaps for upload purposes? Anyway I rescaled it to the size I wanted and it printed up fine. Tracks do not fit HobbyBoss AAVP-7A1 drive sprockets (the AAVP-7A1 uses the Bradley suspension and tracks). The pitch is slightly off, so tracks do not sit down into the drive teeth as track goes around sprocket. This could be a problem with the HobbyBoss sprockets, not the track. Tracks DO fit onto the Tamiya Bradley M2 drive sprockets once the drive sprocket teeth are thinned a bit, so the pitch is correct for them.
M2 Bradley and M270 MLRS Tracks
$10.00

Royalty Free License
M2 Bradley and M270 MLRS Tracks
$10.00

Royalty Free License
Rryzhkov-3d-models
ryzhkov-3d-models
(112 reviews)
Response 98% in 0.4h
3D Modeling
Low-poly Modeling
UV mapping
Texturing
PBR modeling

3D Model formats

Format limitations
Native
  • Blender 3.0 (.blend)57.3 MBVersion: 3.0Renderer: Eevee
Exchange
  • Marmoset Toolbag 4 (.tbscene, .tbmat)708 KB
  • Textures 20.7 MB

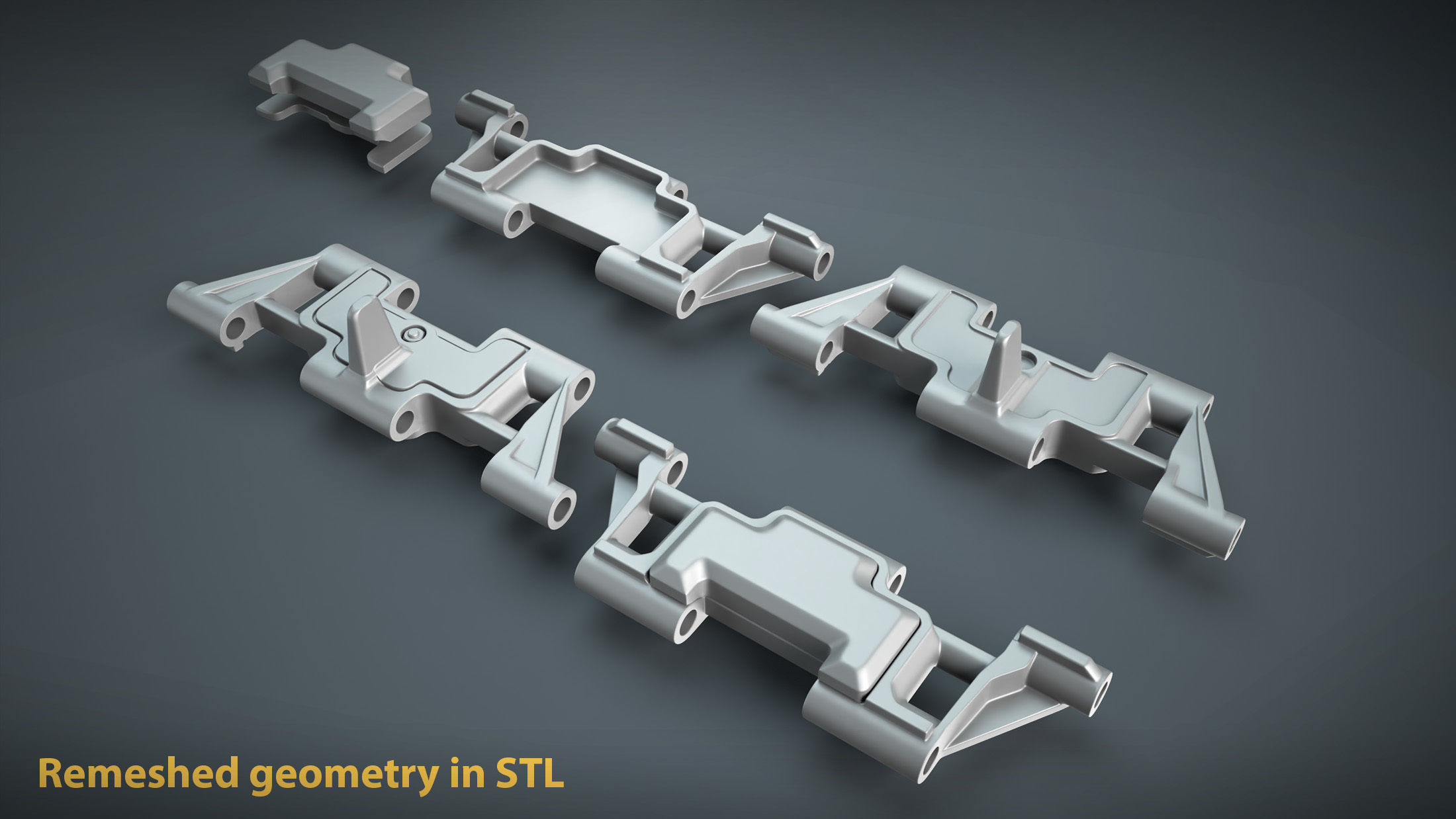

  • Stereolithography (.stl)46.9 MB
  • Autodesk FBX (.fbx)2.31 MB
  • Substance Painter 2020 (.spp, .sbsar, .spsm)80.7 MB
  • OBJ (.obj, .mtl)1.4 MB

3D Model details

  • Publish date2022-07-18
  • Model ID#3877100
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Subdivision ready
  • Polygons 436
  • Vertices 502
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
  • Plugins used
  • Ready for 3D Printing
