High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

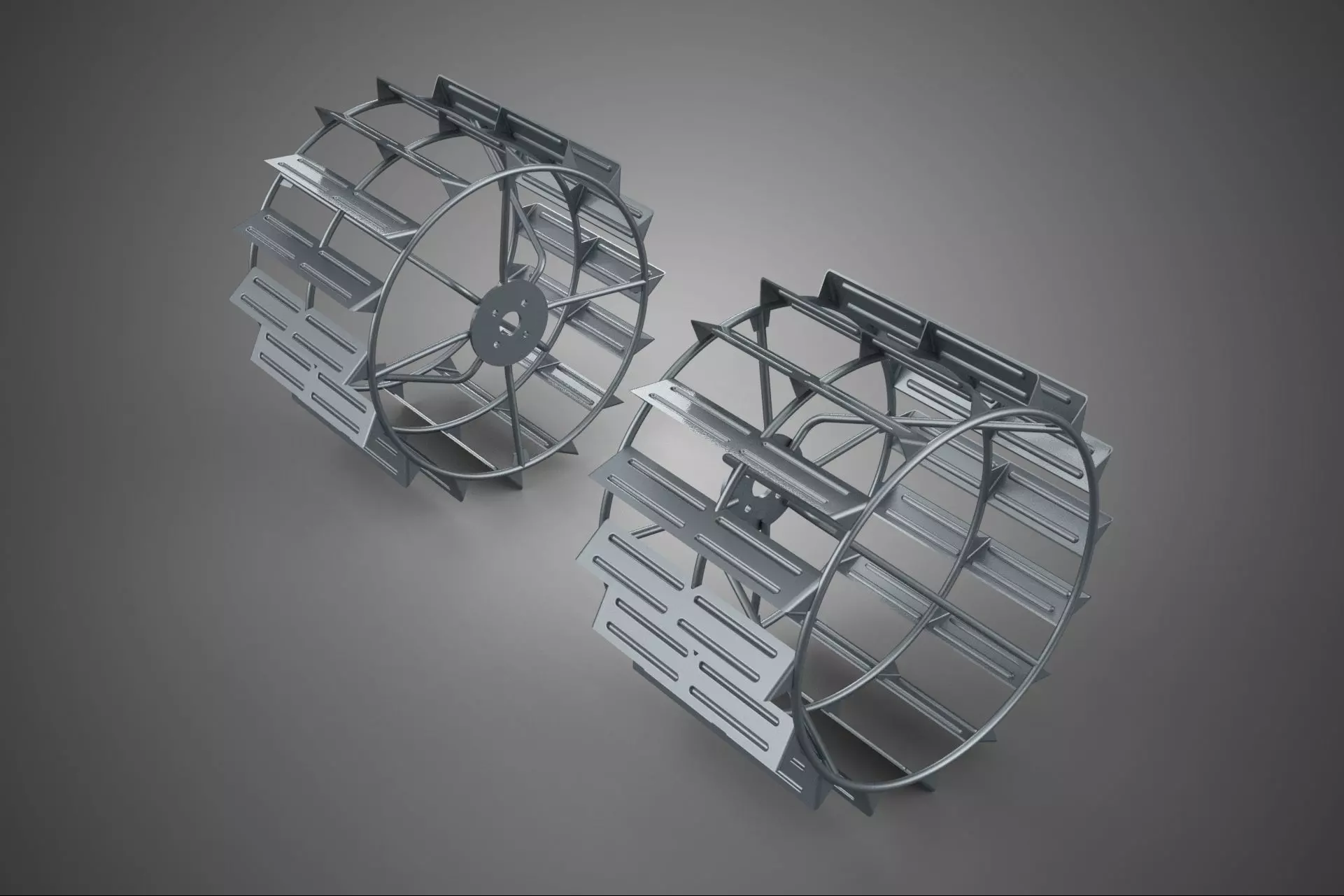

The Long Wide Double Track Tread Metal Cage Wheel Tractor Tyre Tire (often formally referred to as a Skeletal Traction Wheel, Open-Frame Impeller, or Paddy Wheel) is a specialized, non-pneumatic traction apparatus designed for agricultural tractors operating in extremely soft, low-cohesion environments, particularly saturated fields, wetlands, or rice paddies. This complex designation describes a ground-engaging component engineered to maximize flotation and traction efficiency while minimizing detrimental soil compaction and slippage.
Design and Nomenclature
The structure is fundamentally a heavy-duty, fabricated steel assembly, replacing or supplementing conventional rubber tires.
1. Material and Construction (Metal Cage Wheel):
The primary structure consists of a rigid, open skeletal framework—the metal cage—typically constructed from welded high-tensile steel alloys. This cage connects the hub assembly to the exterior ground-engaging elements. The open design is critical for operational efficiency, allowing rapid shedding of mud, water, and debris, preventing hydrostatic resistance and maintaining a consistent interface with the soil.
2. Ground Engagement Surface (Double Track Tread):
The distinguishing feature is the double track tread configuration. This refers to two distinct, parallel, annular steel rims (tracks) separated by the width of the metal cage structure. These parallel tracks function to distribute the load across a significantly greater area than a single-track wheel of comparable diameter, simultaneously enhancing lateral stability.
3. Treading Elements (Tread):
The exterior surfaces of the double tracks are fitted with integrated traction aids, referred to as the tread. These typically consist of aggressive, radial elements such as paddles, grousers, or cleats. These components are specifically engineered to penetrate the saturated soil layer, providing the necessary shear strength and propulsion (impelling force) required for movement in viscous substrates where frictional traction is limited. The length and width of the overall assembly maximize the effective ground contact footprint.
Operational Characteristics
Flotation and Ground Pressure:
The Long Wide dimensions are central to the wheel’s performance. By substantially increasing the area of contact, the design significantly reduces the ground contact pressure (measured in PSI or kPa). This high-flotation capability is essential for minimizing deep rutting and preventing the tractor from sinking in saturated soil (a key concern in rice paddy farming, known as puddled conditions).
Traction Performance:
The aggressive grousers and open cage structure ensure continuous, positive engagement. Unlike pneumatic tires that rely primarily on friction and tread deformation, the skeletal wheel utilizes mechanical resistance and impelling action. The design prevents the buildup of hydrostatic pressure beneath the wheel, which would otherwise lead to hydroplaning or complete loss of traction.
Application Context:
Skeletal cage wheels are primarily utilized in specialized agricultural environments, often mounted on two-wheel-drive (2WD) or four-wheel-drive (4WD) utility tractors used for tasks such as field preparation (puddling) and cultivation in flooded fields. They are frequently mounted as external duals adjacent to standard rubber tires, or occasionally replace the main drive tires entirely, depending on the specific application requirements and severity of the terrain.
KEYWORDS: Skeletal Wheel, Paddy Field, Traction Apparatus, High-Flotation, Non-Pneumatic, Dual-Rim, Metal Cage, Grouser, Cleat, Puddling, Saturated Soil, Agricultural Engineering, Wetland Farming, Impeller Wheel, Soil Compaction Mitigation, Double Track, Steel Wheel, Tractor Implement, Ground Pressure, Lateral Stability, Shear Force, Hydrostatic Resistance, Field Preparation, Rolling Stock, Heavy Duty, Welded Steel, Tread Design, Axial Load Distribution, Off-Road, Utility Tractor.
