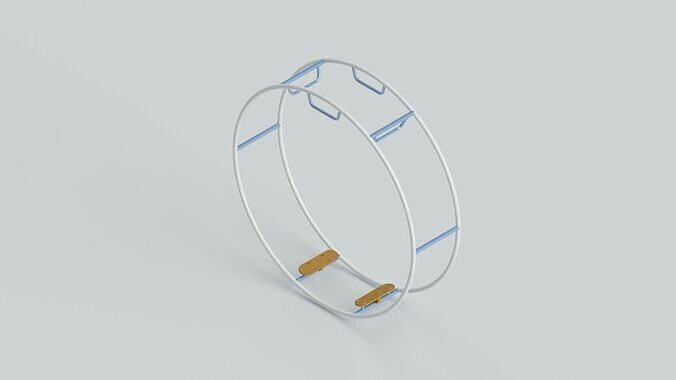

German wheel simulator develops the vestibular apparatus 3D model

This is the so-called German Wheel or Rhine Wheel simulator, which develops the vestibular apparatus of athletes or astronauts. So far, I have provided only a preview and a model in AutoCAD. If there is a wish from customers, I can prepare all the files for production. That is, I will add sketches, drawings and calculations of consumables.

So do not hesitate to send your wishes, I will be glad to cooperate.

Model Parameters:

• Large ring diameter: 2038mm;
• Width: 500 mm;
• Diameter of the annular and support tube: 38 mm;
• Pipe holder diameter: 25mm;

I tried to render with Arnold Autocad own renderer!
