Cut and Wrap - Blender Addon - One Click Image to Cutout 3D model

Cut & Wrap is an add-on I developed to turn any PNG—leaves, decals, logos, whatever—into a perfectly trimmed mesh with clean quad topology in just one click. What used to take hours of tedious hand-modeling can now be done instantly.

I was creating nature assets—plants, trees, and grasses—for the upcoming updates to Make Forest and Grovescape.

I felt frustrated by having to cut out leaves by hand—it took too much time and was boring

To make things easier, I created a tool that automates the entire cutout process, and make my life easier.A single click and a few simple settings are all it takes.

I also added a shrink-wrap feature that conforms cutouts to almost any surface,with more flexibility than Blender’s standard shrink-wrap.

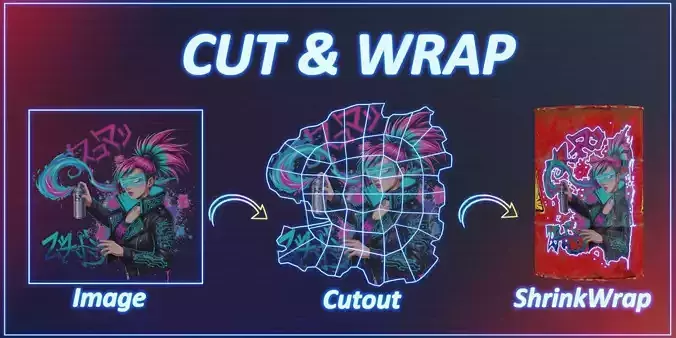

Here’s the presentation of the addon.

FeaturesMask Offset

You can adjust the space between the cutout outline and the image

Subdivisions

You can increase on decrease the number of polygons that the cutout have based on you need.

Separate Island

Treat each disconnected region in a PNG as its own object, Enabling this option creates a separate mesh for each island.

A single leaf - one island

Two leaves - two islands

Batch Processing

The Addon can Batch process the cutouts, you can select the folder with you PNGs and adjust the settings to your need, it will create separate coutouts for all the images that are inside that folder,

Detect islands in every image

Apply your settings

Generate cutout meshes for all files—no limit on quantity

Topology Option

Keep full quad meshes for easy editing

Or delete all faces and leave only the boundary edges

Smooth the Outer Edge

Because of the way the Addon work, you may get jagged edges at the Outline, you can smooth it by clickin on Smooth the Outline, there are two types of smoothing one Normal Smoothing and the other one use Laplacian Smoothing.

Origin Control

Set each cutout’s origin to its center or to its bottom edge.

Placement Modes

All at Origin: stack every new cutout at the world origin

Next to each other: lay them out side by side with a uniform margin

Keep only Outline

Keep only outline option lets you delete all the quads inside the cutout and keep only the outline with its shape preserved.

Part 2 - Shrink Wrap

The add-on’s second part is the shrink-wrap feature: it generates the cutout and applies shrink-wrap to the selected mesh. This shrink-wrap offers more functionality than Blender’s default.

With the normal shrink-wrap, moving the cutout can stretch it; the Slide Cutout option eliminates stretching and makes it much easier to position the cutout precisely.

Blender ShrinkWrap Vs Cut & Wrap

With the normal shrink you can only shrink wrap the object but while moving the object it may cause some stretching issue, but with cut and wrap, you can place the cutout at any place without stretching the cutout and at the same time you can pan around in the viewport with your cutout being selected, this will help you place the cutout wherever you want.
