DESCRIPTION

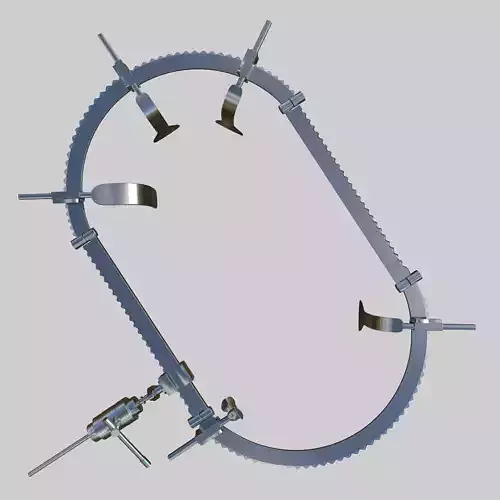

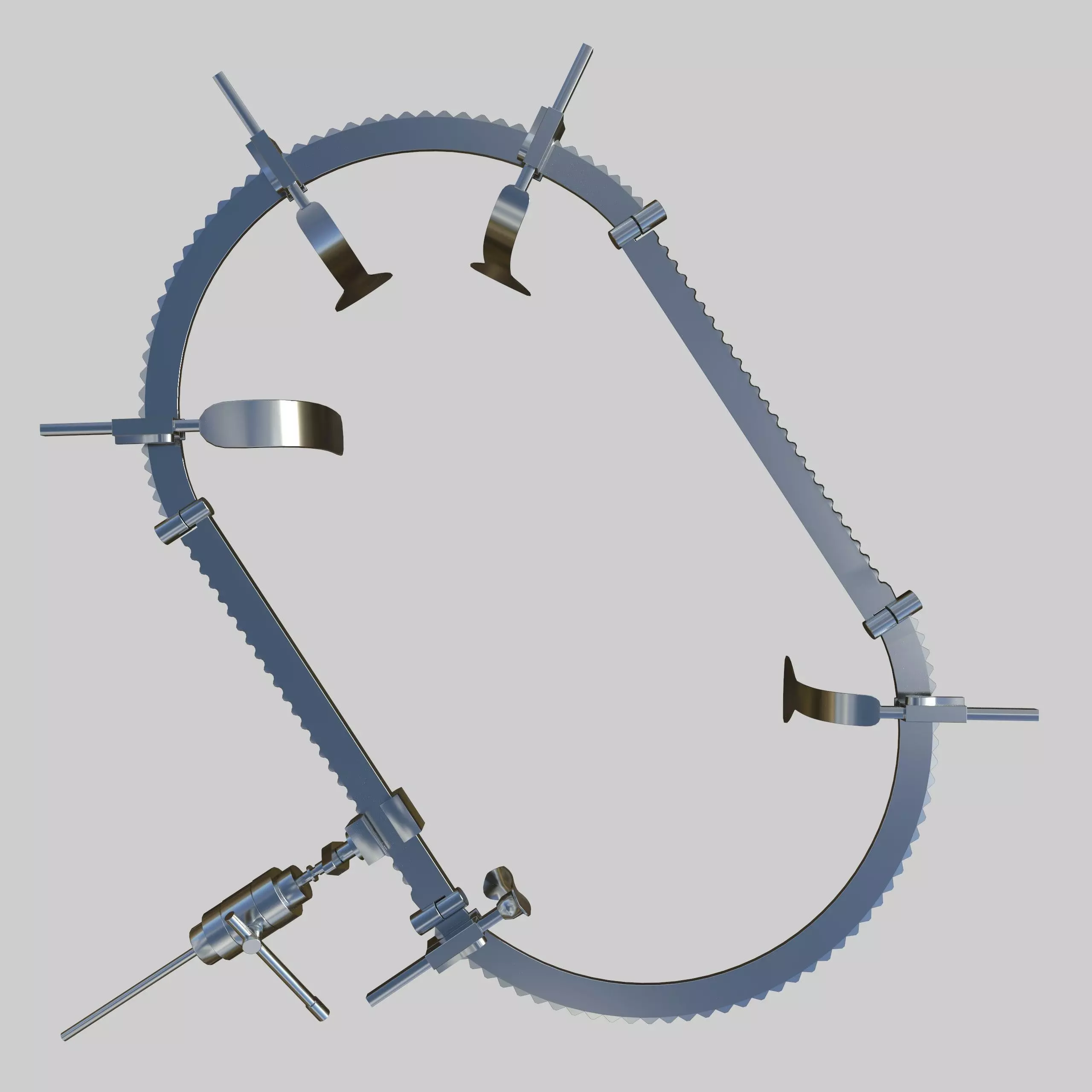

A highly detailed 3D model of the Bookwalter Retractor, a commonly used retractor system in open abdominal and thoracic surgeries.This model is optimized for medical visualization, surgical training, VR/AR simulation, and educational purposes.

  1. Realistic stainless-steel design with mechanical accuracy

  2. Includes adjustable retractor arms and blades

Perfect for

  1. Medical VR/AR training simulations

  2. Surgical procedure education

  3. Healthcare product visualization

  4. Scientific and surgical animations

Technical Details

  1. Formats: FBX, OBJ, BLEND.

  2. Geometry: Optimized for visualization and real-time use

  3. Polycount: Mid-poly (high detail with good performance balance)

  4. UVs: Clean, non-overlapping unwrap

  5. Textures: PBR workflow (Base Color, Roughness, Normal) in 2K

  6. Rigging/Animation: Static model, cables modeled for realism but not rigged

  7. Compatibility: Blender, 3ds Max, Maya, Unity, Unreal Engine

Related Tagsindustrialtool
surgical
retractor
systemsurgery
3d
abdominalthoracicmedicalsimulationoperatingroomequipmentscience
