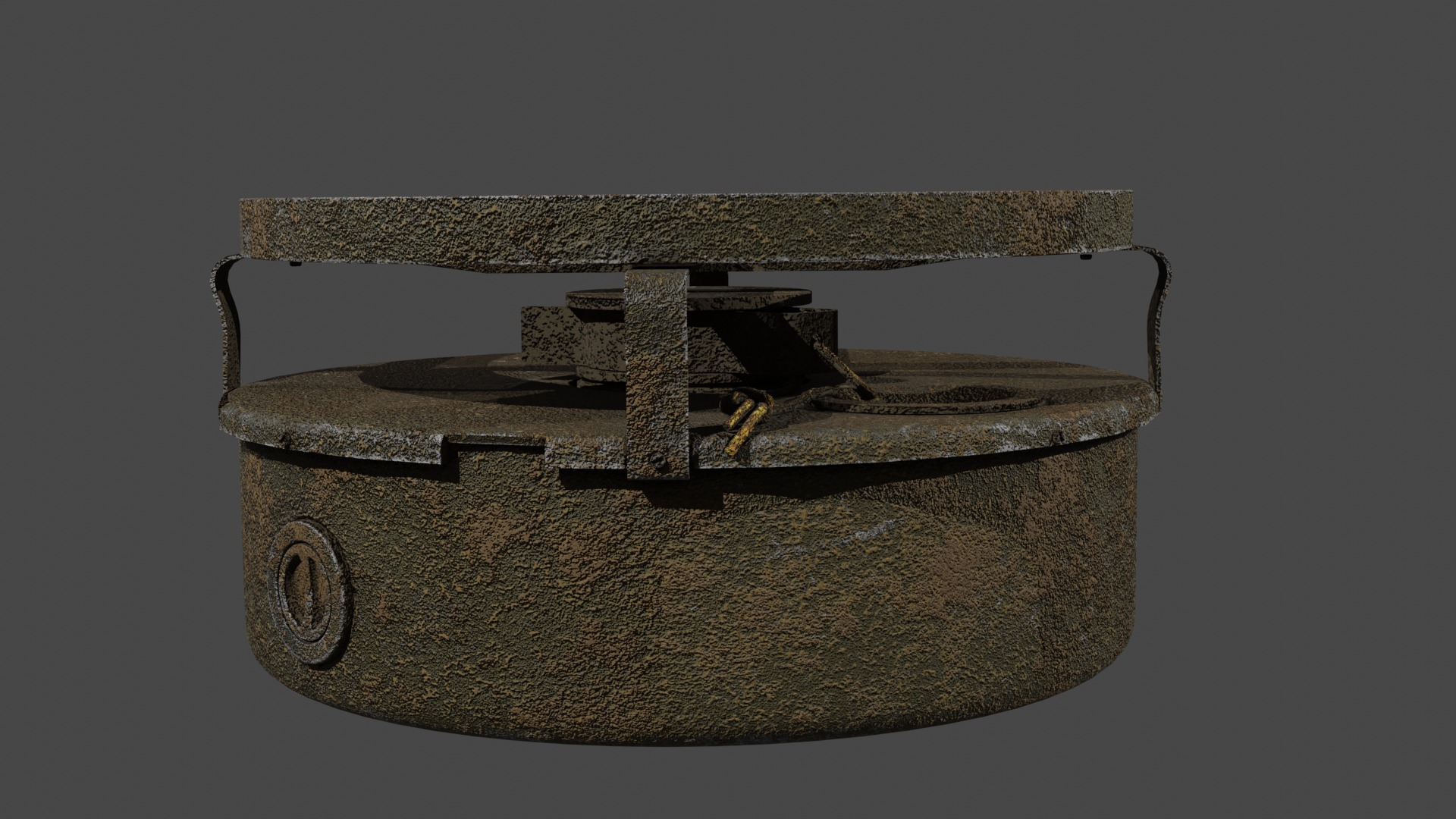

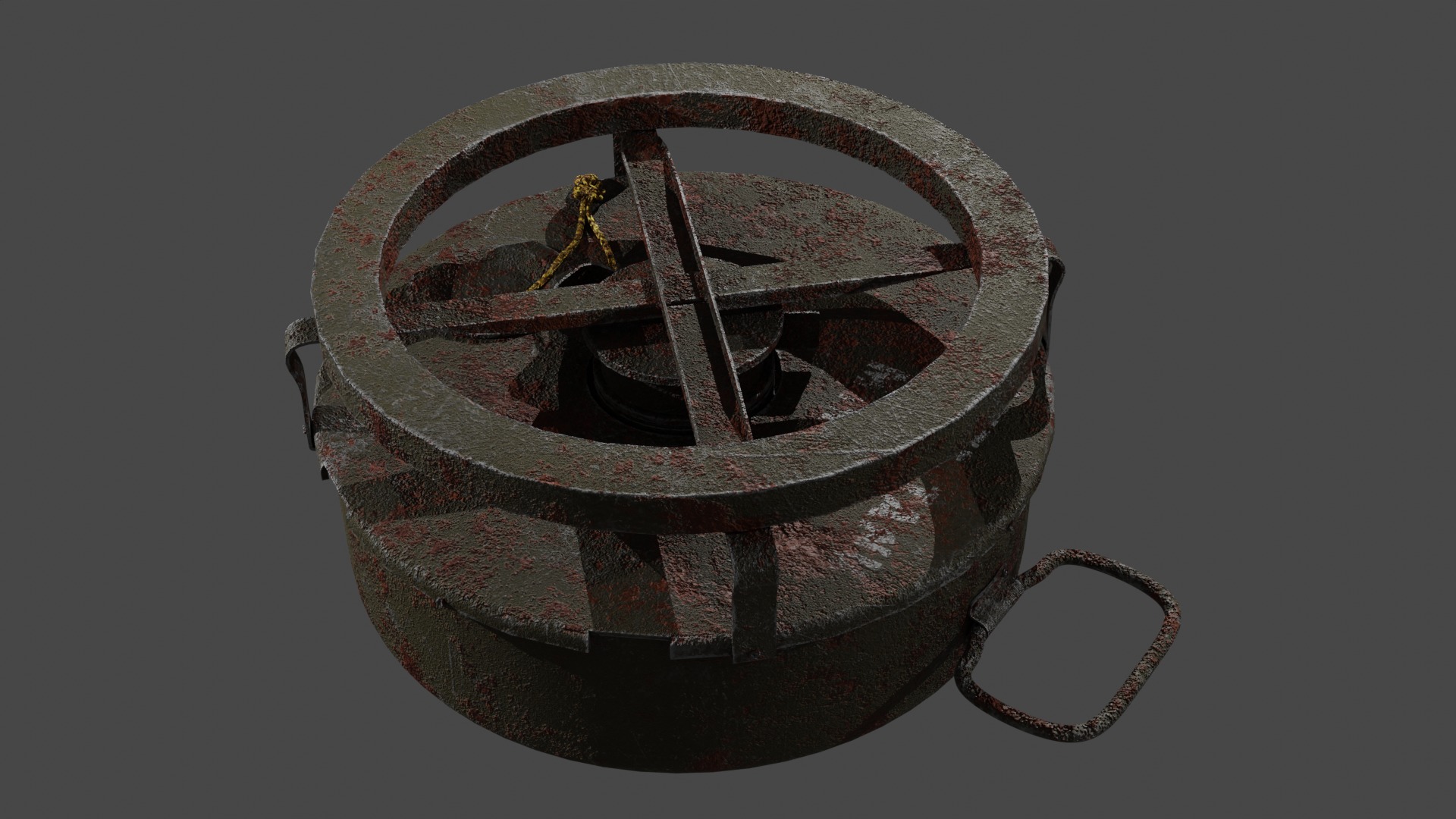

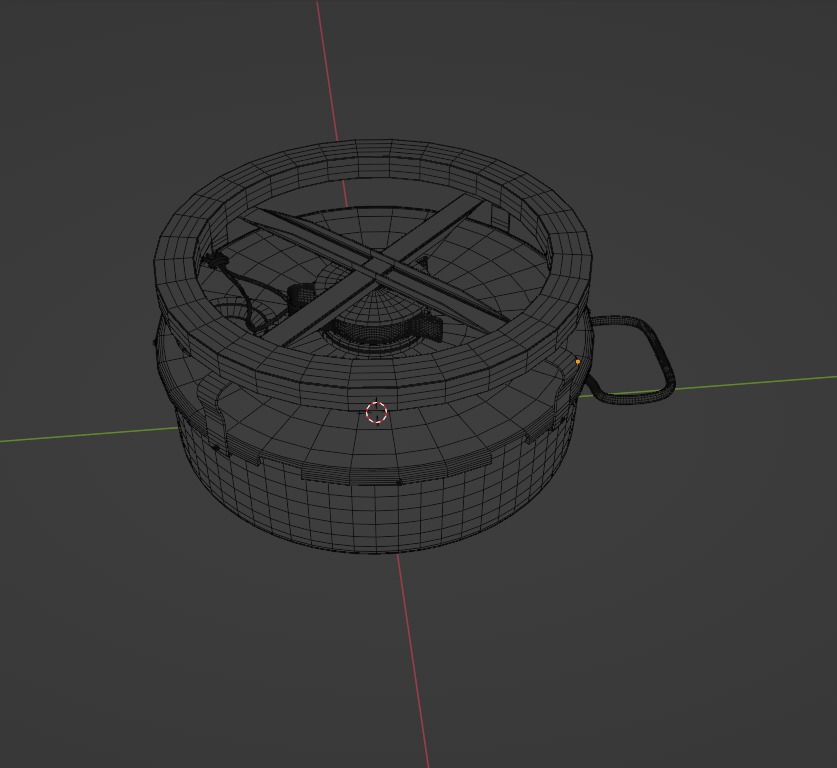

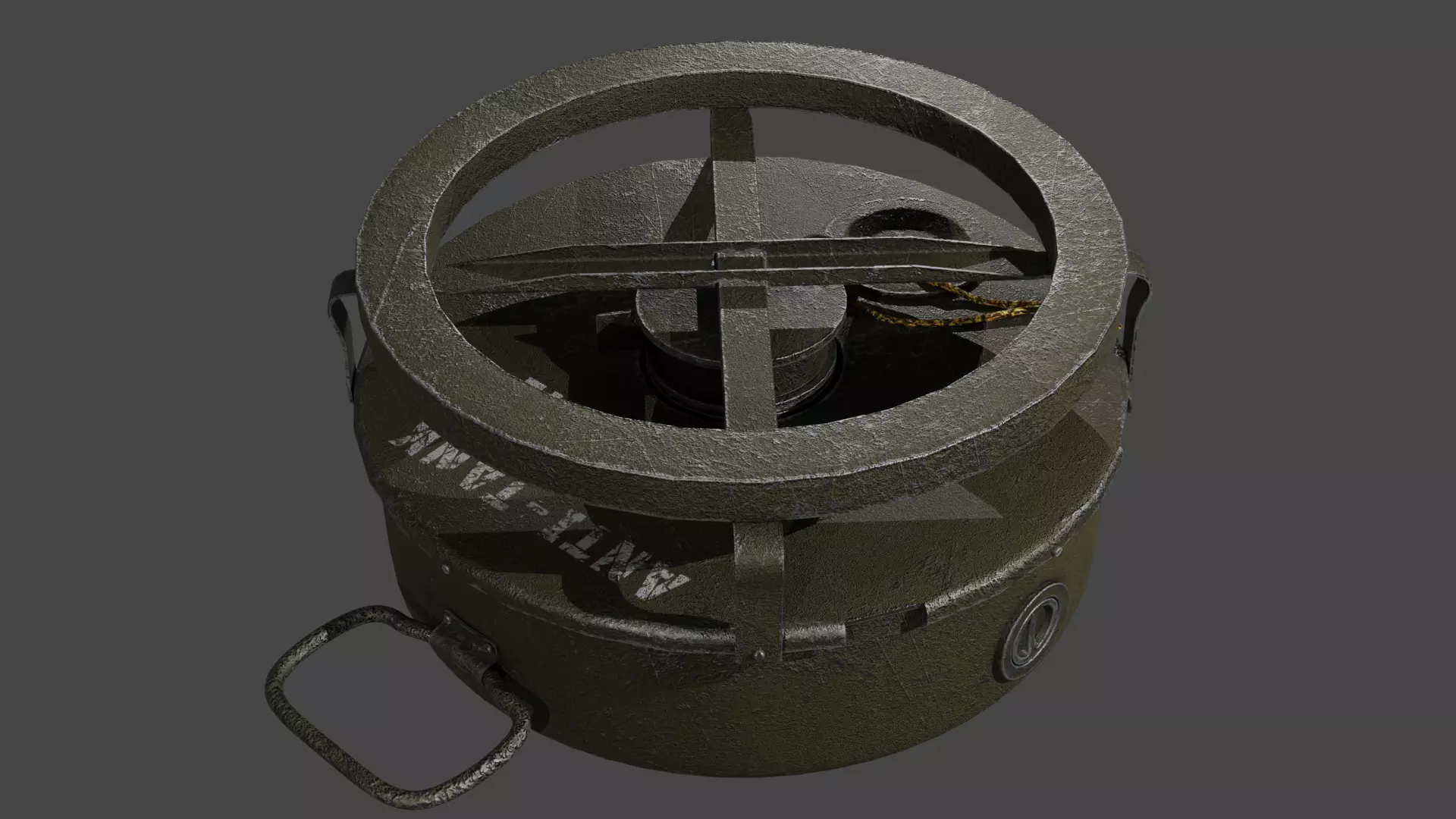

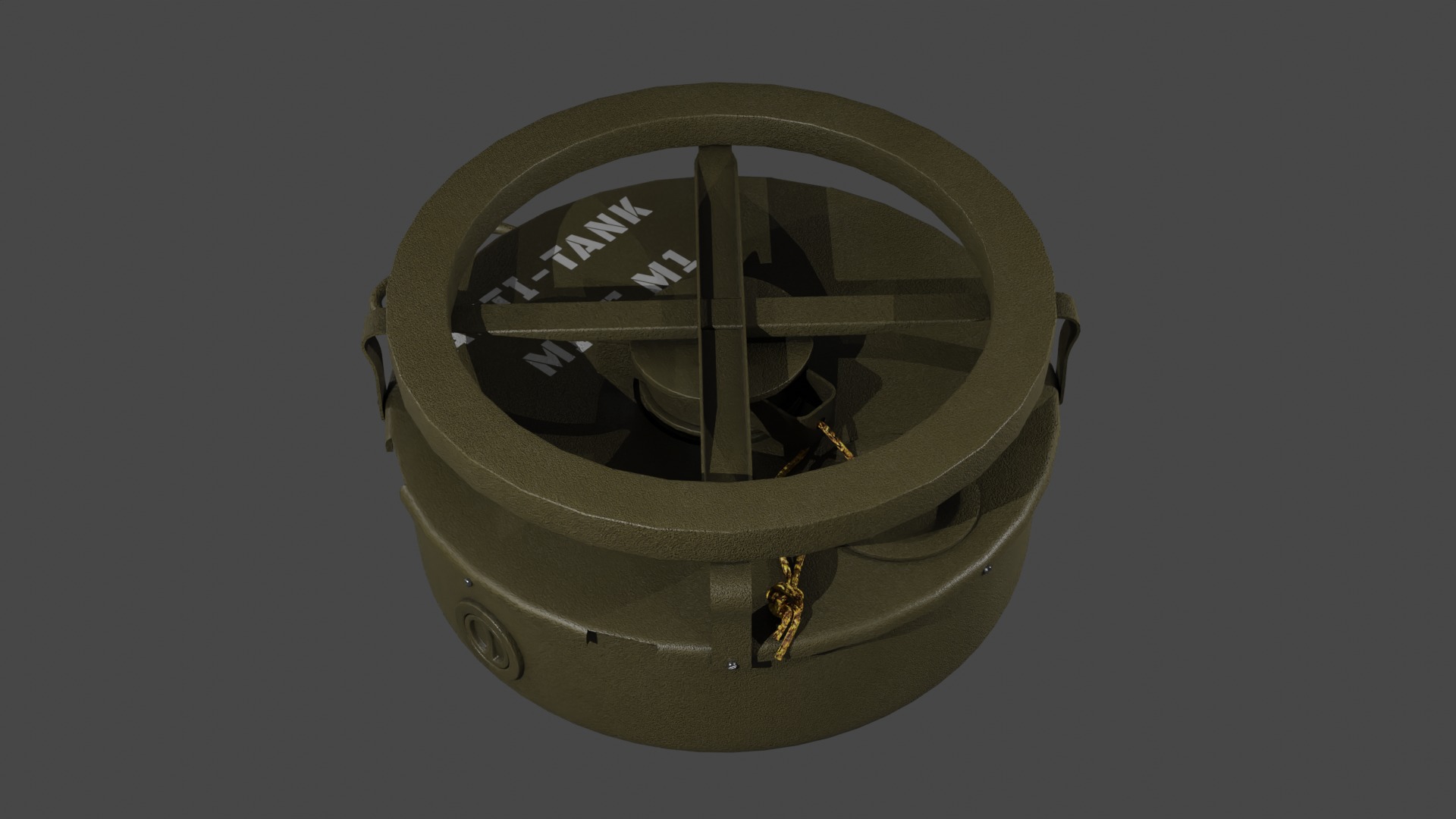

WW2 M1A1 Anti-Tank Mine 3D model

3d model of an anti-tank mine used by American troops during WW2.Model with 4 sets of textures in 4K resolution to be used depending on your needs.

Weight: 4.80 kgExplosive content: 2.70 kg of TNTHeight: 102 mmDiameter: 203 mmOperating pressure: 120 kg to 250 kg

The M1 anti-tank mine consists of a circular base containing the explosive (2.75 kg of TNT) surmounted by a cruciform pressure plate. The detonator reacts to different pressures: a lateral pressure must reach 120 kg while a central pressure must reach 250 kg.

Several versions of the M1 mine have been created: the M1A1 (different detonator), the M1B1 (smoke drive) and the M4 (with two primers and allowing the installation of an anti-lift system). When the pressure is sufficient (the plate can be oriented indifferently towards the surface or the opposite), the primer releases a spring which causes the explosion of the detonator and the mine.

This American anti-tank mine was used throughout the Second World War. It is copied by Argentina, China, Chad and Tunisia which continue to use it nowadays.
