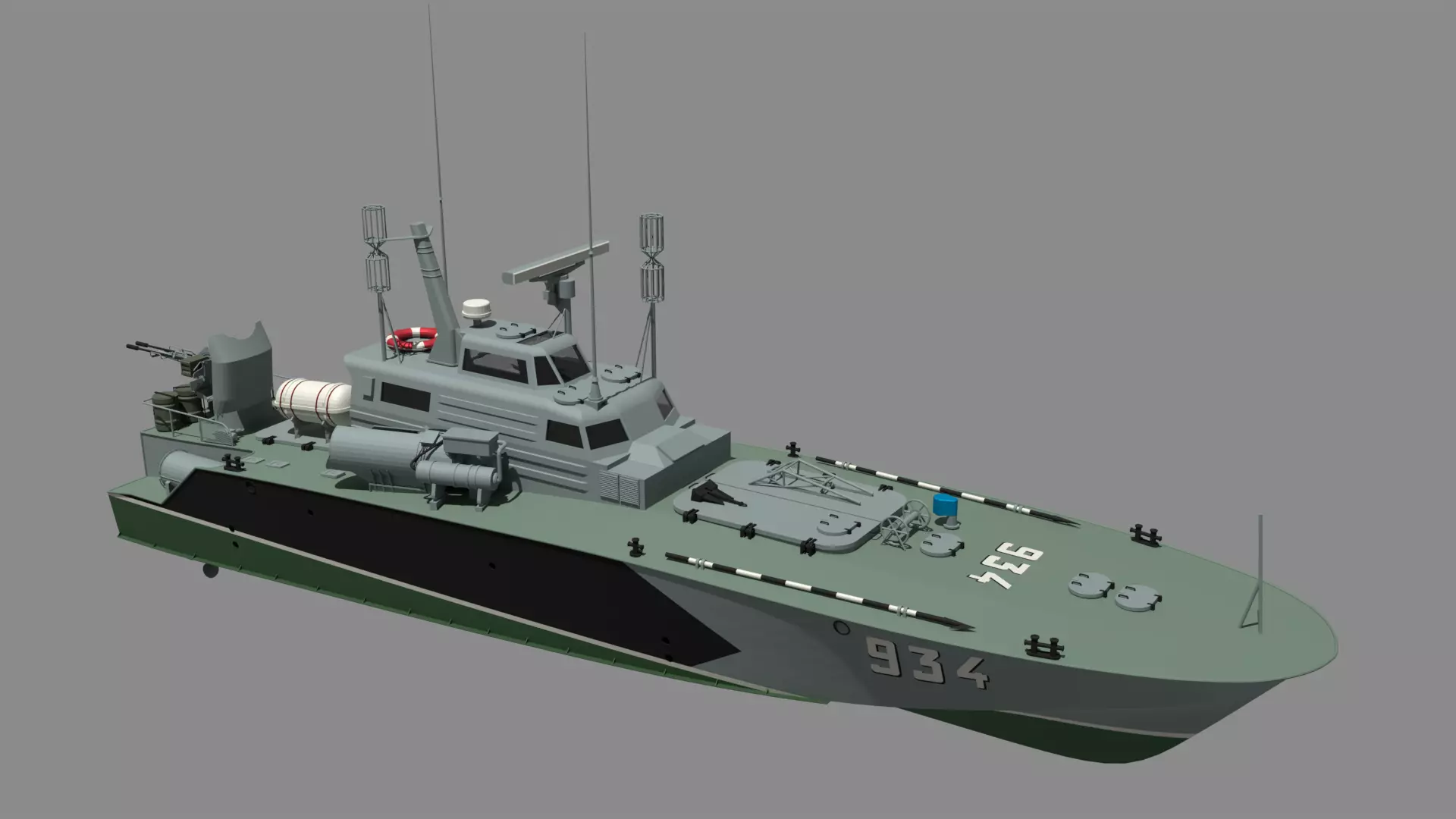

Small speed torpedo boat Project 131 formerly GDR 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Attention: This 3D model was not designed for 3d printing, these are digital files only for visualization and gaming

Dragonfly class was the name for a class of small torpedo speed boats (KTS) of the People's Navy of the GDR with the project number 131.400.The main armament of the class was two 533 mm torpedo tubes that were permanently installed parallel to the keel and could not be reloaded with on-board means. During the attack, the torpedoes, somewhat untypical, were dropped aft to then follow the course of the launching boat. It was usually steam-powered torpedoes 53-39 PM Soviet design. A double-barreled 23 mm gun was installed at the rear for air defense.

Units : 30 + 4 prototypesShipyard: Peene shipyard and RechlinService : 1974 to 1990

Displacement: 30 t normal / 35.17 t max.Length : 18.96 mWidth : 4.42 mDraft : 1.74 m under propellerCrew : 5

Drive: 3 M-50F diesel engines with 880 kW (1200 PS) each, 3 screwsSpeed: maximum 48 knAction radius: 300 nm at 37kn

Arming:2 533 mm torpedo tubes2 marine exhaust pipes1 double-barrel 23mm L/80 gun DL2V23

Related Tagsmilitaryshipnavytorpedoboatvehiclemilitary vehiclenavy ship

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Small speed torpedo boat Project 131 formerly GDR 3D model

Royalty Free License
Created by
TerminuS
TerminuS
(11 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File format
BLEND
Blender<br />Version: 2.91 - Renderer: Cycles<br />File Size: 15.4 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Polygon mesh
A model built from polygons (triangles or quads) connected in a mesh.
120479 polygons
The total number of polygons (flat shapes) that make up the 3D model.
 / 135441 vertices
The number of points (corners) that define the shape of the model's polygons.
Unwrapped UVs
Unknown
Publish date
2020-03-02
